Шланг для аэрации рыбной фермы/аэратор пруда/Нано-пузырьковый

How Aeration hose achieve its high energy efficiency?

Due to the number of pores created during our manufacturing process, there is a little resistance created when pushing air through the tubing. Resistance equals energy demand. By working with aeration hose, you can use significantly less horsepower when compared with traditional methods of aeration.(Paddle wheel, aspirators, less efficient tube)

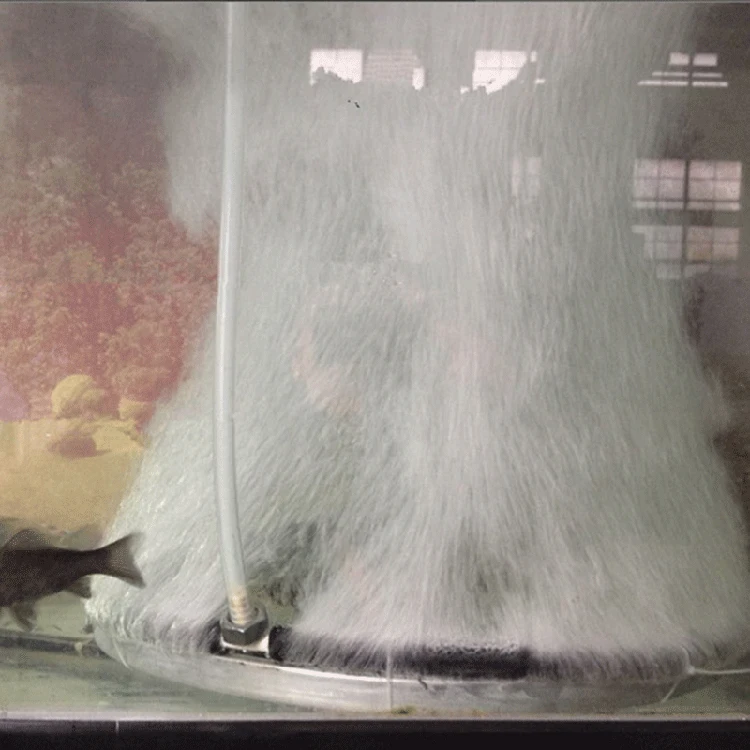

Aeration hose’s tiny pore size creates extremely small diameter bubbles. The smaller a bubble of air the more efficiently it transfer oxygen into water(more surface area). Small bubbles also take take longer to rise once they are introduce into the water. Slowing rising, small-diameter bubbles mean more contact with the water and a much higher rate of oxygen transfer.

By creating significantly smaller bubbles, more efficiency,aeration tube are able to deliver high rates of oxygen transfer and energy efficiency.

What benefits you can get from Aeration Hose?

aeration tubing can solve these problems with these distinct its advantages.
1.Suitable for all types of ponds
2.Clean and service easily.

3.No moving parts, low depreciation

4.Initial investment cost is low

5.More productive

6.Allow to eat more often

7.Simple installation, low maintenance

8.An effective energy consumption saving of 75%

9.Increasing the growth rate of fish and shrimp

10.Maintaining oxygen levels in water

11.Reducing the harmful gases in water

Features of aeration tube

1.outer diameter:10-28mm

2.Wall thickness: 2 mm above

3.Bubbles size 1-3mm

4.Air flow 0.008-0.032m3/min per meter(0.5-2.2m3/h per meter)

5.Working pressure:20kpa-50kpa

6.Dynamic power: 0.03kw/m

7.Applicable water depth: 0-6 meters

8.Easy installation

9.Side Channel Blower : effective water depth about 1 meter, housed density 1-2 times improve.

10.Centrifugal pump: effective water depth about 2-3 meters, stocking density improve 3-4 times.

11.Roots Blower : effective 3-10 meters above water depth, the effective length can reach 300m,

stocking density can be reached 3-6 times.

Note: no matter you use which kinds of models of air pump, and the pipe section sum is not

greater than the total area of main section. If any more questions,

please feel free to contact us.

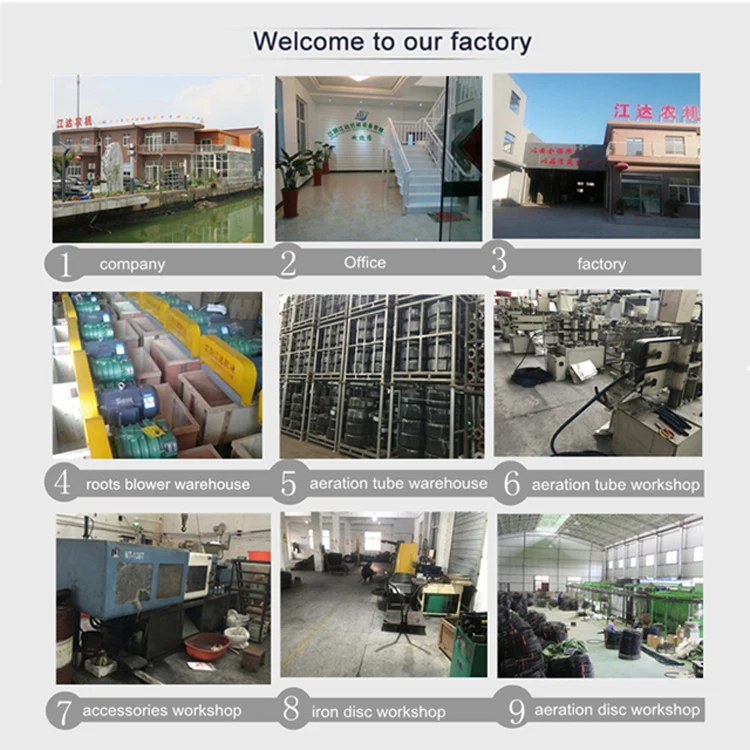

Jiangyin City Jiangda Machinery And Equipment Co.,Ltd. is a professional manufacturer in the field of aeration hose , with more than 20 years' manufacture experience. We have a whole set of equipment and techniques in the design, manufacture and after sales services. We have more than 25 main technicians with junior college certificates in technical R&D department.
