1. Descriptions



AT525 Online Battery Internal Online Tester measurement requirements from contact resistance to internal resistance and voltage of batteries .It is the use of a high-performance processors and 3.5" TFT LCD screen smart handheld Meter. Accurate and convenient measurements of passive-components can be achieved in all occasions for a long time. Wide Resistance Measurement Range from 100μΩ to 3.2kΩ . 3200 resistance readers and 5000 voltage readers. It can guarantee 0.05% accuracy, even in the condition of the testing speed under 15/s. AT518 is equipped with Mini-USB interface, can conveniently make data communication and remote control with PC.

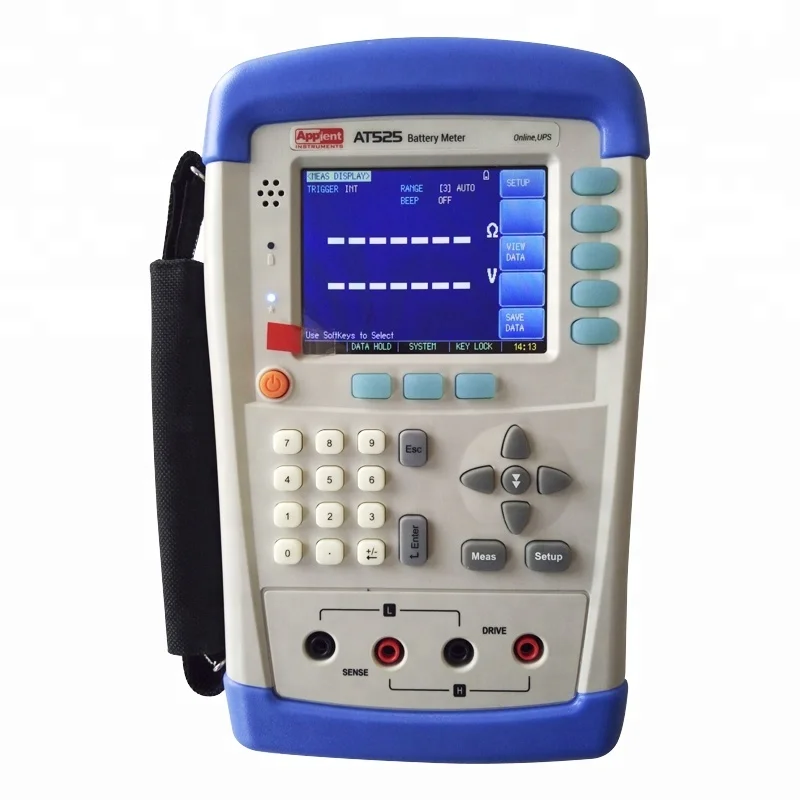

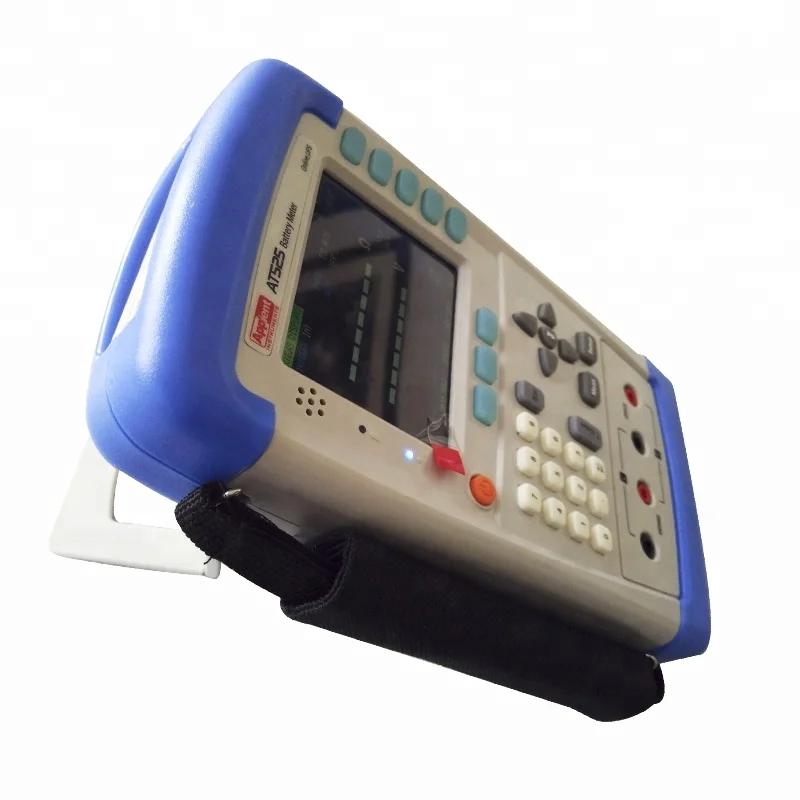

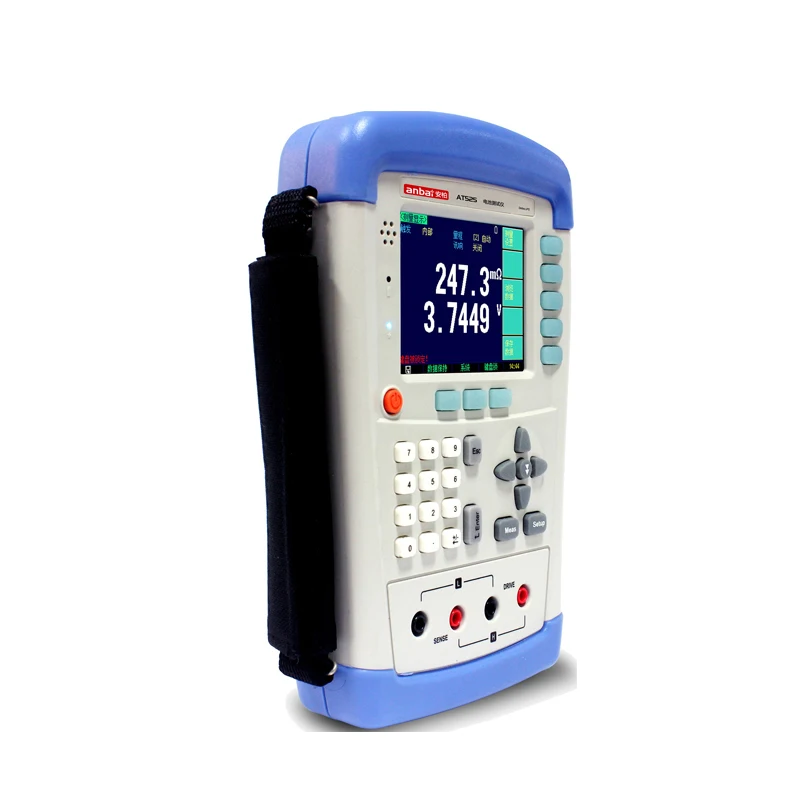

AT525 Battery Internal Resistance Online Tester
SPECIFICATIONS
Parameters	AC resistance, DC voltage
Accuracy	Resistance: 0.5%±5dgt   Voltage: 0.05%±5dgt
Measurement Range	Resistance: 0.001mΩ~3.3Ω   V: 0.0001V~60V
Signal Source	AC: 1kHz  Open-circuit Voltage: < 30mv  Current: < 15mA
Range	Automatic, Manual, Nominal with 6 ranges
Speed	20 times/second, 10 times/second, 3 times/second
Result Display	ABS/PER/SEQ
Max Reading	Resistance: 3200    Voltage: 5000
Max Resolution	Resistance: 0.01mΩ   Voltage: 1mV
Adjustment	Short-circuit reset for each range
Comparator	Voltage compare separately, resistance compare separately,  Voltage and resistance combination compare GD/NG sorting result display, beep
Trigger	Internal, Manual, Remote
Test Terminal	4 terminal shielding  ( 2 check terminal and 2 driving terminal) and  external shielding ground section
Configuration Interface	Build-in Mini-USB (virtual serial port); Charging Interface; U disc Interface
Others	3.5 inches true color 16M color TFT-LCD display    Keypad lock and data hold function  Compatible SCPI Order Set    Switch in both Chinese and English Adjustable Background light   Auto power-off
GENERAL FEATURES
Adaptor(ATL909)			Input: 100-240V~50/60Hz  0.35A    Output: 9V 1A DC
Battery Parameters			8.4v, Li, 2200mAh rechargeable battery
Charging Time			Single continued charging time: max 300 Min
Working Life			≥ 8 hours
Dimension & Weight			130.23mm (Width)*210.76mm (Height)*37.88mm (Depth)    650g
ORDERING INFORMATION
Accessories		ATL501B 4-terminal kelvin test clip;  ATL909: DC adaptor;  ATL202 portable bag;  ATL804 Li- battery *ATL105Mini-USB communication cable  *ATL501C 4-terminal test probe  *ATS525 data acquisition software











2. Company Profile and the main advantages







Changzhou Applent Instruments Inc. was established in 2005, named Applent Technology. In 2009, Applent Technology renamed Applent Instruments Inc. With strong technical team, Applent focus on designing, researching and developing, manufacturing and selling all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc.



The main advantages:



A we have strong technical team and focus on designing,researching and developing



B we manufacture and sell all kinds of electrical meters, such as Precise Resistance Meters, DC Resistance Meters, LCR Digital Electric Bridges, Insulation Resistance Meters, etc



C we have a lot of agents all over China and USA Office. Professional people offer specialized technical support.
