Характеристики
Product Description
1. Product introduction

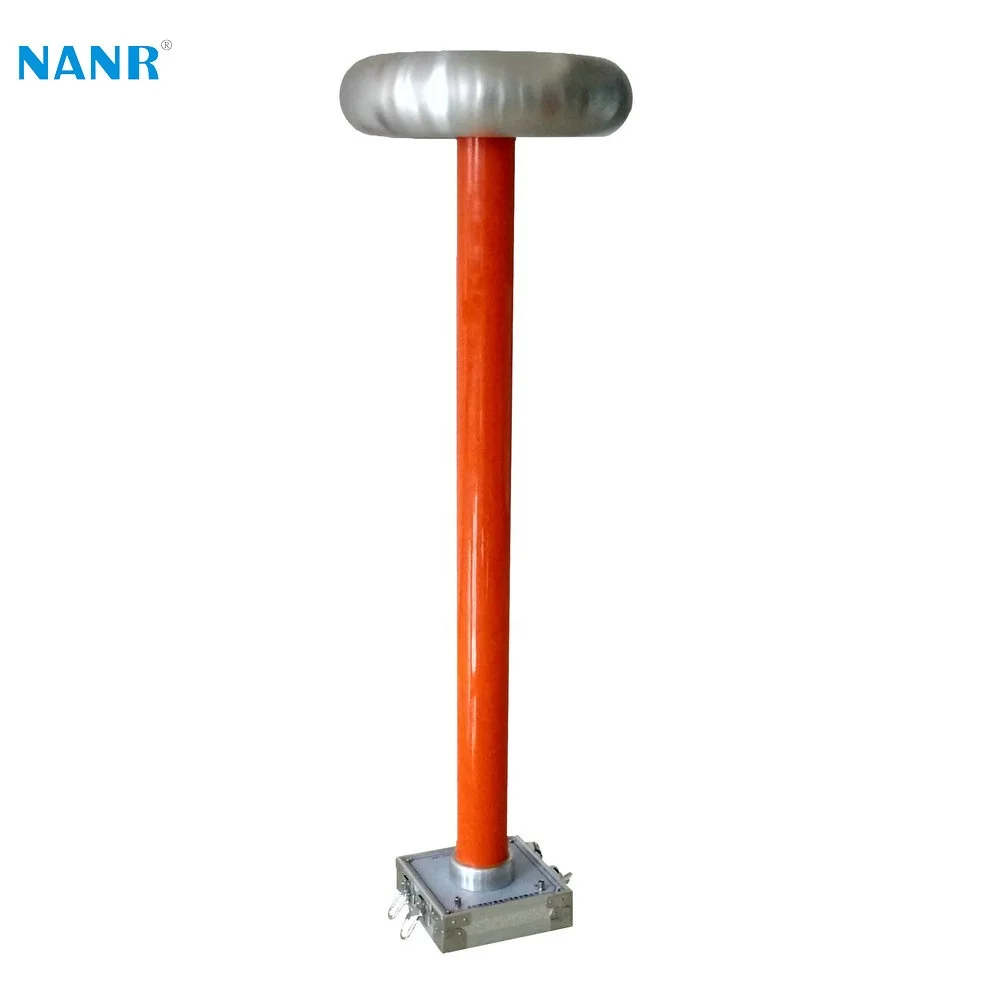

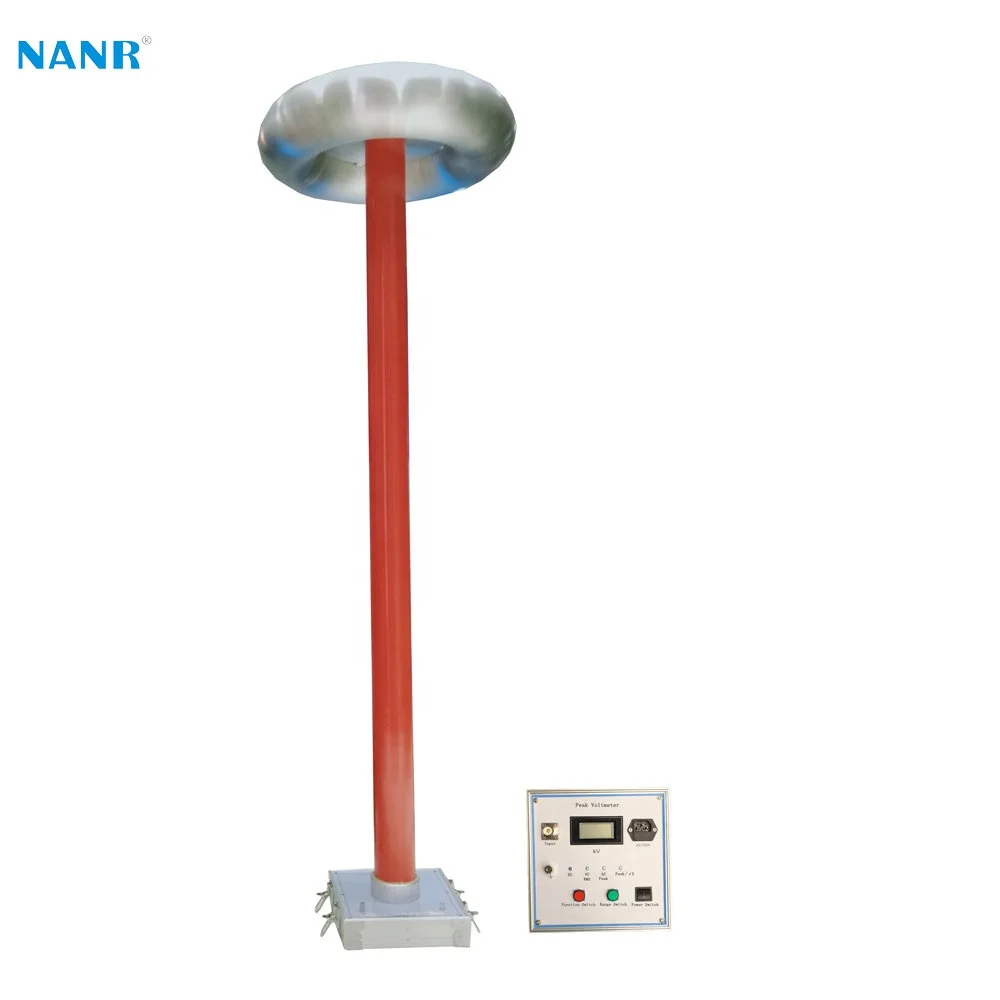

FRC(P)-300kV Peakvolt Meter also known as AC DC Voltge Divider with peakvolt meter. it is adopted with potential screening high-voltage measuring device, it is the latest research and develop product of the fourth generation of patent (Patent Number: ZL 2012 2 0355014.1) in our company, compared to similar products from other companies, we are adopting the filling media which imported from U.S., the internal part of the divider have using several patented shielding technology, so that the product has a longer life and greater stability.
2. Technical Specification
Model | FRC-50kV | FRC-100kV | FRC-200kV | FRC-300kV |
Voltage | AC 50kV | AC 100kV | AC 200kV | AC 300kV |
DC 50kV | DC 100kV | DC 200kV | DC 300kV | |
Power Supply | AC: 220V+/- 10%, frequency: 50Hz | |||
AC Frequency | 30 ~ 300Hz | |||
Accuracy | AC:1.0% DC:0.5% | |||
Resistance | 240Mohm | 400Mohm | 800Mohm | 1200Mohm |
Voltage Ratio | 3000: 1 | 5000: 1 | 10000: 1 | 15000: 1 |
Measurement Type | DC, AC RMS, AC peak and peak /2 | |||
Working Conditions | Temperature: 0 ~ +40℃ | |||
Relative humidity: ≤ 85% | ||||
Altitude: ≤ 1000m | ||||
There is no chemical deposits that seriously affect the surface insulation and electrical testing of the equipment. | ||||
Weight | 10kg | 17kg | 21kg | 31kg |
Note: 400~1000kV AC/DC digital voltage divider is a special specification and needs to be customized.
3. Product features:
1), This series standard divider has high input impedance and good linearity.
2), Special shield technology is adopted to reduce the influence of high voltage on indicated value, realize high stability and high linearity.
3), Filling with imported dry polymer materials as insulation material, which makes the product have smaller structure, lighter weight, higher reliability, and the internal partial discharge is reduced to the lowest value.

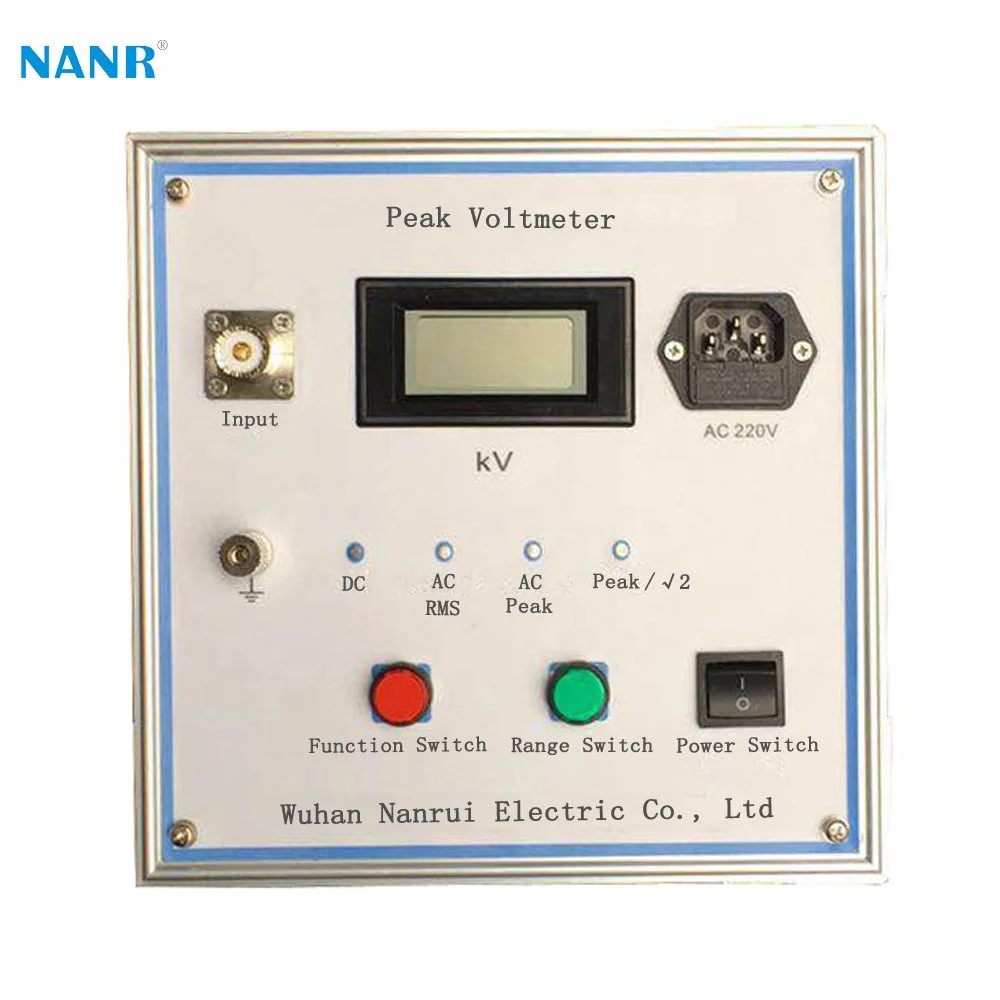

4), The digital peak voltmeter can measure DC, AC RMS, AC peak and peak /2, and the function keys realize freely switch between functions.
5), With over-voltage protection and high voltage flashover protection functions.
6), Using low temperature coefficient of resistance and capacity components, there is no adjustable device on the low voltage arm, then there is no vibration to affect the precision.
7), The product has small volume and light weight, which is easy to carry and brings great convenience for on-site test work.
8, The measurement system and the high voltage part is completely separated absolutely, measurement is safe and reliable.
Remark
Remark:
Voltage: AC 100V /110V /115V /120V /200V /220V /230V /240V can be customized;
Input frequency: 50Hz/60Hz can be customized;
Note: The users can select the corresponding power voltage which based on their local voltage and frequency, please confirm it in advance.
Product certificate
(1) Patent certificate
As a professional manufacturer of AC / DC High Voltage Divider, we have professional R&D team to master the core technology, we had awarded the national patent certificate in 2012, patent number: ZL201220355014.1.
Packaging & Shipping
(1) Packaged with standard fumigation-free export wooden box for sea and air transport.
(2) Shipping: according to customer's requirement, we usually shipping the product by air.
Company Information
Our advantages
Trade Shows
FAQ
Q What is the MOQ order for your product?
A 1 set
Q Do you supply OEM and customize service?
A Sure
Q Can I get a lower price if I make the large order?
A Of course! Cheaper prices with larger order.
Q What is the delivery date?
A Usually 10 working days after receipt of payment.
Q How long is the offer valid?
A 30 days.
