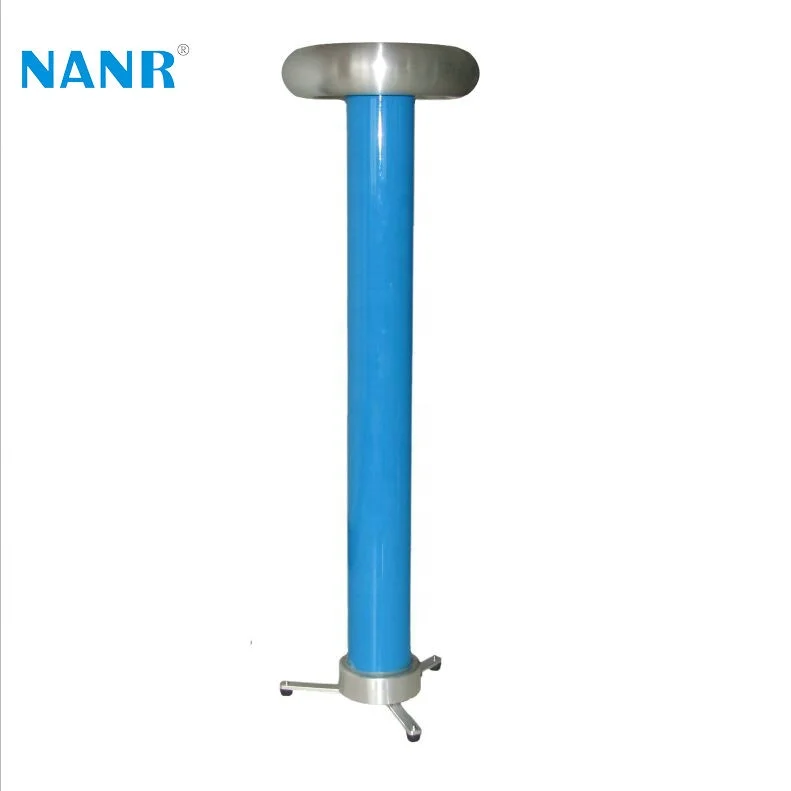

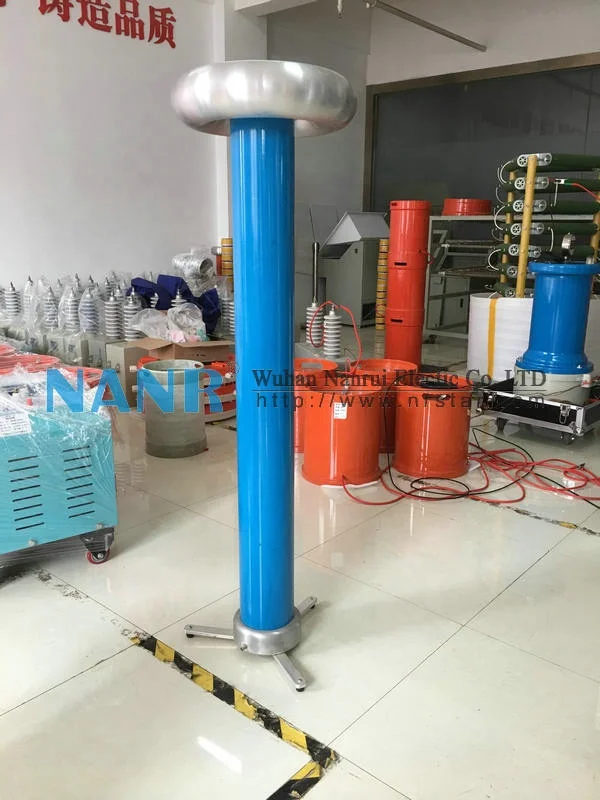

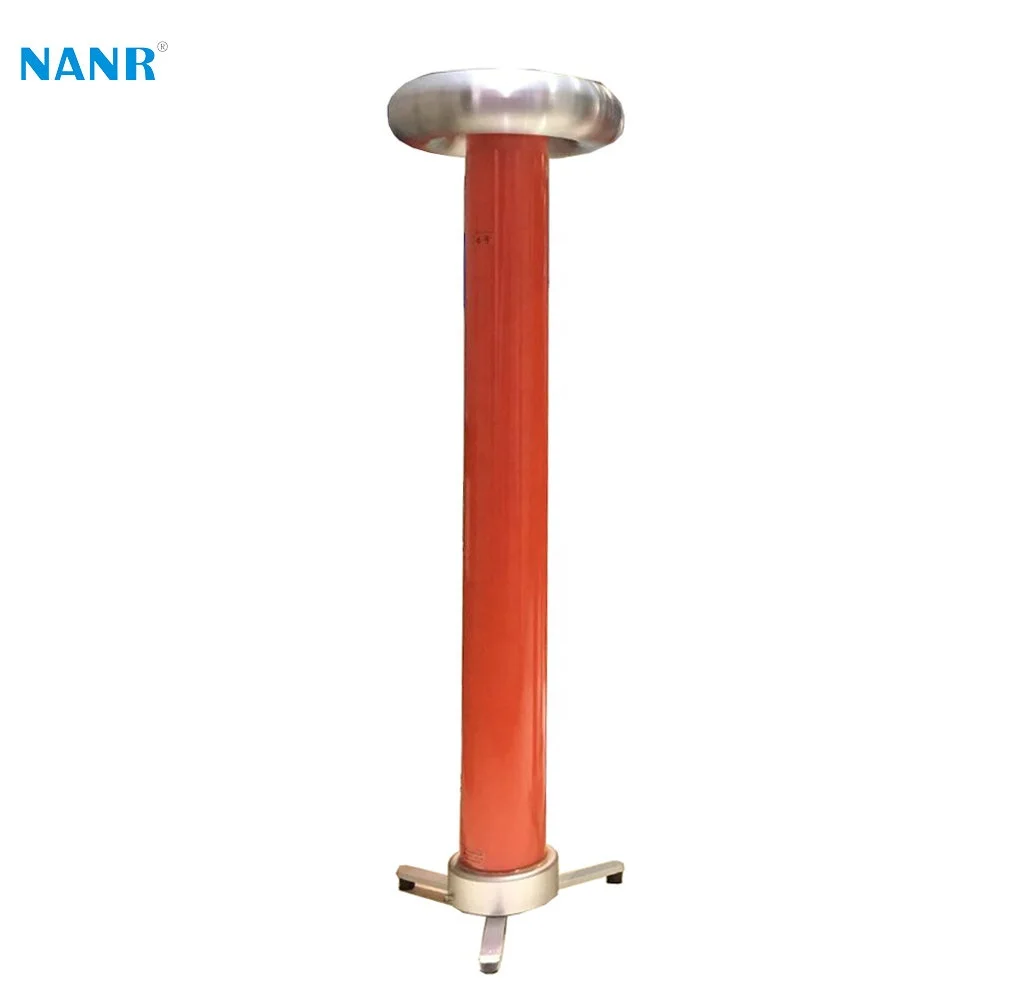

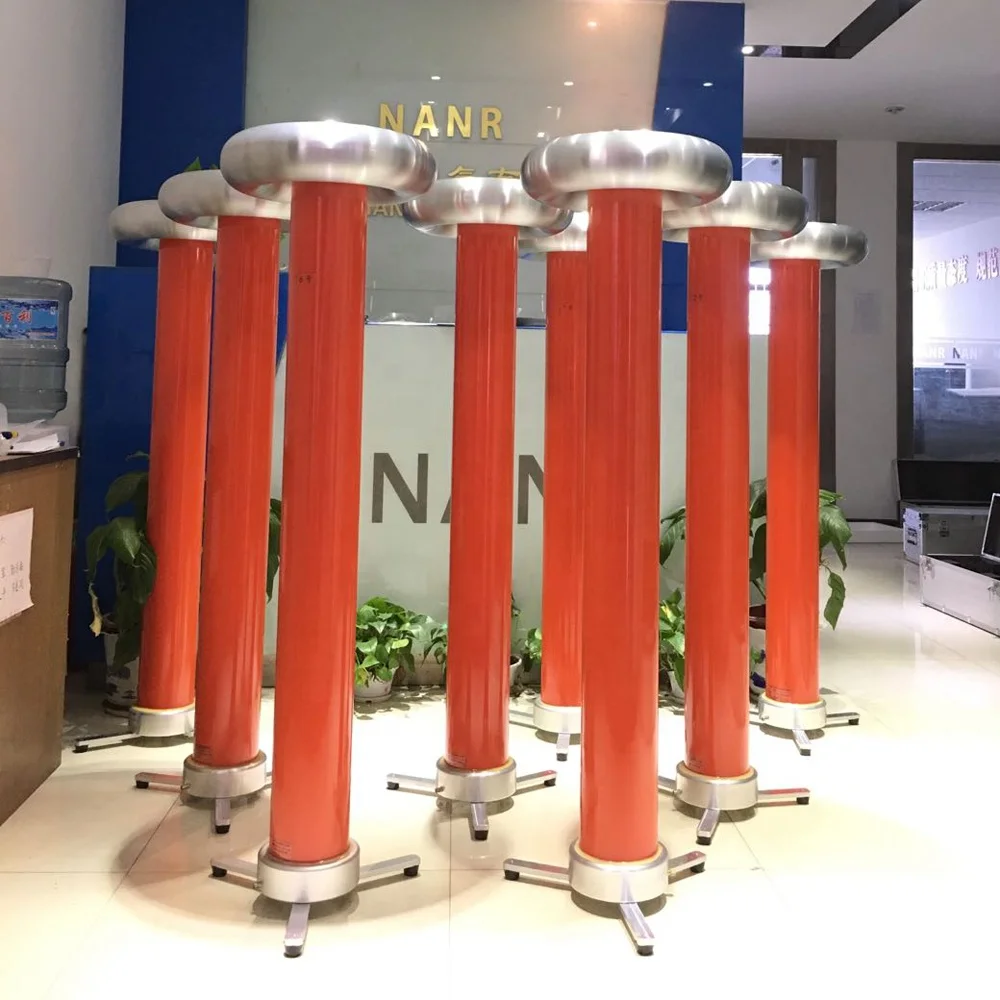

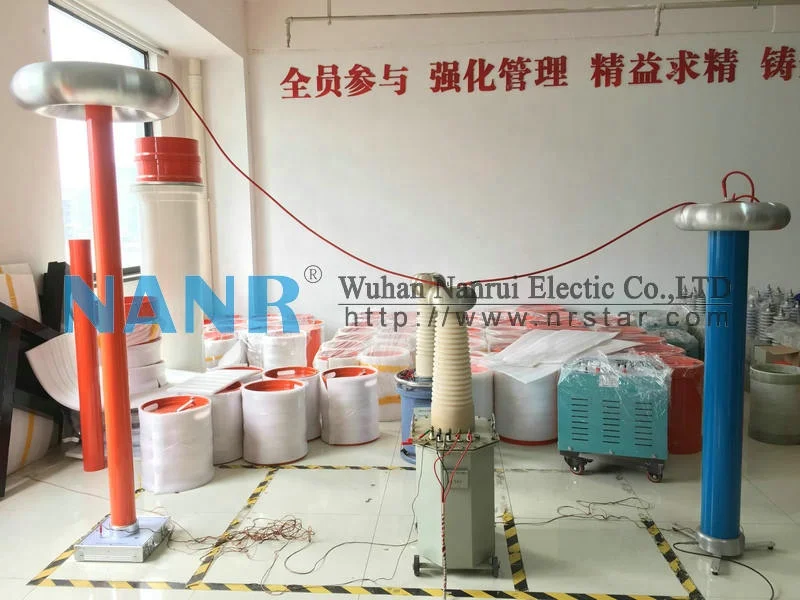

 The FRC series high voltage divider adopting potential screening high-voltage measuring device, it is the latest researched and developed product, which is the fourth generation of patent (Patent Number: ZL 2012 2 0355014.1) in our company, compared to similar products from other companies, we adopt the filling media which imported from U.S., the internal part of the divider is adopt with several patented shielding technology to make sure the product have a longer life and greater stability.

(1) In order to facilitate the needs of different measurement on site, above 300kV voltage divideris designed into the structure of double sections or three sections, it realizes multi-purpose and more convenient to carry;

(2) When semetal structure, using one section to measure low voltage, using two sections to measure higher voltage, and using three sections to measure full-scale voltage;

(3) Intelligent kilovoltmeter adopts dot matrix LCD screen, it can measure peak , RMS, average DC, crest factor, frequency, voltage waveform and so on;

(4) AC/ DC automatically changed, with functions of over-voltage protection and high voltage flashover protection.

(5) Using low temperature coefficient of resistance and capacity components, there is no adjustable device on the low voltage arm, then there is no vibration to affect the precision.

(6) The measurement system and the high voltage part is completely separated absolutely, measurement is safe and reliable.



Item	FRC-50	FRC-100	FRC-150	FRC-200	FRC-300	FRC-400
Voltage grade (kV)	AC: 50kV DC: 50kV	AC: 100kV DC: 100kV	AC: 150kV DC: 150kV	AC: 200kV DC: 200kV	AC: 300kV DC: 300kV	AC: 400kV DC: 400kV
DC frequency (Hz)	<2
AC frequency (Hz)	30-300
A-type accuracy (%)	AC:1.5%/DC:1.0%
B-type accuracy (%)	AC:1.0%/DC:0.5%					--
C-type accuracy (%)	AC:0.5%/DC:0.5%				--	--
Resistance (MΩ)	650	1200	1700M	2200M	3500M	4300M
Voltage capacity (pF)	320	180	150	120	120-500	100-800
Voltage division ratio	1000:1 or 10000:1 Special ratio can be customized
Height (mm)	450	650	1050	1350	1850	2500
Dimension (mm)	150×150	160×160	200×200		260×260	800×800
Cable resistance (Ω)	50/75
Measure range	1, divider into high and low ranges 2, low range :0-20 kV 3, High Range: 20kV-nominal rated voltage				1,low range:0-200 kV, 2,high range: 200kV-nominal rated voltage
Length of cable (m)	3	4	5	6	8	10
Weight (kg)	5.5	6.9	11	14.1	23.5	48.2
Packing medium	Imported dry polymer materials
Operating temperature	0~45°C
Relative humidity	<85%RH,without condensation
Attitude	<1500m,highaltitude area can be customized
Operation area	For Indoor usage or outdoor usage which under the fine weather conditions
