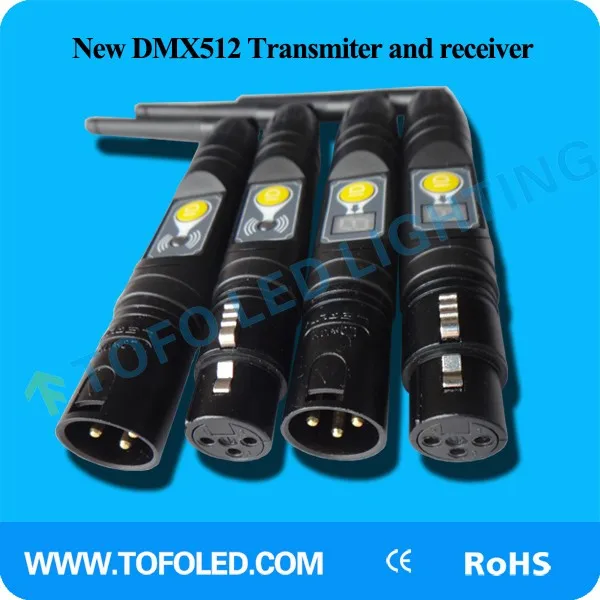

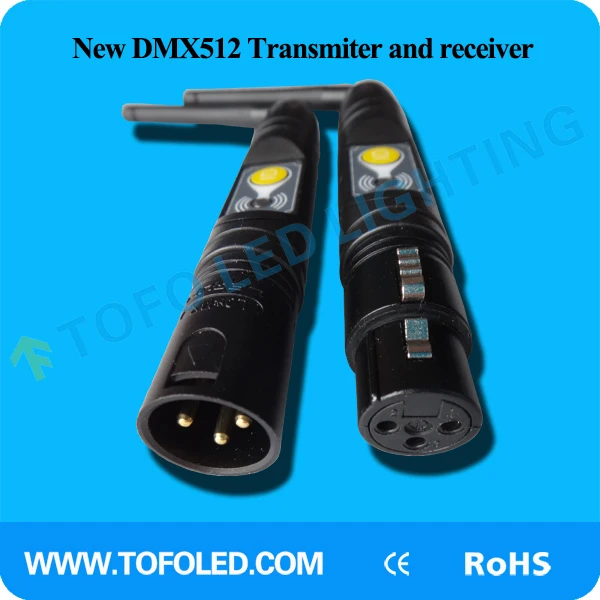

New 2.4G Hz XLR wireless DMX512 Receiver Transmitter





XLR Transmitter and receiver Introduction:



     DMX512 wireless receiver/transmitter transmits standard DMX512 protocol data by wireless way, which solve lighting control issues of wireless transmitting completely between lighting controller and lighting, lighting and lighting and so on. It gets rid of relying on connecting cables completely.

And also can ensure without any time delay when signal data is transmitting, signal data is real time and reliable. This product adopts global free 2.4GHz ISM frequency band. High effective GFSK modulation,communication design is 126 channels jumping frequency, high anti-jamming ability.









1: 3pin or 5pin female or male    2:  5VDC Power input    3: ID Display   4: ID Key    5: RF Antenna   6:Anti-skid line



Features:



1. Product Name:2.4G Wireless DMX512Transmitter/Receiver

2. ID code is adjustable,User can use different groups individual wireless net without any interfere each other in the same place.

3. Wisely identify the number of DMX512 controller,maximum 512 channels,Wisely identify the data of master/slave of lighting fixtures.

4. Input voltage:5VDC 500mA MIN(inner negative outer positive)

5. Communication distance:2000m(Free Space)

6. 2.400-2.525G ISM frequency 126 channels.,dual mode jump frequency design.

7. Max transmitting power rate:19.5 dB

8. Receiver sensitive:-102 dB





Product details:

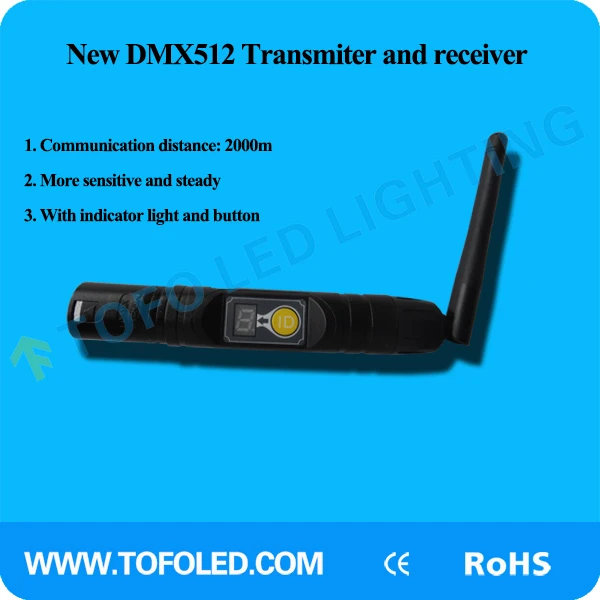

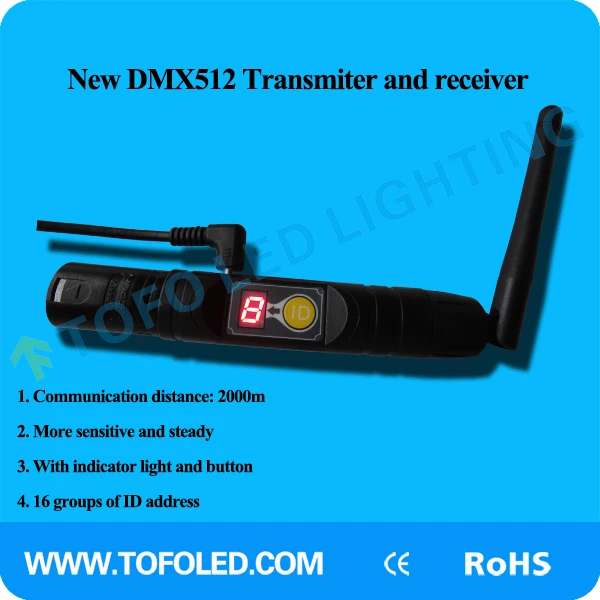

product name	RGB Indicator Wireless DMX Transmitter/RDMX signal port:3PIN or 5PIN,female or male Receiver	Digital Tube Wireless DMX Transmitter/Receiver
Model	XLR-WI-DMX-A	XLR-WI-DMX-B
N.W (G)	52	53
ID No.s	7	16
ID Discription	Red.Green.Yellow.Blue.Purple.Cyan.White,presenting 1-7.Total 7 ID	0-9,A,B,C,D,E,F.Total 16 ID code
DMX512	YES	YES
Mater/Slave	YES	YES
Transmitting	Red flashing	ID value light on,Number flashing
Receiver	Green flashing	ID value not on,Number flashing
No Singal	Showing the color of current ID	Showing the current ID value,number is not on





1. Press key 1 time to indicate ID setting,,Press again to set IC,then ID value adding 1 each time.by press

2. Wisely identify the number of DMX512 controller,the less of the number of channels, the faster the dmx data is updated



3. ID code:press ”ID”key,the transmitter & receiver will communicate with each other only when their ID is the same.



4. When there are more than one transmitters,the distance of among transmitters will be minimum 20CM



5. Only use the original power adapters:DC5V,inner negative outer positive,the product might be damaged if using those power adapters from other vendors.



Connecting Scheme:

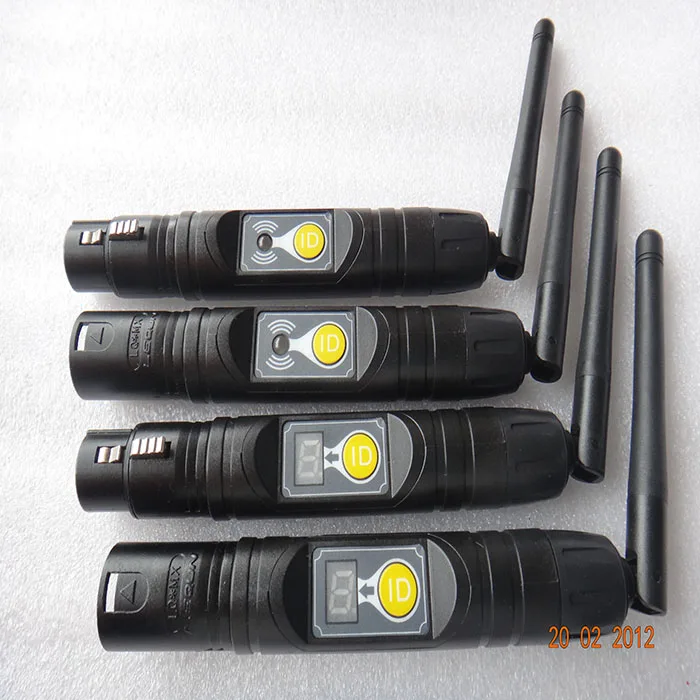

Images:









Establishing Communication:

1. Power on the transmitter & receiver.

2. Press “ID” key to set all transmitter & receiver in the same Id.If you want to set up more than one groups, those IDs of different group should be different.,When restart the machine, the latest ID will be showing up..

3. Transmitter choose no interference channel to transmit data, it will inform the receiver to choose next channel if there is over 10% interference chance.,if the whole frequency is occupied, then change to use jump frequency working mode.

4. Receiver keep changing communication frequency until receipt of the correct data of the same ID.

5. Then communication is established.



Application:



 Stage lighting,Disco hall,Large literature performance,Gymnasium lighting,Temporary stage performance ,City lighting system ,TV station ,Conference center , professional showplace,Topic park ,Bar lighting and so on.



Caution:

1.  Indoor use only.

2.  1 year warranty, repair, free replacement except damaged artificially.

3.  The manufacturer will not offer free service in warranty period if any repaired or uncapped had happened

4.  It’s better to return to manufacturer if repairmen is must, don’t do any repairmen unless qualified electrician.

5.  The working condition should be under temperature -20°C~+45°C, 10%~90%RH, no congelation, so as to ensure it’s lifetime.

6.  It can’t be covered by any superstratum, it should be swept periodical to prevent dust
