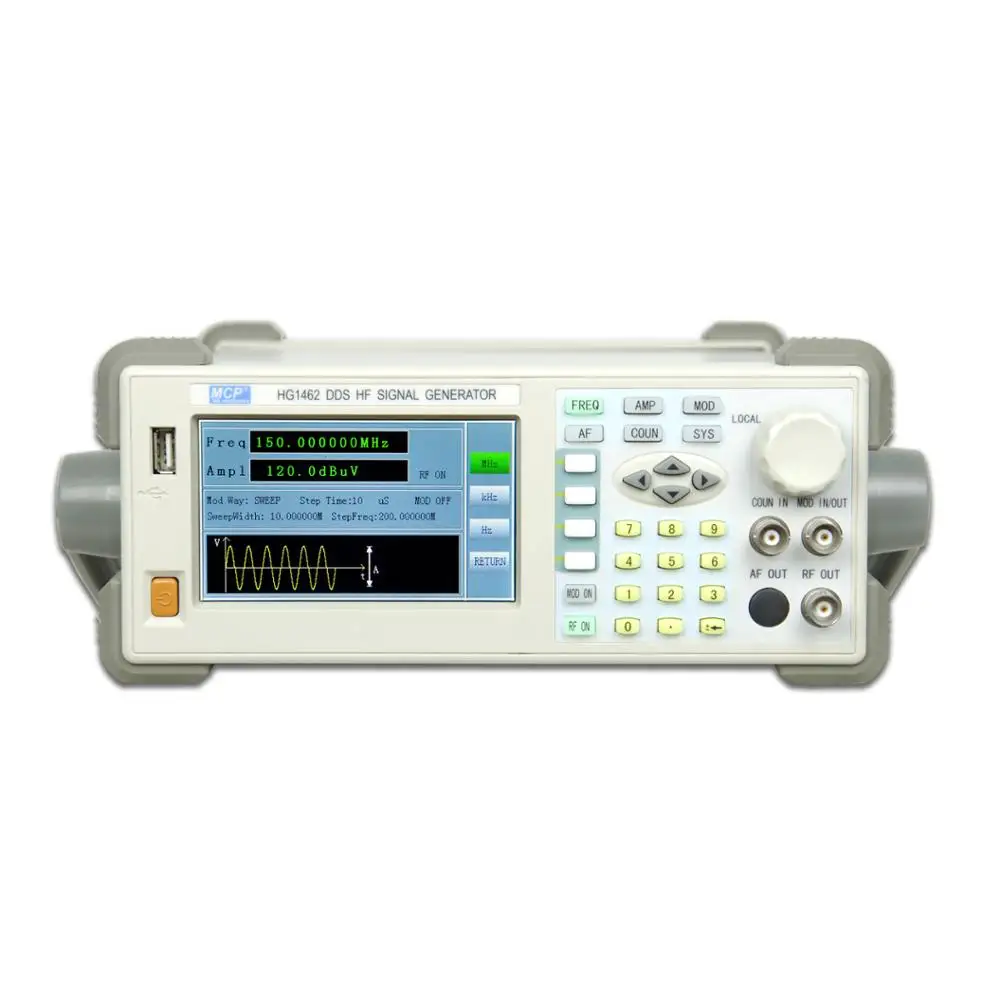

HG1462 - HF SIGNAL GENERATOR



Feature

.4.3" TFT colour LCD display
.DDS, CPLD modulation and digital modulation technology
.SMT technology with high stability
.External standard frequency input for higher frequency
accuracy in whole band
.Arbitrarily stored and recalled for carrier frequency level,
or modulation
.1GHz frequency counter (optional)
.Pulse modulation (optional)
.Standard RS-232 interface and optional GP-IB interface





Technical Data		HG1462A/B/C
RF signal generator	Frequency	100kHz~150MHz(HG1462) 100kHz~250MHz(HG1462A) 100kHz~350MHz(HG1462B) 100kHz~450MHz(HG1462C)
	Resolving capability	1Hz
	Frequency accuracy	±2.5ppm
	Frequency conversed time	<100ms (within 100Hz if final frequency)
	Internal standard frequency	TCXO 10.000MHz
	External frequency input (internal and external frequency switching automatically)	Frequency : 10MHz Amplitude: 0.3Vrms~1Vrms (50 load)
	Output level	-117dBm~+13dBm (≤250MHz) -117dBm~+10dBm (>250MHz) Can reach to -127dBm
	Resolving capability	0.1dB
	Output impedance	50Ω
	SWR	<1.5 (frequency of carrier wave> 300kHz, level<-6dBm)
	Level smoothness	±1dB(output level = +4dBm; frequency > 400kHz) ±2dB(output level = +4dBm; frequency > 250MHz)
	Attenuation precision	±2dB (output level
	Harmonic	<-30dBc (output level ≤+4dBm)
	Non harmonics	<-40dBc (output level ≤+4dBm, frequency departure of carrier wave ≥5kHz)
	Sub harmonics	<-40dBc (output level ≤+4dBm)
	Residual FM	<100Hz
Frequency modulation	Deviation	0~100kHz
	Resolving capability	100Hz
	Accuracy	±5% ±50Hz
	Modulation frequency	Internal 1kHz or 400Hz
	Distortion	<5%
Amplitude modulation	Carrier frequency	≤15ns
	Depth	0~70% (output level ≤+4dBm, frequency ≤75MHz) 0~50% (output level ≤+4dBm, frequency >75MHz) (can be establish to 100%)
	Resolution	1% (modulation degree ≥ 10%) 0.1% (modulation degree < 10%)
	Accuracy	±(1.5%+7% set value)
	Modulation frequency	Internal 1kHz or 400Hz;external:20Hz to 10kHz
	Distortion	<5%
	Surplus AM	<0.1%
FSK	Modulation signal	External TTL level
	FSK modulation frequency	<25kHz (100kHz~20MHz) <50kHz (20MHz~75MHz) <2kHz (75MHz~450MHz)
	Sweep frequency	10ms~1000ms
	Sweep step	10ms
	Frequency range	0.1MHz~75MHz, 75MHz~140MHz, 140MHz~260MHz, 260MHz~360MHz, 360MHz~450MHz
Modulation source	Impedance	600Ω (BNC)
	Internal modulation source output	Frequency:1kHz or 400Hz;Amplitude:1Vpk
	External modulation source input	Amplitude:0~1Vpk
Interface		RS-232 (standard), GP-IB (optional)
Power supply		110 ~ 127VAC±10%/220 ~ 240VAC±10%, 50Hz±2Hz/60Hz±2Hz
Dimension(W×H×D)		250×120×400 mm
Weight		3kg
