YK5150 cnc зубчатая машина/зубчатая

Категория: Gear Cutting Machines >>>
Поставщик: Dalian,Longlife,Machinery,Import,And,Export,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.5 $*	0.2 $*
Aug-16-2025	0.8 $*	0.42 $*
Jul-16-2025	0.72 $*	0.66 $*
Jun-16-2025	0.44 $*	0.58 $*
May-16-2025	0.37 $*	0.35 $*
Apr-16-2025	0.4 $*	0.43 $*
Mar-16-2025	0.26 $*	0.47 $*
Feb-16-2025	0.6 $*	0.31 $*
Jan-16-2025	0.96 $*	0.72 $*

Характеристики

YK5150 2 axis CNC gear shaping machine

Gear Shaping&Hobbing

Y5150(Ø500mm) PLC Gear Shaping Machine

YX3150(Ø500mm) High-class 5/6-axis CNC Gear Hobbing Machine

Y3150(Ø500mm) Conventional Gear Hobbing Machine

Brief Introduction

Such cnc gear shaping machine has following features:

High efficiency and high precision CNC gear shaping machine of this series equipped with nice and environmental protection full guard adopt the longitudinal layout and their radial feed is performed by the transverse entire column. Gears of modules from 0.125mm to 10mm can be accommodated and the machining accuracy can read Grade 6 of the GB Standard(GB/T10095.1-2008). Typical work-pieces such as internal gears in the deep holes and the cluster gears can be machined when a slide-type saddle is equipped on the machine. Non-circular gears, tri-angle-shape internal gears used in the internal gear pumps and special gears can be cut when special equipment.

The machine are suitable for the single-job or small-lot production and preferable for the mass production on the production line.

The major components and parts used on these machines are built in our own plant, especially the core technology components and parts, such as high-precision worm and worm wheel pairs, the hydrostatic mechanism, the special-curve double roller cam cutter relieving mechanism, precision holes and shafts. All these are machined and tested by the imported precision manufacturing and testing equipment.

In addition, to guarantee the entire rigidity and the stability of the accuracy of the machines, we adopt only the well-known brands at home and abroad for the purchased components and parts such as the CNC control system, the bearings, the lead screws, the hydraulic sealing, the air conditioners, etc.

Main Technical Data

Specifications of y5150 gear shaping machine	Unit	Parameter
Max. diameter of work piece	mm	500mm(external) 625(internal Ø100cutter)
Max. modulus of work piece	mm	10mm
Max. face width	mm	130
Max. stroke length of cutters	mm	150
Number of stokes of cutter spindle	str/min	0~500(800)
Diameter of cutter spindle	mm	90
Diameter of cutter spindle journal	mm	31.743
Traveling position adjustment of cutter spindle	mm	20
Distance between bearing surface of cutter and surface of worktable	mm	130~300
Distance between cutter spindle axis and axis of work spindle	mm	0~380
Cutter relieving amount	mm	≥0.5(bi-directional)
Amount of angular cutter relieving	mm	±30
Diameter of worktable	mm	Ø625
Diameter of worktable hole	mm	Ø120(Ø150)
Number of T-slots		8
Radial feed of column	mm/str	0.01~0.25
Rotary feed of cutters	mm/str	0.01~2.5
Rapid radial feed of column	m/min	1
Power of main motor	kW	11
Total capacity	kVA	28(32)
Overall dimensions	mm	2850x1790x2670
Machine weight	t	13

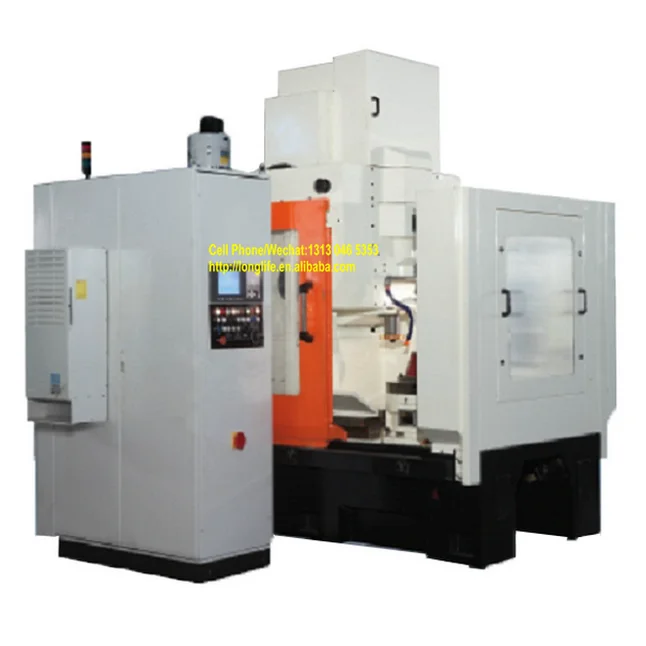

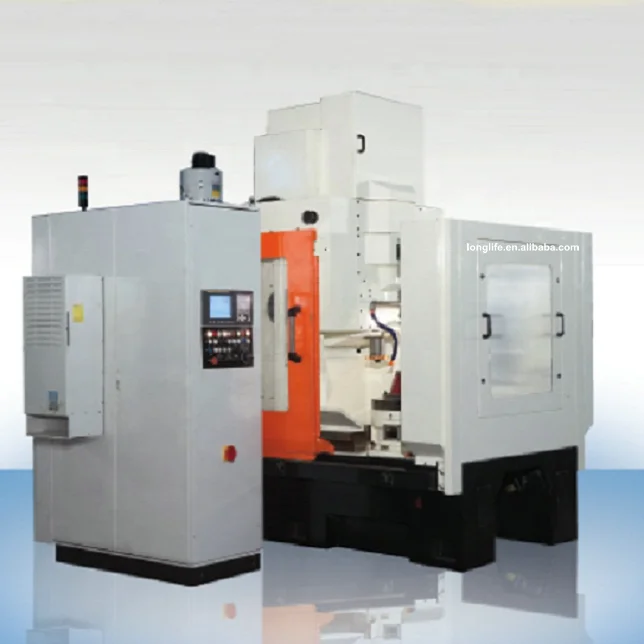

cnc gear shaping machine.jpg

Free Std Accessories

Optional Accessories

Pls send inquiry to me for optioanl accessories and other further information about such cnc gear shaping machine.

Our Services

1, Your inquiry will be replied in 24 hours;

2, Our manufacture/company has been a Gold supplier continuously in this Alibaba website for 7 years. And there is more industry technology experience for 24years with our manufactures;

3, To offer free spare parts and service within one year of warranty;

4, Technical Support Provide operation video for training;

5, Professional after-sales service team;

6, Call us at any time: +86-1313 046 5353/156 411 21240|Wechat: 1313 046 5353

7, Fax us:+86-411-84410129

Packaging & Shipping

Vacuum Plstic Cover

Package 1 C5116.jpg
