Полностью автоматическая машина для производства кокосовых кнопок SKS

Описание и отзывы

Трекер стоимости

Характеристики

Description

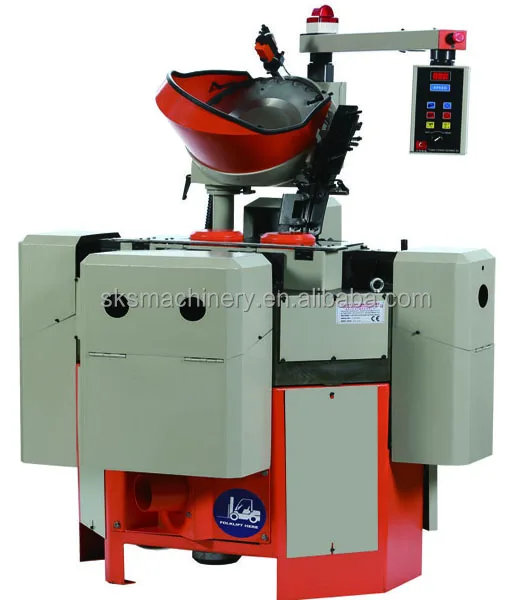

Fully automatic double-head turning & drilling machine for button making

Process on material of resin, wood, shell, coconut, bull horn, bone, corozo,  etc

Capacity: 12L-100L with 22mm thickness

Output up to 210 BPM

9mm collet distance, 22mm available on demand



Standard equipment with

 8 collets size as random or as required

 7 hopper plate for 14L-16L / 18L-20L / 22L-24L / 26L-28L / 30L-36L / 38L-46L / 48L-60L

 1 LED lamp for working area lighting

 1 warming lamp & alarm

 3 spring loading tool

 8 spare eject pin & 8 spare eject pin spring

 4 carbide holder

 1 electronic speed variation inverter



Optional equipment

 1 electronic speed variation inverter

 1 Italy photocell

 1 China photocell



Product Specifacations

Capacity	12L-100L
Output	6-210 buttons/min
Max hole diameter	5 mm
Max turning travel	8 mm (15 mm optional)
Drill travel	1-15 mm
Distance between chucks	9 mm (20 mm optional)
Power Supply	5.0 kw
Net Weight	835 kg
Gross Weight	935 kg
Machine Dimensions	1345x1295x1740 mm
Packing Dimensions	1425x1375x1900 mm
