8x1 5 12x1 оплетенный медный

Категория: Кабели управления >>>
Поставщик: Zhengzhou,Hesheng,Cable,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.83 $*	0.53 $*
Aug-16-2025	0.46 $*	0.36 $*
Jul-16-2025	0.73 $*	0.6 $*
Jun-16-2025	0.15 $*	0.69 $*
May-16-2025	0.64 $*	0.19 $*
Apr-16-2025	0.9 $*	0.25 $*
Mar-16-2025	0.34 $*	0.61 $*
Feb-16-2025	0.63 $*	0.44 $*
Jan-16-2025	0.66 $*	0.34 $*

Характеристики

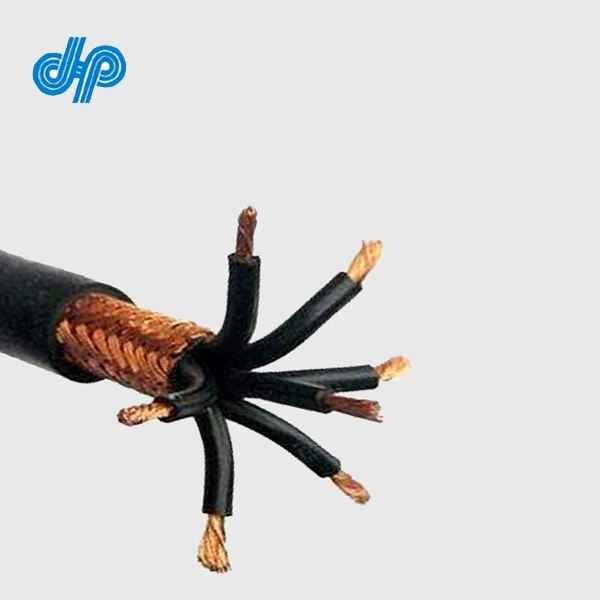

8x1.5 12x1.5 Copper Wire Braied Shielded Control Cable

1. Standard
The control cable can be produced according to the standard GB9330-1988, and the factory can also manufacture the cables in accordance with other standards.
2. Scope of Application
The control cable are suitable for the wiring of electrical controlling equipments and instruments, monitoring and controlling return circuit, electrical protection and measurement in power distribution unit under the circumstance that the rated voltage is up to 450/750V AC.
3. Service Conditions
(1)The long-time working temperature of conductor of PVC insulated control cable is 70°C
The long-time working temperature of conductor of XLPE insulated control cable is 90°C
(2) The temperature for laying the cables can not be lower than 0°C. Permissible bending radius(r): Unarmoured cable: R≥ 6D; (D: Outer diameter of the cable); Armoured or copper-tape screened cable: R≥ 12D; Shielded flexible cable: R≥ 6D

Control Cable

Type	Name	Section Area(mm2)	No. of Core	Application Site

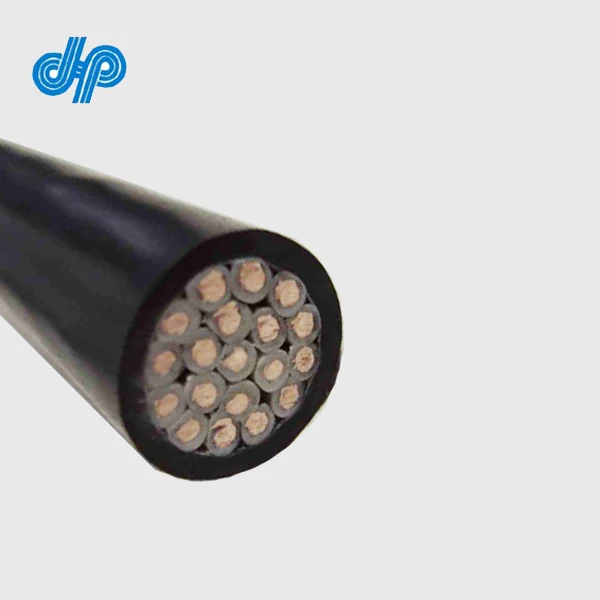

KVV	Copper Conductor,PVC Insulated and Sheathed Control Cable	0.75 1.0 1.5 2.5	2-16	Permanent installation indoors,in cable ditches or pipes
		4 6	2-14
		10	2-10

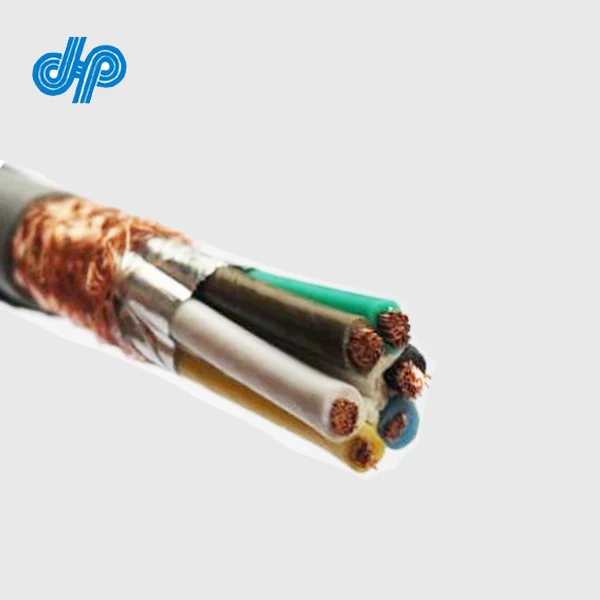

KVVP	Copper Conductor,PVC Insulated and Sheathed,Braiding Shielded Control Cable	0.75 1.0 1.5 2.5	2-61	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	2-14
		10	2-10
KVVP2	Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable	0.75 1.0 1.5 2.5	4-10	Permanent installation indoors,in cable ditches or pipes where shielding is required
		4 6	7-61
		10	4-10
KVV22	Copper Conductor,PVC Insulated and Sheathed,Steel tape Armored Control Cable	0.75 1.0 1.5 2.5	7-61	Permanent installation indoors,in cable ditches,Be able to withstand stronger external mechanical force
		4 6	4-14
		10	4-14
KVVR	Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable	0.5-2.5	4-61	Installation indoors where flexibility and movability are required
KVVRP	Copper Conductor,PVC Insulated and Sheathed,Braiding shielded Flexible Control Cable	0.5 0.75 1.0	4-61	Installation indoors where flexibility shielding and movability are required
