Солнечная водонагревательная система с WILO насосом однотрубочная солнечная рабочая станция
- Категория: Запчасти для солнечного водонагревателя >>>
- Поставщик: Zhejiang,Shentai,Solar,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.19 $* | 0.26 $* |
| Aug-18-2025 | 0.49 $* | 0.3 $* |
| Jul-18-2025 | 0.87 $* | 0.78 $* |
| Jun-18-2025 | 0.62 $* | 0.59 $* |
| May-18-2025 | 0.60 $* | 0.95 $* |
| Apr-18-2025 | 0.85 $* | 0.97 $* |
| Mar-18-2025 | 0.63 $* | 0.54 $* |
| Feb-18-2025 | 0.24 $* | 0.53 $* |
| Jan-18-2025 | 0.85 $* | 0.11 $* |
Характеристики

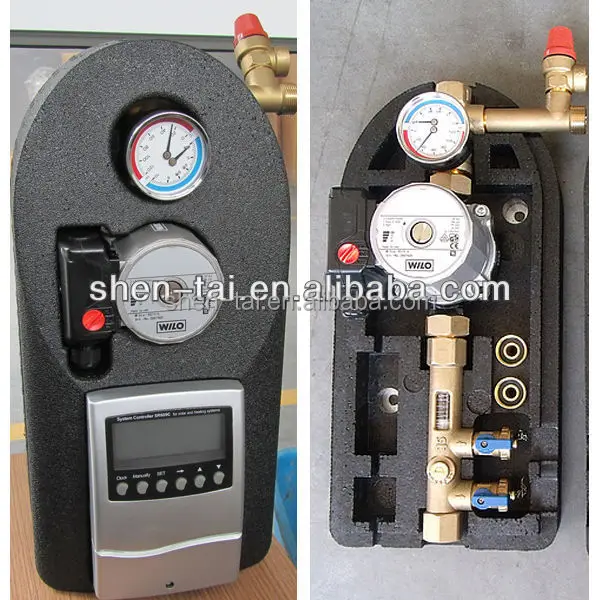

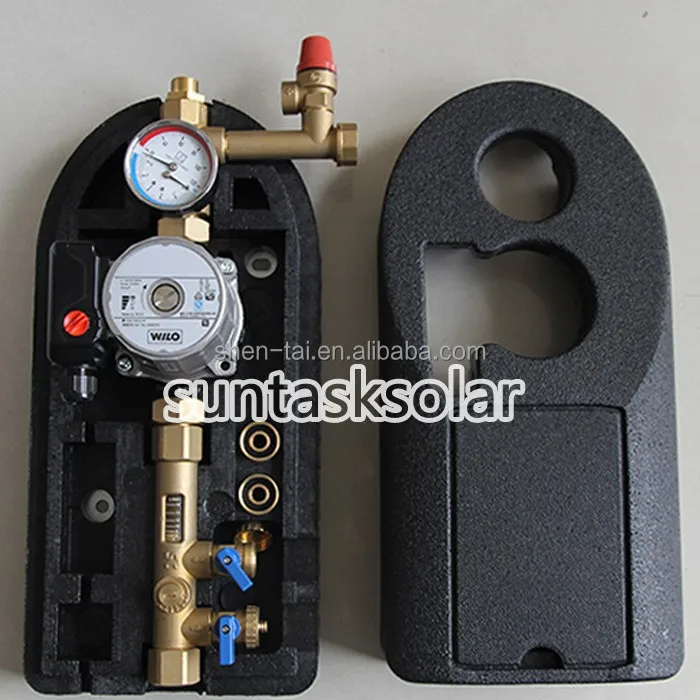

Solar Water Heater System with WILO Pump Single Pipeline Solar Working Station (WS-I)

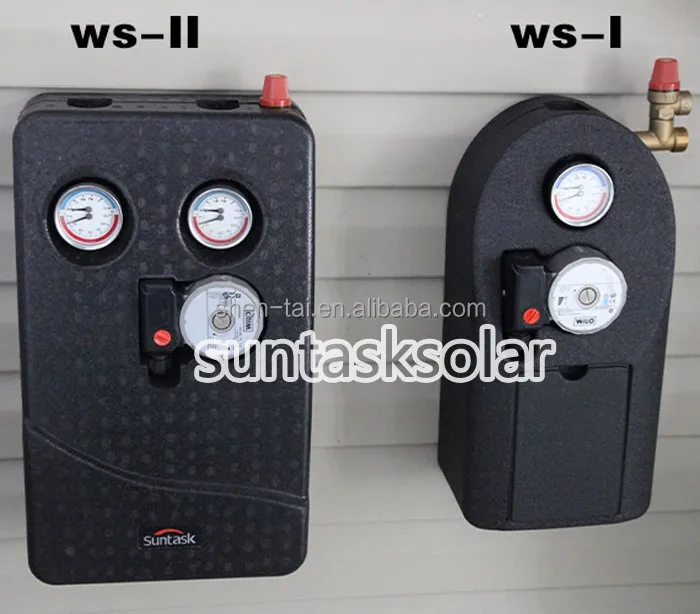

Mode: WS-I, WS-II
Application: a combined circulation unit for solar water heaters.
ADVANTAGES
WS-I is a combined circulation unit for solar applications.
•No filling pump needed, Using the working station with the container supplied could simplify the installation on filling medium liquid. The circulation pump will allow one man to fill the system.

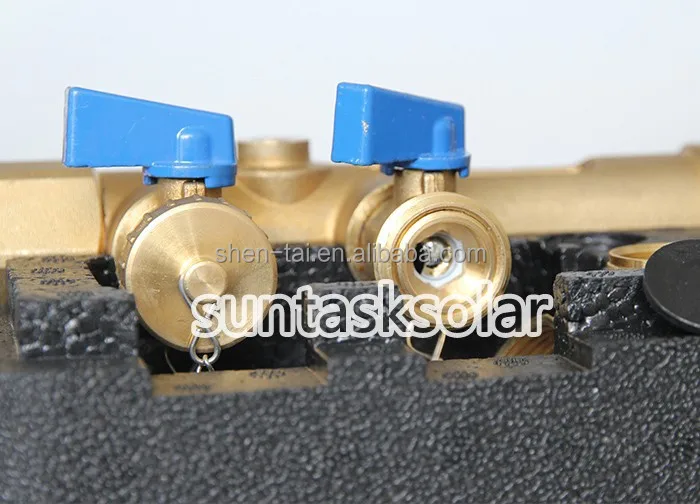

•Multifunctional ball valve to simplify the system filling.
•Install the collector and the cylinder separately.
•Preset the flow rate.
•Air stop device , manual integrated vent.
•Can work conjunction with any controller.
•Safety operation, excellent performance, Maintenance free.
SPECIFICATIONS
Application range:Combined self-fill circulation unit for solar thermal applications
Max pressure :10 Bar
Max working temperature: 100 °C
Max surrounding temperature: 45 °C
connection size: G3/4’’ female
Safety Device
Safety valve: 6 Bar
Air stop device: G1/4"
Thermometer /pressure gauge: 0~10Bar /0~120 °C

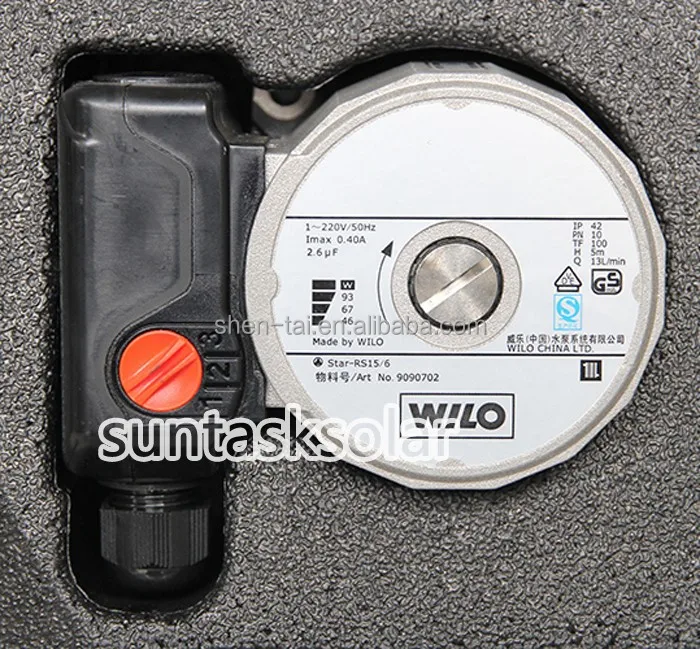

Circulation Pump
Mode: WILO RS-15/6 RS-25/6
Max. flow rate: 2.5 T/h
Max. lift: 6m
Max. working pressure: 10 Bar
Working temperature: -25 °C +110 °C
Power supply: 220V/60Hz or 110V/50Hz

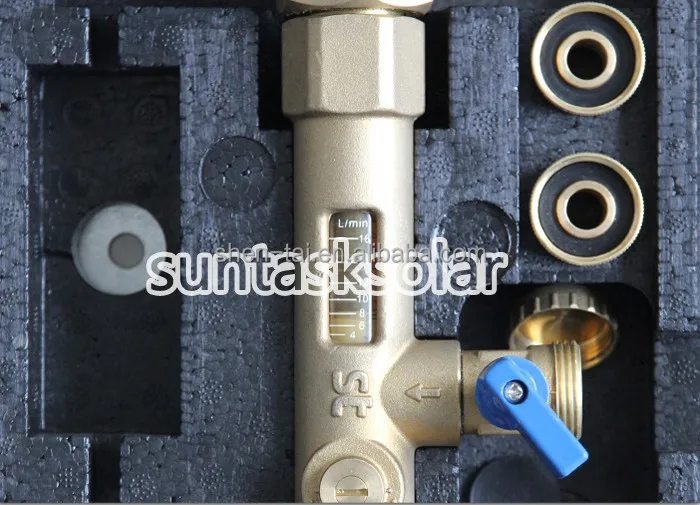

Balance Valve
Flow rate control range: 4 to 16 l/ min
Applicability: Flow meter is control the flow rate from the range 4-16L/min. The flow meter can display exactly flow rate. Anti-blast glass and brass cover Vertical installation is obligatory.
Cover
Outer: EPP black ppe
Installation: vertically
PRODUCT DETAILS
