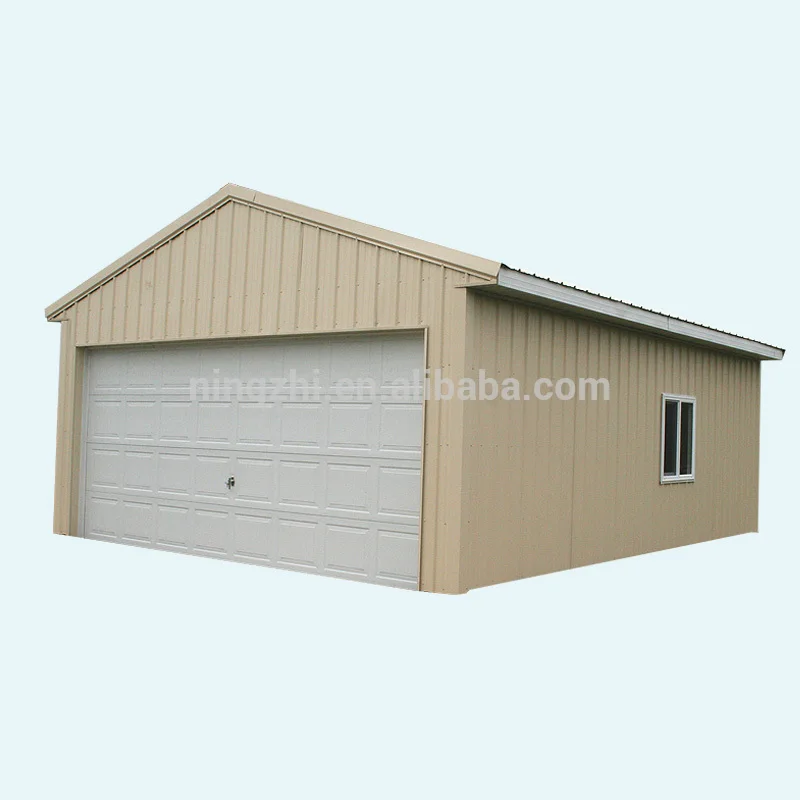

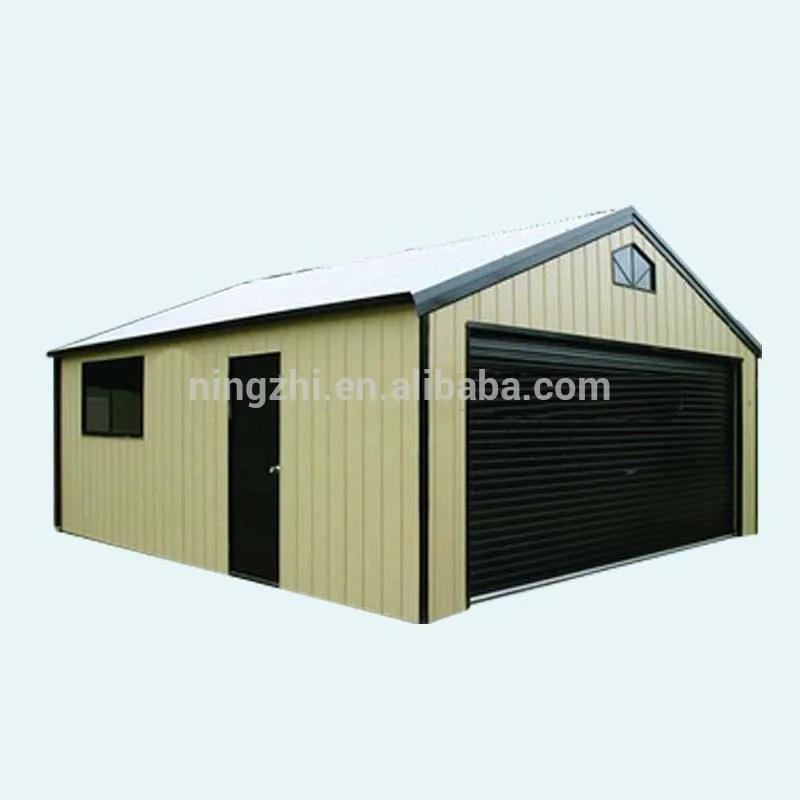

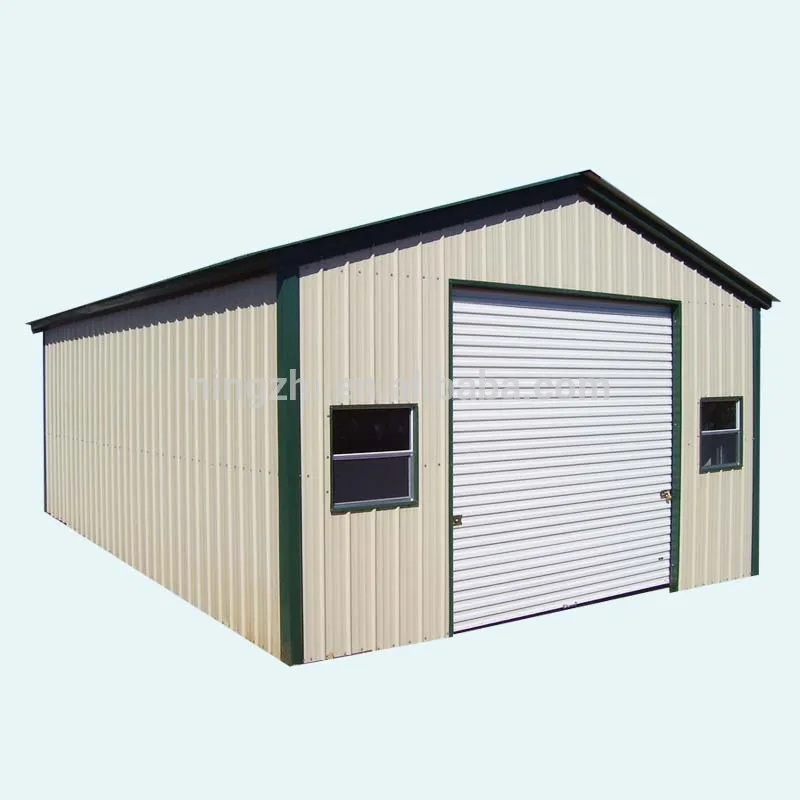

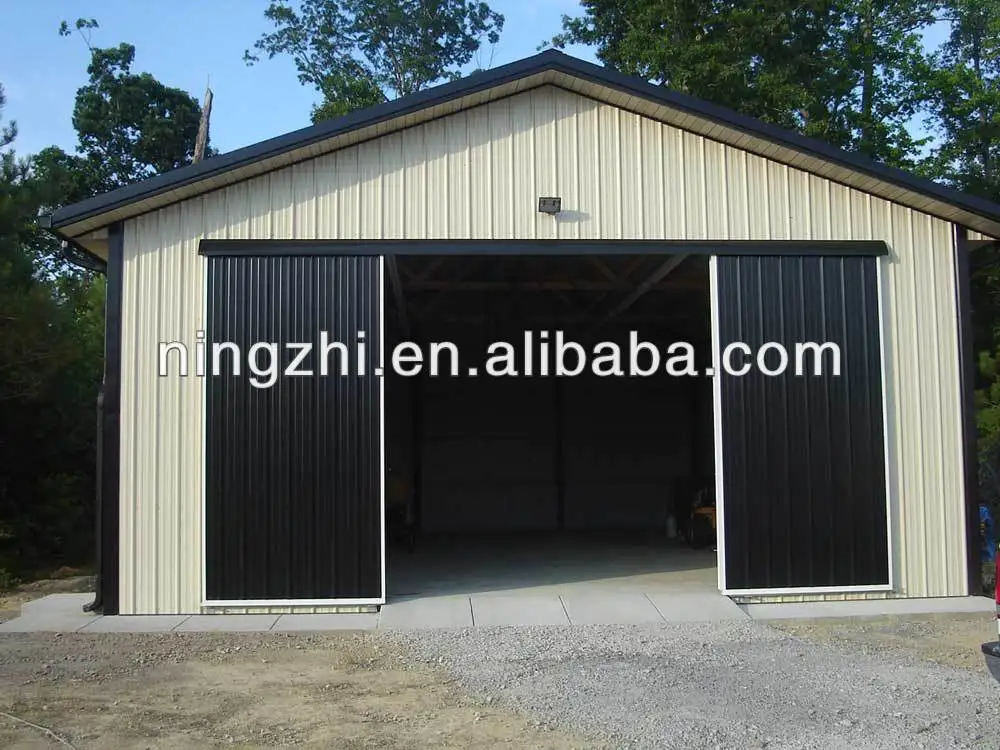

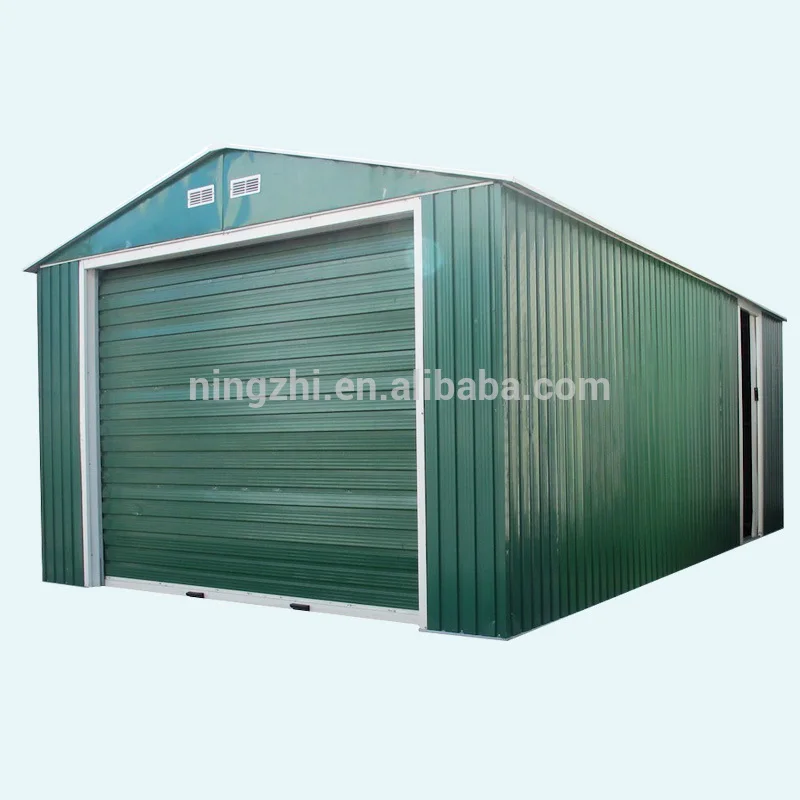

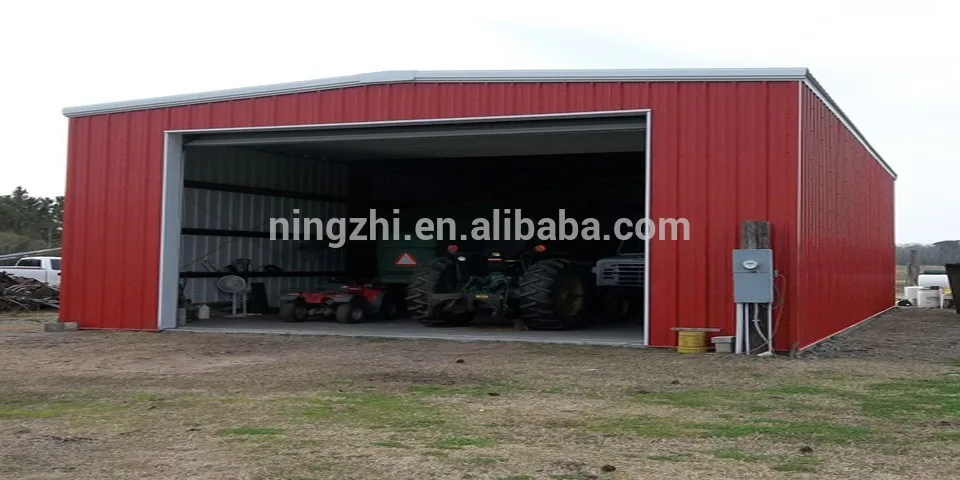

30ftx40ft Metal Building/workshop/storage workshop-building

 1.Brief Introduction:

 It is a kind of light steelstructure prefab house made by the C purlin, Z purlin,sandwich panel,corrugated steel sheet and other accessories like the door,window. It can maximum the customer requirment and the satisfaction of the cost and quality.



Materials Cost

Construction and material costs for traditional structures are much more expensive than a prefabricated steel or metal buildings, and as a result, our products are more cost effective.





Availble Size for metal garage/carports

For the garage/carport frame we have two types.50x50mm and 60x60mm
you can choose the suitable carport frame according to your climates.

Dimension	Wall and Roof panel	Weight	Loading Capacity(20'GP)
6X4X2.6M(Top height)(50mm GI STEEL TUBE)	0.35mm	700kg	12
6X4X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	900kg	12
7.5X4X2.6M(Top height)(50mm GI STEEL TUBE)	0.35mm	800KG	12
7.5X4X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	1010KG	12
9.0X4X2.6M(Top height)(50mm GI STEEL TUBE)	0.35mm	900KG	10
9.0X4X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	1140KG	10
6x6X2.6M(Top height)(50mm GI STEEL TUBE)	0.35mm	910KG	8
6x6X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	1140KG	8
7.5x6X2.6M(Top height)(50mm GI STEEL TUBE)	0.35mm	1030KG	8
7.5x6X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	1290KG	8
9x6X2.6M(Top height)(50mm GI STEEL TUBE)	0.35mm	1200KG	6
9x6X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	1500KG	6
6x8X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	1450KG	6
7.5x8X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	1650KG	6
9x8X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	1850KG	4
6x10X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	1810KG	4
7.5x10X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	2010KG	4
9x10X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	2280KG	3
12x10X2.6M(Top height)(60mm GI STEEL TUBE)	0.35mm	2780KG	2
