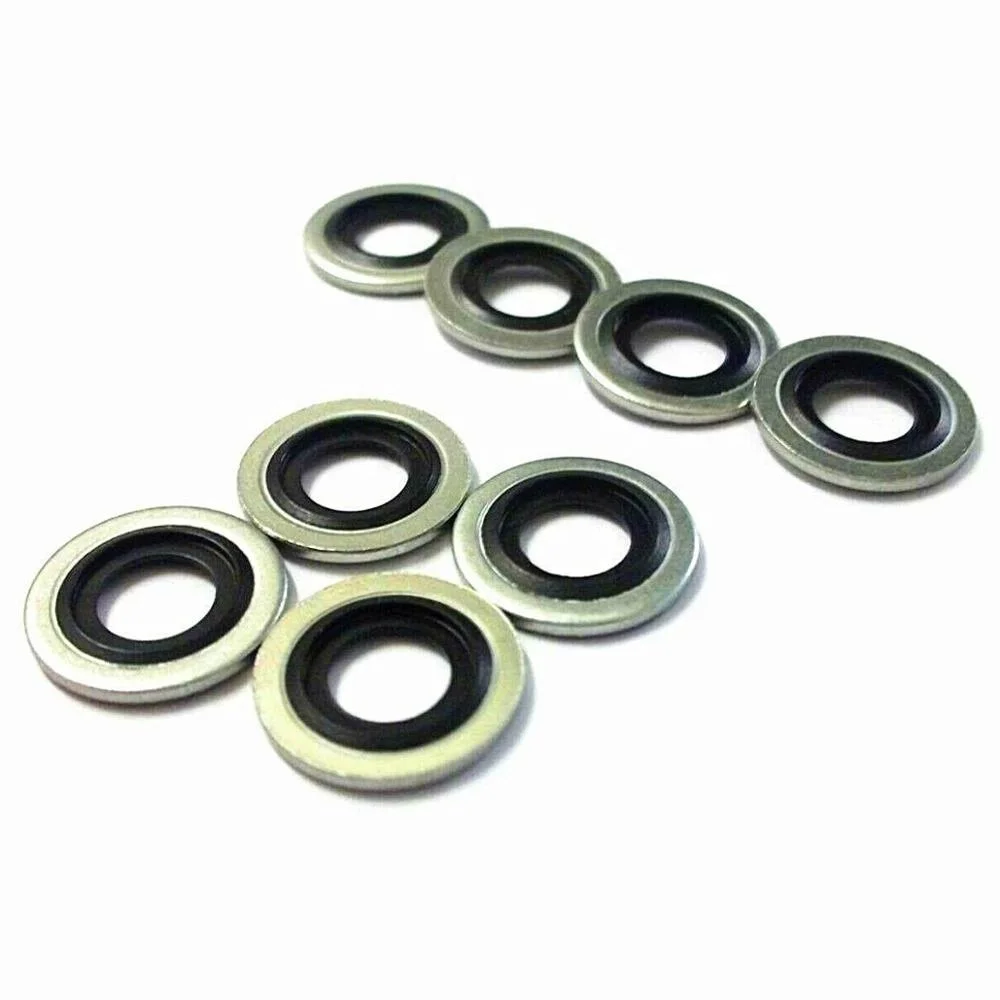

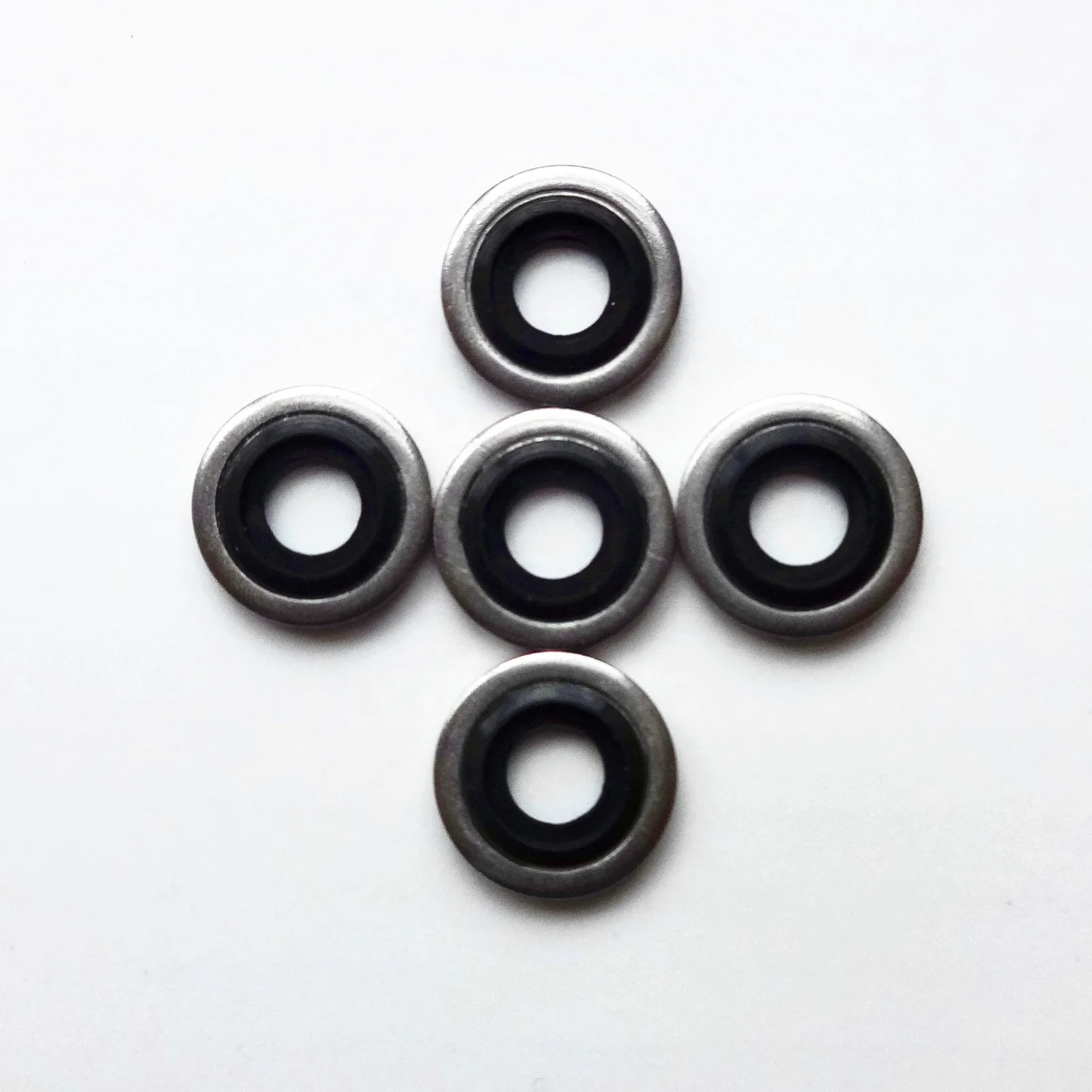

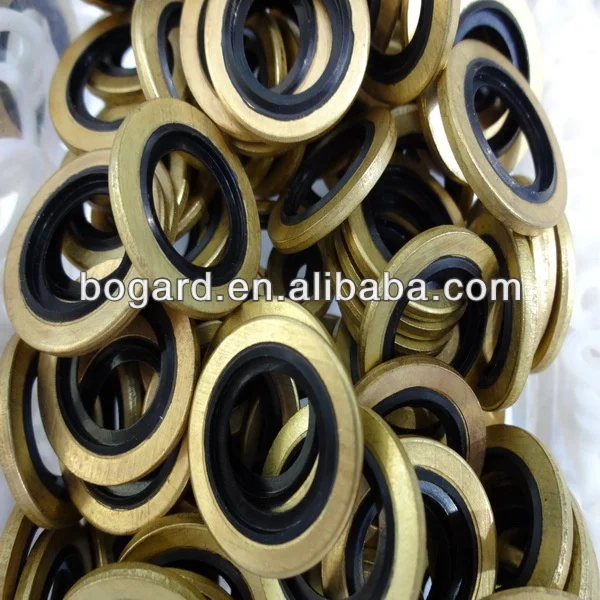

Высококачественные скрепленные уплотнения Dowty

Описание и отзывы

Трекер стоимости

Характеристики

First , Bonded Seal Usage:

The Self-centering Bonded Seals (Dowty Seals) are used in threaded pipe fittings , plug sealing ,hydraulic or Pneumatic sectors and so on.



Second , Bonded Seal Self-centering advantages :

The location processing of sealing groove is not specially required. So it is ideal fittings for fast and automatic installation. Bonded Seal working temperature is -30 C to 100 C , working pressure is less than 39.2MPA .



Third , Bonded Seal Material:

1.      Normal Material: Coppered Carbon Steel + NBR

2.      Specially Required Material: Stainless Steel 316L + NBR , 316L+ FKM , 316L+EPDM , 316L+HNBR , Carbon Steel+ FKM and so on



Fourth , Bonded Seal Sizes:

Our plant manufactures nearly all standard bonded seal sizes , following list is the popular bonded seal sizes , if you need any other standard bonded seal sizes ( not showed on the following list) , please do not hesitate to contact us .
