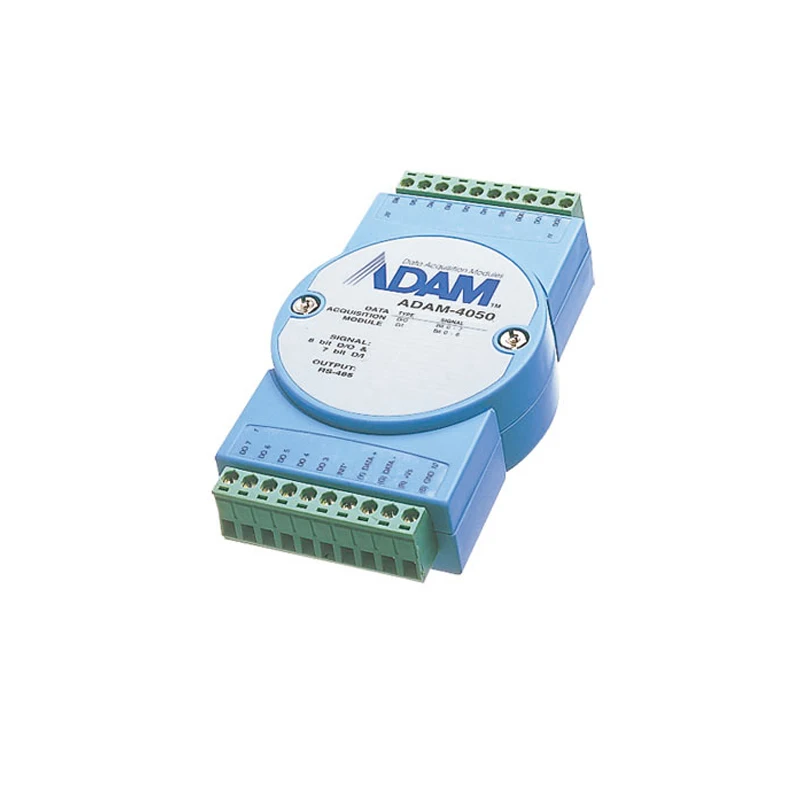

15-канальный цифровой модуль ввода-вывода Advantech
- Категория: Промышленные компьютерные и аксессуары >>>
- Поставщик: Luchengtech,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.11 $* | 0.5 $* |
| Aug-18-2025 | 0.23 $* | 0.60 $* |
| Jul-18-2025 | 0.97 $* | 0.38 $* |
| Jun-18-2025 | 0.59 $* | 0.96 $* |
| May-18-2025 | 0.80 $* | 0.19 $* |
| Apr-18-2025 | 0.80 $* | 0.45 $* |
| Mar-18-2025 | 0.5 $* | 0.56 $* |
| Feb-18-2025 | 0.38 $* | 0.26 $* |
| Jan-18-2025 | 0.22 $* | 0.81 $* |
Характеристики
| Main Feature | |||
|---|---|---|---|
|
15-ch Digital I/O Module
| Display | LED Indicators | Power |
| Power Supply | Power Requirement | 10~30 VDC |
| General | Watchdog Timer | System (1.6 second) |
| Connector | 2 x plug-in terminal block (#14~22 AWG) | |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 5~95 %RH | |
| Temperature (Storage) | -25~85 °C (-13~185 °F) | |
| Interface | RS-485 | |
| Communication Protocol | ASCII command | |
| Communication Speed | Serial: From 1,200 to 115.2 k | |
| Comm. Distance | Serial: 1.2 km | |
| Data Flow Control | Yes | |
| Digital Input | Channles | 7 |
| Input Voltage | Logic level 0: 1 VDC max. Logic level 1: 3.5~30 VDC | |
| Digital Output | Channels | 8 Open collector to 30V, 30 mA max. load |
| Power Dissipation | 300 mW |
