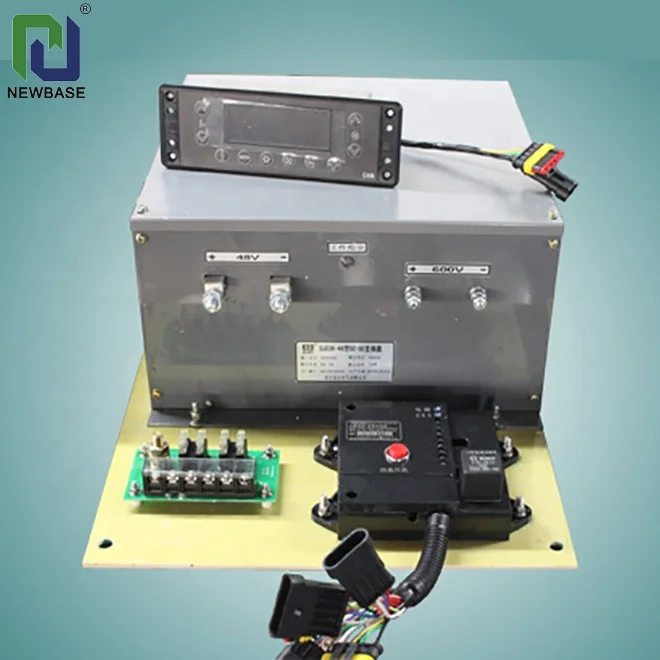

CK20105012 DC Power Air Condition Controller electric bus air condition controller





CK20100512 control panel is specifically designed for DC-power air condition.



Main function: This panel combines with back-mounted control box(CK2020492) takes the CAN-bus communication, to realize the control of cooling, warming, error alarm, emergency, etc. Even if the control panel is damaged, the back-mounted CAN-bus control box could also control the A/C system normally. Evaporator fan and condenser fan take PWM way to regulate to speed, matching up with the speed regulation module which researched & developed by NEWBASE, to realize the variable speed regulation of fan motor, to reduce the noise of A/C system efficiently. The control panel have the function of power-down memory, running time checking ,shift function, etc.







Application:



YUTONG bus, HIGER bus







Technical data



Power supply	DC24V(DC21+ 1V-DC31+ 1V)
Power consumption	3W
Dimensions	194X68X56 mm
Input	1) Air inlet temp sensor (25°C,Rb=5K,B=3274) 2)Evaporator temp sensor 3)Condenser temp sensor 4)High pressure transducer 5)Power detection 6)ACC power(battery) 7)Backlight power 8)Low pressure transducer 9)Compressor temp sensor 10)Compressor transducer defective signal 11)Evaporator transducer defective signal 12)Condenser transducer defective signal
Output	1) Compressor speed regulation signal 2) Compressor transducer turn-on signal 3) Condenser transducer turn-on signal 4) Evaporator transducer turn-on signal 5) Evaporator fan speed regulation signal 6) Reversing valve turn-on signal
Display	LED
Display accuracy	Temp value, dual digit display. Accuracy, 1 °C
Ambient temperature	-30°C—80°C 5%-95%RH Non-condensing
Storage temperature	-10°C—70°C 5%-95%RH Non-condensing
Faceplate level	IP43
EMC level	EN50081&EN50082-2
Weight	300g
