Машины для ротационной глубокой печати
Лидер продаж ротогравировальная печатная машина для пластиковой пленки 4 цвета 6

Лидер продаж ротогравировальная печатная машина для пластиковой пленки 4 цвета 6

Категория: Машины для ротационной глубокой печати >>>
Поставщик: Zhejiang,Deguang,Machinery,Co.,Ltd.

Цена:40 000,00 $ - 50 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	47600.30 $*	49980.82 $*
Aug-16-2025	47200.33 $*	49560.81 $*
Jul-16-2025	39600.51 $*	41580.97 $*
Jun-16-2025	46400.53 $*	48720.19 $*
May-16-2025	40400.87 $*	42420.82 $*
Apr-16-2025	45600.87 $*	47880.32 $*
Mar-16-2025	45200.86 $*	47460.47 $*
Feb-16-2025	44800.29 $*	47040.91 $*
Jan-16-2025	44400.31 $*	46620.72 $*

Характеристики

DEGUANG^® Print In Life

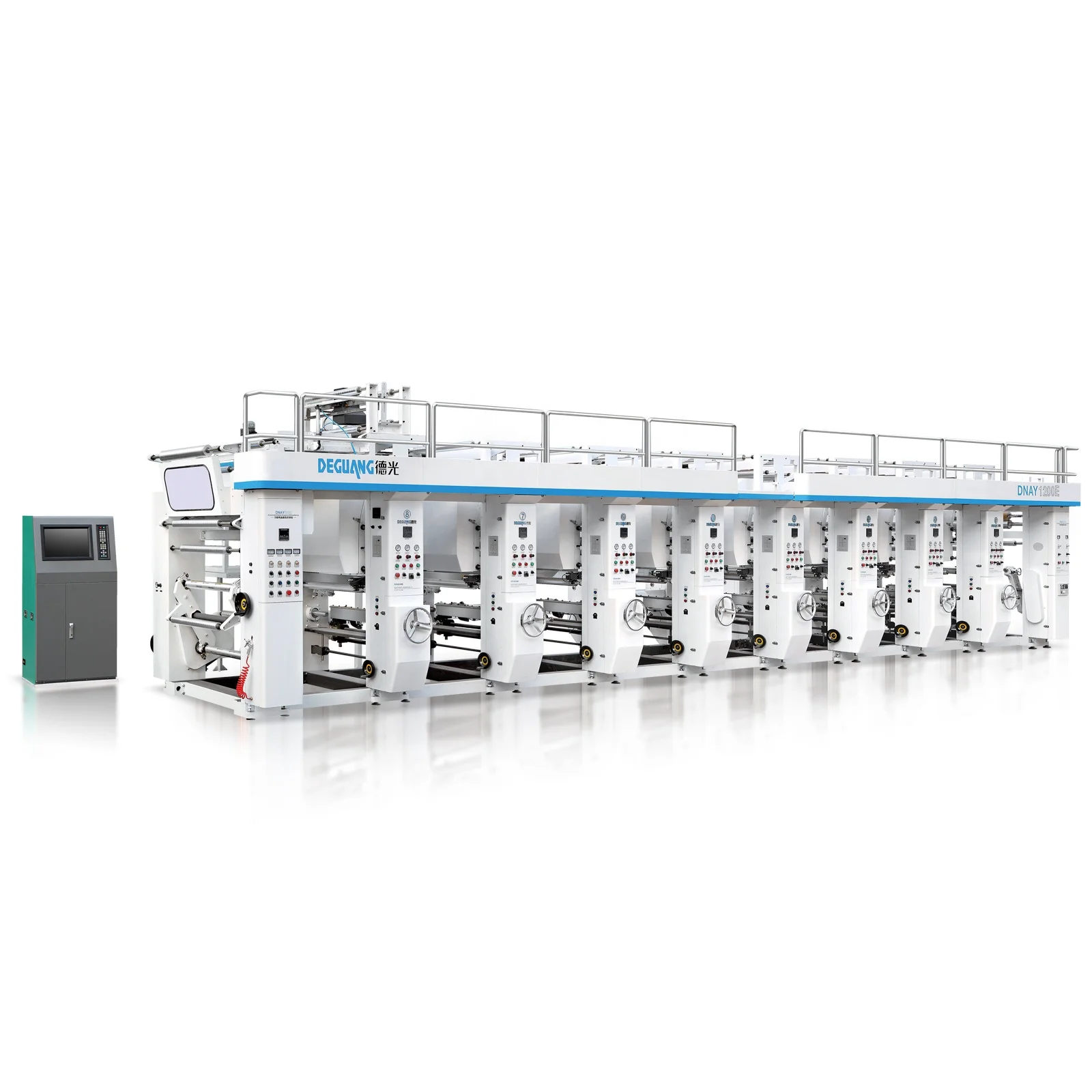

This 6 color rotogravure printing machine is suitable for BOPP, PET,PE, CPP, PVC and combined film and paper with same properties.

Main Tech. Parameter

(NOTE:The specification is based on 6 colors)

Model	DNAY800 Model	DNAY1100 Model
Web width	800mm	1100mm
Printing speed	Max 100m/min	Max 100m/min
Print cyl. dia.	100-350mm	100-350mm
Rolling material dia.	570mm	570mm
Print cyl. cross adjustable	30mm	30mm
Print. cyl. longitudinal adjustable	100°	100°
Registering accuracy	±0.1mm	±0.1mm
Total power	76kw	89kw
Weight	9000kg	10000kg
Overall dimensions(L×W×H)(mm)	10600×2900×3020	10600×3200×3020

Product Description

1. Usage: It is suitable for BOPP, PET, CPP, PVC and combined film and paper with the same properties. Its printing speed is 100m/min, mechanical speed is 120m/min

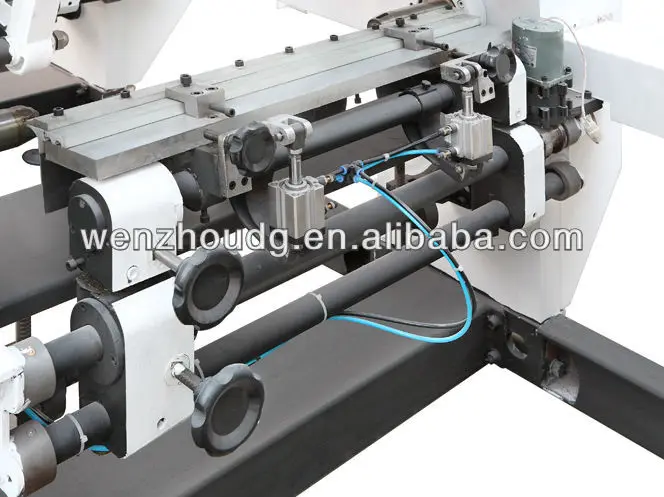

2. Unwinding and rewinding dual station turret, inching rotation.
3. Unwinding powder brake, automatic tension
4. Unwinding and rewinding air shaft
5. Pneumatic pressing roller.
6. Shaftess printing cylinder.
7. Automatic registration with video inspection.
8. Pneumatic doctor blade.
9. Pneumatic ink pump.
10. Electric heating or gas heating or oil heating.

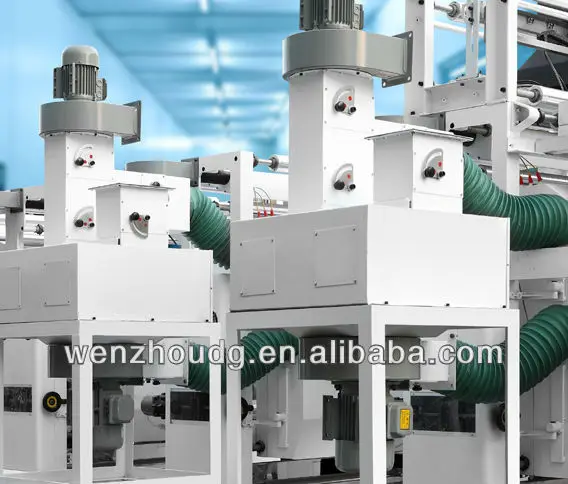

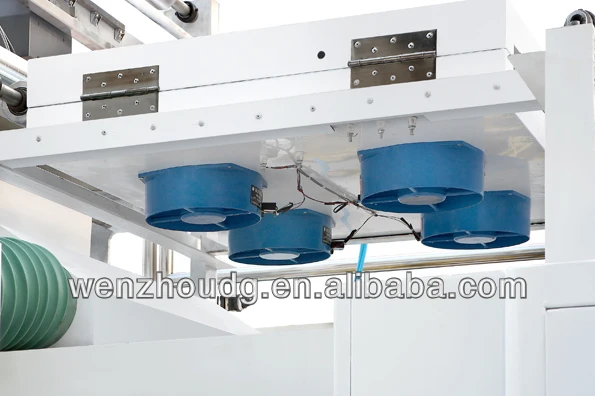

11. Independent drying and suction exhausting system, air circulated, max recycled rate 50%, outside oven increase the amount of blowing air to ensure the drying.
12. Assisted oven on the top of last printing unit can prevent the last color adhesive to the printing cylinder when the color cover the whole cylinder, making the film completely dry.
13. Waste air eliminating tunnel.
14. Rewinding adopts two torque motor.
15. Main motor: Frquency motor
16. Cast iron wallboard, thickness is 70mm


Finished Products

DNAY800D (10) laminating products (5) 20110325105219298452 QQ20160520103556 PP WOVEN BAG (1)

Our customers

our customers (1).jpg

our customers (2).jpg

FAQ

1, Q: How about the after service?
A: We have a strong team, special for after service. We will arrange engineers to your factory to install and debugging machine and training your worker how to running & operating our machine.

2, Q: Are you factory/manufacturer or trading company?
A: We are a factory/manufacturer in this field more than 30 years which founded in 1984. (Zhejiang Deguang Machinery Co.,Ltd.)

3, Q: Where is your factory located? How can I visit there?
A:Our factory is located in Rui'an City (Wenzhou), Zhejiang Province, China, near to the Wenzhou Longwan Internation Airport. You can fly to Wenzhou airport from Shanghai or Guangzhou etc.

4, Q:How does your factory do regarding quality control?
A:Quality is priority. All the parts of machine are made by our own CNC equipment to ensure the accuracy.

5, Q: why choose Deguang Machinery?
A: We are one of leader in this field (in China). Our quality products and after service have enabled us to expand our market from China to more than 80 countries.

Welcome to visit us and contact us for any problems!
