Характеристики

2018 New plastic bag printing machine manufacturer low price

Usage: We are Plastic Bag Gravure Printing Machine Supplier, this rotogravure printing machine is suitable for BOPP, PET, PE(dual layers also is ok), CPP, PVC and combined film and paper with same properties.

Technical Parameters:

(NOTE:The specification is based on 6 colors)

Model	AY800 Model	AY1100 Model
Web width	800mm	1100mm
Printing speed	Max 100m/min	Max 100m/min
Print cyl. dia.	100-350mm	100-350mm
Rolling material dia.	570mm	570mm
Print cyl. cross adjustable	30mm	30mm
Print. cyl. longitudinal adjustable	100°	100°
Registering accuracy	±0.2mm	±0.2mm
Total power	60kw	70kw
Weight	8000kg	9000kg
Overall dimensions(L×W×H)(mm)	10600×2430×2670	10600×2730×2670

Main configuration :

1. This plastic bag printing machine its printing speed is 100m/min, mechanical speed is 120m/min.

2. Unwinding and rewinding dual station turret, manual rotation.

3. Unwinding powder brake, automatic tension.

4. Unwinding and rewinding air shaft

5. Pneumatic pressing roller.

6. Shaftess printing cylinder.

7.Manual registration.

8. Pneumatic doctor blade.

9. Motor ink pump.

10. Electric heating or gas heating or oil heating.

11.Suction system making the air circulated and recycled, max recycled rate 50%, blowing smelly air out of oven which is environmental and good for worker's health.

12. Rewinding adopts torque motor.

13. Main motor: Frquency motor

14. Cast iron wallboard,thickness is 70mm

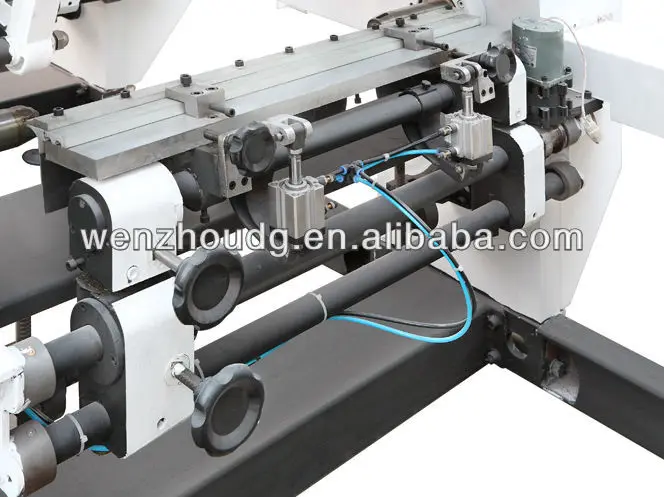

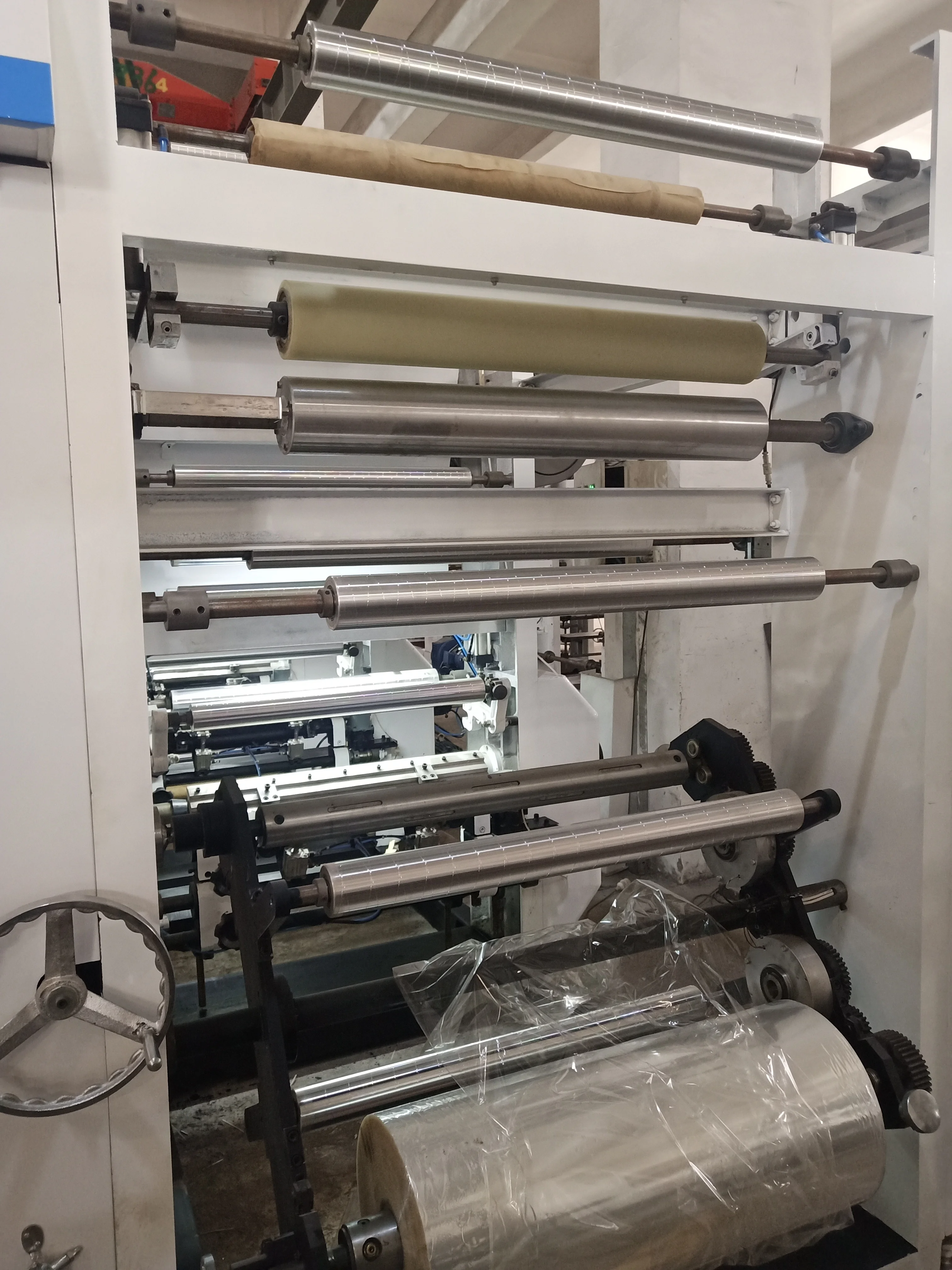

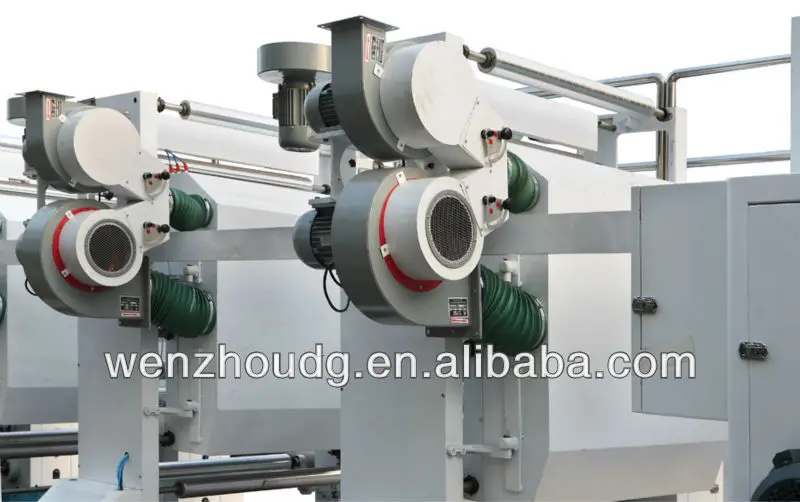

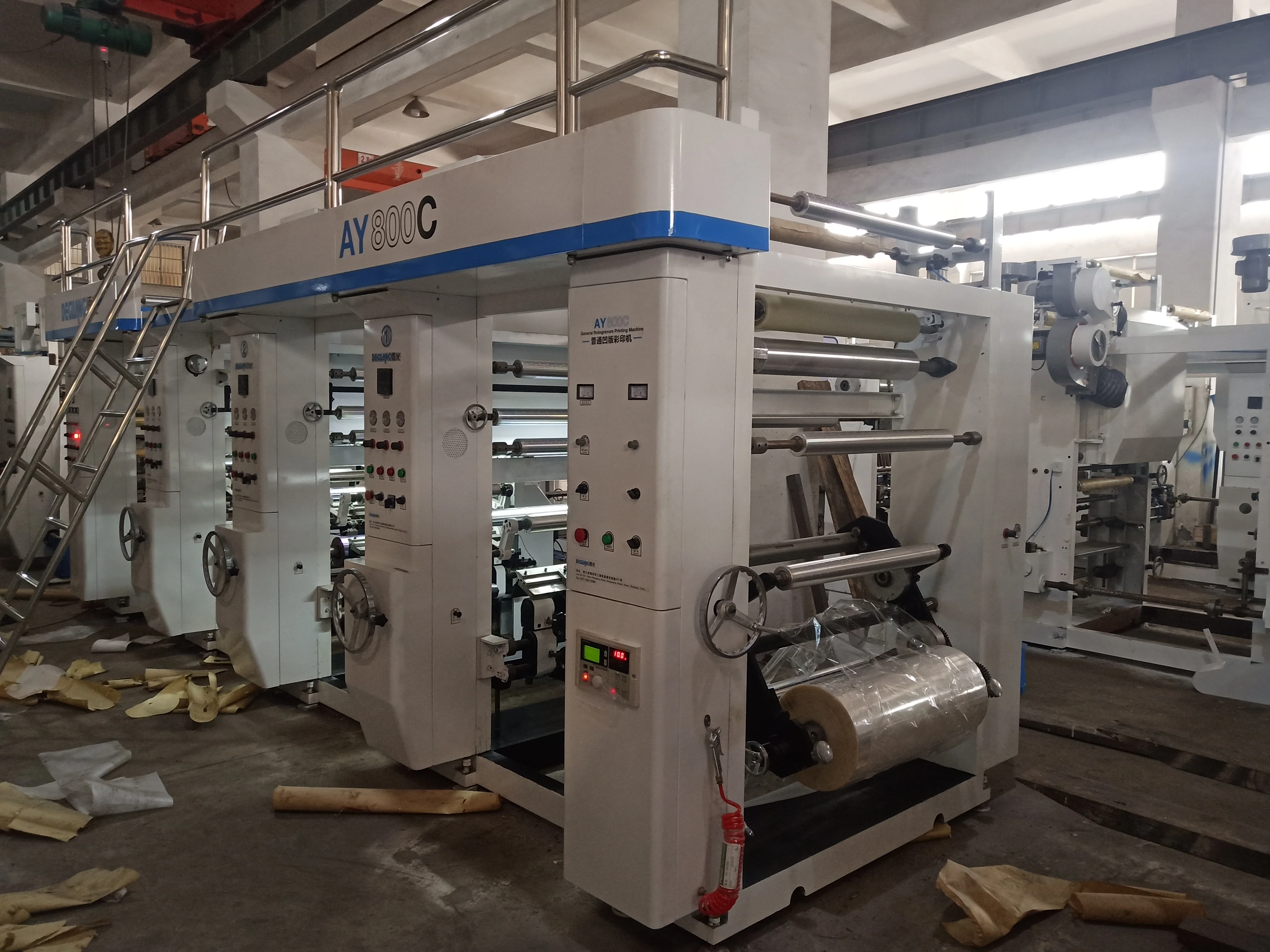

Specific picture:

Finished Products:

loading to ship out:

We are In Exhibition:

We have cooperated with customers from all over the world. We are highly trusted by customers.

Certifications for Company:
