Быстрая доставка пресс-форм по типу задержки Genie СГС SMAC-XH97 антенна ножничный подъемник колеса 15x5 16x5x12 12x4 200-8
- Категория: Запчасти и аксессуары для автомобилей >>>
- Поставщик: Yantai,Wonray,Rubber,Tire,Co.,Ltd.,[Shandong,China]Yantai
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 1768.35 $* | 1856.20 $* |
| Aug-18-2025 | 1753.33 $* | 1841.20 $* |
| Jul-18-2025 | 1471.40 $* | 1545.57 $* |
| Jun-18-2025 | 1724.61 $* | 1810.52 $* |
| May-18-2025 | 1501.39 $* | 1576.89 $* |
| Apr-18-2025 | 1694.4 $* | 1779.63 $* |
| Mar-18-2025 | 1679.46 $* | 1763.90 $* |
| Feb-18-2025 | 1664.10 $* | 1747.54 $* |
| Jan-18-2025 | 1649.54 $* | 1731.7 $* |
Характеристики

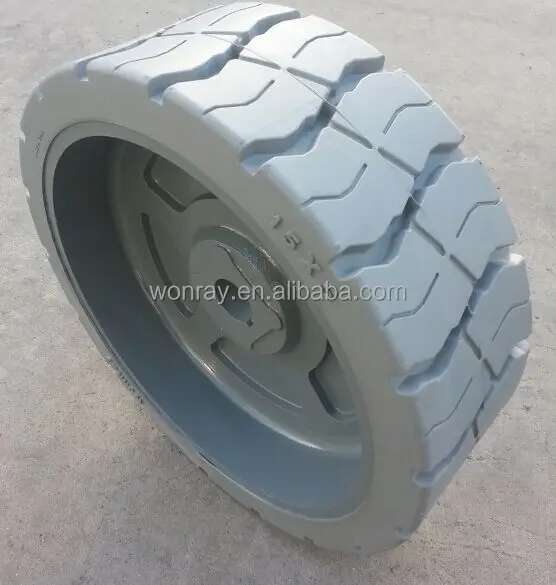

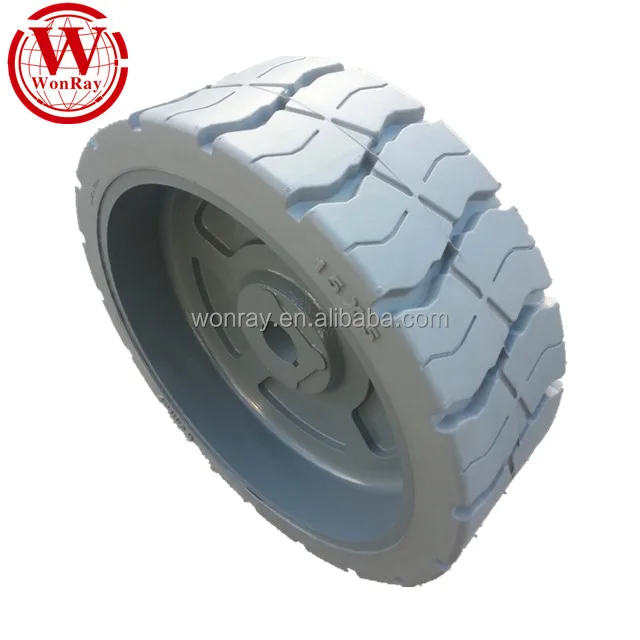

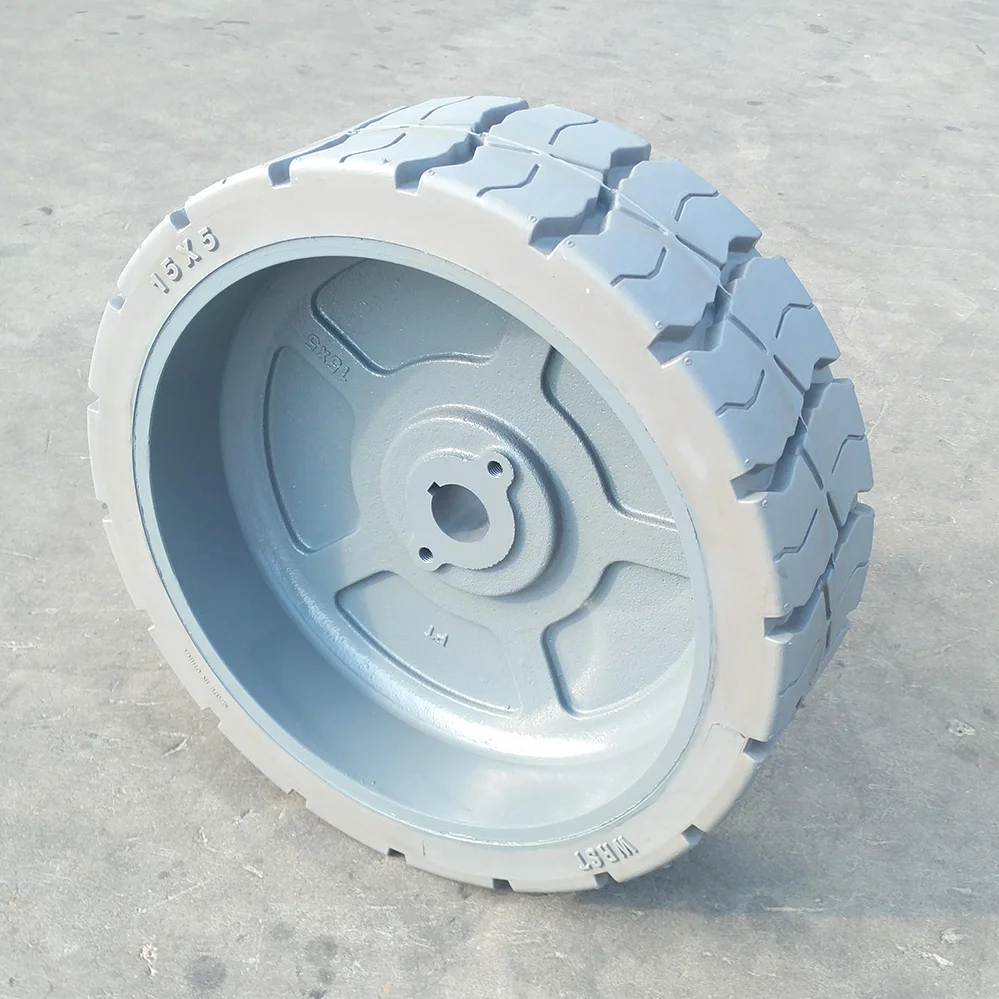

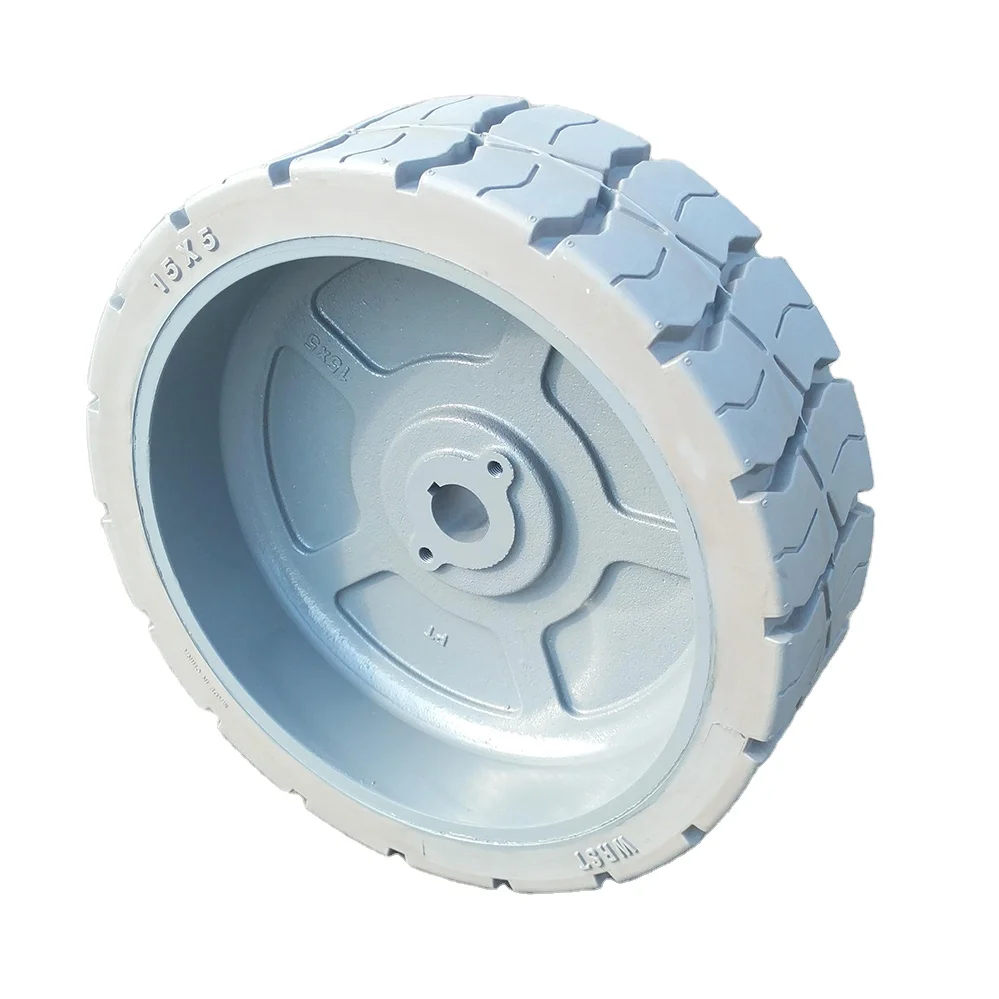

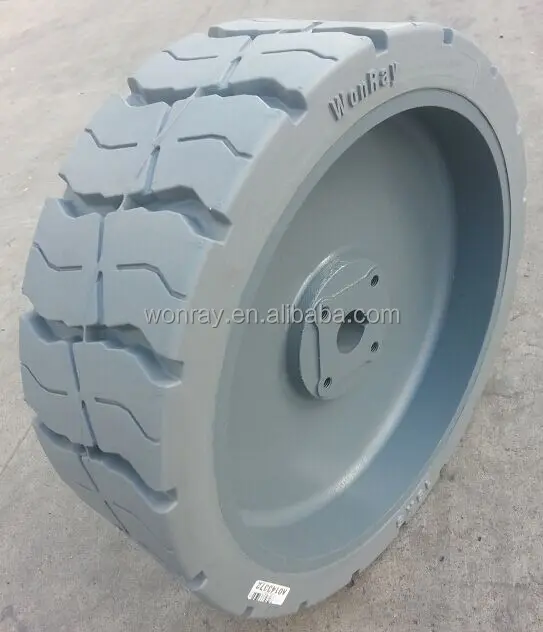

fast delivery mold on type Genie, JLG, SMAC-XH97 aerial scissor lift wheels 15x5 16X5X12 12X4 200-8 22X7X17.75
Why choose us:
We have special quality inspection department.
Our inspection group must inspect the tire outlook and quality before the tires are stocked in the warehouse to avoid any problem tire.
They muct inspect the tires again before we deliver the tires to the port.
Specification of Solid Tires and Wheels for Scissor Lifts
| No. | SIZE/RIM | Pattern No. | Outside Diameter (mm) |
Section Width (mm) |
Net Weight (Kg) |
| ±5mm | ±5mm | WonRay | |||
| 1 | FB10*3(grey cast iron) | R706 | 254 | 74 | 7.5 |
| 2 | FB10*4 (with RIM) | R706 | 256 | 101.6 | 5.9 |
| 3 | 12*4 (with brake) | R707 | 310 | 100 | 7.9 |
| 4 | 12*4 (W/O brake) | R707 | 310 | 100 | 7.4 |
| 5 | FB 12*4.5(grey iron)(-2same this) | R707 | 310 | 115 | 15.3 |
| 6 | FB 12*4.5(ductile iron) | R707 | 310 | 115 | 15.3 |
| 7 | FB 14*4 1/2 | R713 | 358 | 114 | 14.3 |
| 8 | FB 15*5(grey iron) | R712 | 384 | 127 | 22.3 |
| 9 | FB 15*5(ductile iron) | R712 | 384 | 127 | 22.3 |
| 10 | FB 15*5-2(grey iron) | R712 | 384 | 127 | 21.1 |
| 11 | 16*5*12(with brake) | R706 | 406 | 125 | 15.8 |
| 12 | 16*5*12(W/O brake) | R706 | 406 | 125 | 14.6 |
| 13 | FB22*7*17 3/4 | R714 | 559 | 176 | 50 |
| 14 | FB 406*125(JLG16*5*12) | R706 | 406 | 125 | 17.7 |
| 15 | FB406*127 | R713 | 406 | 127 | 21.3 |
| 16 | FB 323*100 | R713 | 323 | 100 | 9.4 |
| 17 | 12.5x4.25 | R712 | 320 | 108 | 18 |
Company information:
Products and factory photo show
After Sales:
1, All our solid tires are in line with GB/T10824-2008
2, If needed, we can supply the correct rims and press the rims into the tires
3, We will advise the speed limit and load capacity after sales
4, If any problem, please contact with us, we will reply in short time.
5, If quality problem, please take photos, we will be responsible for this.
6, For the need of developing new product, please offer us detailed technical requirement or mould drawing.
Attention:
We have rims with different installing bolt holes. When ordering these tires with rims, please let us know how many bolt holes your current rims have!
For additional information please call us or leave message:
Ms Kelly Ma 24 hours service phone 86 15966582360
Wechat 714268377 QQ 714268377 Whatsapp 8613884937497
Skype yueyue_72
