RCH-302 полый поршень 30 тонн Стандартный гидравлический

RCH-302 полый поршень 30 тонн Стандартный гидравлический

Категория: Гидравлические домкраты >>>
Поставщик: SOV,Hydraulic,Technology,(Shanghai),Co.,Ltd.

Цена:430,00 $ - 463,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	512.90 $*	538.68 $*
Aug-20-2025	507.96 $*	532.9 $*
Jul-20-2025	426.49 $*	447.31 $*
Jun-20-2025	499.90 $*	524.35 $*
May-20-2025	434.67 $*	456.90 $*
Apr-20-2025	490.92 $*	515.24 $*
Mar-20-2025	486.80 $*	510.33 $*
Feb-20-2025	482.45 $*	506.31 $*
Jan-20-2025	477.52 $*	501.40 $*

Характеристики

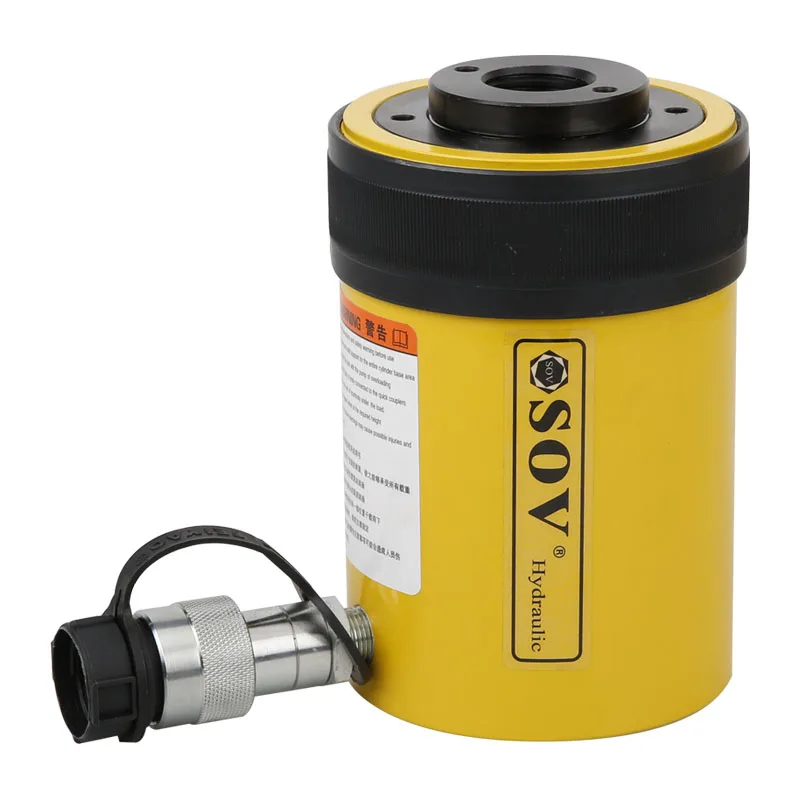

RCH-302 Hollow Plunger 30ton Standard Hydraulic Jack

Product Description

Description

SOV hollow plunger cylinders provide versatility in testing, maintenance and pensioning applications. The hollow plunger design allows for both pull and push forces

1. Single-acting spring return

2. Cylinders are nickel-plated, floating center tube on models over 20 tons increases product life

3. Baked enamel finish for increased corrosion resistance

4. Collar threads for easy fixturing

5. SOV-RCH-120 cylinders include AR-630 coupler and has 1/4 NPTF port

6. SOV-RCH-121 and SOV-RCH-1211 cylinders have FZ-1630 reducer and AR-630 coupler, all other models feature CR-400 coupler

Parameter

Model Number	Cylinder Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height (A)	Extended Height (B)	Out- side Dia- meter (D)	Center Hole Dia. (Y)	Weight
	ton (kN)	mm	cm2	cm3	mm	mm	mm	mm	kg
SOV-RCH-120	13 (125)	8	17,9	14	55	63	69	19,6	1,5
SOV-RCH-121*		42	17,9	75	120	162	69	19,6	2,8
SOV-RCH-1211		42	17,9	75	120	162	69	19,6	2,8
SOV-RCH-123		76	17,9	136	184	260	69	19,6	4,4
SOV-RCH-202*	20 (215)	49	30,7	150	162	211	98	26,9	7,7
SOV-RCH-206	20 (215)	155	30,7	476	306	461	98	26,9	14,1
SOV-RCH-302*	30 (326)	64	46,6	298	178	242	114	33,3	10,9
SOV-RCH-306	30 (326)	155	46,6	722	330	485	114	33,3	21,8
SOV-RCH-603*	60 (576)	76	82,3	626	247	323	159	53,8	28,1
SOV-RCH-606	60 (576)	153	82,3	1259	323	476	159	53,8	35,4
SOV-RCH-1003*	95 (931)	76	133	1011	254	330	212	79,0	63

Photos

RCH .jpg IMG_0073_1 .jpg IMG_0076_3 .jpg

Applications

.JPG

.jpg

Packaging & Shipping

Packing: All products will be packed with wooden case;

Shipping:

1. Small quantity: by international exress, such as DHL, TNT, FEDEX, UPS, etc. depending on the customers' choice. Goods will arrive within 7 days in normal cicumstances;

2. Large quantity: by sea transportation. Goods will arrive in 10~45 days, according to the diatance.

Our Services

1. 24 hours online service;
2. One year warranty, repair and service for the whole life.
3. Question report will be replied in 48 hours.
4. Quality guaranteed.

Company Information

SOV Hydraulic Technoloy (Shanghai) Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders , synchronous PLC hydraulic system, hydraulic pumps, torque wrenches, and hydraulic components.

Since the establishment in 1995, we successfully transformed from OEM manufacturer for many international brands to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

Our customers includ many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

(1).jpg 1(1).jpg (1).jpg
