Плата контроллера ЖК-дисплея FHD AV USB Type C
US $50.00-$99.00
7 дюймов hd vga ЖК-монитор 1024x600 lcd-плата контроллера
- Категория: LCD Boards & Accessories >>>
- Поставщик: Dalian,Good,Display,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 70.8 $* | 71.98 $* |
| Jul-20-2025 | 57.64 $* | 58.38 $* |
| Jun-20-2025 | 69.83 $* | 70.4 $* |
| May-20-2025 | 68.61 $* | 69.53 $* |
| Apr-20-2025 | 54.80 $* | 55.52 $* |
| Mar-20-2025 | 67.47 $* | 68.99 $* |
| Feb-20-2025 | 67.99 $* | 68.50 $* |
| Jan-20-2025 | 66.59 $* | 67.12 $* |
Характеристики
The collection store can let you know that the store provides time-limited discount, product reduction, coupons, hot sales, new products, low MOQ, free proofing and other information that is beneficial to you.
Methods: such as the picture to see "❤" , Click it on the PC or APP. That way you could see all of the feeds at the bottom of the APP.
Welcome to collect. thank you
Methods: such as the picture to see "❤" , Click it on the PC or APP. That way you could see all of the feeds at the bottom of the APP.
Welcome to collect. thank you
Products Description

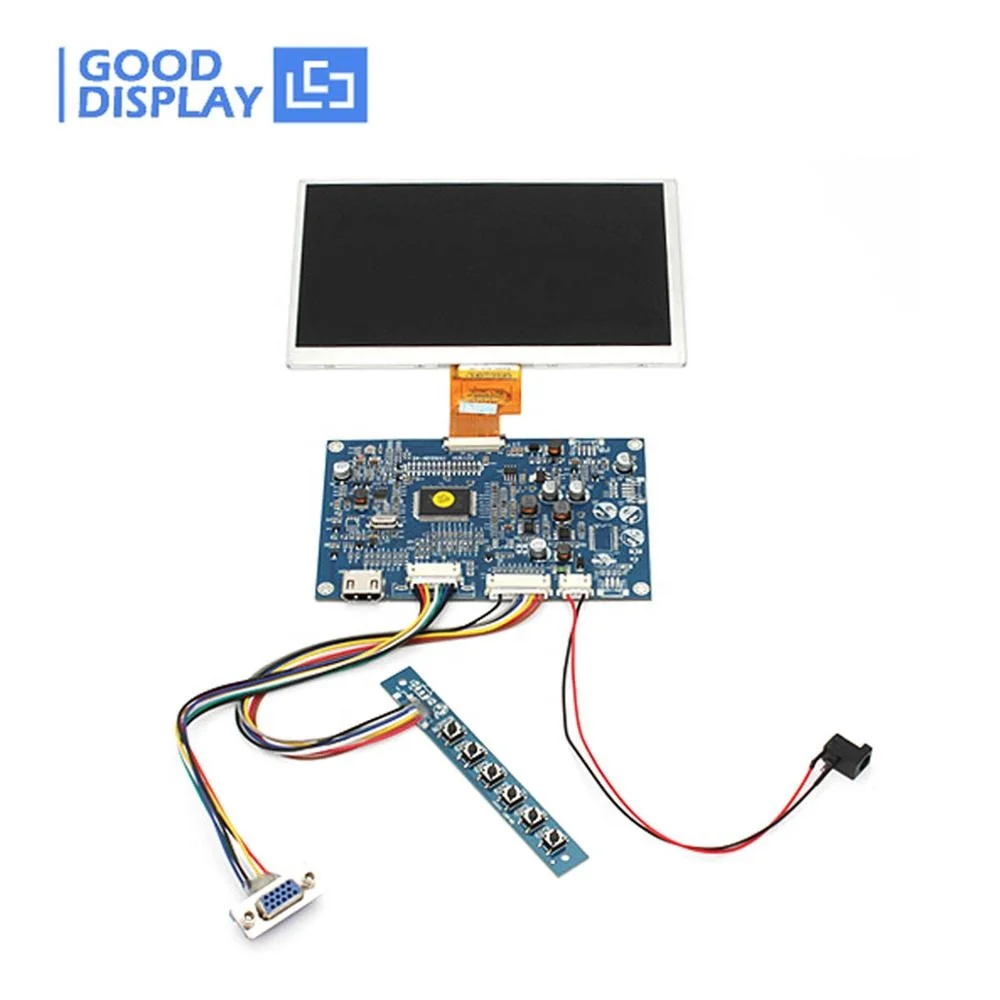

What's included in the package
No. | Standard Accessory Name | Qty |
1 | 7 inch 1024X600 TFT LCD Panel | 1 |
2 | DC12V power input AD Board with VGA,HDMI interface | 1 |
3 | Cable with Keypad terminal | 1 |
4 | Cable with Power input terminal | 1 |
5 | Come with helpful development demo kit with resources and manual (Please contact our sales, we will send the you the documents by email, thanks) | 1 |
Main Parameters
Part Number | GDNHD156AU-GTI070NA |
Size | 7.0 inch |
Resolution is fit for module | 1920x1080(max.)~800x600(min.) |
Resolution(panel) | 1024 x 3RGB x 600 |
Driver element | a-Si TFT active matrix |
Display mode | Normally Black, Tranmissive |
Backlight | LED |
View Angle | (up/down/left/right70/75/75/75) |
Surface treatment | Hard Coating |
Color arrangement | RGB-stripe |
Interface | LVDS |
Brightness | 250cd/m2 |
System Format | PAL/NTSC switch auto matically |
Signal type input | HDMI, VGA |
Start time | 3.0s |
Power Supply Voltage | DC12V +/- 25%(Type12V340mA±30mA) |
Dot pitch | 0.05(W) x 0.15(H)mm |
Dimension of Active Area(mm) | 153.6(H) x 90.0(V)mm |
Over all Dimension of LCD(mm) | 165.75(W) x 105.39(H) x 3.4(D)mm |
Structural Dimension of PCB without VGA height(mm) | 128.0(W) x 85.0(H) x 16.0(D)mm |
Operation Temperature | -20~+60°C |
Storage Temperature | -30~+70°C |
Structure

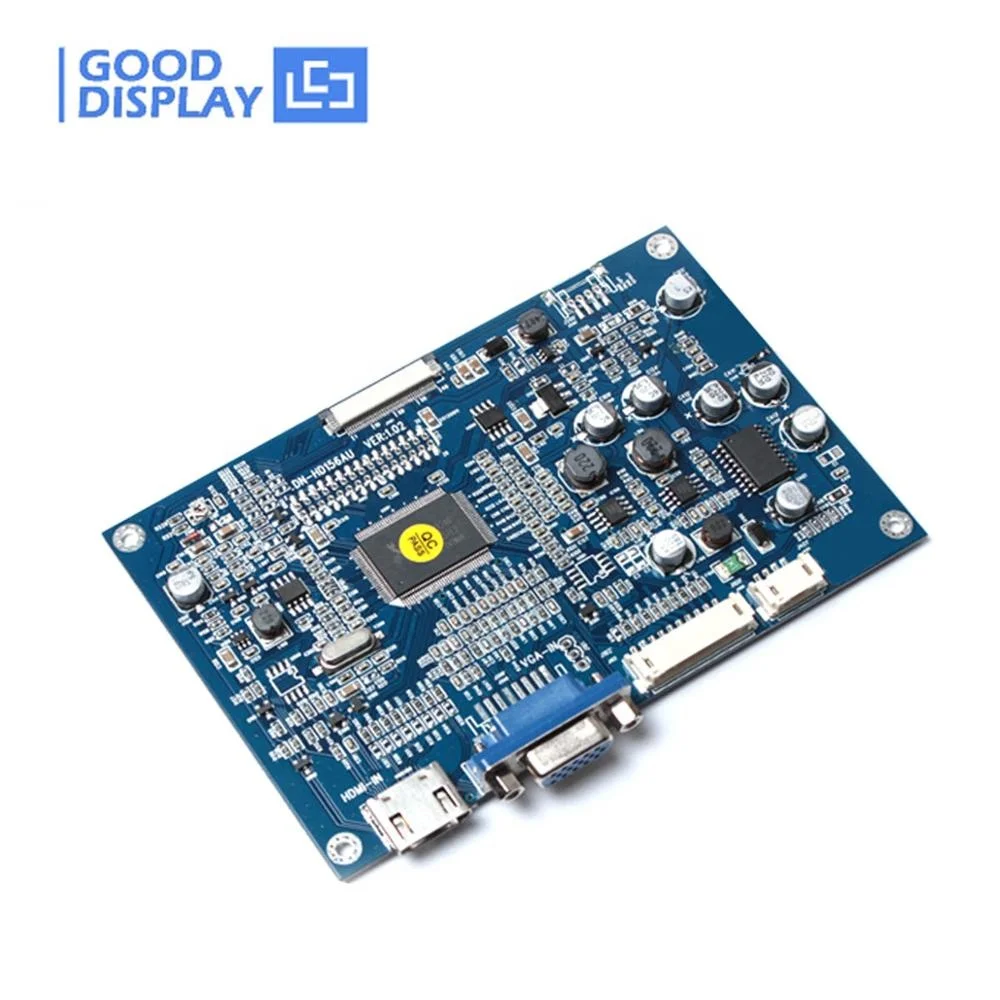

PCBA (A/D board)
Please see following important safety instructions
1. The nominal voltage of DC input to the A/D board is 12V, The size of DC current depends on the TFT LCD, audio amplifier, etc.
Please note that your AC/DC adapter's output plug need to match the DC input jack,the diameter of the jack is 5.5 mm.
2. Before connecting these input/output ports, Video port, it is strongly recommended that your turn off the A/D board and remove the DC 12V plug from the DC input jack.
3. Don’t put the A/D board into an airtight package. When it works, it will produce a certain heat.
4. When assembling it, please use a suitable force; don’t distort the PCB and other components.
Please note that your AC/DC adapter's output plug need to match the DC input jack,the diameter of the jack is 5.5 mm.
2. Before connecting these input/output ports, Video port, it is strongly recommended that your turn off the A/D board and remove the DC 12V plug from the DC input jack.
3. Don’t put the A/D board into an airtight package. When it works, it will produce a certain heat.
4. When assembling it, please use a suitable force; don’t distort the PCB and other components.
Particulars
Other Products
8.0 inch
Resolution: 1024 x 3RGB x 768
Signal Input: LVDS
5.6 inch
Brightness:1350cd/m2
Signal Input: VGA,VIDEO
5.0 inch
Resolution: 640x(RGB)x480
Signal Input: VGA,VIDEO
