SUZHOU YUDA новый товар поршневой воздушный компрессор 32CFM 1015PSI 20HP 0.9m3 70bar


Поделиться:


Цена:2 300,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 2737.71 $* 2874.8 $*
Aug-18-2025 2714.7 $* 2850.53 $*
Jul-18-2025 2277.87 $* 2391.95 $*
Jun-18-2025 2668.33 $* 2801.76 $*
May-18-2025 2323.80 $* 2439.0 $*
Apr-18-2025 2622.90 $* 2753.18 $*
Mar-18-2025 2599.69 $* 2729.23 $*
Feb-18-2025 2576.12 $* 2705.75 $*
Jan-18-2025 2553.59 $* 2681.55 $*

Характеристики



Product Description








Technical Paremeters


if you want to buy a airc ompressor

The most important paremeters of air compressor are outlet pressure and air capacity.



Model
air capacity
(Nm3/min)
Outlet preesure (MPa)
Power
(KW)
Speed(r.p.m)
size
(mm)
weight
(kg)
VH-0.7/30-SB
0.7
3.0
7.5
680
1240*630*780
310
WH-1.0/30-SB
1.0
3.0
11
600
1470*780*885
430
WH-1.2/30-SB
1.2
3.0
15
760
1470*780*885
450
WH-1.5/30-SB
1.5
3.0
18.5
790
1530*765*1105
520
VH-0.7/30
0.7
3.0
7.5
800
1800*630*1140
410
WH-1.0/30
1.0
3.0
11
600
2005*795*1260
530
WH-1.2/30
1.2
3.0
15
700
2005*795*1260
550
WH-1.5/30
1.5
3.0
18.5
790
1140*735*1450
520
WH-2.0/30
2.0
3.0
22
670
1150*860*1600
610
WH-2.35/30
2.35
3.0
25
760
1150*860*1600
620
2-WH-2.0/30
2.0
3.0
2*11
600
2050*1570*980
1050
2-WH-2.4/30
2.4
3.0
2*15
700
2050*1570*980
1080
2-WH-3.0/30
3.0
3.0
2*18.5
790
1880*1180*1440
1150
3-WH-3.6/30

3.6
3.0
3*15
700
2350*1570*1880
1580


Other model air compressor





Our air compressor
Other air compressor
duplex bearings in the crankcase;extending the working life and boosting the power
single bearing;unstable operation
aluminous alloy piston;resisting high temperature and working well.
General aluminous piston;resisting high temperature but working badly
Sweden steel valve plate and spring plate; keeping operating without flexibility
Domestic steel valve plate;easy to be out of shape
automatic unload system;extending the working life and making sure the system starts safely
Start with load in the air compressor;easy to burn the motor
the king of the world Herbiger air valve
domestic valve
combinational loop for automobile can better
scrape the oil and extend the working life
Average carbonated ring,working unreliably and shortening life
Automatic unload system,releasing the pressure from inter-cooler and cylinders to make sure the machine start without residual pressure
Some hi-tech manufactories adopt this technique, but not all.
cooling automatic drain equipment;successfully releasing the water in the high pressured tubes
No automatic drain equipment;failing to release the residual water
Danvers,Schneider parts;reliable quality
Domestic parts;unreliable quality


After sales


1.1 year warranty

2.free spare parts

3.24h Customer Service

4.Engineers serve overseas if necessary

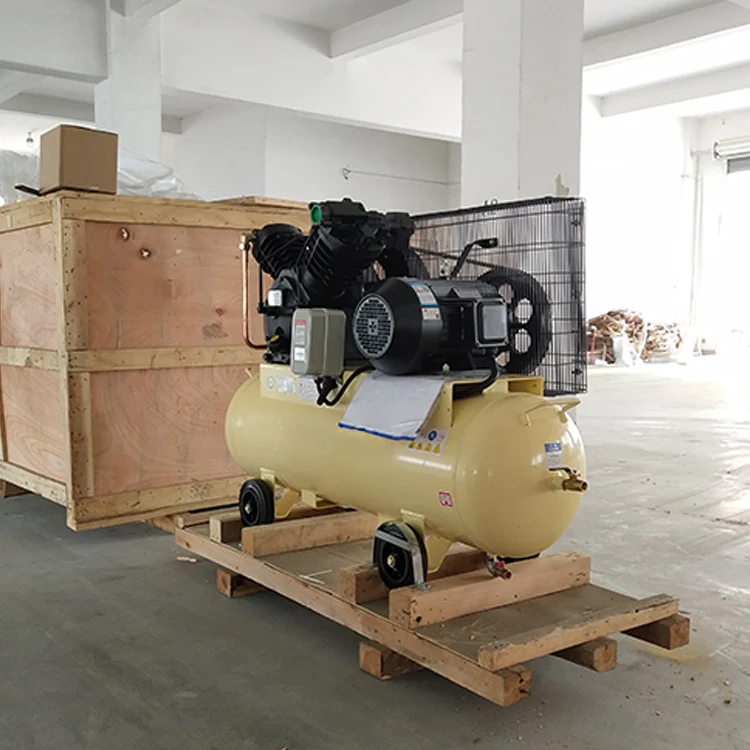

Packing & Delivery


Packing

Wooden case
Quantity
1pc/ctn
Weight
470kg




maintenance

 1. Check oil level, exhaust temperature and exhaust pressure every day, and check whether there is abnormal sound;


2. Open the drain valve of the separator to discharge condensed water before starting the machine every week, check whether there is leakage everywhere, check the safety valve, and check the wear of the belt (visual measurement);

3. Check the inlet control valve, minimum pressure valve, electric control box terminal, safety valve and cooling fan regularly;
