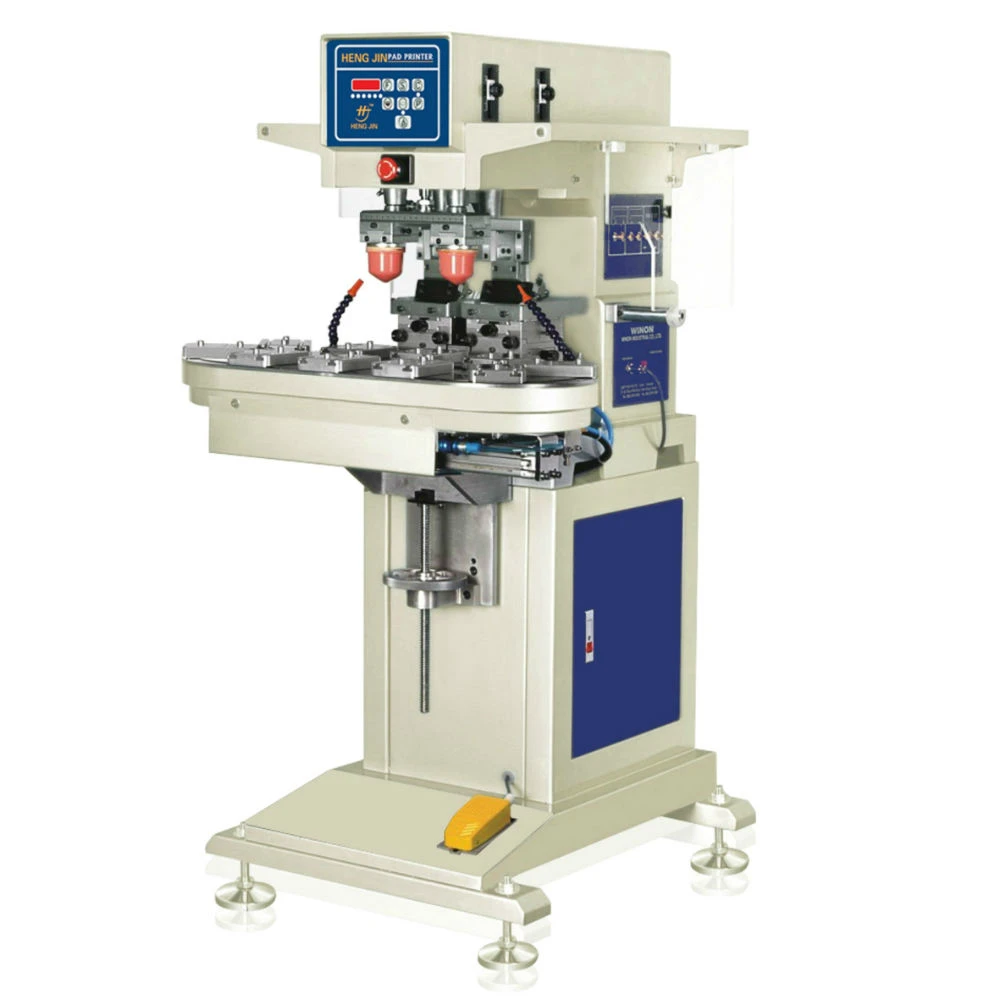

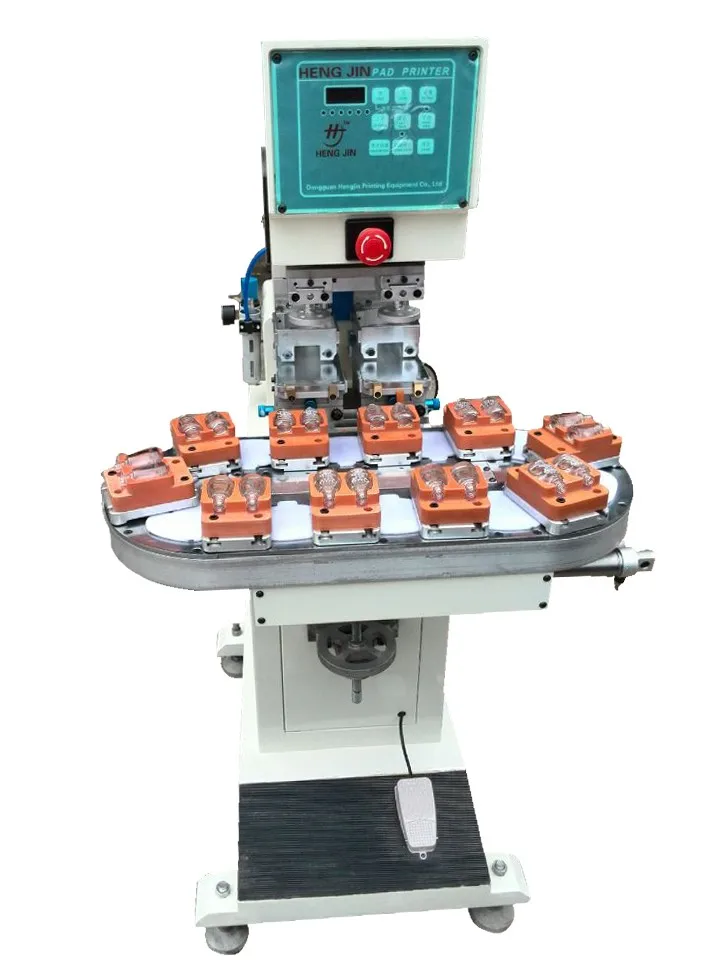

HP-160BZ Pneumatic 2 color rotary table tampo printing machine



Rotary tampo printing machine applied range:

This item special for big target productsprinting. Which is a regular size. Can comprehensive apply for necessities, toys, electrons, electrical equipment, plastics, leather, metal, glass, light industry and food packages ETC.



Rotary tampo printing machine instruction:

1 The printing speed of shuttle pad printer is slower than turntable machine, but which suituble to bigger products. Per time printing 4 colors;

2 There are two cylinders in the worktable which both together exchange controll the position, then Fixing position is precise and stable;

3 This is machine is Semi-automatic, having automatic counter for 4 digits;

4 The machine can do your any printing requested, and per location is adjustable, such as, left/ right, up/ down, delay printing, dip ink etc;

5 The cylinder of Machine is Imported Germany FESTO. The thickness of the screw we used 8.75 Degree. Which have more usage about 20 years;

6 The body is Alloy Cast Aluminium, then it is lighter and durable. The color of body is dusting, which is precise and more nice;

7 The machine is running agile, steady and low voice.



Rotary tampo printing machine parameter:

Major Technical Specification
Color	2
Max. Steel Plate Size (mm)	100*150 (4inches X6inches)
Printing Area (mm)	75*125 (3 inches X 5 inches)
Max. printing Capacity (pcs/hr)	1800
Work station (pcs)	10
Ink Mode	Ink Well type
measurement(L*W*H)mm:	860*710*1420
Net Weight(kg):	166
Power	110V or 220V 50/60Hz
HP-160BZY (Two color ink cup pad printing machine with conveyor) ink cup size Dia90mm





Rotary tampo printing machine advantage:

1 Machine material: Cast Alloy Aluminum which is lighter and more stable.

2 PLC control panel or server motor can design as your requested.

3 printing result accuracy can reach to +-0.03mm.

4 The screw on the machine which hardness is 12.9 grade more durable.

5 Parts process by CNC or worker. Then accuracy.

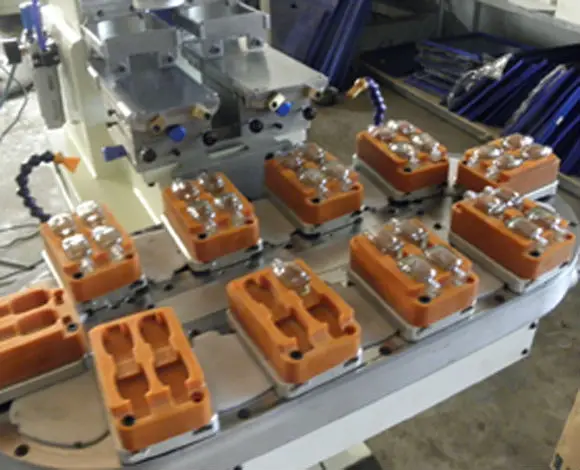

Rotary tampo printing machine samples pictures:







Why choose our rotary tampo printing machine:

dongguan pad printing machine factory hengjin is professional China-based manufacture and supplier of high speed and precision pad printing machine and screen printer.



We have had over 10 years manufacturing experience and over 8 years international marketing experience.

In order to satisfy customers' diversified demands, we provide not only pad printing machine,

but also variety of printing machines. 1.2  3, 5, 6 color pad printer and screen printer, hot stamping machine and pad printer accessories etc.



Remarks for rotary tampo printing machine:

Warrantee: 1 year.

Payment: 30% deposit in advance. The balance against the machine is ready.

 Training: Manual or CD or you can come to visit our factory for free of charge to training.

 Mini order: 1 pieces

 Delivery Time: 5-10 works when receive your payment.

 Business Item: FOB/ CIF/ CFR/ EXW
