Miter Joints used in cabinet door manufacturing machine

can cut 45 degree mitre!



Suitable for processing cabinet Door!

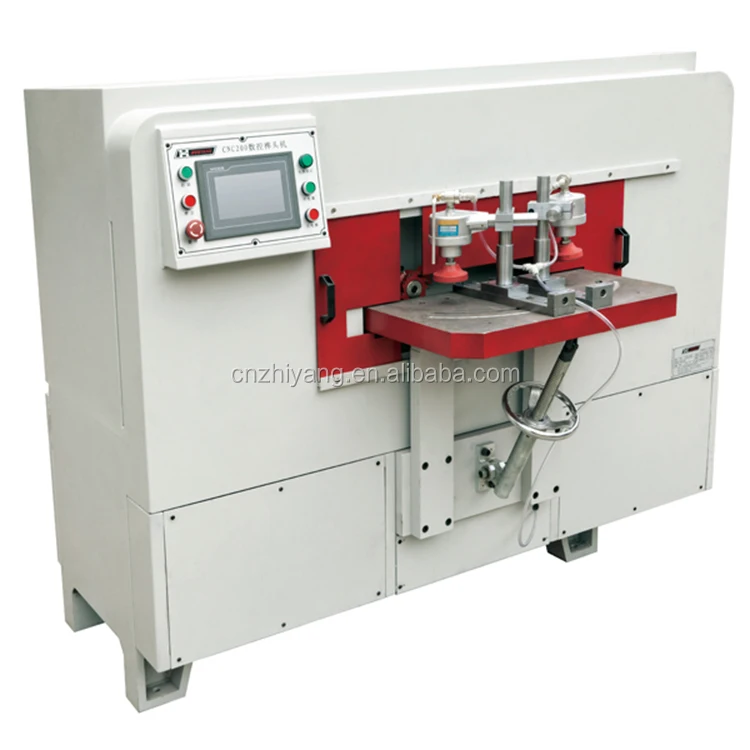

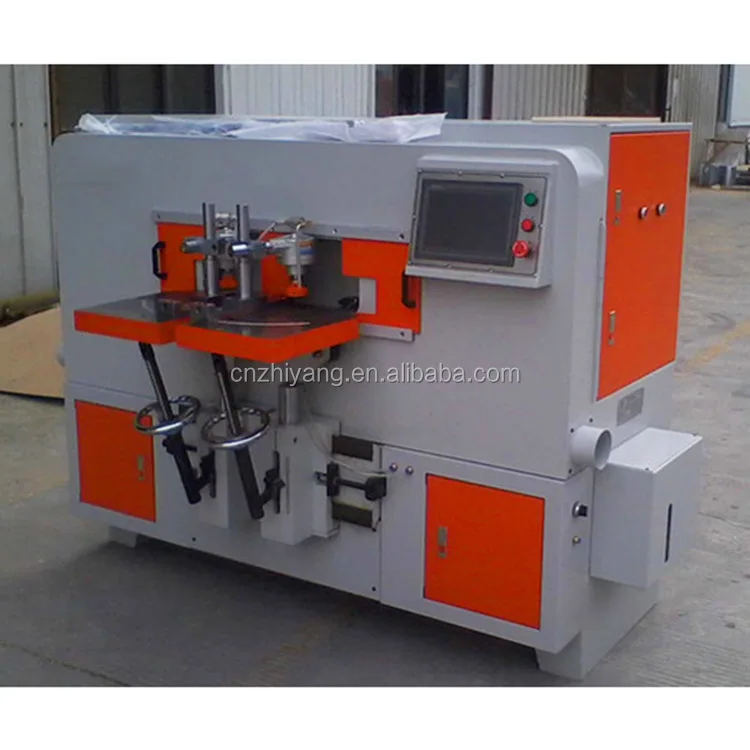

ZY-600















Very easy to control







Advantage:

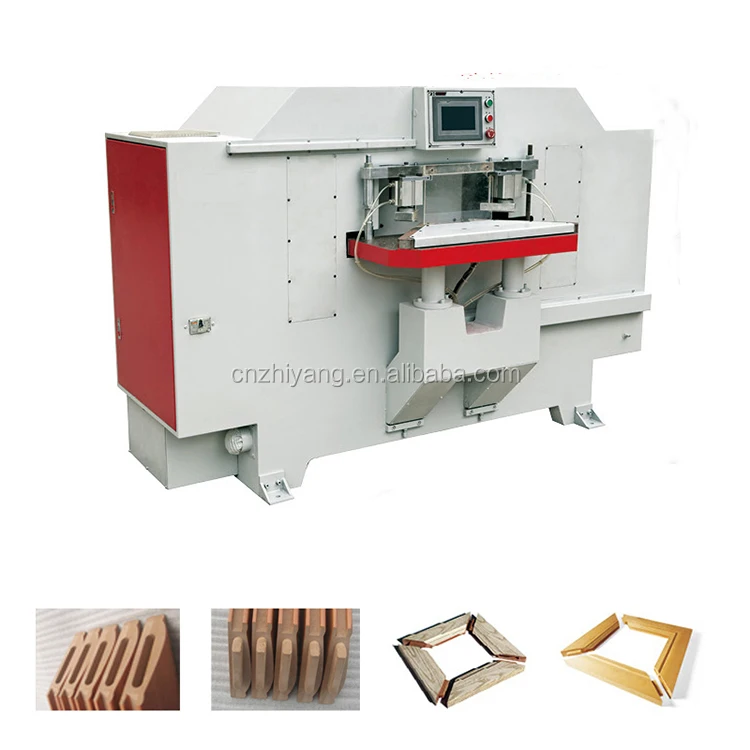

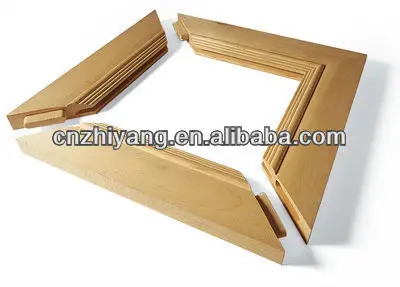

ZY600 is able to machine very specific kinds of joints that are particularly suited for the assembly of door frames, wortops, front frames of furniture pieces with drawers, ect., both at 45 and 90 degree angles or French dap.

Instead of using the traditional method, which consists in drilling the holes and inserting the pins, this system employs rounded tenons and slots that are far quicker to machine as compared to holes and pins. This approach offers significant savings, along with more robust and accurate joints that are free from splints.



Specifications

Installed power	Tenoning motor : 5.5kw
	Mortising motor :3.7kw
	Total installed power:8.5kw approx
Hourly production( theoretical) : up to 160 pcs./hour  (40 doors/hour)
Cycle time(teno + cut w.slot): 15-20"
Cycle speed is variable and can be altered by means of the CNC
CNC:
Model: mc405
Power supply: 30 24 Vac-50/60HZ
Display : LCD mono chrome 10.2"
Tenoning Motor:
Cutterblock rotation: 9000/12000RPM
Shaft dimensions: 30mmφ
Tool dimensions hogging cutter:130mmφmax
Tenoning tool body: 90mmφmax
Mortision Motor:
Bit rotation: 9000/12000/18000Rpm
Mortision bit shank ER25 collett minφ3mm/maxφ16mm
Tenon dimensions(variable ,in function to the size of toll used)
Tenon width :0-150mm
Tenons depth:10-45mm
Table dimension: 880*370mm
Fence adjustment:0°or 45°
