Вкладыш RFID Alien H3/H4 9640/9740

Категория: Другие товары управления доступом >>>
Поставщик: Shenzhen,Sanray,Technology,Co.,Ltd.

Цена:0,07 $ - 0,09 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.72 $*	0.7 $*
Aug-19-2025	0.66 $*	0.36 $*
Jul-19-2025	0.93 $*	0.17 $*
Jun-19-2025	0.53 $*	0.75 $*
May-19-2025	0.87 $*	0.23 $*
Apr-19-2025	0.67 $*	0.39 $*
Mar-19-2025	0.17 $*	0.17 $*
Feb-19-2025	0.6 $*	0.98 $*
Jan-19-2025	0.26 $*	0.69 $*

Характеристики

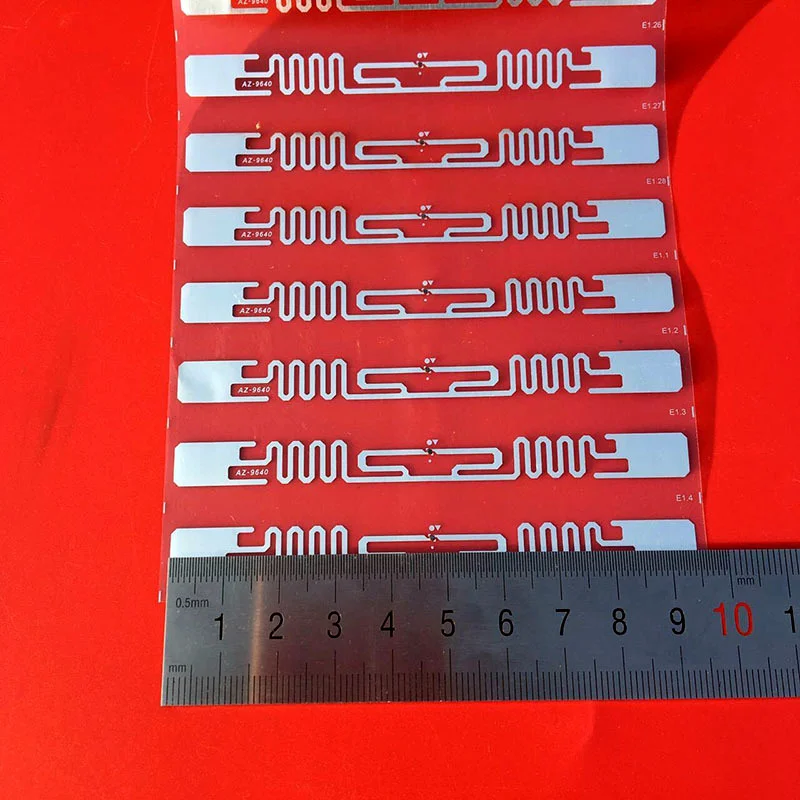

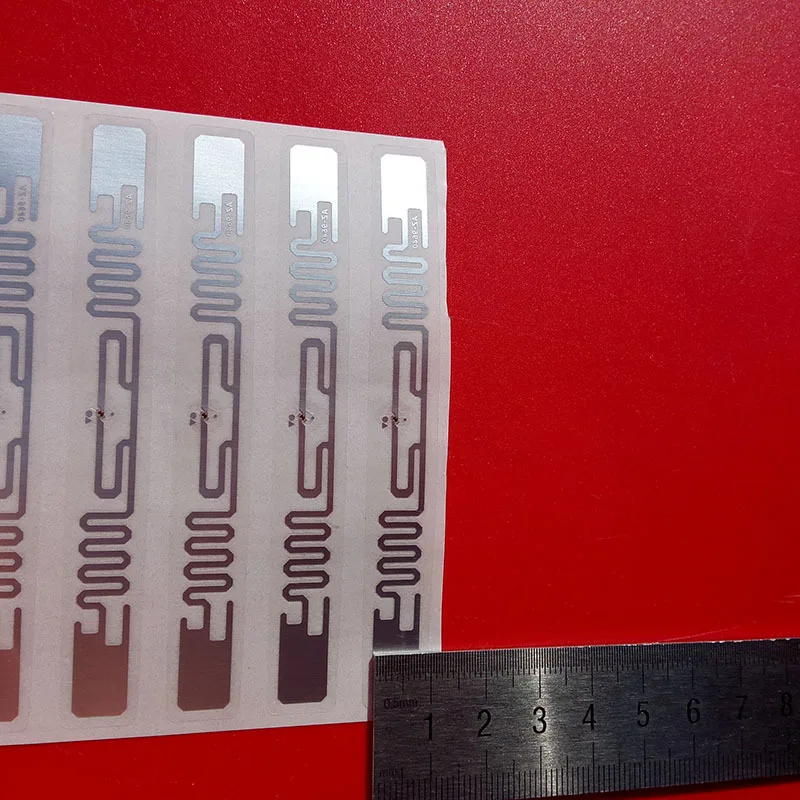

Product Name: Alien H3/H4 9640/9740 UHF RFID Inlay

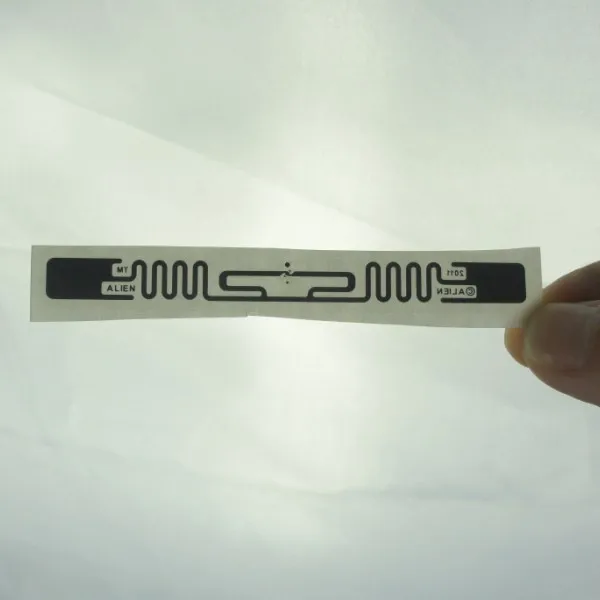

The Alien Technology ALN-9640 Squiggle is a highperformance general-purpose RFID inlay for use in a wide variety of applications.

Applications:

• Corrugate cases
• Pallet cards
• Apparel hang tags
• Baggage tags

• Asset management
• File folder labels
• Shipping labels

ALN-9640 Specifications

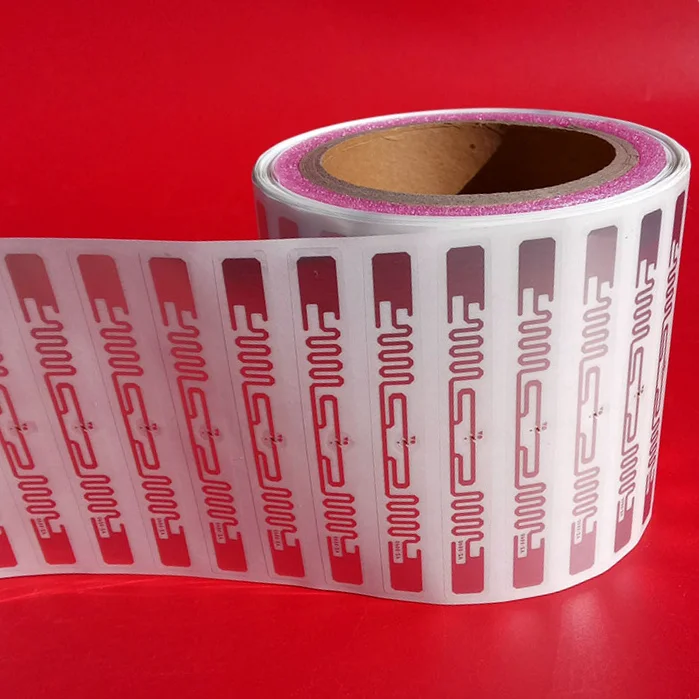

Dry Inlay

Antenna Width	3.732” [94.8mm]
Antenna Length	0.319” [8.1mm]
Web Width (-FRA)	4.252” [108.0mm]
Web Width (-FSRA)	3.874” [98.4mm]
Web Pitch	0.625” [15.875mm]
Core Width (-FRA)	4.252” [108.0mm]
Core Width (-FSRA)	3.874” [98.4mm]
Core ID	6” [152.4mm]*
Core Material	Fiberboard
Interleaf Material	Paper
Interleaf Width	1.5” [38.1mm]
Inlays per Roll	20,000 Nominal
Maximum Roll OD	< 12” [304.8mm]
Roll Labeling Data	Roll #, Quantity

Wet Inlay

Inlay Width	3.866” [98.2mm]
Inlay Length	0.484” [12.3mm]
Web Width	3.992” [101.4mm]
Web Pitch	0.625” [15.875mm]
Core Width	4.752” [120.7mm]
Core ID	6” [152.4mm]*
Core Material	Fiberboard
Inlays per Roll	20,000 Nominal
Maximum Roll OD	< 16” [406.4mm]
Roll Labeling Data	Roll #, Quantity
White (-FWRWA)	TT Printable White Film Overlay
Overlay Adhesive (-FWRWA)	General Purpose Permanent
Inlay Adhesive	General Purpose Permanent
Adhesive Application Temperature	> +25ºF [-4ºC]
Adhesive Service Temperature	-40ºF to +200ºF [-40ºC to +93.3ºC]
Release Liner	40# SCK

Environmental

Shelf Life	2 years at +77°F [+25°C] @ 40%RH
Recommended Storage	+77ºF [+25°C] @ 40% RH
Storage Limits	-13°F to 122°F [-25°C to +50°C] 20% to 90% RH Non-condensing
Operating Limits	-40°F to +158°F [-40°C to +70°C] 20% to 90% RH Non-condensing
Bend Diameter	> 1.97” [50mm]
Pressure	< 5N/mm2
Drop Resistance	Per ASTM D5276
Write Cycles	100,000 @ 25°C
RoHs	2002/95/EC, 2005/618/EC, 2011/65/EU Compliant
REACH	1907/2006/EC Compliant (SVHC and ECHA)
ESD Limit– HBM / CDM	5.0kV / 1.5kV

RFID

Protocols Supported	ISO/IEC 18000-6C EPCglobal Class 1 Gen 2
Integrated Circuit	Alien Higgs-3
EPCglobal Certificate	950110126000001084
Operating Frequency	840--960 MHz
EPC Size	96--480 Bits
User Memory	512 Bits
TID	32 Bits
Unique TID	64 Bits
Access Password	32 Bits
Kill Password	32 Bits


Applications

Other products

We also have different kinds of UHF RFID devices, such as uhf rfid reader modules, fixed passtive uhf rfid readers, uhf rfid handheld readers,uhf rfid antennas, Alien inlays, uhf rfid anti metal tags.2.4G active readers and tags, etc.. All devices will come with free SDK and demo (rfid development kit). If anything meet your demand,Pls feel free to contact us for datasheet, catalogue or price. Hope we can be of assistance and provide you our best products and solutions.
