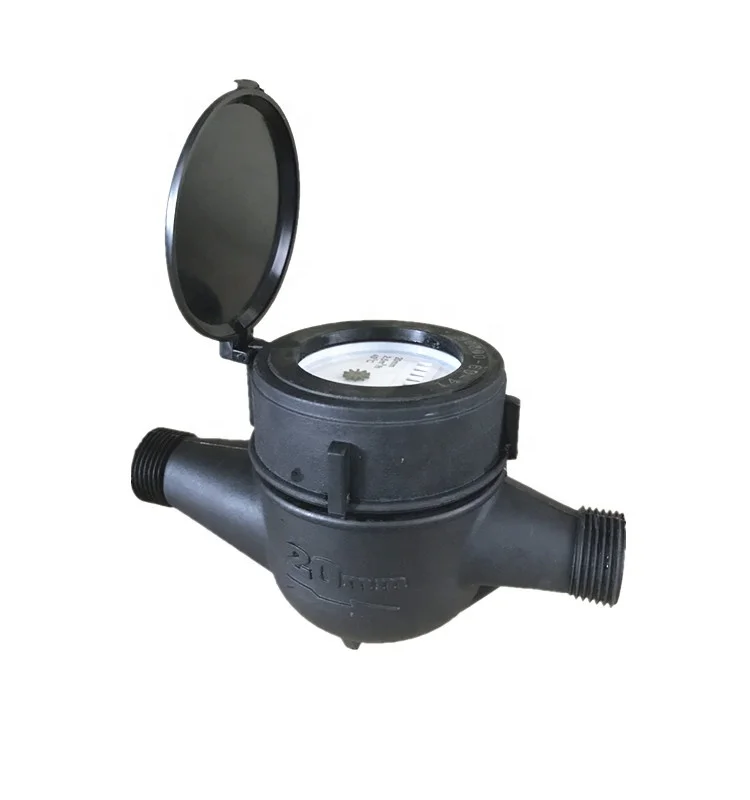

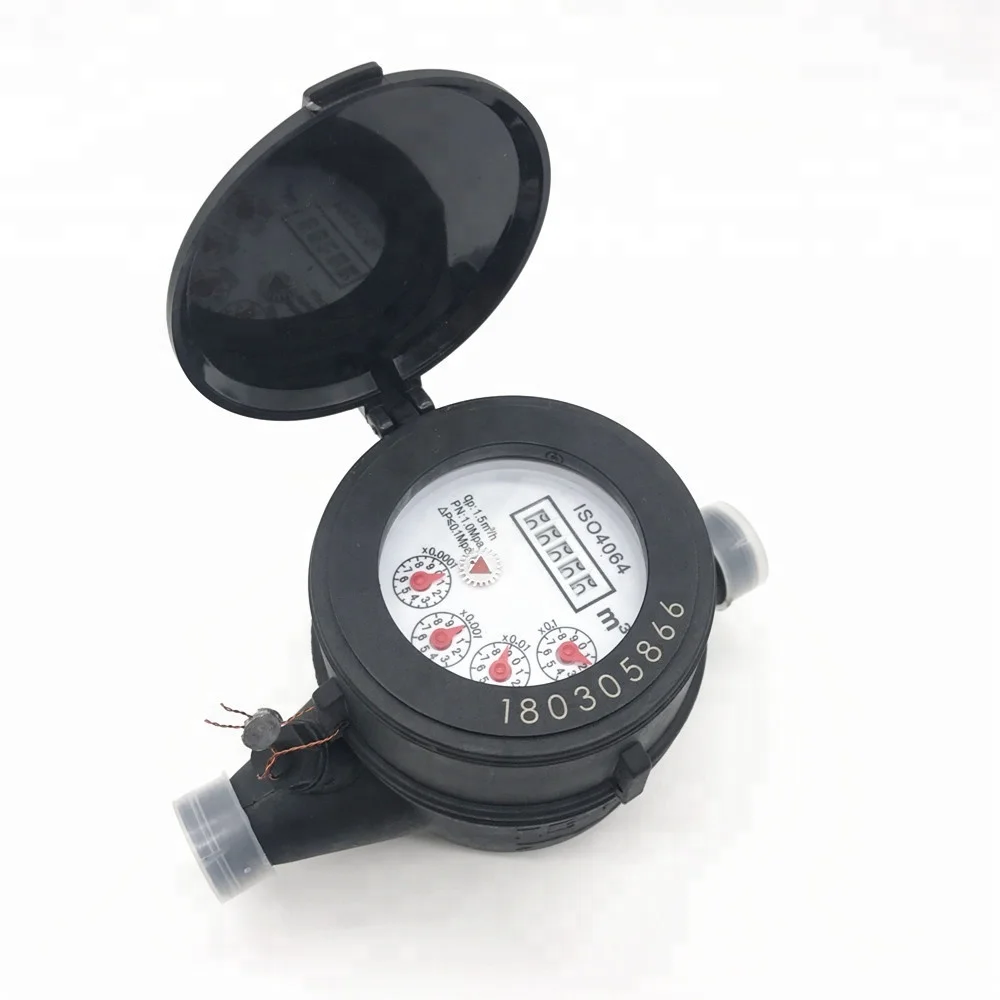

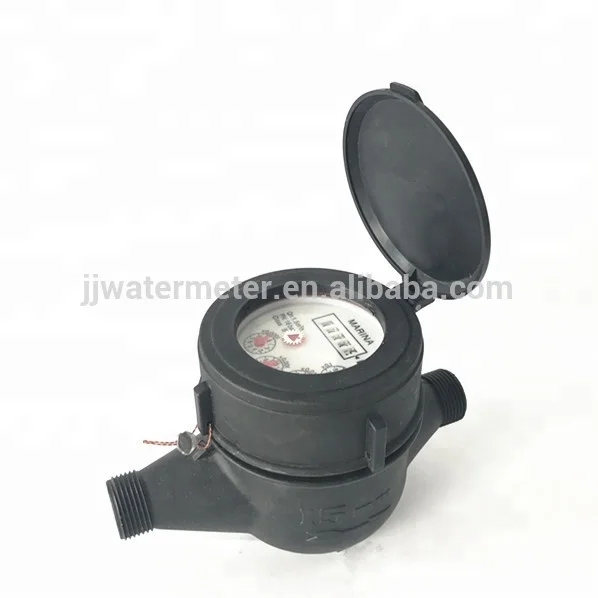

15 мм-50 мм многоструйный сухой пластиковый нейлоновый счетчик холодной воды черного
- Категория: >>>
- Поставщик: Ningbo,Jiajie,Water,Meter,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 6.83 $* | 6.96 $* |
| Jul-17-2025 | 5.95 $* | 5.74 $* |
| Jun-17-2025 | 6.61 $* | 6.61 $* |
| May-17-2025 | 6.83 $* | 6.79 $* |
| Apr-17-2025 | 5.62 $* | 5.4 $* |
| Mar-17-2025 | 6.84 $* | 6.22 $* |
| Feb-17-2025 | 6.22 $* | 6.1 $* |
| Jan-17-2025 | 6.81 $* | 6.47 $* |
Характеристики
Feature
1. Dry-dial
2. Multi-jet
3. Antimagnetic construction
4. Measuring accuracy is up to class B of ISO4064 Standard.
5. Selected high quality materials. Material: Nylon .
6. Series universal use. Easy interchange & maintenance.
Main techinical
| L | L1 | B | H | Connecting Thread | KG | |
| mm | ||||||
| 260 | 165 | 101 | 106 | R1/2 | 0.78 | |
| 260 | 195 | 101 | 106 | R3/4 | 0.85 | |
| 350 | 225 | 103 | 115 | R1 | 1.2 | |
Dimensions and Weight
| Meter Size ( mm) | Qn | Qt | Qmin | Max reading | Min reading | ||
| m³/h | m³/h | m³ | |||||
| A | B | A | B | ||||
| 15 | 1.5 | 0.15 | 0.12 | 0.06 | 0.03 | 9999 | 0.0001 |
| 20 | 2.5 | 0.25 | 0.20 | 0.10 | 0.05 | 9999 | 0.0001 |
| 25 | 3.5 | 0.35 | 0.28 | 0.14 | 0.07 | 9999 | 0.0001 |
Working Conditions
water temperature ≤35 ℃( cold water )
water temperature ≤ 90 ℃(hot water )
water pressure ≤ 1 Mpa
FACTORY
