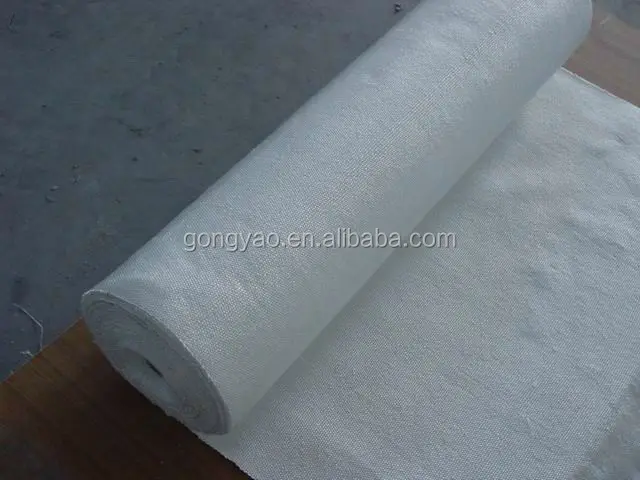

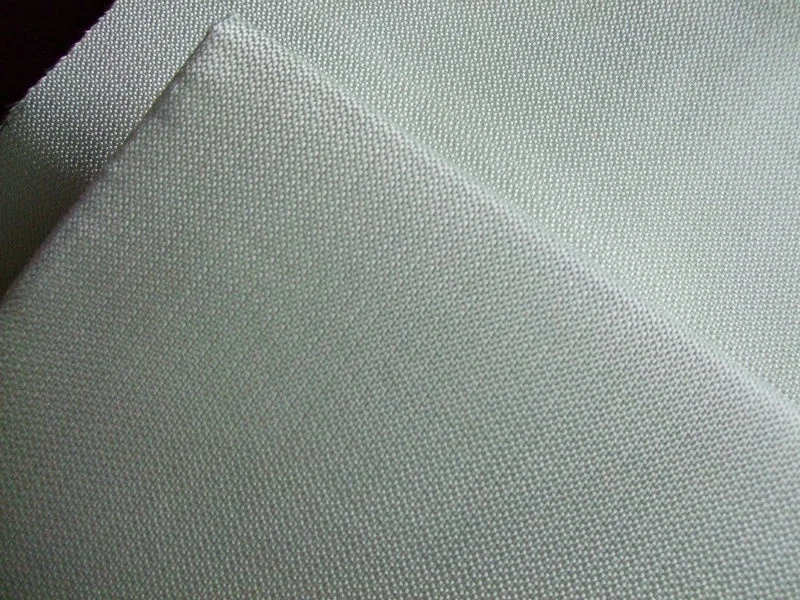

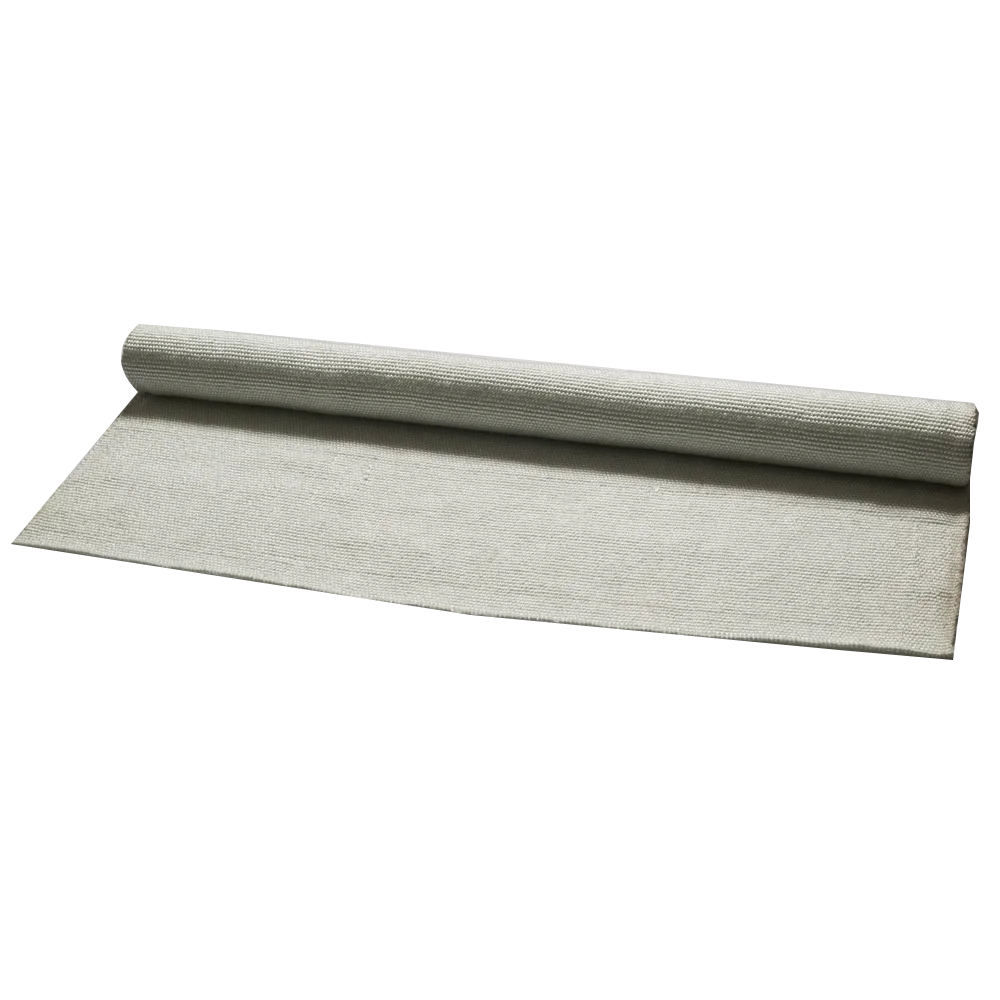

thermal insulation texturized Fiber Glass Cloth



thermal insulation texturized Fiber Glass Cloth  :
1) Woven from best quality texturized glass fiber yarn
2) High quality, warm keeping thermal insulator, it is the ideal substitute of the asbestos cloth
3) Used for anticorrosion, corrosion resistance and insulation of pipes and storage tank in power stations, oil fields, chemical plant, paper mill and environment protection projection where highly corrosive mediums are present. It can also be used in the construction work involving reinforced plastics
4) The texturized fiberglass cloth can be offered to insert the copper wire (or inconel wire, stainless steel wire)
5) The surface of the texturized glass fiber cloth with rubber can be offered

Specifications:
1) Thickness: 0.2 - 6.0mm
2) Width: 1,000mm
3) Refractoriness: 450 ~ 550A?C

Packing: 1 roll/ctn

Texurized Glass Fiber Cloth Aluminium coating: The aluminium foil coated on the glass fiber,has excellent heat insulation. With copper wire (or inconel wire,stainless steel wire,)are available.
Spec:
Width:1000-1500 mm
Thickness: 0.4mm-0.6mm
Refractoriness: 450 ~ 550A?C
Packing: In carton of 1 roll net each

Properties			Unit	Standard
Structure				Plain
Model of raw yarn		Warp	tex	ET9 860 Tex
		Weft		ET9 1720 Tex
Thickness			mm	1.5±0.1
Width			mm	1000±20
Length			m	30±0.5
Weight			g/m2	1000±30
Tensil Strength	Warp		N/5cm	≥3000
	Weft			≥ 2200
Heat Loss			%	14.5 max.
Oil content				1.0%
Service Temp.			°C	550
