Axle weighing Scale



Description

This product is suitable for different types of vehicle weighing both dynamically and statically.



It has the advantages of high precision, small size, light weight and ease of operation comparing to fixed vehicle weighing systems.



The ZH series of weighing system consists two main parts: weigh-pad and weighing instruments.

The weigh-pad is made of aluminum alloy or mixed aluminum alloy and stainless steel, which can load from 1 ton up to 40 tons.



Features:

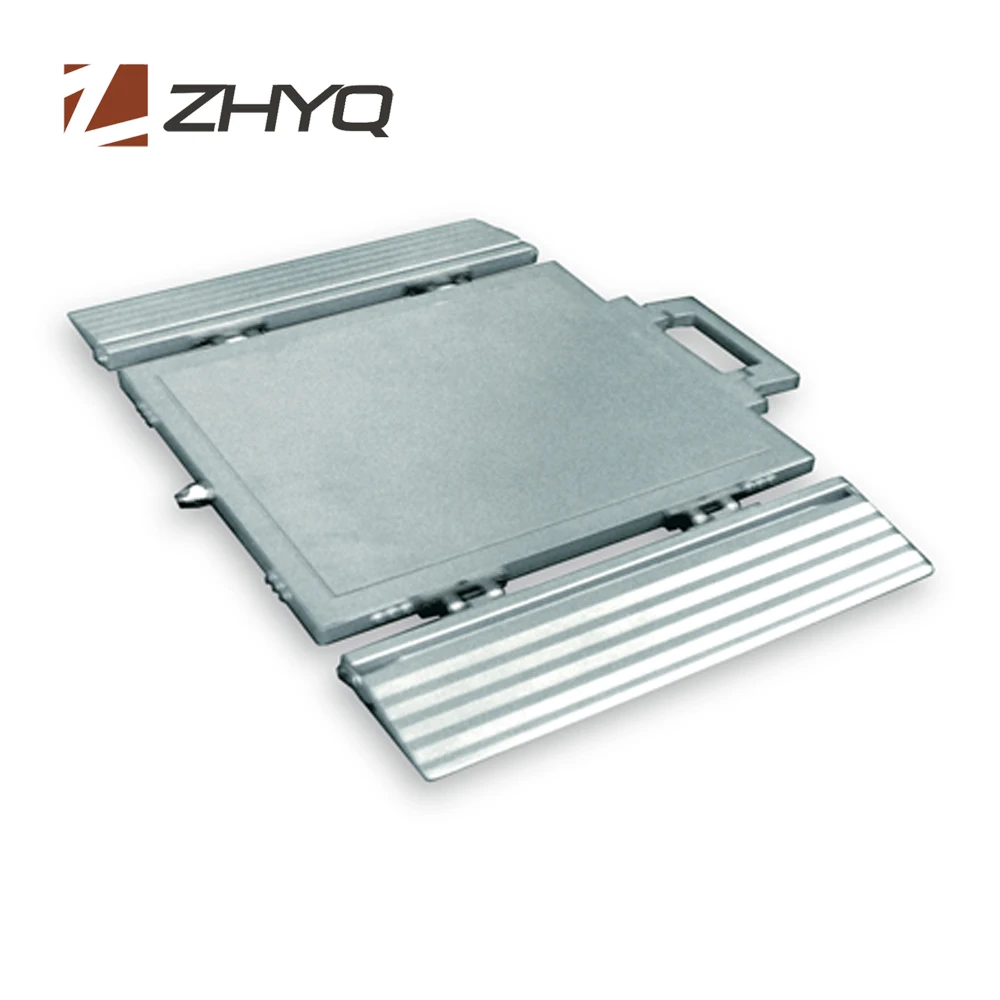

It is made of aluminum alloy, and it is ultra thin, light and portable.

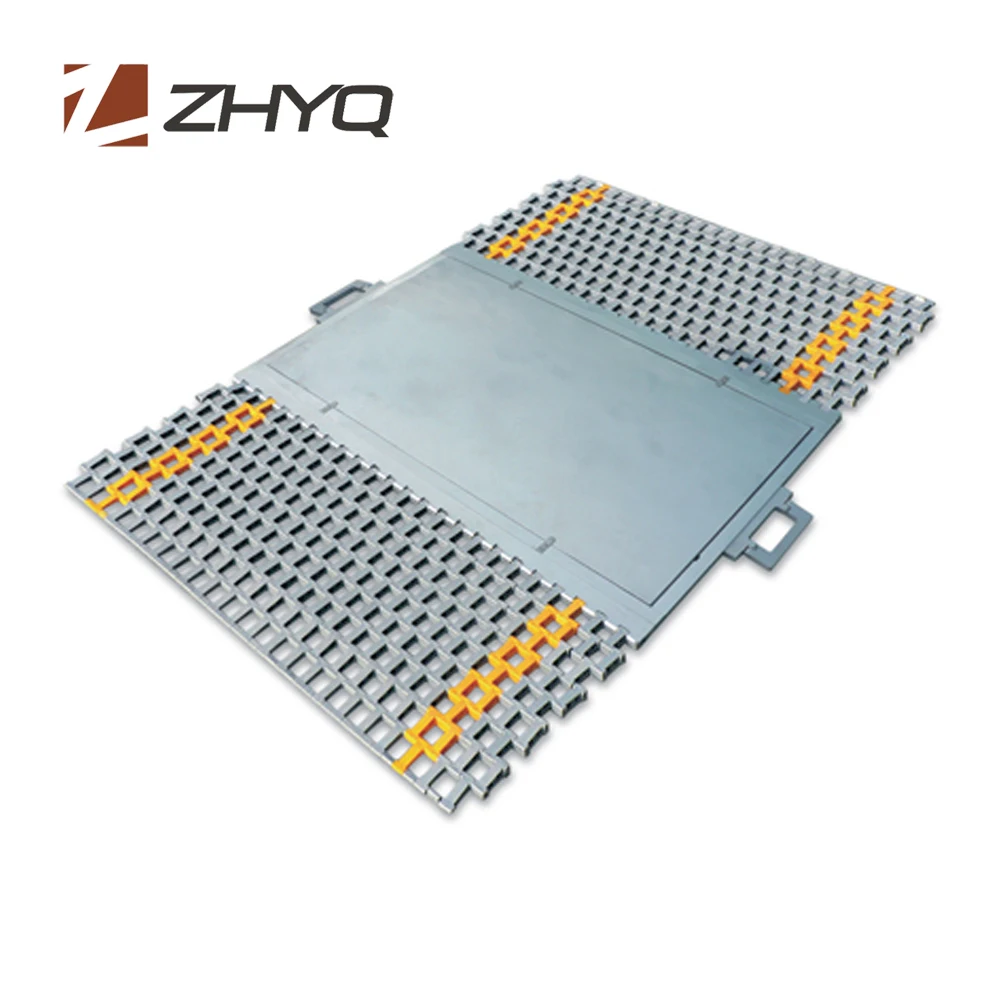

Compared with other products, the foldable plastic slope greatly improve measuring dynamic accuracy.

The net weight is 23kg, and the length of weight-bridge is changed to 800mm from 700mm.

One ZH180E can statically or dynamically measure wheel weight, so double can be parallelly connected to measure axle weight. And the instrument, which is connected, can calculate the vehicle weight.



Parameters

 Rated load: 1-40t

Rated output: 0.7±0.1mv/v
Repeatability: 0.05%FS
Error on transverse: 0.2%FS
Zero balance: ≤1%FS
Static comprehensive error: 0.1~0.5%FS
Dynamic comprehensive error: 1.5%FS(1~5km/h)  3~5%FS(5~10km/h)
Non-linearity: 0.2%FS
Use temp.range: -30~80°C
Compensated temp.range: -10~50°C
Temp.effect on span: 0.03%FS/10°C
Temp.effect on zero: 0.05%FS/10°C
Output resistance: 1000±3Ω
Defend grade :IP 67
Ultimage overload: 150%FS
Recommended voltage: 10V
Excitation voltage: 9~15V
Net weight: 23kg
Max load of 1 /4 weigh bridge: 8t
Full load: 1-40t
Dimension of the surface: 800×350mm
Insulation resistance: ≥5000MΩ(100VDC)
Remark: Four-core shielded cable is attached: φ5.5×10m (The cable length can be changed according to customer's request)
