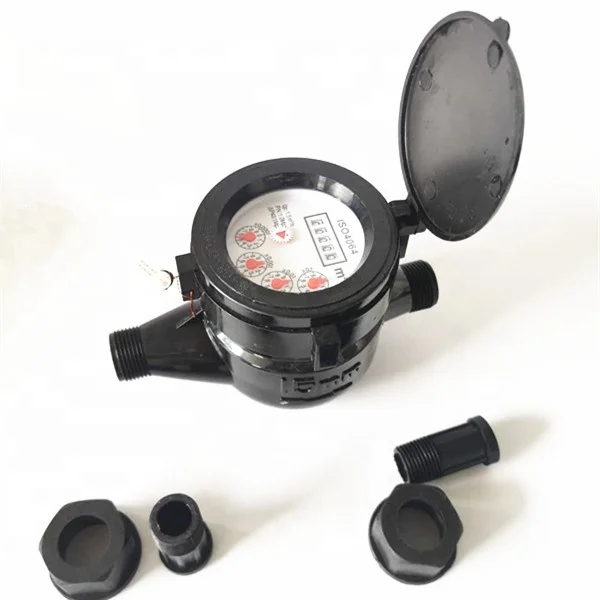

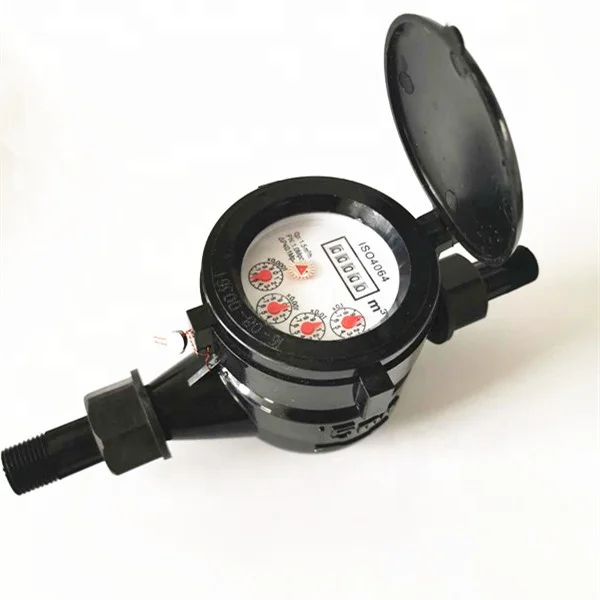

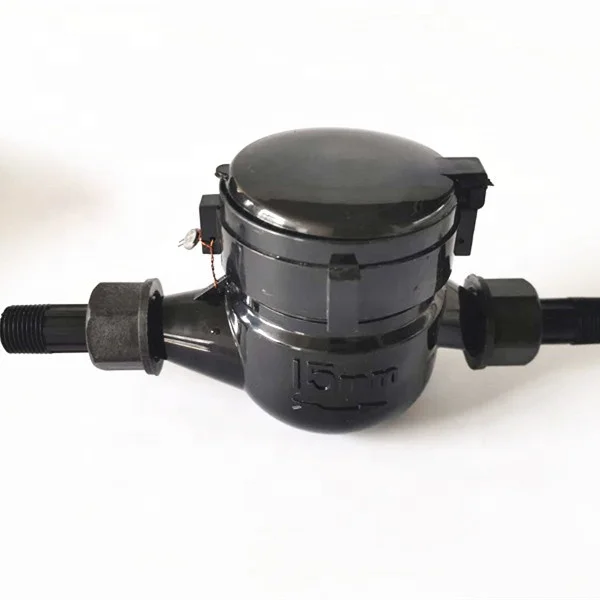

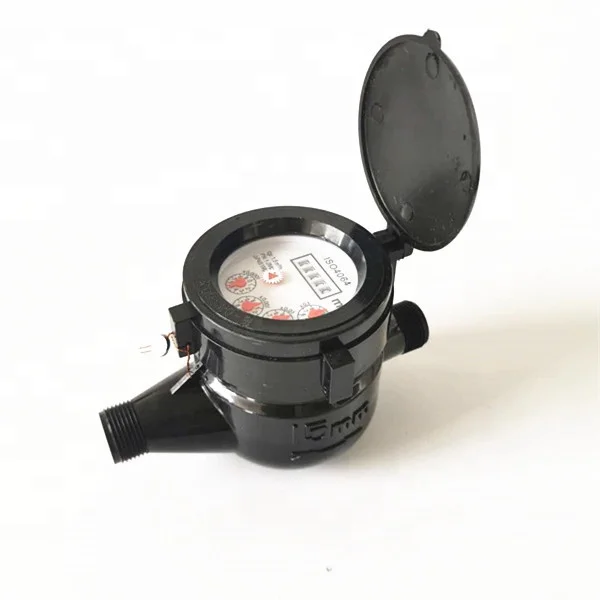

15 мм Сухой Тип пластиковый счетчик воды дешевый для
- Категория: Счетчики воды >>>
- Поставщик: Ningbo,Jiajie,Water,Meter,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2.89 $* | 2.93 $* |
| Aug-18-2025 | 2.72 $* | 2.88 $* |
| Jul-18-2025 | 2.94 $* | 2.22 $* |
| Jun-18-2025 | 2.63 $* | 2.29 $* |
| May-18-2025 | 2.41 $* | 2.92 $* |
| Apr-18-2025 | 2.74 $* | 2.31 $* |
| Mar-18-2025 | 2.11 $* | 2.33 $* |
| Feb-18-2025 | 2.51 $* | 2.81 $* |
| Jan-18-2025 | 2.43 $* | 2.83 $* |
Характеристики
The series of water meters is used to measure the total quantity of hot potable water meter, consumed in household or a resident unit, passing through the pipeline.
Features
1. Dry-dial
2. Multi-jet
3. Antimagnetic construction
4. Measuring accuracy is up to class B of ISO4064 Standard.
5. Selected high quality materials. Material : ABS
6. Series universal use. Easy interchange & maintenance.
Main Technical Data
| Meter | Qn | Qt | Qmin | Max | Max |
| Reading | Reading | ||||
| mm | M3/h | M3/h | M3/h | M3 | M3 |
| 15 | 1.5 | 0.12 | 0.03 | 9999 | 0.0001 |
| 20 | 2.5 | 0.2 | 0.05 | 9999 | 0.0001 |
| 25 | 3.5 | 0.28 | 0.07 | 9999 | 0.0001 |
ERROR CURVE:
a. at low Zone is ±5 %from Qmin to Qt( not contain boundary)
b. at high zone is ±2 % from transitional flow(Qt)to maximum flow ( Qmax)
Working Conditions :
Water temperature≤35°c
Water pressure ≤1 Mpa
