20 ton per day corn maize seeds green lentil processing plant cleaning peeling splitting packing machine production line

20T per day lentil processing plant

Capacity	Power	Workshop	Container
20TPD	90kw	10×10×6m	1*40'GP

Click Now for Catalogs & Factory Price!

Technology process of lentil processing plant

The lentil cleaning machine includes processes of once magnetic separation, twice cleaning and destoning. Materials are conveyed by elevators and 2 groups of aspiration systems are used to dedust. It includes 2 sifting processes to remove big and small impurities in the raw bean. Then the destoner fully removes the stones. The magnetic separator increases purity of the finished products to guarantee good taste by removing metal impurities so as to prevent them going into the final beans.

	Improved-design of dehullers make the dehulling process more efficient.
	Screen mesh made from punching works of premium quality cold rolled sheet,durable service. Prevent mesh from blockage due to the bouncing ball design.
	longer screening design make the seed-kernel separation works more efficient.
	Adopt the vibrating and negative-pressure separation works and spiral discharging for shells-discharge to make the shells collecting works easier and meanwhile reduce the dust accumulation greatly during process.
	Vibration source of the equipment adopts vibratory motors design, features easy and quick installation, no foundation works requires.

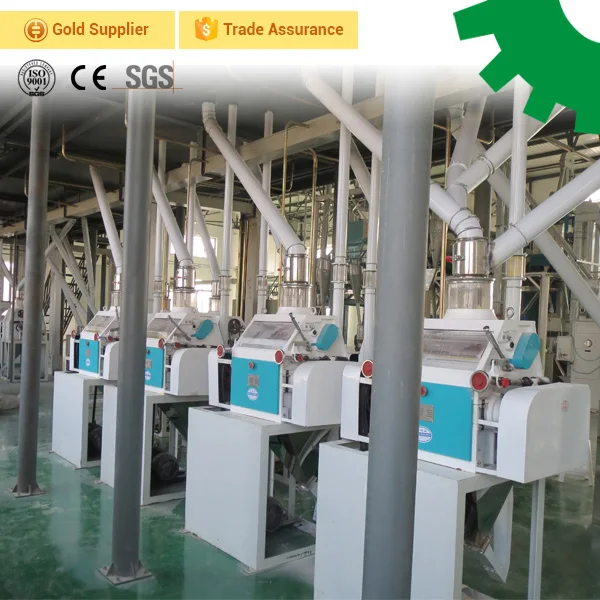

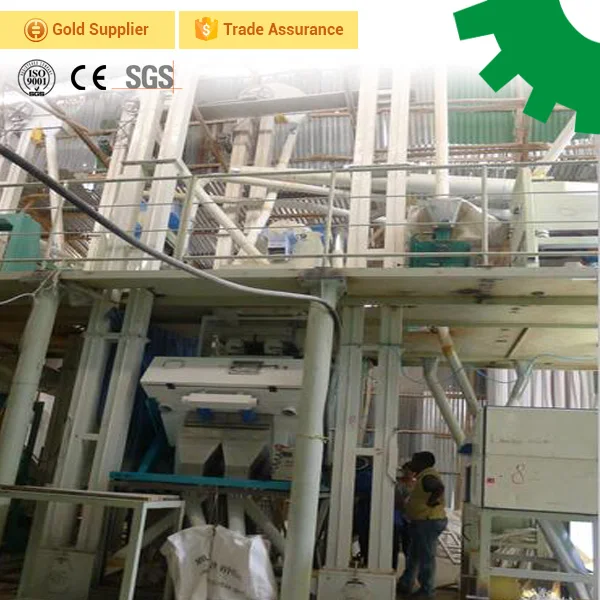

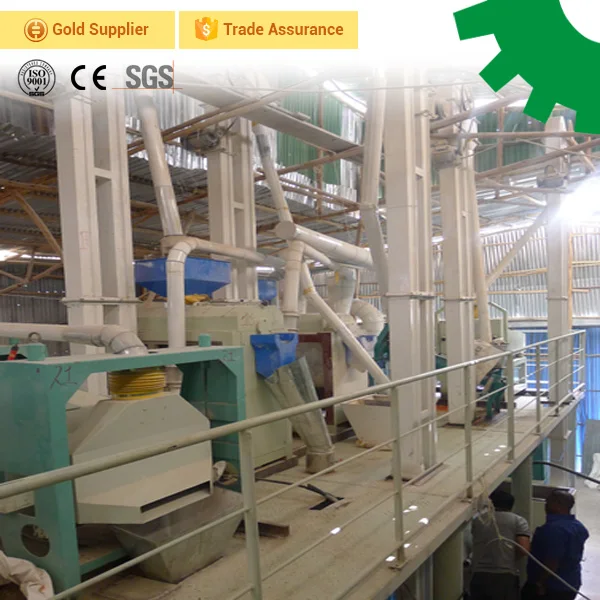

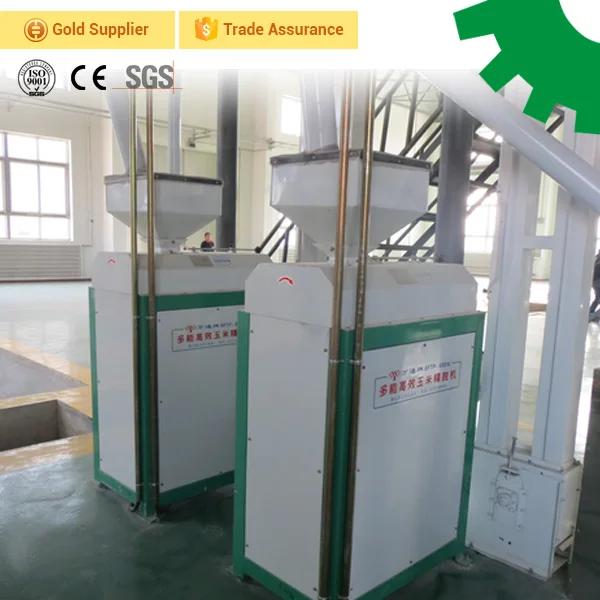

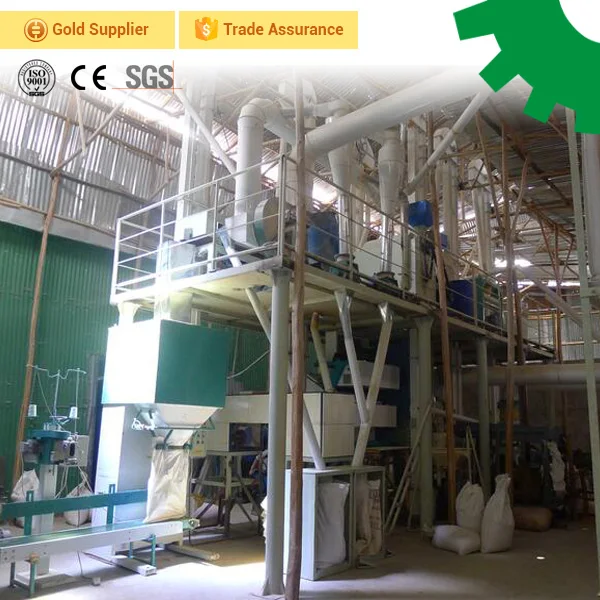

More photo details of lentil peeling machine & cleaning machine

Click Now for Catalogs & Factory Price!

Features of lentil peeling splitting cleaning machine production line

• Once selection and twice bushing processes lead to lustrous beans, increasing high yield, low brokens and uniform granules.
• After color sorting, the beans up to national standard can be packaged.
• Once selection process removes impurities in the bean; twice polishing processes dedust the materials to increase lustrousness;
• The vibration sifter grades out brokens in the finished products while the complete fine beans are conveyed to color sorter.
• The sorted kernels are selected again and then go to packaging cabinet.
• Finished products go to belt conveyor to be manually selected and then mechanically packaged through buffering bin.

Customer of bean lentil processing plant wordwide
