ZH100 boxing equipment



Product description

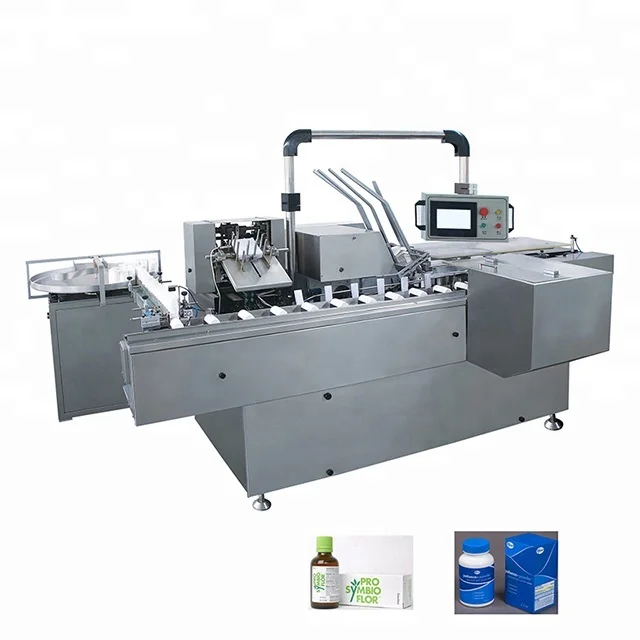

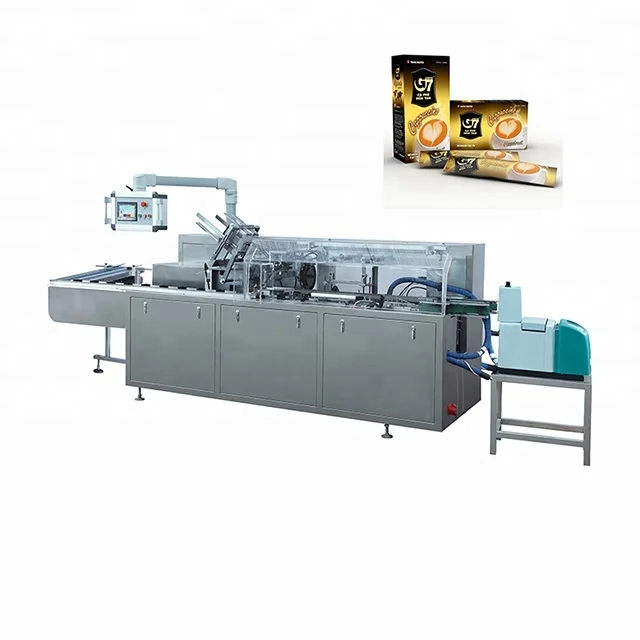

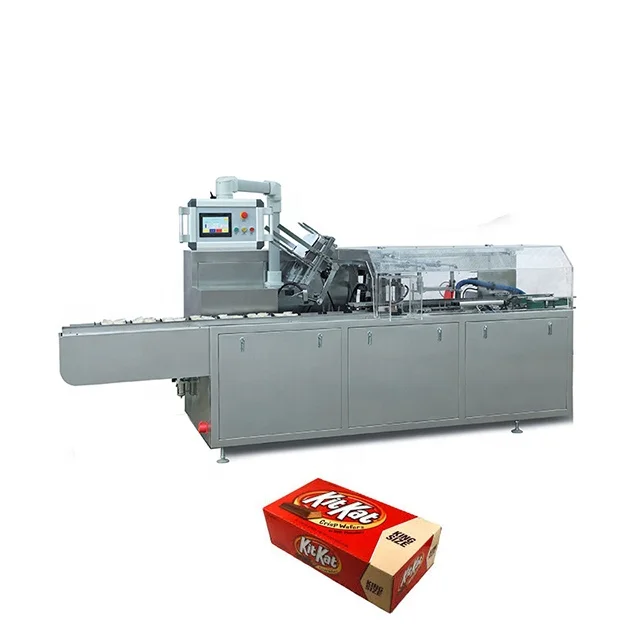

The box packing machine is a newly designed carton box packing machine with the advantages of small size, light weight, high efficiency, multifunctions, etc., maximum speed can up to 90 pcs/min.



The box packing machine is suitable for packing  food, coffee bags, chocolate bars, cube sugar, biscuit, milk powder, detergent powder, bottle, piil blister, toothpaste, cosmetic, ointment, tissue, etc.





Characteristic

1. Automatically product feeding, opening box, product filling, sealing, cleaning, ect., with easy operation

and reasonable strcture.

2. Easy operation and simple maintainance with servo driver, PLC controller shows friendly man-machine

interface, high automatic.

3. Using Advanced photoelectric sensor tracking system to avoid empty box.

4. Wide packing range; easy adjustment, fast conversion between different specification.

5. Smooth performance and low noise, perfect package appearance, sensible safety device and no pollution

during production.

6. No mould-change needed when changing speficication;  PLC automatically shows packing speed and  quantity of finished products.

7. Using collar-style safety cover with easy operation and beautiful appearance according to clients’ requirement.

8. Can be connected with other packing machines to achive full automatic packing line.

9. Automatic feeding product and filling system according to products’ specification.

10. Using hot melt glue box packing machine and mechanical brush glue box packing machine according to

clients’ requirement.



Main technical parameter

Model	ZH100
Box packing range	60mm*20mm*8mm(min); 200mm*100mm*60mm(max)
Carton	250-450g/m3
Packaging capacity	40-90 pcs/min
Power	1.5kw
Power type	3-phase 4-wire 380V 50Hz
Device volume	≤80dB
Air consumption	120-160 NL/min
Machine dimension	3500*1500*1600mm
Weight	1200kg
