Характеристики

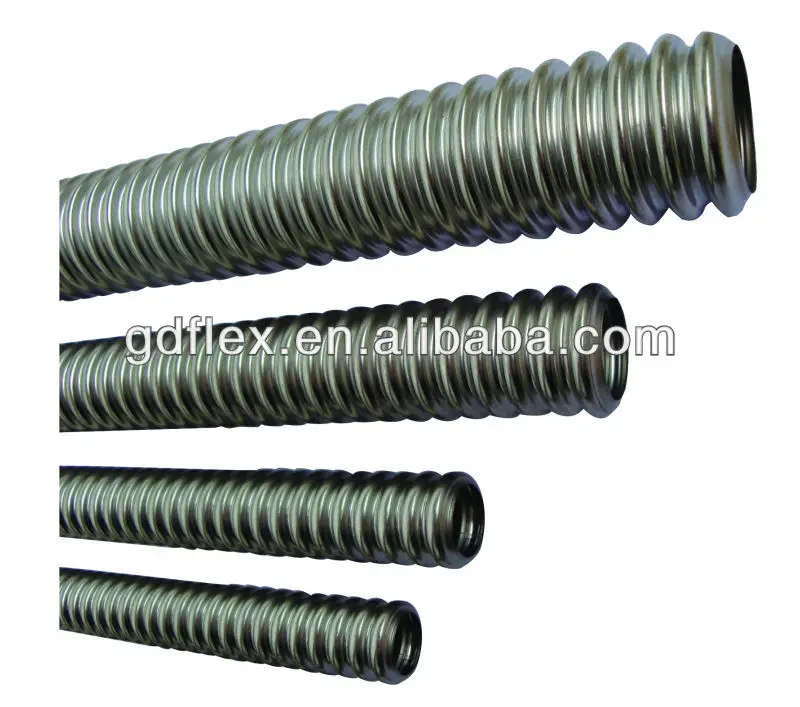

dn16 corrugated stainless steel tube flexible metal pipe
| Item Name | dn16 corrugated stainless steel tube flexible metal pipe |
| Part No. | GDSSCSST20025 |
| Material | Stainless steel |
| Size | DN16(connection fittings size3/4") |
| MOQ | 100meters |
| Brand | GD-FLEX |
| Original | China |
Introduction:
Flexible stainless steel pipe is made by corrugating stainless steel thin wall pipe. have good flexibility ,high strength, heat resistance and pressure tightness. They can be used to convey most kinds of fluid those are gaseous, such as gas, air, steam, etc. and liquid such as water, oils, chemicals,etc.,which have functions to absorb reciprocated motion, thermal expansion, vibration, and misalignment of piping.
Application:
1. Solar water heater or other types of water heater
2.Piping of bathroom and Toilet
3.Plumbing fixtures of special container,low and high cistern
4. Hot and cold plumbing installation
5. Machinery field
6.Used on food-touch pipe connection
7. Alternative plumbing pipe instead of copper
8.Gas Pipe
Assembly Item & Material
No. | Item | Material |
1 | Nut | Brass |
2 | Metal Hose | SUS304,SUS316L |
3 | Gasket | 350°C High-temperature resistance seal |
4 | Cir-Clip | Stainless Steel |
Specification
| DN | φID mm | δOD mm | meters per Coil | Bending Radius mm | Maximum Applicable Pressure kgf/cm2 | Burst Pressure kgf/cm2 |
DN12 | 12 | 16 | 60 | 30 | 17.5 | 200 |
DN16 | 16 | 20 | 60 | 50 | 15 | 200 |
DN20 | 20 | 25 | 60 | 60 | 12 | 200 |
DN25 | 27 | 32 | 30 | 90 | 10 | 120 |
DN32 | 33 | 41 | 15 | 120 | 8 | 50 |
DN40 | 40 | 48 | 15 | 140 | 6 | 50 |
DN50 | 50 | 62 | 15 | 180 | 6 | 35 |
