10 колеса Dongfeng крюк транспортный грузовой автомобиль 6*4 ядра Arm рулон контейнерный

Описание и отзывы

Трекер стоимости

Характеристики

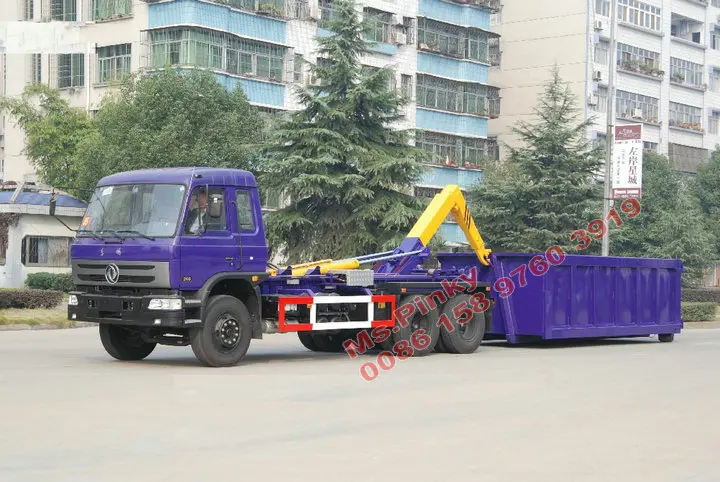

10 Wheels Dongfeng Hook Lift Truck 6*4 Arm Roll Container Refuse Truck Call Ms.Pinky 0086 15897603919



DFAC(Dongfeng) 6x4 ARM ROLL CONTAINER REFUSE TRUCK(15 m3 ~ 20 m3)

Dongfeng Hook Lifting Garbage Truck

TRUCK SPECIFICATION  10 Wheels Dongfeng Hook Lift Truck
Vehicle model	DFAC 6x4 Arm Roll Container Refuse Truck
Chassis model	EQ1251
Curb weight	Approx 8795 kg
Load capacity	Approx 16000 kg (max load 20 ton include garbage container)
Engine	Cu,mmins B210 33 (Diesel, EURO 3)
Horse power	210 hp / 155 kw
Tractions	6x4
Wheel base	4350+1300 mm
Transmission	DATONG 7; 7 forward gear, 1 reverse gear.
Control system	Single hydraulic lifting system and operating system. Recycling.
Garbage container details	mild steel. Border 10 mm, bottom 6 mm. (optional thickness and cover).
Container shape	Ground type.
Cab inner	Optional air condition and warm air









Our garbage truck with different chassis, eg:DFAC, DFL, SINOTRUCK, CNHTC,NORTH BENS, FOTON, ISUZU, JAC, JMC,KAMA,SHACMAN, etc.

Our garbage truck series:

-----Container refuse truck

-----Swinging arm refuse truck

-----Arm roll refuse truck

-----Hook lift container refuse truck

-----Sealed dump refuse truck

-----Hanging dustbin refuse truck

-----Compact refuse truck

-----Hanging dustbin with compact refuse truck





Welcome to Visit our factory in Suizhou City, Hubei Province!



 Hooklift Garbaeg Truck Features Quick Reference
1. Cab mounted controls...
2. Integrated control valve and hydraulic fluid reservoir...
3. Single lift and tilt cylinders...
4. Front saddles offer support...
5. Resettable tabs...
6. Grease zerks...
7. Rugged rear body tie-downs...
8. Rotary valve...
9. Rear hinge pin...





Standard in-cab manual controls which allow for precise metering of the manual hydraulic valve.

Patented dump/load interface



Hydraulic locks to prevent cylinder movement in case of pressure loss



Mechanical rear body tie-down latches



Resettable dump/tilt tabs



Hydraulic rotary valve to prevent front tilt movement when the dump frame is raised



Full length dump frame with front saddles to support the body during the dump mode

DX pre-lubricated bushings used at pivot points



Grease zerks at all pin points to allow purging of contaminates



Greaseable load rollers



Stainless steel pins used throughout



Two-part polyurethane enamel





More Garbage Truck, Please contact with me 24 hours.
