Lcd-плата контроллера для hiher bringtness с ЖК-дисплеем 8 дюймов 1024x768 IPS

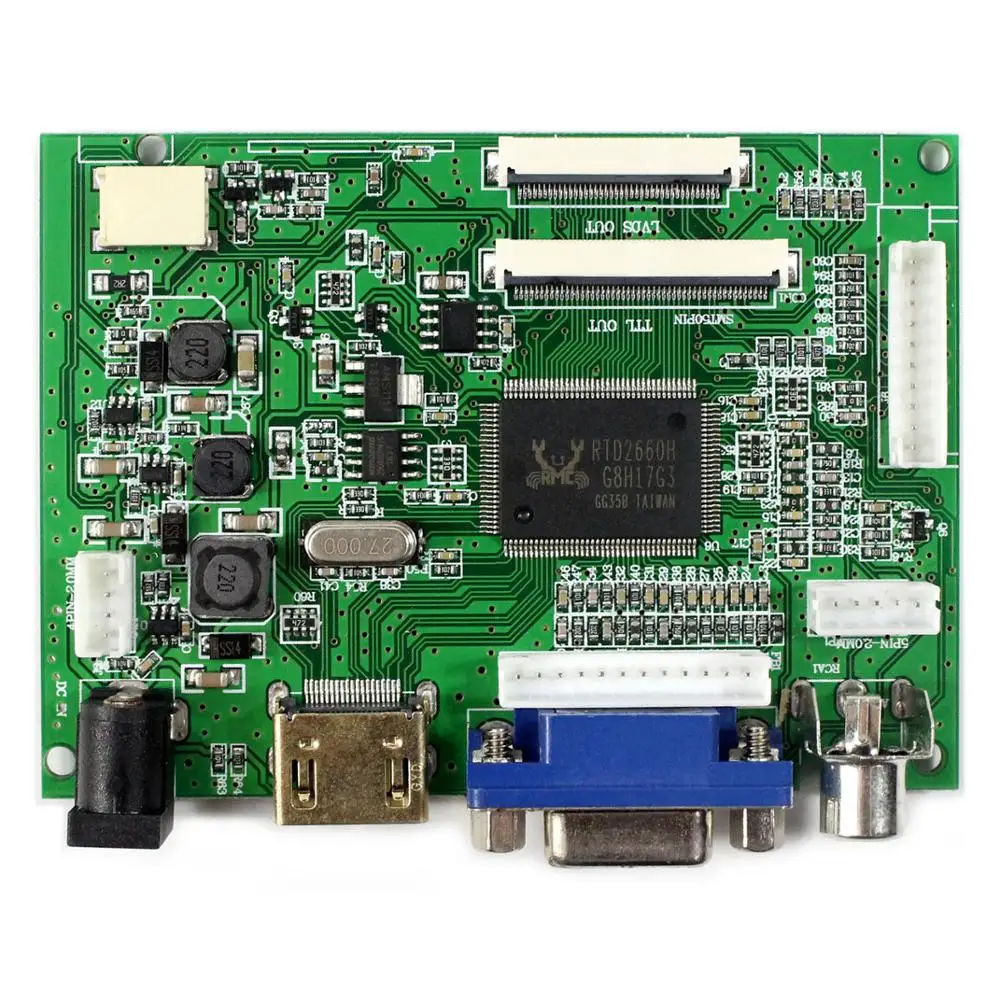

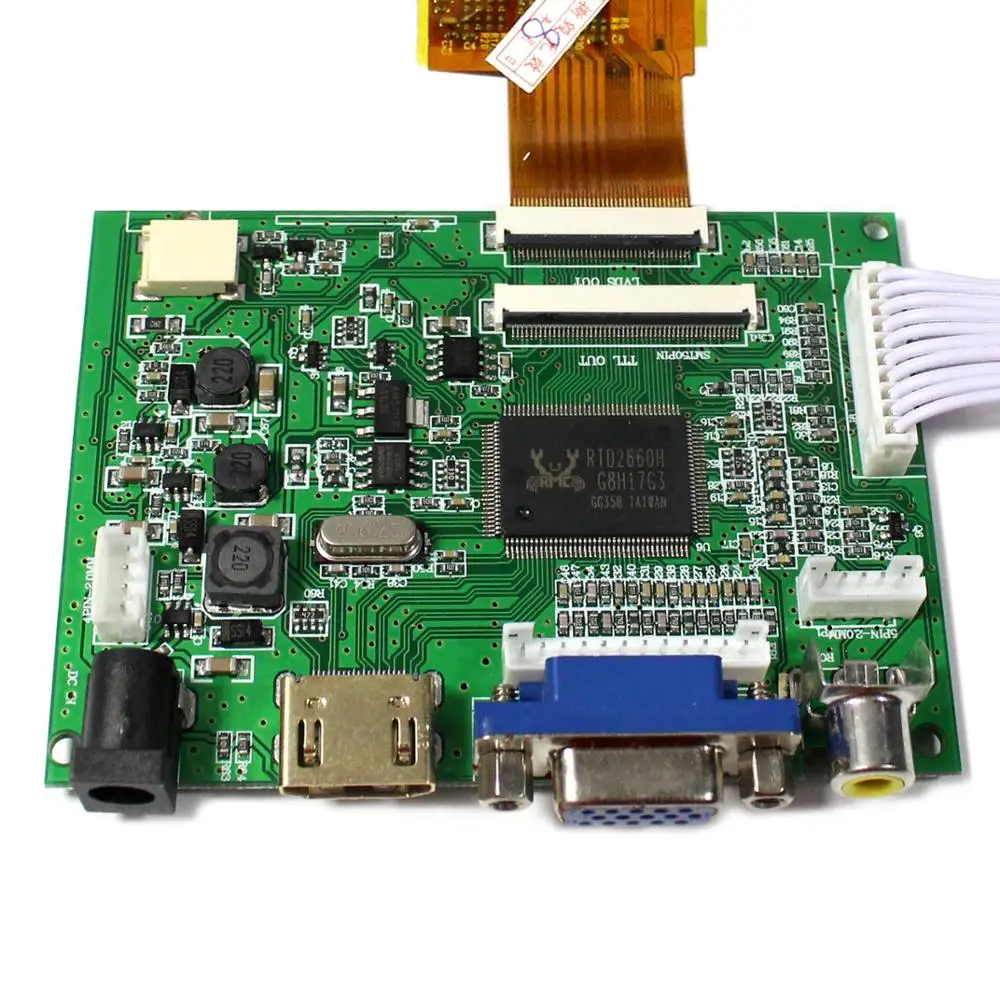

LCD Controller Board VS-TY2662-V5:

It supports between 7 and 10.1 inch LCD panel with 40pin 50pin TTL  interface.

Support reversing function

Size: 90.58mm(L)*65.6mm(W)*12mm(H)

Input Power Adapter: 12Vdc More than 2A

OSD LANGUAGE: English, French, German, Italian, Spanish, Portuguese, Japanese, Korean (optional) And So On

KEY FUNCTION: Auto, Menu, Vol-, Vol+, Power

Operation temperature: 0~40°C.

standby< 1W

Panel Interface: 40PIN TTL/50PIN TTL

Panel Resolution: Up to 1920x1080

GENERAL PRECAUTIONS:

Don’t wire in the board to power supply before panel is correctly connected

8inch 1024x768 HJ080IA-01E LCD Panel:

Composition: LCM

Size:8.0”

Resolution: 1024×600

Outline Dimension:174x136x2.45mm

Active Area:162.048x121.536mm

Signal Interface: LVDS -40P 0.5mm

Backlight: WLED

Operating Temperature:-10~60℃

Flat Rectangle Display: 4:3

Contrast Ratio:800:1

Viewing Angle:85/85/85/85(Typ.)(CR>10)

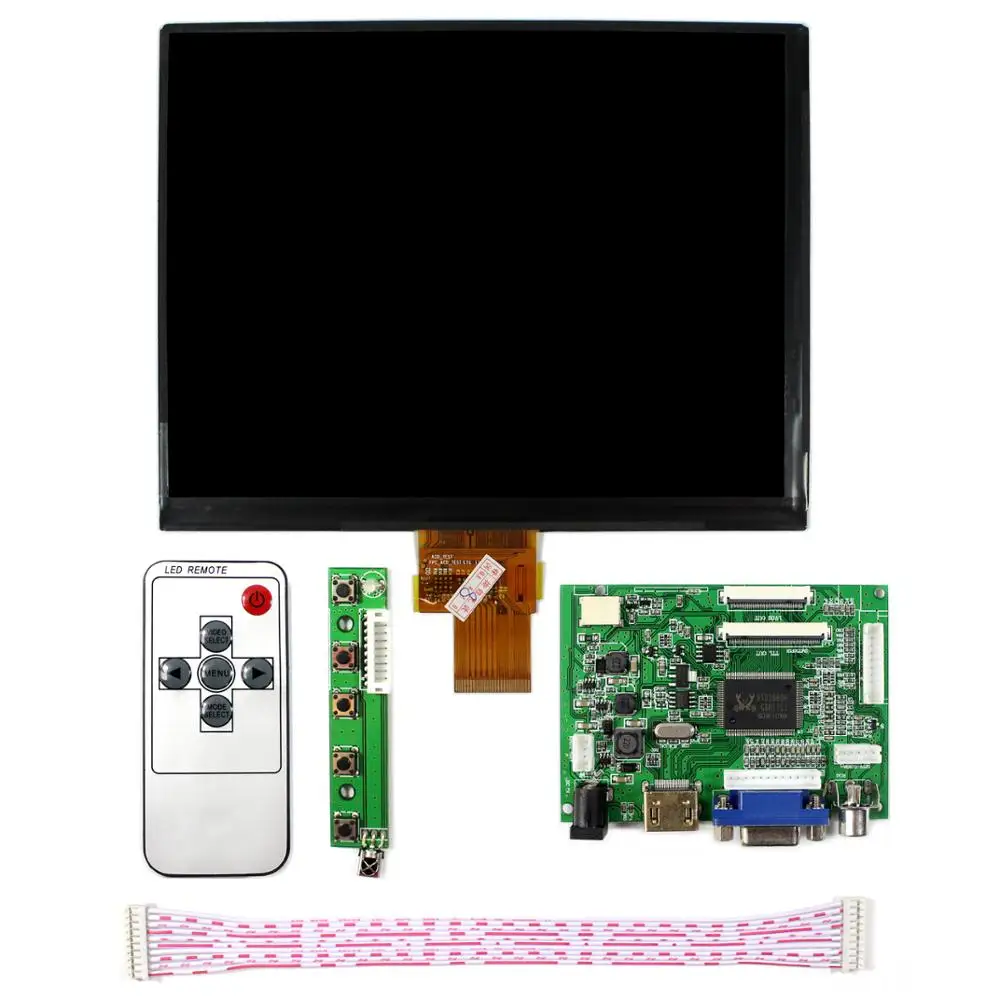

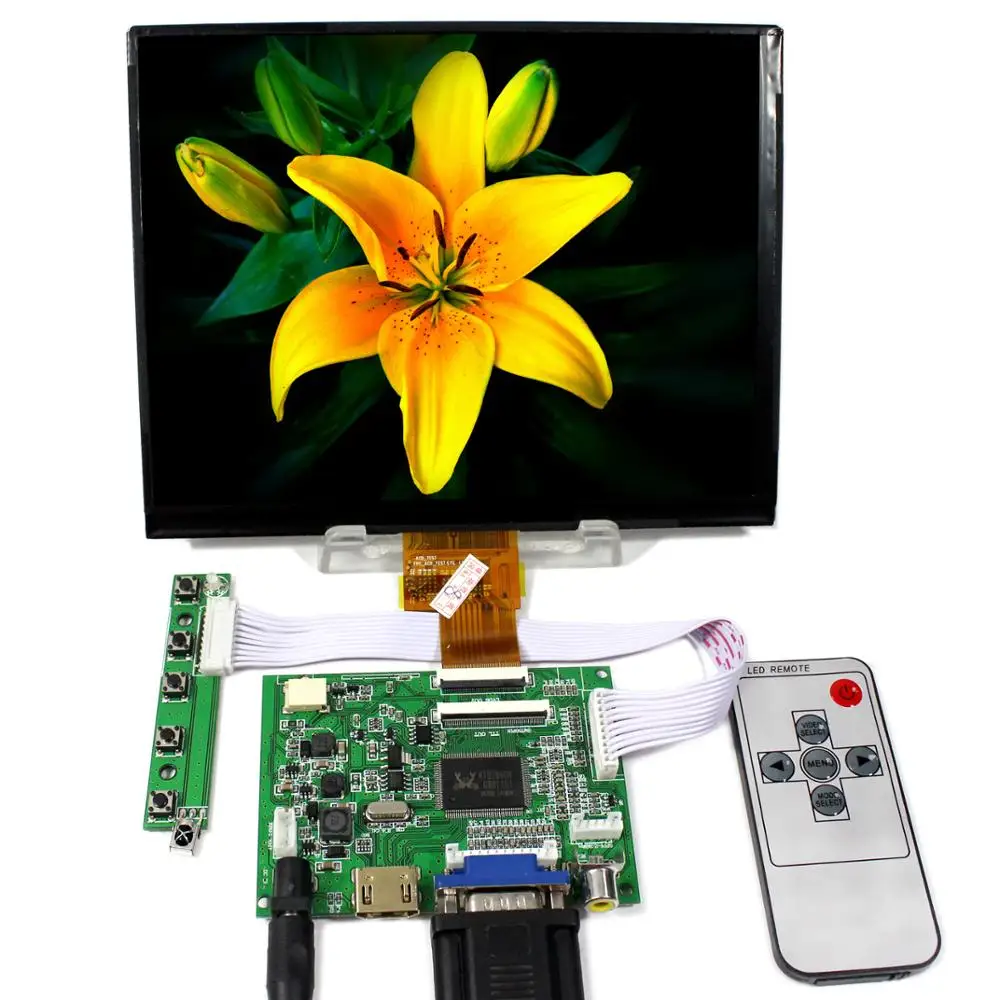

1× LCD Controller Board VS-TY2662-V5

1× 8inch 1024x768 HJ080IA-01E LCD Panel

1× Keyboard with Wire

1× Remote Control (Battery not included Battery Model No CR2032)

 1 year warranty from the day the product sold. Some technical issue can be solved online.

Trade Term:  EXW Shenzhen  or  FOB Shenzhen

Shipping: DHL, UPS, FedEx, TNT, EMS, Hongkong Post

Payment: T/T HSBC, Paypal, Western Union

   VS DISPLAY TECHNOLOGY(HONGKONG) LTDis a Hi-tech manufacturer of liquid crystal displayer.It is establishiment in 1998.The headquarters is located in Shenzhen.

The products include LCD Panel of TN, HTN, STN, FSTN, CSTN; LCM of COB, COG, TAB, COF; Some Accessories like Backlight, Touch Panel and finish product--Digital Photo Frame. Those product use in a broad range of applications : in telecommunication, GPS, electronic medication, video and audio system, apparatus and meters, home appliances, personal digital assistant (PDA),  mobile phones, scientific instruments and other electronic appliances. We have won the great reputation both at home and abroad.

VS DISPLAY has supplied one-stop service from OEM, ODM product to after service. From conceptual design to mass product, we have been specialized in this field for more than ten years. Our effective engineer will cater for you to design a product that meets all you demands and provide overseas technical support by wire.

All products are directly exported to Europe, North, Asia, South-American and so on. On using equipment from Japan and USA, enchancing in-house manufacturing capability to keep down production cost, and getting high-quality products. As a result, we have earned an excellent reputation in the overseas market.

Fabrication base covers 4,000sq meters. 2 COB lines, 1 COG lines, 1 TAB lines

QC system: ISO9001
