Керамический инфракрасный нагреватель для автомобильной печи
- Категория: Spray Booths >>>
- Поставщик: Chongqing,Haodong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 83.47 $* | 87.54 $* |
| Aug-16-2025 | 83.32 $* | 87.40 $* |
| Jul-16-2025 | 69.82 $* | 72.2 $* |
| Jun-16-2025 | 81.98 $* | 85.50 $* |
| May-16-2025 | 71.78 $* | 75.73 $* |
| Apr-16-2025 | 80.26 $* | 84.94 $* |
| Mar-16-2025 | 79.26 $* | 83.36 $* |
| Feb-16-2025 | 78.34 $* | 82.51 $* |
| Jan-16-2025 | 78.52 $* | 82.96 $* |
Характеристики
Product Name: Ceramic Infrared heater for car painting oven HD242
About us:
---Now Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater.
After coated with processed black rare-earth catalyst on the ceramic surface,the energy-transfer rate goes up greating, can save 10-20% energy than non-catalytic type.At the same time, it prolongs the use life of ceramic plate.
Why do you choose ceramic Infrared heater???
- Saving 10%~20% energy than common gas burner.
- Friendly to environment.
- Long useful time: ≥11000hr
- Completed thermostat controlling system

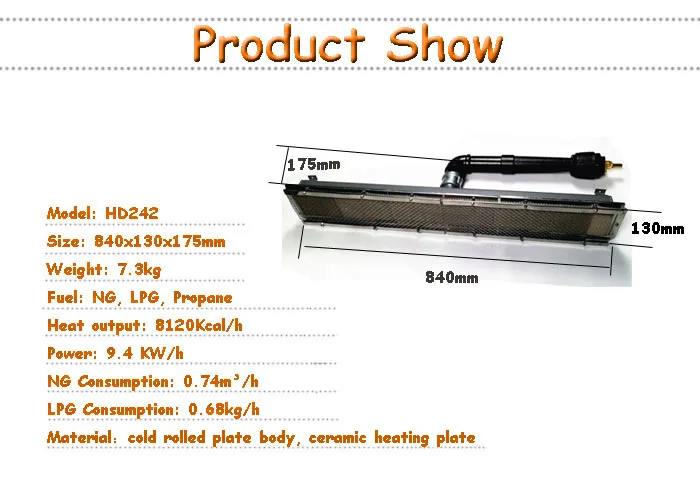

Specification and Models of Ceramic Infrared heater for car painting oven:
MODEL | Dimension | Weight | GasType | Heat Output | Consumption | ||
mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
HD242 | 860*130*175 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.68 |

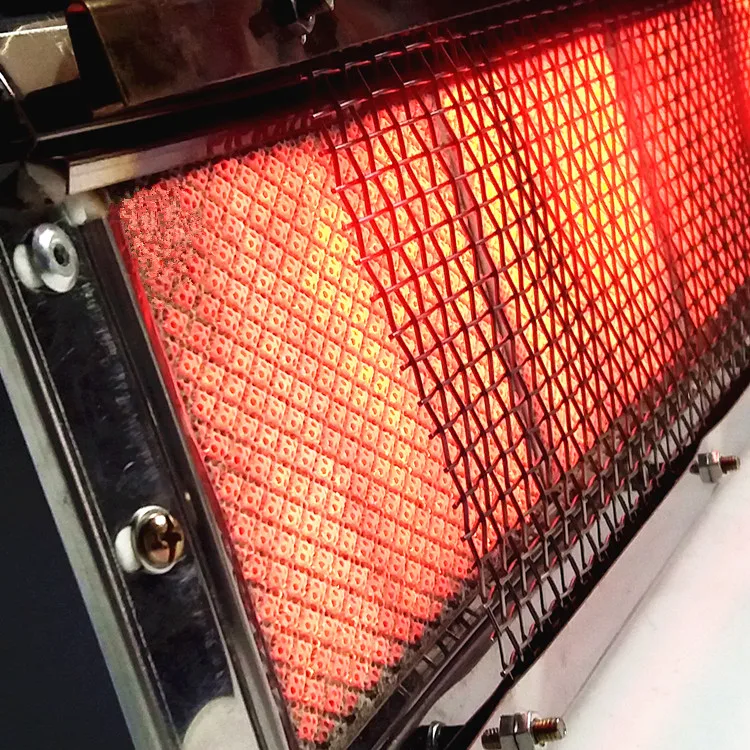

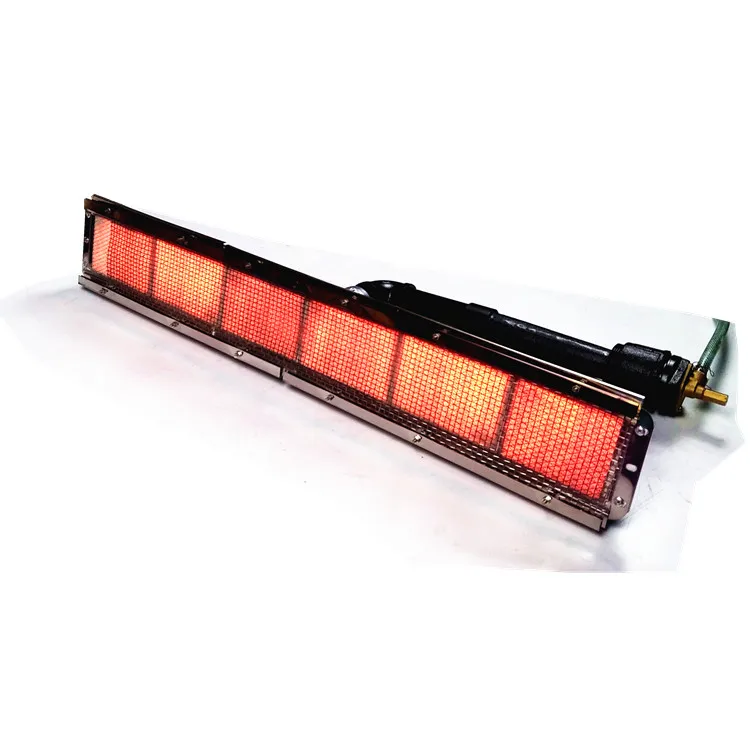

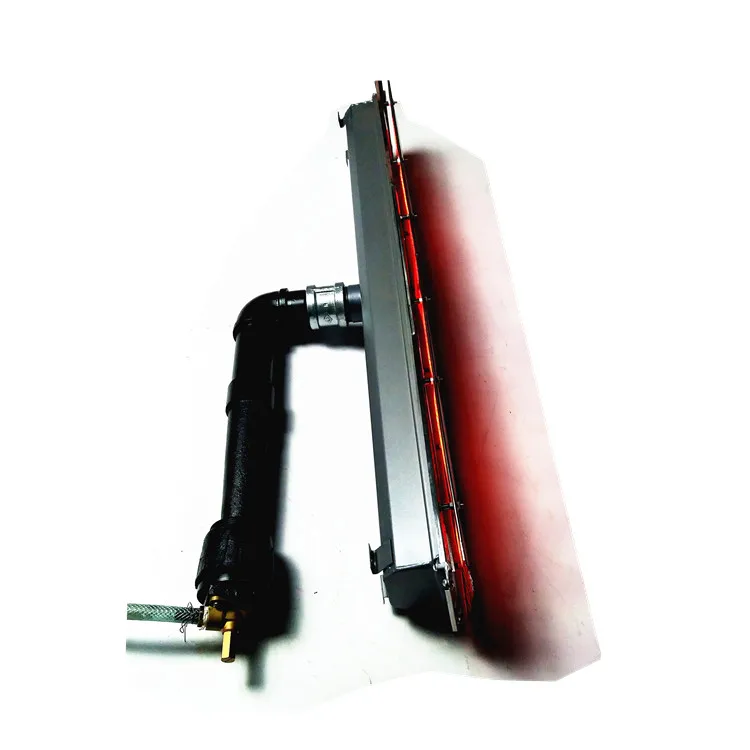

Detail photos -- Ceramic Infrared heater for car painting oven HD242

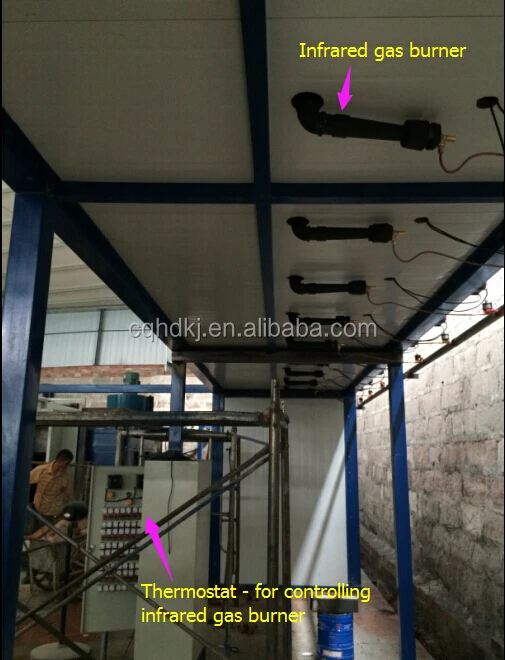

Whole system
We have three accessoreis for this burners:
The technical parameters of Ceramic Infrared heater for car painting oven
Items
| Technical parameters |
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
Light-off temperature | ≤350 |
complete combustion temperature | ≤380 |
Heat source temperature
| around 850 |
Baking temperature range | 30---550 |
Wavelength range | 1.9m--15m |
Furnance pressure natural | gas 150mmAq;liquefied petroleum gas 280mmAq
|
Comparison table for all kinds of energy consumption
Furnace type
Parameters | Electronic cooker
| Oil furnace | Coal-fired furnace
| Infrared catalytic heaters |
Energy requirement
| 10,000Kcal | 10,000Kcal | 10,000Kcal | 10,000Kcal |
Temperature | 180 | 180 | 180 | 180 |
Energy consumption
| Electricity(15 kW/h)
| Electricity (1Kw/h)+ diesel (2Kg) | Coal (10Kg)
| LPG(0.9Kg) |
Heating time
|
20 minutes
| 40 minutes | 90 minutes | 5-8 minutes |

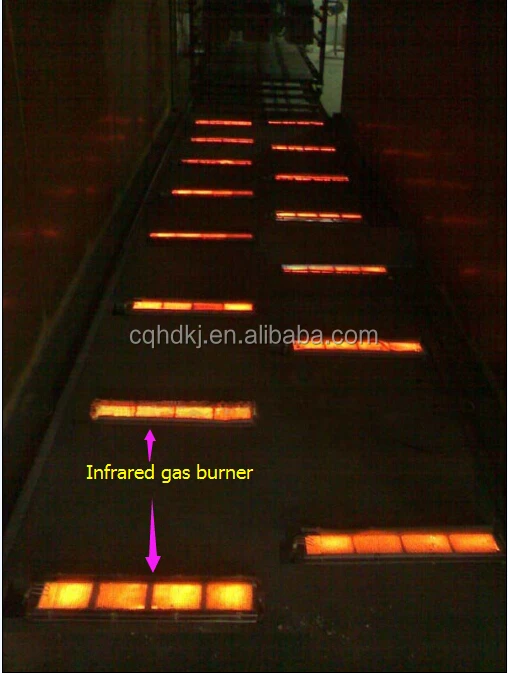

Application for Ceramic Infrared heater for car painting oven HD242
