120W 48V 2.5A адаптер переменного тока UL62368 перечислен блок
- Категория: Power Adapters >>>
- Поставщик: Shenzhen,Win-Wing,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 14.72 $* | 14.94 $* |
| Jul-17-2025 | 11.93 $* | 11.80 $* |
| Jun-17-2025 | 14.57 $* | 14.49 $* |
| May-17-2025 | 14.39 $* | 14.23 $* |
| Apr-17-2025 | 11.0 $* | 11.72 $* |
| Mar-17-2025 | 13.50 $* | 13.22 $* |
| Feb-17-2025 | 13.83 $* | 13.40 $* |
| Jan-17-2025 | 13.42 $* | 13.59 $* |
Характеристики
120W 48V 2.5A AC Adapter UL62368 Listed Power Supply
Features:
Universal AC Input/full Range
4hrs Full Aging Testing
Cost effective and reliable
UL FCC GS TUV CE PSE KC SAA fully safety approved
Fully enclosed plastic case
MTBF>50,000 hours
Energy Star, Erp Step2, CEC, MEPS Compliant
2 year warranty
Application:
LCD Monitor, LED Lights, HDD Enclosure, ADSL, DPF, Refrigerators, Portable DVD, Stereo, Radio, Security System Products Etc.
Specification:
| Input | Voltage | AC 100V ~ 240V full range |
| Frequency | 50-60Hz | |
| Input Current | 120A/240VAC | |
| Leakage Current | 50,000hrs | |
| Output | DC | 48V 2.5A, 120W |
| Other | Ripple & Noise | 120mV Max |
| Protection | Over-Voltage, Over-Current, Short-Circuit | |
| Hold Up Time | >5mS @115VAC | |
| Cooling | Natural Cooling | |
| MTBF | 50,000hrs/ MIL-HDBK-217F | |
| Mechanical | AC Input Type | IEC C14 3PIN |
| DC Output Type | Per Customer's requirement | |
| Dimensions | 150mm(L)*60mm(W)*35mm(H) | |
| Net Weight | 370-380G | |
| Environment | Temperature | Operating 0 to 40C, Storage -25 to +85C |
| Conducted EMI | FCC Part15 Class B , EN55022 class B | |
| Safety Certificate | CUL/UL CE GS SAA PSE KC CCC |

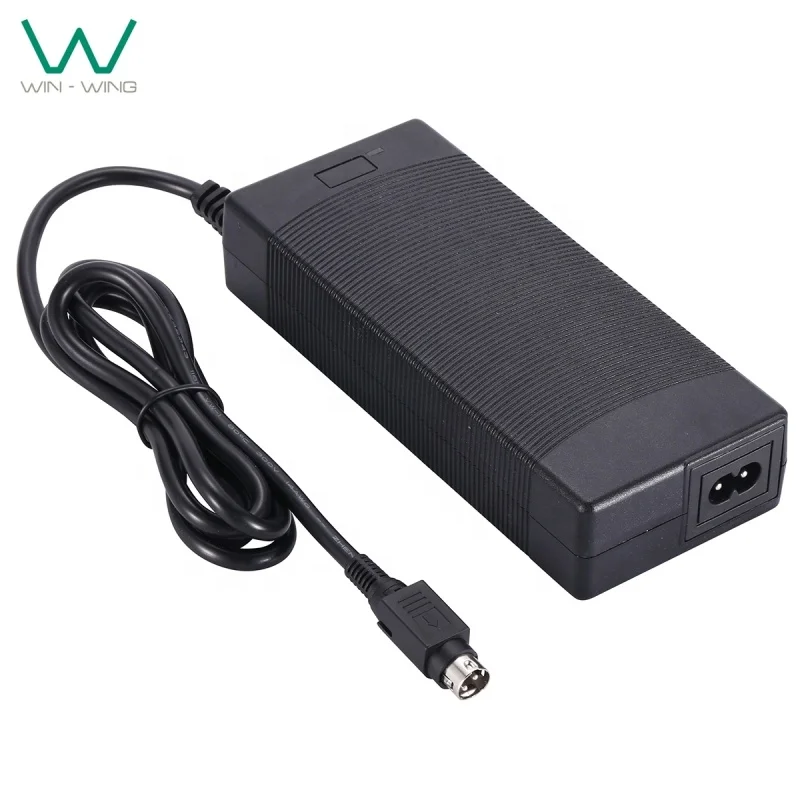

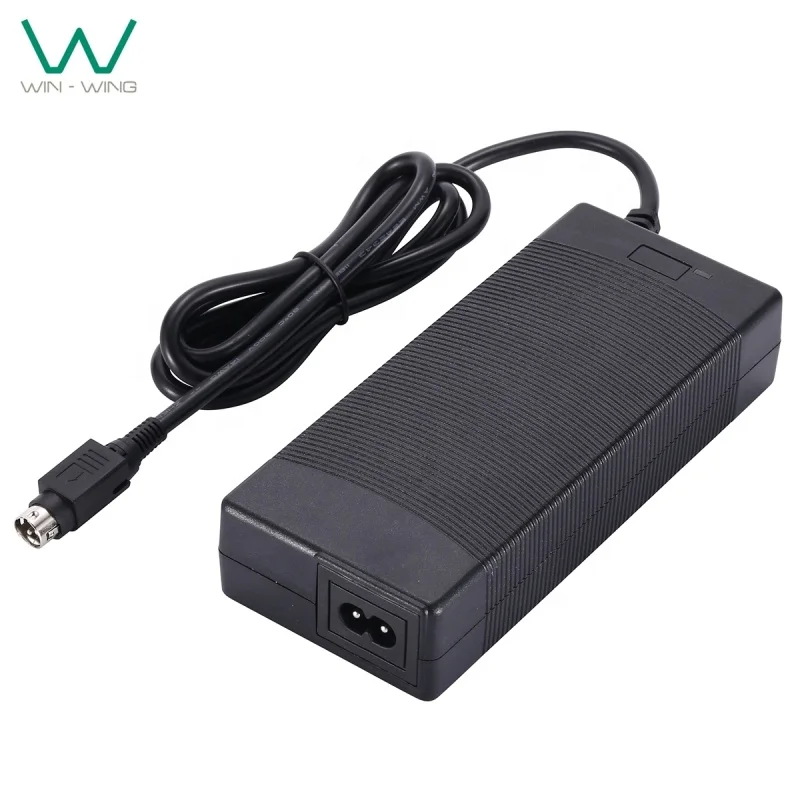

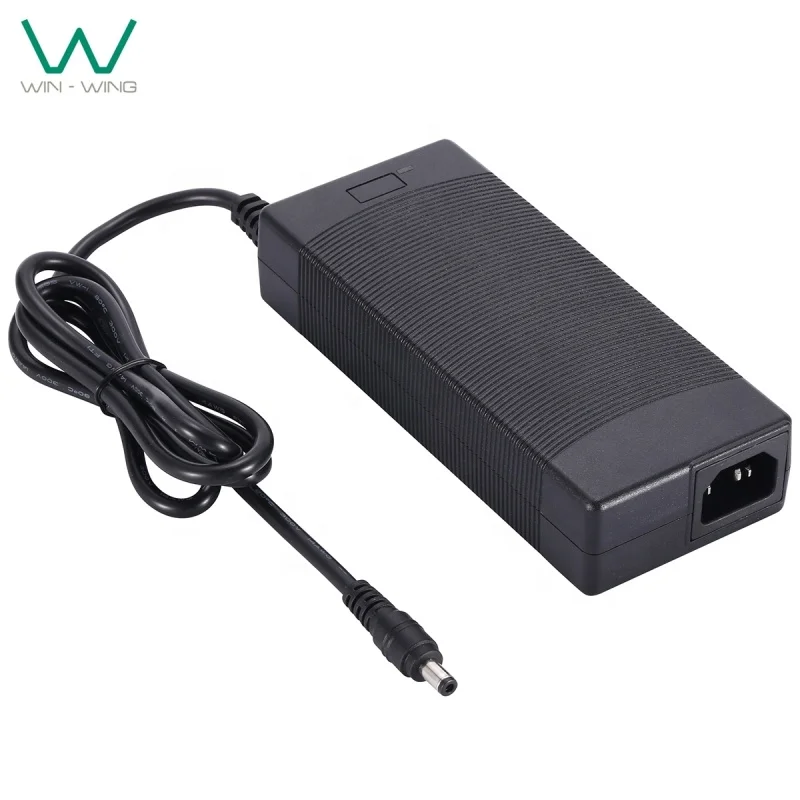

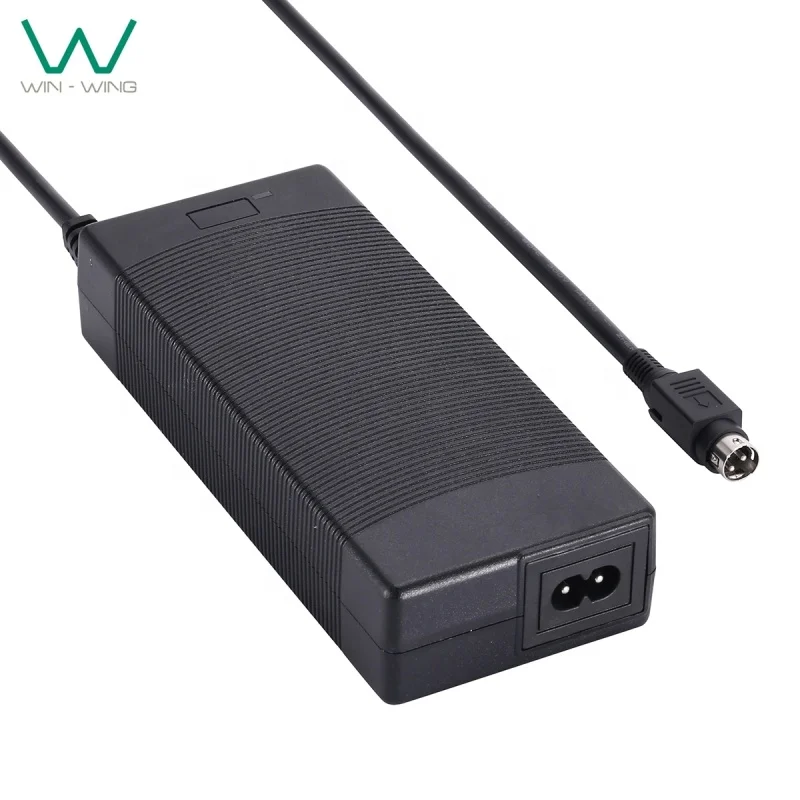

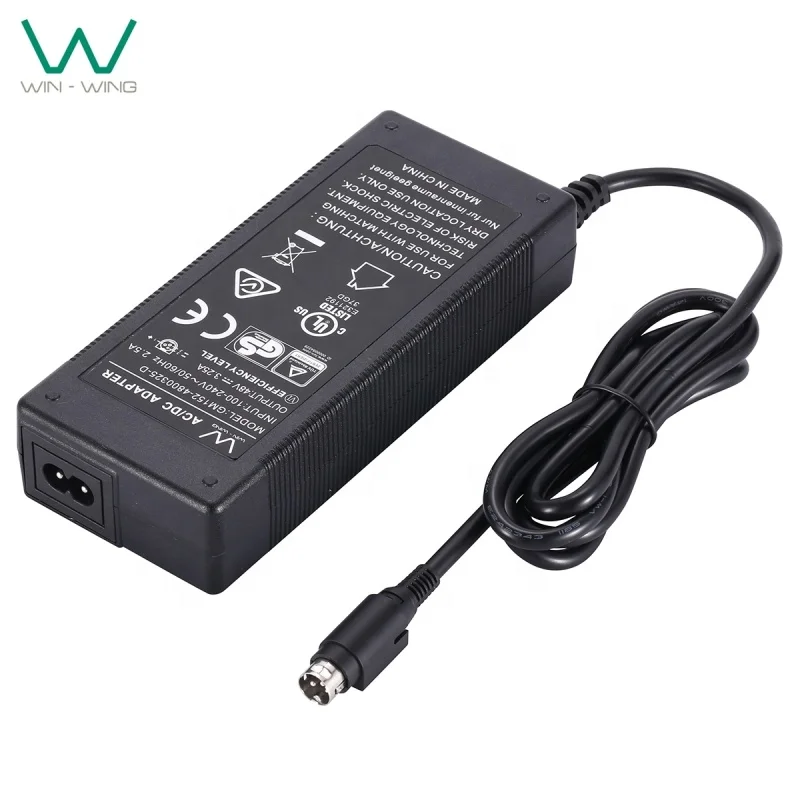

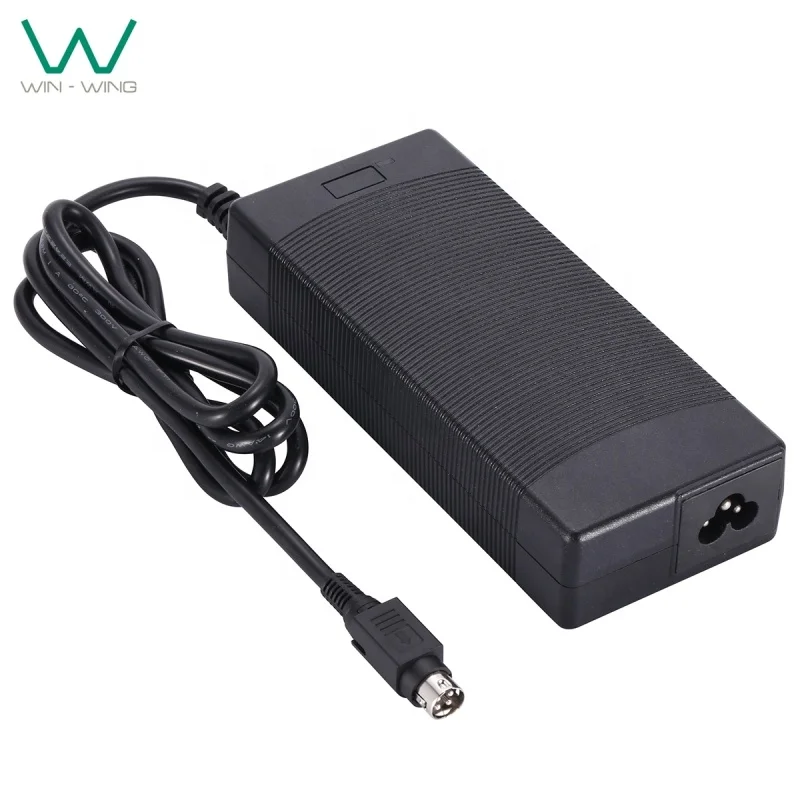

Pictures:
