Квадратная башня водяного охлаждения 400T Cross

Квадратная башня водяного охлаждения 400T Cross

Категория: Cooling Tower >>>
Поставщик: Shenzhen,Anyda,Refrigeration,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.48 $*	0.39 $*
Aug-15-2025	0.53 $*	0.5 $*
Jul-15-2025	0.87 $*	0.37 $*
Jun-15-2025	0.70 $*	0.71 $*
May-15-2025	0.31 $*	0.35 $*
Apr-15-2025	0.19 $*	0.47 $*
Mar-15-2025	0.62 $*	0.79 $*
Feb-15-2025	0.9 $*	0.17 $*
Jan-15-2025	0.89 $*	0.92 $*

Характеристики

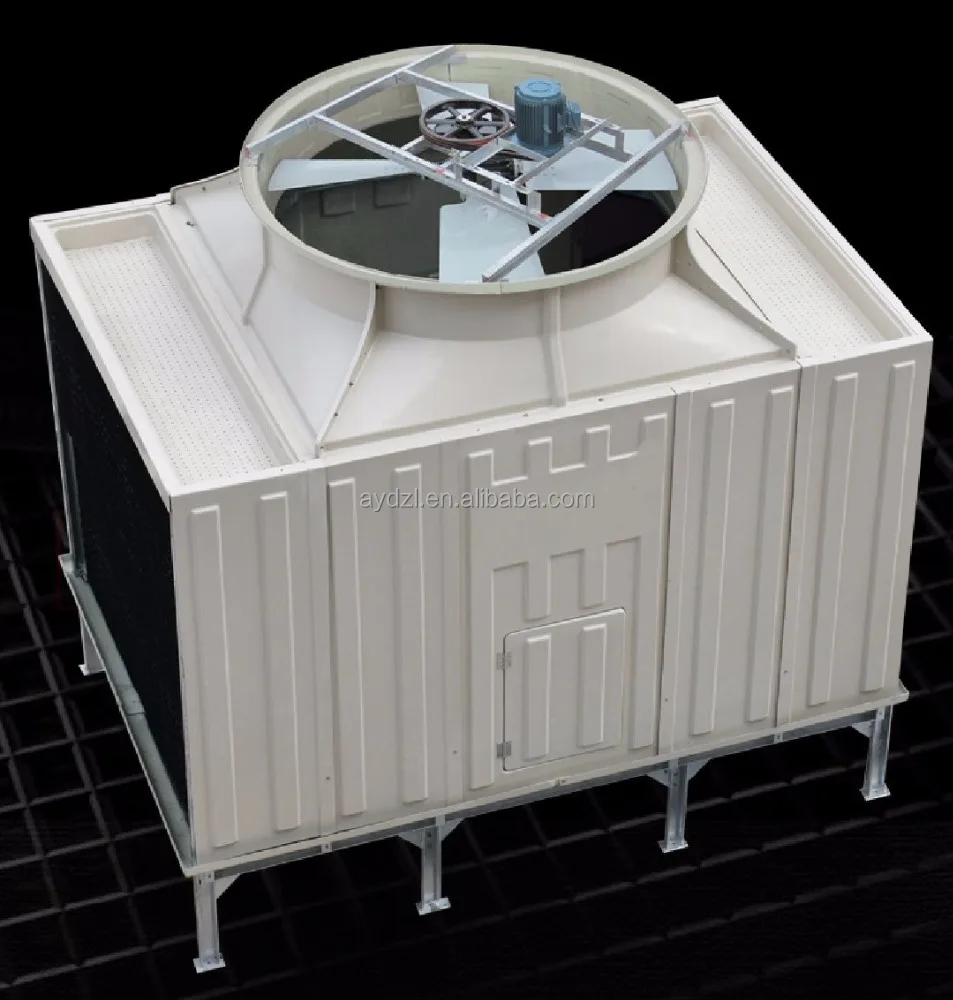

400T Cross Flow Square Water Cooling Tower Features:

1. Frame adopt the national standard Tang Gang, high hardness, thick material, load-bearing capacity, surface hot galvanized treatmen.

2. Body casing material, surface layer of plastic used imported wax layer + 33 # gel coat layer, hard and durable, glass steel layer with 889 # resin + boulder fiber, toughness, high hardness, acid

3. All the tower with stainless steel screws, durable and not rust.This is customized part.

4. Exhaust system using high-quality copper core motor and aluminum alloy blade, wear-resistant, high temperature

5. oblique pattern design PVC film to reduce the flow rate, increase the heat transfer area, greatly improve the cooling effect

6. Other: stainless steel float copper valve, nylon cable knot, high temperature corrosion resistance

Item	Content	Value	Remarks
Basic specs	Cooling Tower Type	Cross square type tower
	Model	AYD-400T	Low Noise
	Circulating Water Flow	400 m³/h
	Inlet Temp/Outlet Temp	37℃/32℃
	DB Temp	31.5℃
	WB Temp	27℃
	Cooling Capacity	2,000,000 kcal/h
	Noise Value	65dB(A)
	Power Supply	380V/3P/50Hz
	Water Requirement	PH=6-8
Design specs	Air Water Scale	0.68 kg/kg
	Tower Head	40kPa
	Flying Water Loss	≤0.001%
	Evaporation Loss	0.83%
	Net/Running Weight	2830 kg/6680 kg
Motor fan specs	Fan Type	Axial-Flow
	Air Volume	284,000m³/h
	Total Static Pressure	90Pa
	RPM	240r/min
	Fan Dia(Φ)	3,200 mm
	Quantity of Fan	4pcs/set	One set
	Motor Type	All Closed Water-proof
	Driving Mode	Belt
	Motor Power	11 kW
	Start Way	Y

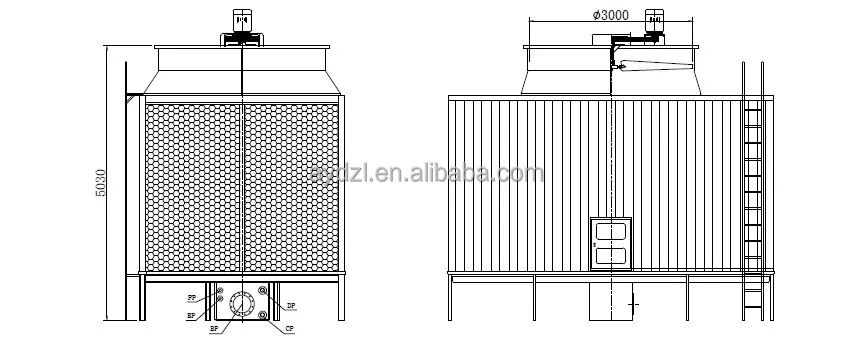

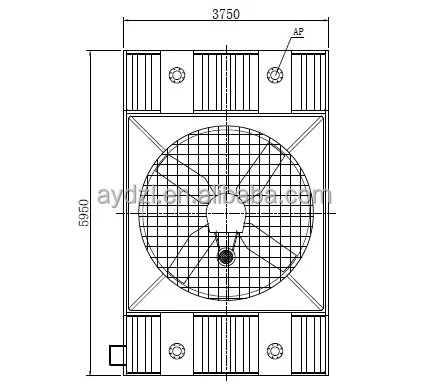

Main Dimension	LWH	375059505030 mm
	Inlet Pipe Size(DN)	150mm	four sets
	Outlet Pipe Size(DN)	300mm	One set
	Overflow/Drain Pipe(DN)	80mm/80mm	One set separately
	auto/manual supply(DN)	50mm/50mm	One set separately
Material	Orifice	Glass Fiber Reinforced Plastics	Synthesis of high quality glass fiber felt and resin
	Sprinkler System
	Boarding
	Basin, Vat
	Belt	Composite Material	Japan Mitsuboshi
	Fan	Aluminum Alloy	Big Chord Arc
	Motor	All Closed Water Proof	Level of Protection IP55 Insulation Grade F
	Film	P.V.C.	ZR
	Iron Frame, Motor Frame	hot-dipped galvanized steel	GB/T-13912-2002
