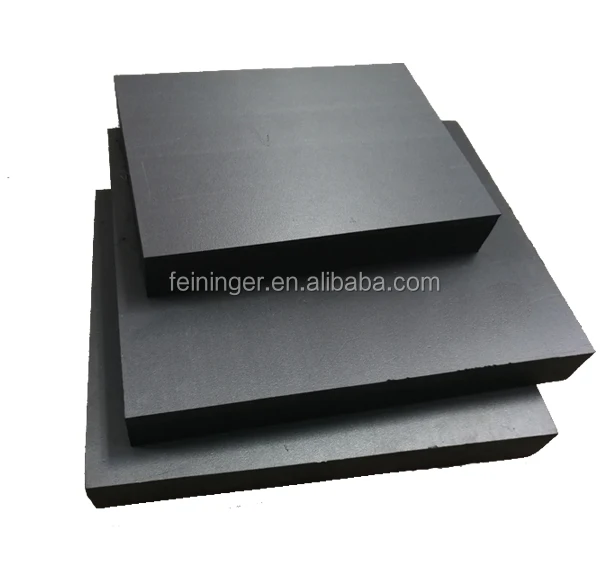

Графитовая пенопластовая доска XPS изоляционная с высокой
- Категория: XPS Boards >>>
- Поставщик: Feininger,(nanjing),Energy,Saving,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.76 $* | 0.19 $* |
| Aug-16-2025 | 0.82 $* | 0.11 $* |
| Jul-16-2025 | 0.82 $* | 0.43 $* |
| Jun-16-2025 | 0.37 $* | 0.23 $* |
| May-16-2025 | 0.54 $* | 0.31 $* |
| Apr-16-2025 | 0.27 $* | 0.0 $* |
| Mar-16-2025 | 0.46 $* | 0.51 $* |
| Feb-16-2025 | 0.60 $* | 0.93 $* |
| Jan-16-2025 | 0.2 $* | 0.95 $* |
Характеристики
Detailed Product Description
CO2 Foaming High compressie strength xps foam board
1. Without any CFC/HCFC/HFC
2. Eco-friendly
3.40mm-60mm available
4. 500kpa-1000kpa available
2. Eco-friendly
3.40mm-60mm available
4. 500kpa-1000kpa available
5. Technology date according to X500
Feininger High compressie strength xps foam board
Stable performance and anti-aging: The extruded polystyrene (XPS) insulation boards can be used 35-50 years.
- Resistance to compression: compared with other thermal insulation material(200Kpa for EPS), it has better compressive strength(around 300Kpa), which make it the ideal solution for heavy domestic or industrial loads
- Water resistance: Polyfoam is almost 100% closed cell and as such is unaffected by moisture
- Lightweight: volume optimization and easy to handle
- Resistance to deformation
- Resistance to impact
- Versatile: the closed cell structure and density of Polyfoam allow specific edge details and surface finishes to be cut into the boards to make them as fit for the job as possible. Moreover, Polyfoam can be cut into almost any shape
100% ozone friendly - Recyclable: Polyfoam can be 100% recyclied
Technical Data Sheet:
Item | Unit | Property Index | |||||||||||
With Skins | |||||||||||||
X150 | X200 | X250 | X300 | X350 | X400 | X450 | X500 | ||||||
Compressive Strength | KPA | ≥150 | ≥200 | ≥250 | ≥300 | ≥350 | ≥400 | ≥450 | ≥500 | ||||
Water Absorption, | %(by volume) | ≤1.5 | ≤1.0 | ||||||||||
dipped in water for 96h | |||||||||||||
Moisture Permeability, 23°C±1°C,RH 50%±5% | Ng/(m.s.Pa) | ≤3.5 | ≤3.0 | ≤2.0 | |||||||||
Heat Insulation | Heat Resistance Thickness25mm 10°C 25°C | (m2·K)/W | ≥0.89 ≥0.83 | ≥0.93 ≥0.86 | |||||||||
Heat Conductivity Average Temp. 10°C 25°C | W/(m·K) | ≤0.028 ≤0.030 | ≤0.027 ≤0.029 | ||||||||||
DimensionalStability 70°C±2°C, 48h | % | ≤2.0 | ≤1.5 | ≤1.0 | |||||||||
4 Different Edge Shape :
Different Surface Type:
Package & Loading
Certificates:
Extruded polystyrene foam board:
1. XPS Styrofoam is made from GPPS through special foaming technology.
2. XPS Styrofoam is a very good materals in insulation field because of its special characteristic as below,
2.1 Almost 100% cell are closed, it have very low water absorption.
2.2 Its insulation performance is very excellent, the thermal conductivity is lower than 0.030W/m.k.
2.3 It has high compressive strength, our company Feininger could produce 100KPA-1000KPA XPS Styrofoam . It could undertake various of loading requirements .
2.4 It has very good sound insulation, could be use in decoration widely
3. Currently, XPS Styrofoam is used in the following field widely;
3.1 Roof insulation system
3.2 Wall thermal insulation system
3.3 Refrigerator heat preservation system
3.4 Ground insulation system
3.5 High speed railway....
High compressie strength xps foam board Production Process: Polystyrene Granule, Talcum Powder, Masterbatch, Blowing Agent are mixed and melted in Extruder.The melt material will be extruded out of Slot Die, then through Calibrator, we reach a panel shape. After cooling, cutting, edge trimming, we will pack in water-proof plastic bag. This is the XPS Styrofoam are in market.
Properties:
Heat Insulation, Water-proof, Noise-elimination, Anti-corrosion, Anti-aging, Light-weight, High Compressive Strength and Low Moisture permeability.
Application: Wall Insulation, Inverted Roof Insulation, Floor Insulation, Sanwich Panel, Steel Plate Sandwich Panel, PVC Sandwich Panel, Cold Storage Insulation, Refrigeratory, Airport Ground, Highspeed Rail-way Base.
Specification:
Thickness: 20-120mm
Width: 600mm, 900mm, 1200mm
Length:1200mm, 2400mm, 3000mm or your option
Color: light-yellow, blue, green, pink
Loading: 66.9 M3/40'HQ
