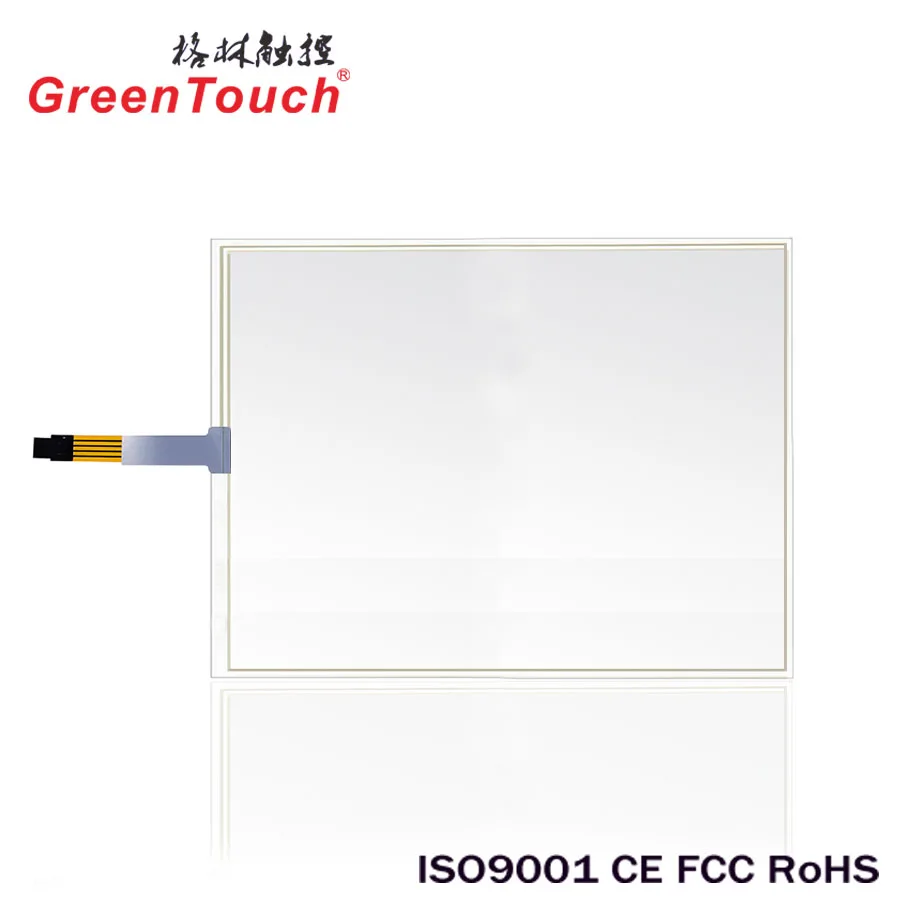

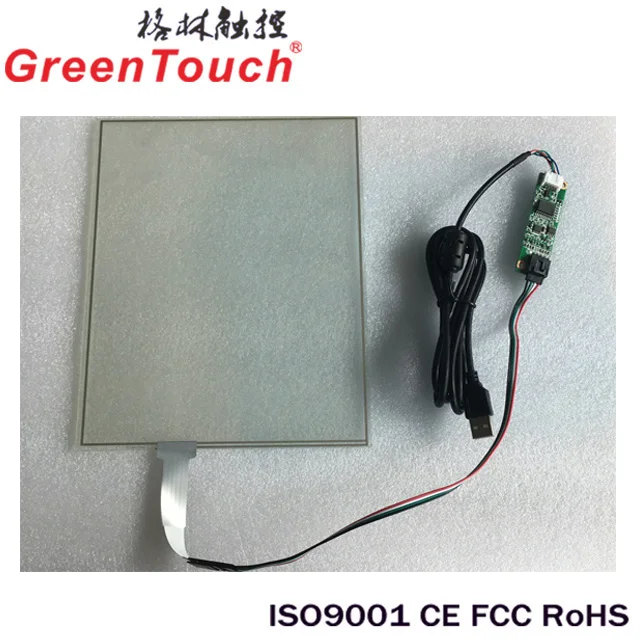

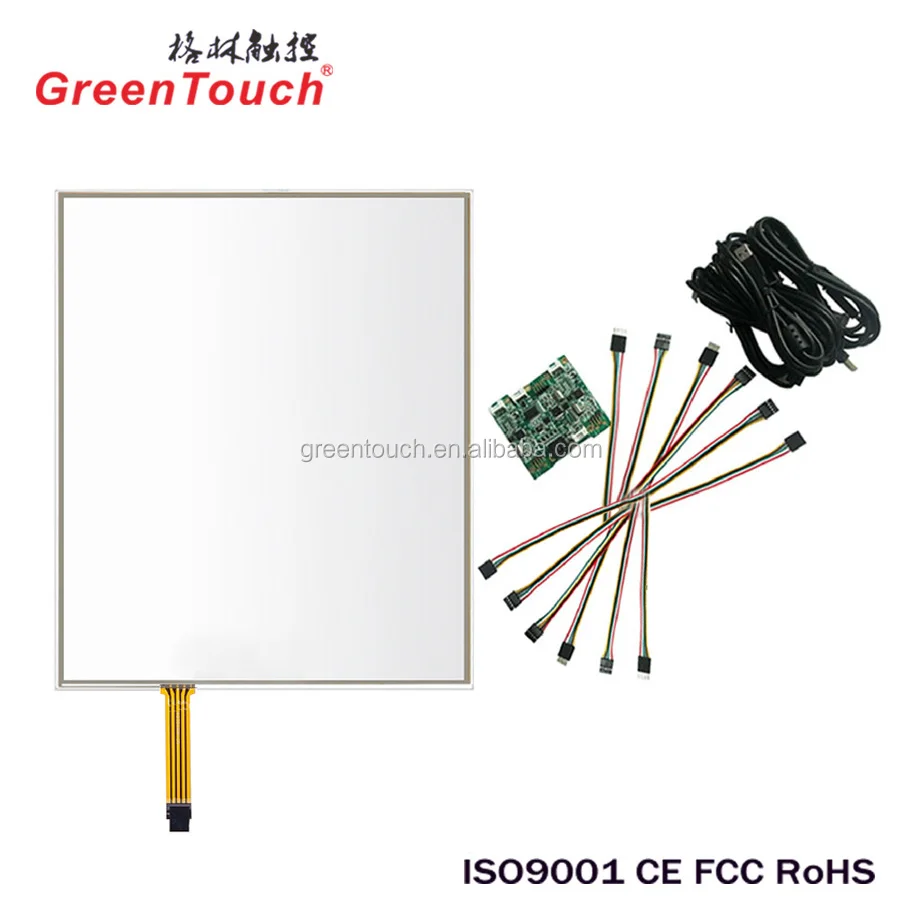

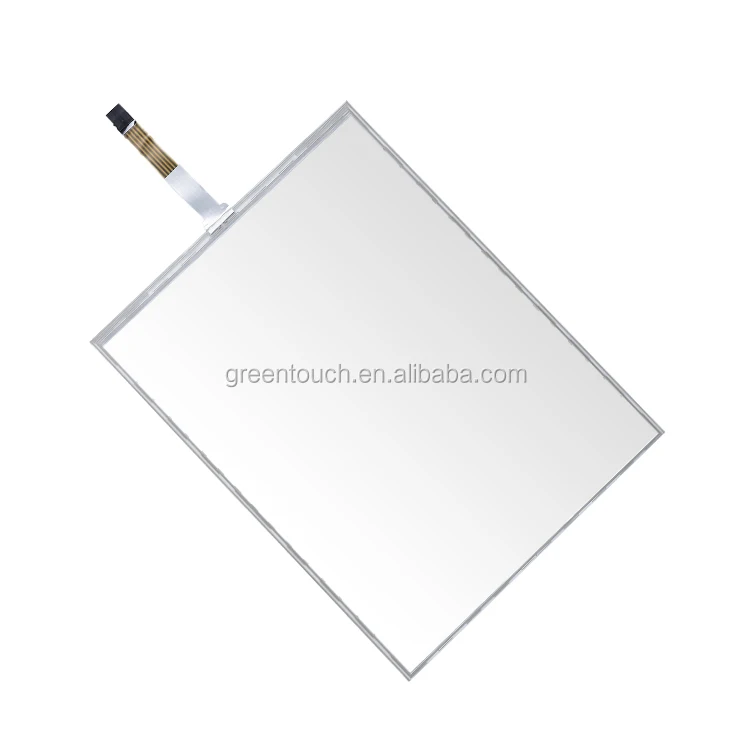

GT-4W-15A-1 15 дюймовый 4-проводной резистивный сенсорный экран панель usb Наборы для PO промышленный ЖК игровой автомат монитор сердечного

Touch screen type

Touch screen size

Thickness

Material

4wire Resistive touch screen

5.7”-22” (support customized)

1.1mm-2.3mm

ITO glass+ITO film

4wire flexible Resistive touch film

15” 15.6” 17” 18.5” 19” 21.5” 22”

0.5mm

ITO Film +ITO Film

5wire Resistive touch screen

10.4”-22” (support customized)

2.3mm

ITO glass+ITO film

Item model

Resistive touch screen

Detection method

4/5 wire Resistive

Available Size

7"-22"

Aspect ratio

4:3/16:9/16:10

Input method

Finger or touch pen

Touch action force

20~80g

Position accuracy

4.5~5mm

Operating Voltage

DC≤10V

Operating current

5~25mA

Response time

<10ms

Transparency

≥78%

Surface hardness

3H

Operating temperature

-10°C~60°C

Storage temperature

-20°C~70°C

Pen hitting life

≥10,000,000/point

Pen sliding Durability

≥500,000 times

Light transmission

92%~100%

Finger Touch life

≥35,000,000 times

Durability

Scratch-free; More than 50,000,000 touches in one location without failure

Surface Disposal

Glare hard coating;

Anti-Newton ring

Working environment

Under sunlight,indoor and outdoor

Humidity

10%~90%RH at 60°C, non-condensing

Relative humidity

10%~90%RH at 40°C,

non-condensing

Certificates

CE,FCC,RoHS

Warranty

12 months

OS

EETI USB Controller

Windows 2000/Windows XP/Win 7/ Win8/Linux(Ubuntu)/Android/DOS/QNX/MAC

For 4wire and 5wire Resistive touch screen

EETI RS232 Controller

Windows 2000/XP/Win7 8/Linux/Android/Linux(Ubuntu 5.1/6.06 etc.)/Windows NT4/DOS/QNX/Windows CE

For 4wire and 5wire Resistive touch screen

USB controller

Windows 2000/XP/Win7/Win 8

For 4wire Resistive touch and flexible Resistive touch film
