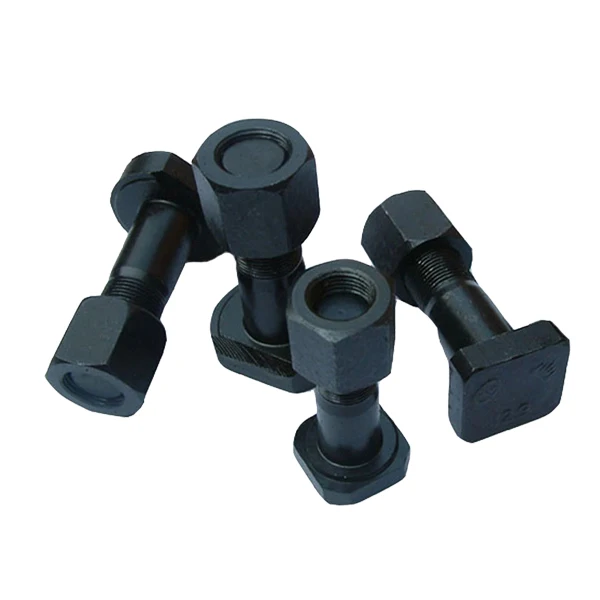

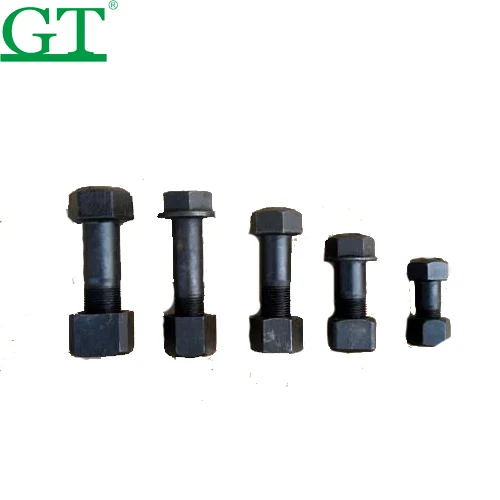

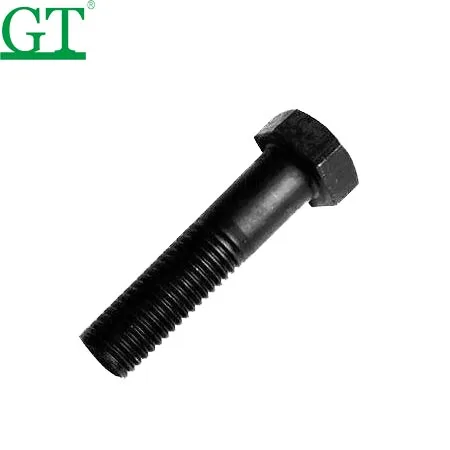

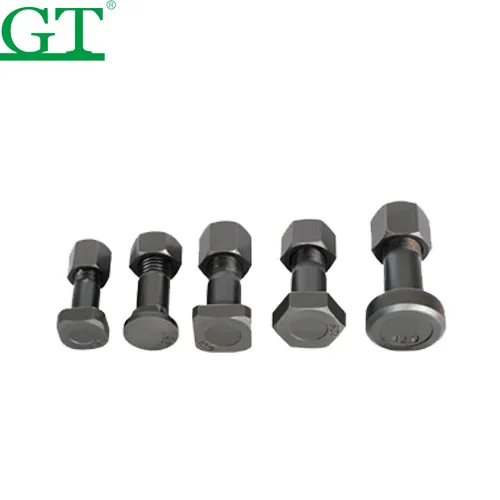

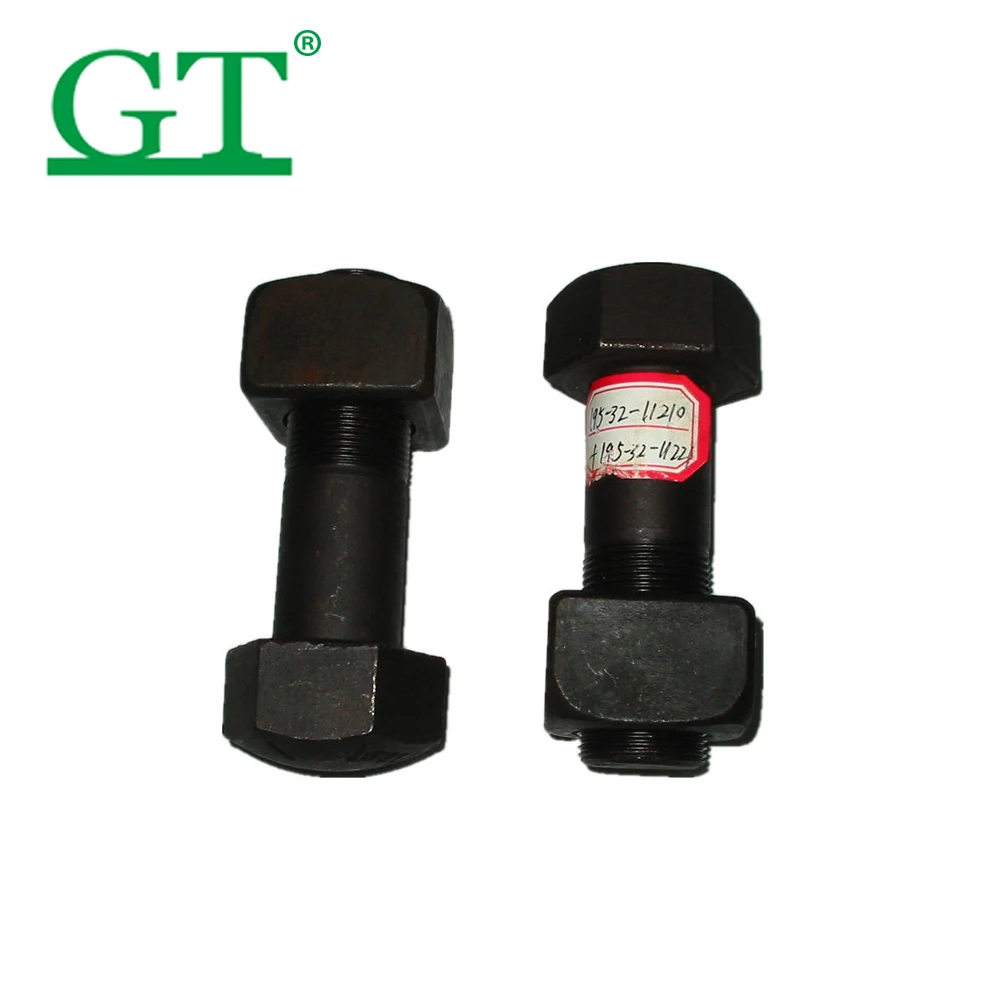

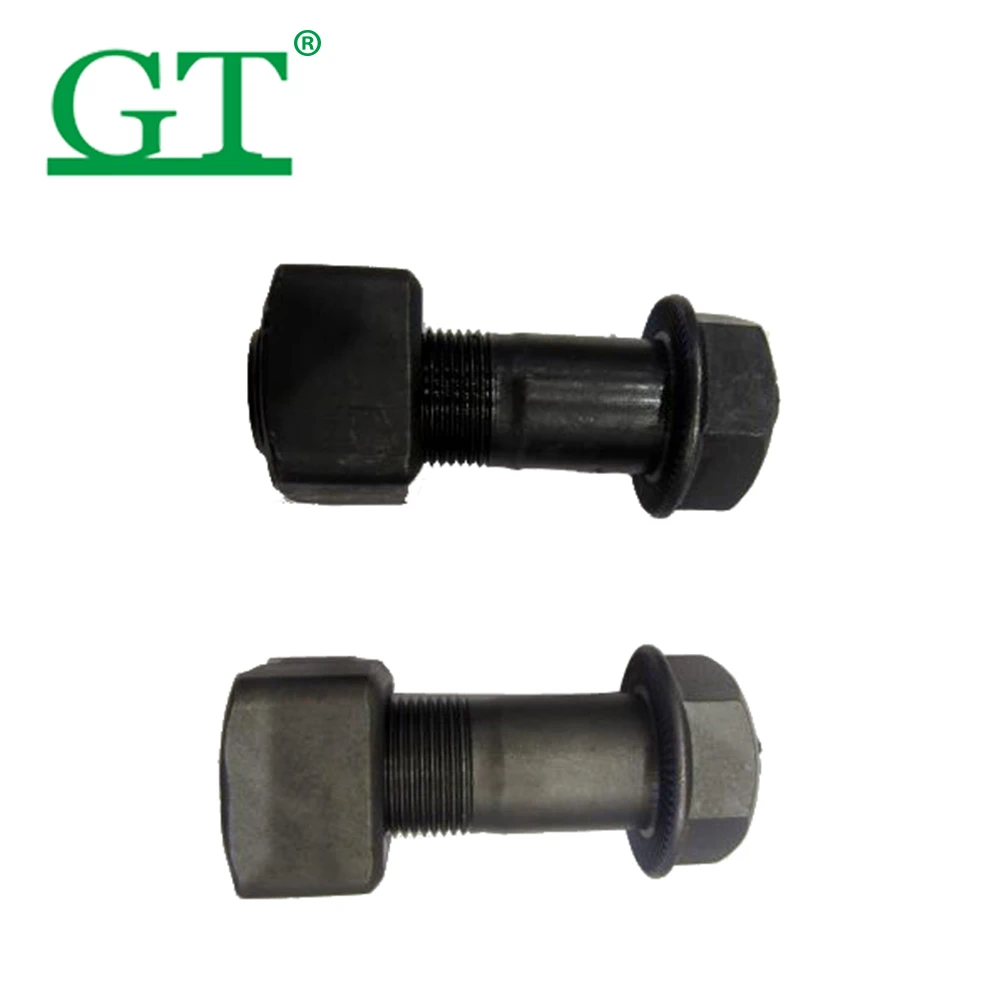

Track Chain Bolts and Nuts for ex200 EX150 135-32-1121 7903944

Information Products

Length: 1"-20"

Dia:1/8"-1 1/2"

Grade: 5 & 8

Material: 45Cr, 35GrMo,42GrMo

Standard: ANSI, DIN, BS, AS, etc.



Advantages / Features:

1). Materials:

Our company has  purchased steel from several large steel groups , such as Hangzhou Steel Mill, Shanghai Bashan Steel Mill, Beijing Shrugging Steel Mill whose steel have good mechanical properties and stability of chemical component. it keep the bolt to be of high strength

2). Manufacture Procession

First, we have our own High-precision Digital Machining center for mould making in special Mould Workshop, excellent mould make product beautiful appearance  and its size accurately.

The second, we adopt blasting procession, removing Oxidation surface , make the  surface to be bright and clean and uniform and beautiful.

The third, in heat treatment: We use the Controlled-atmosphere Automatic heat treatment Furnace, we also have four mesh belt convey furnaces, Can deal with the products in different sizes keeping the non-oxidation surface

3). The all process quality control:

  The quality control is strictly performed from buying raw materials in warehouse to different machining procession and to final packing. We have Magnetic Powder Detector, Material Testing Machine,  Metallographic Microscope, such testing instruments, guarantee product high quality and beautiful appearance.

4). Our production capacity

Single bolts, every month can produce 1.7 million bolts. Now we buy a Full Automatic Cool-forging Machine. this greatly enhances our production capacity with more quality and more beautiful appearance.



Name	Part No.	Specification	Model
Bolt shoe	135-32-11210	M18X1.5X65	D65
Bolt shoe	150-32-21321	M19X1.5X62	D60A
Bolt shoe	144-32-07210	M19X1.5X66	D60A
Bolt shoe	154-32-21321	M20X1.5X65	D85
Bolt shoe	175-32-11210	M24X1.5X78	D155
Bolt shoe	195-32-11210	M27X1.5X82	D355
Bolt shoe	195-32-61210	M30X2X97	D455
Bolt shoe	20Y-32-11210	M20X1.5X55	PC200-5
Bolt shoe	14X-32-11220	M20X1.5X56	D65
Bolt shoe	207-32-11350	M20X1.5X63	PC300-5
Bolt shoe	154-32-11230	M20X1.5X68	D85
Bolt shoe	207-32-51210	M22X1.5X56	PC300-6
Bolt shoe	208-32-51210	M24X1.5X65	PC400-5
Bolt	154-70-11143	M19x1.5x70	D85
Bolt	175-71-11454		D155
Bolt	175-71-11463		D155
Bolt	195-71-11451	M24X1.5X90	D355
Bolt	120-27-32340		D41
Bolt	09203-21860		D53
Bolt	154-27-12320	M22X1.5X70	D65A
Bolt	155-27-12181	M22X1.5X71	D85
Bolt	178-27-11150	M24X1.5X79	D155
Bolt	195-27-12632	M24X1.5X90	D355
Bolt	195-27-11210	M27X1.5X90	D355
