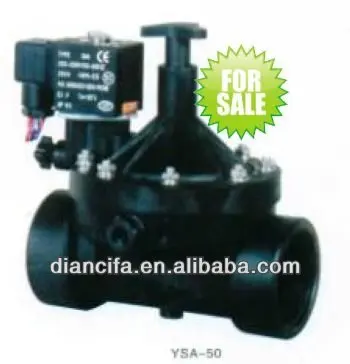

YSA-50 ирригационный Соленоидный клапан NPT
- Категория: "
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.67 $* | 0.71 $* |
| Aug-20-2025 | 0.39 $* | 0.52 $* |
| Jul-20-2025 | 0.91 $* | 0.80 $* |
| Jun-20-2025 | 0.93 $* | 0.2 $* |
| May-20-2025 | 0.82 $* | 0.15 $* |
| Apr-20-2025 | 0.90 $* | 0.17 $* |
| Mar-20-2025 | 0.11 $* | 0.51 $* |
| Feb-20-2025 | 0.50 $* | 0.69 $* |
| Jan-20-2025 | 0.66 $* | 0.34 $* |
Характеристики
Specifications
2 inch water solenoid valve
1)Plastic solenoid valve
2)irrigation and low power solenoid valve
2 inch water solenoid valve
-- Medium: Water, Air,Gas
--Temperature: 0~60ºC
--Mode of action: Pilot operated
-- Pressure:Normally Closed (N/C)0.3~8bar
--Body material: reinforeced nylon PA
-- Sealing material: NBR
--Protection class: IP65
Product application:
Automatic control of the medium, such as water,gas,diluted pesticide.
Speciality :
Could open/close urgently with manual swith in powerless status.
Equipped with filter and flow adjusting swith.
PARAMETERS:
Model | YSA40 | YSA50 |
G Connection | 1½" | 2" |
Oriffice (mm) | 40 | 50 |
CV value | 28 | 48 |
L(mm) | 151 | 170 |
H(mm) | 130 | 140 |
¢1(mm) | 62 | 75 |
¢2(mm) | 40 | 50 |
¢3(mm) | 112 | 130 |
Medium temperature | 0~60ºC | |
Pressure | 0.1~8 (12) bar | |
Voltage | 220VAC/50HZ 110VAC/50HZ DC24V ;Range:-15%~10% | |
Power | AC 28VA; DC 12W | |
