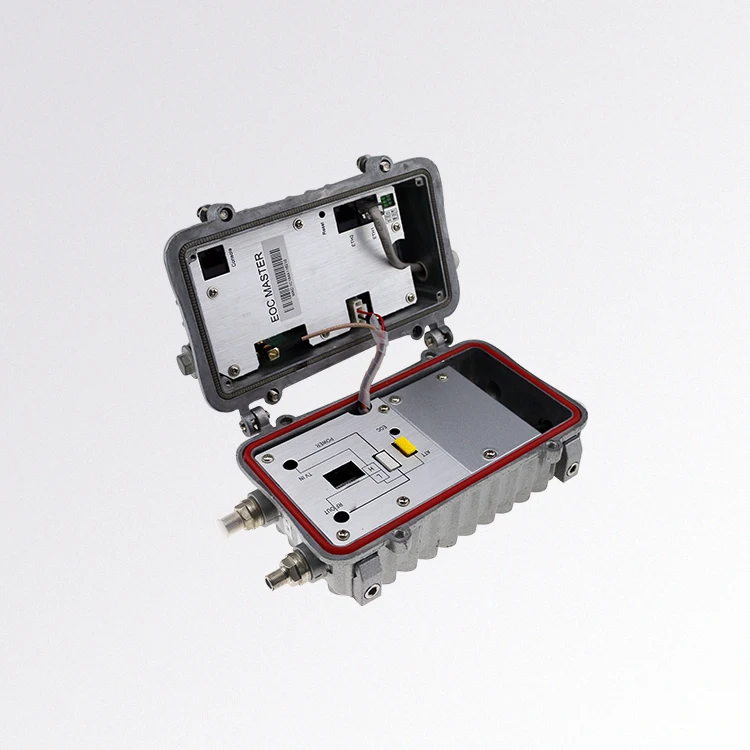

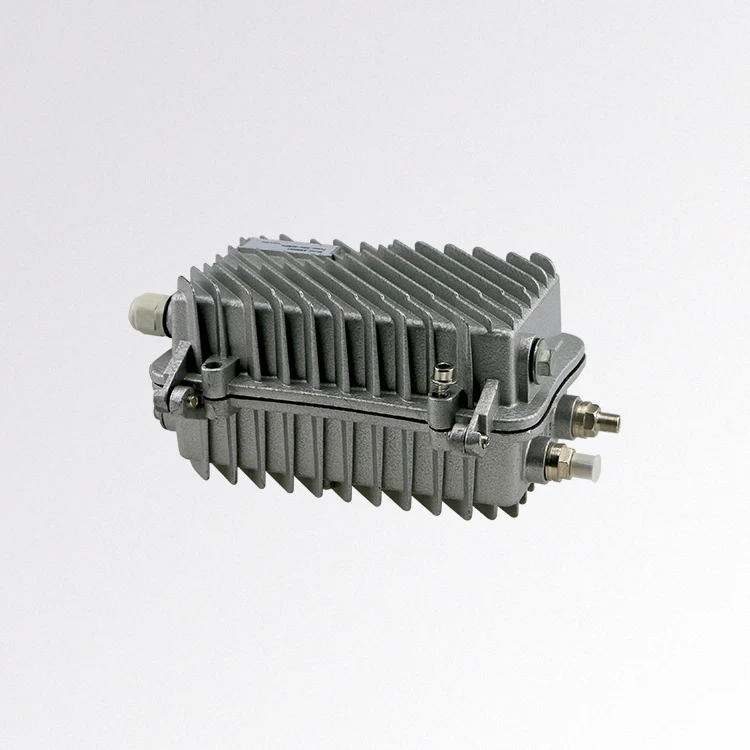

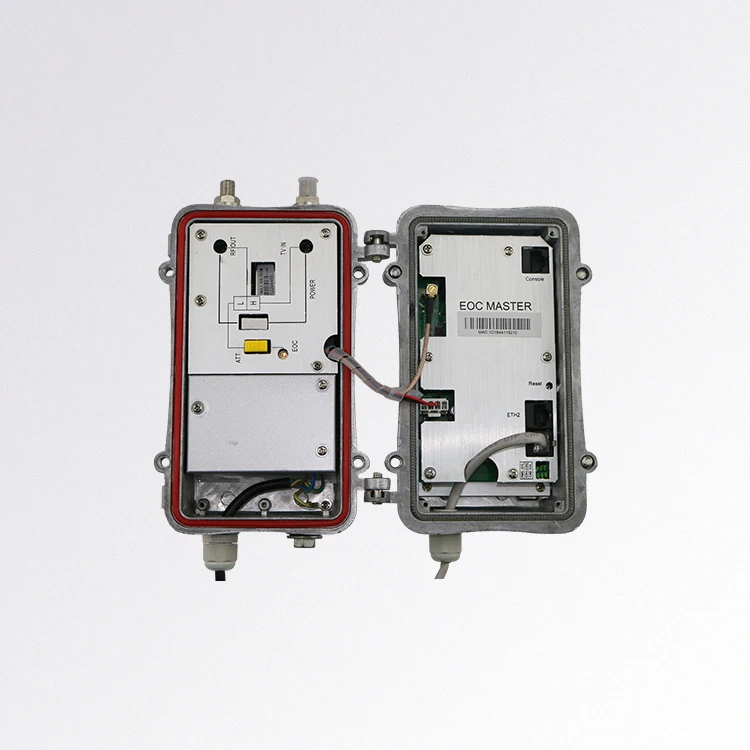

EOC master ANM8001(AR7410) для

Описание и отзывы

Трекер стоимости

Характеристики

• Correspond with IEEE HomePlug AV,IEEE 802.3 10/100/1000 Ethernet, IEEE 802.3ah standard;


• Occupy the low frequency band under 7.5-65Mhz.Strong ability of ant-interference ,high bandwith


• Built in CATV RF and EOC signal mixer


• In the model of multi-module, every EoC module connect each other with Giga switch network to ensure high bandwith needs.


• Network Management Function:


• After Logging in ANM8000 Indoor Master series, the user can remotely its under-connected coaxial cable EoC terminal


• Support management with SNMP/CLT/WEB/TELNET/SSH


• Support remotely upgrading and local management with serial port


• Support SNMPv3 protocol,SSH2 protocol


• Support comprehensive network management developed by Richerlink


• Support IEEE 802.1Q Tag-Based VLAN


• Support QoS function


• Support mutual-isolation the terminals with the same EoC master


• Support terminals download/uplink speed limitation


• Support IGMP


• Support white list function


• Support broadcast packets/unknown packets suppression


• Support terminals MAC address quantity limitation


• Support VLAN division and management


• Support port mirro function


• Support overlength frame and abnormal frame detection


• Support remotely upgrading function and log record function


• Built in high quality power module, steady and reliability


• Adopts 1U iron box of 11 inches. Easy to install. Can be placed on a workbench or wall-hanged.Hangers can also be deployed to enable the


• installation of 19 inches standard rack.



More details of products:











Products Solutions:











































ITEm	ANM8001H		ANM8002H
EoC Module and RF interface	One Qualcomm 7410 EoC mater module, 1 RF input and 1 RF output		One Qualcomm 7410 EoC mater module,2 RF input and 2 RF output
Power	15W		15W
Homeplug RF	Occupied Bandwith:7.5~67.5MHz;Output Power:≥110dBuV
CATV RF	Occupied Bandwith:87-1000MHz;Input Return Loss:>16dB;Insert Loss:≤1dB
Connection Type	F breakthrough Connector(inch/metric optional)
RF Impedance	75Ω
Standards Compliance	IEEE HomePlug AV,IEEE802.3,IEEE802.3x,IEEE802.3uAutoMDI(X)
Remote Management	Support remote WER management, TELENT, SNMP; Support centralized management on all connected EoC terminals
Protocol	TDMA/CSMA
Transmission Speed	350Mbps	320Mbps
Coding Mode	Asynchronous
Modulation Mode	OFDM
Transmission Distance	Not more than 1000 meter
Encryption Mode	128-bitAES
Power	220VAC
Size(LxWxH)	280×176×44mm
Weight	<3kg
Operation Temperature	-25~55°C
Storage Temperature	-40~70°C
Operation Humidity	10%~90% non-condensing
Storage Humidity	10%~95% non-condensing

























1,Welcome to NMS1000 system,from this page,the user can see main features of Richerlink



Products.





















2,From the CNU List page,the user can see all slaves under this master module.





























3,below is the registered page for slave. the user can enter this page from CNUlist page



directly by selecting the MAC addr. of course.





















4,below is the networts setting page.the user can config PPPoE/DHCP/Static IP mode easily.





















5,this page is for VOIP application page. for upper configuration.the user also can use the



slave temple for rapid mass register.





















6,From the below page,the user can judge the line quality from EoC siganl statistics.
