Характеристики

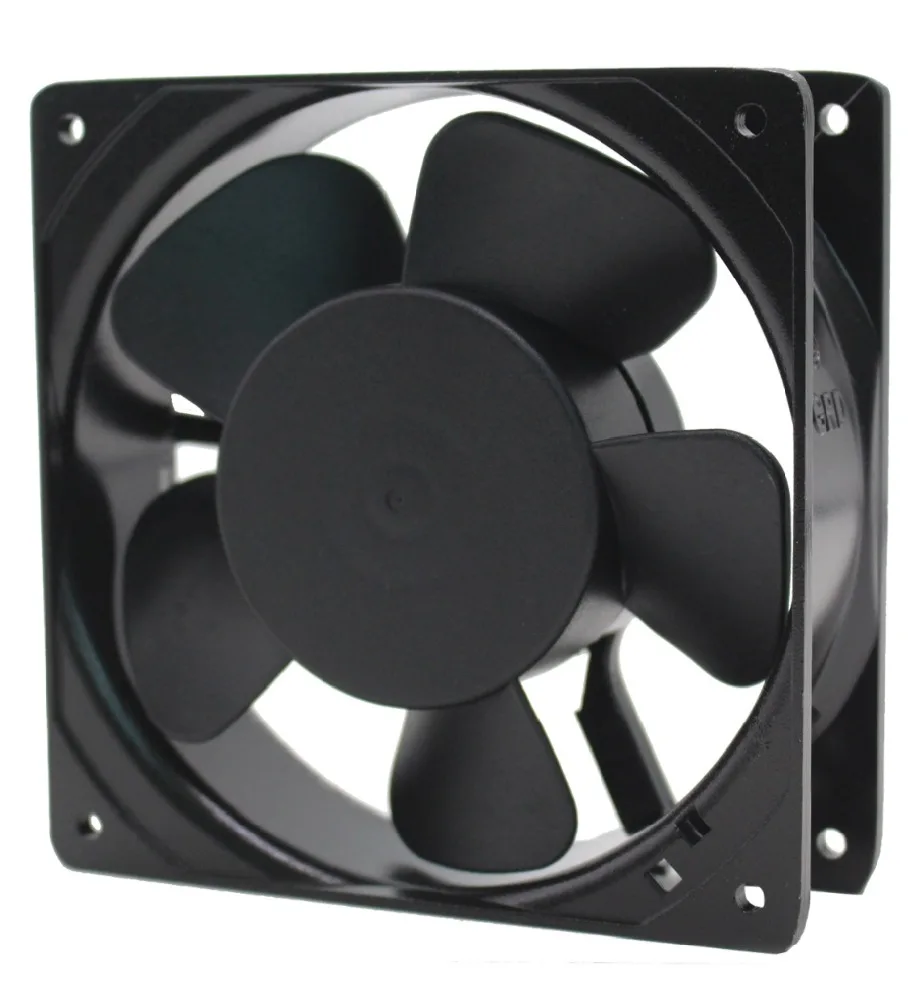

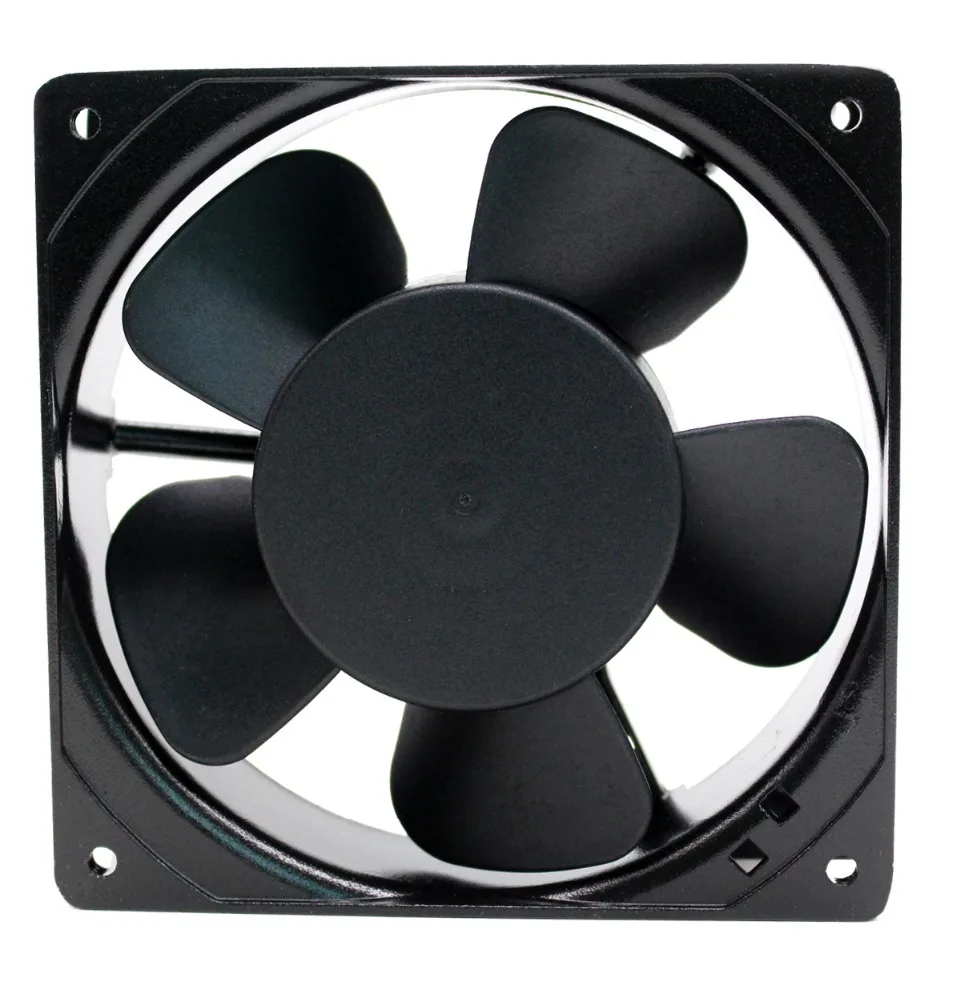

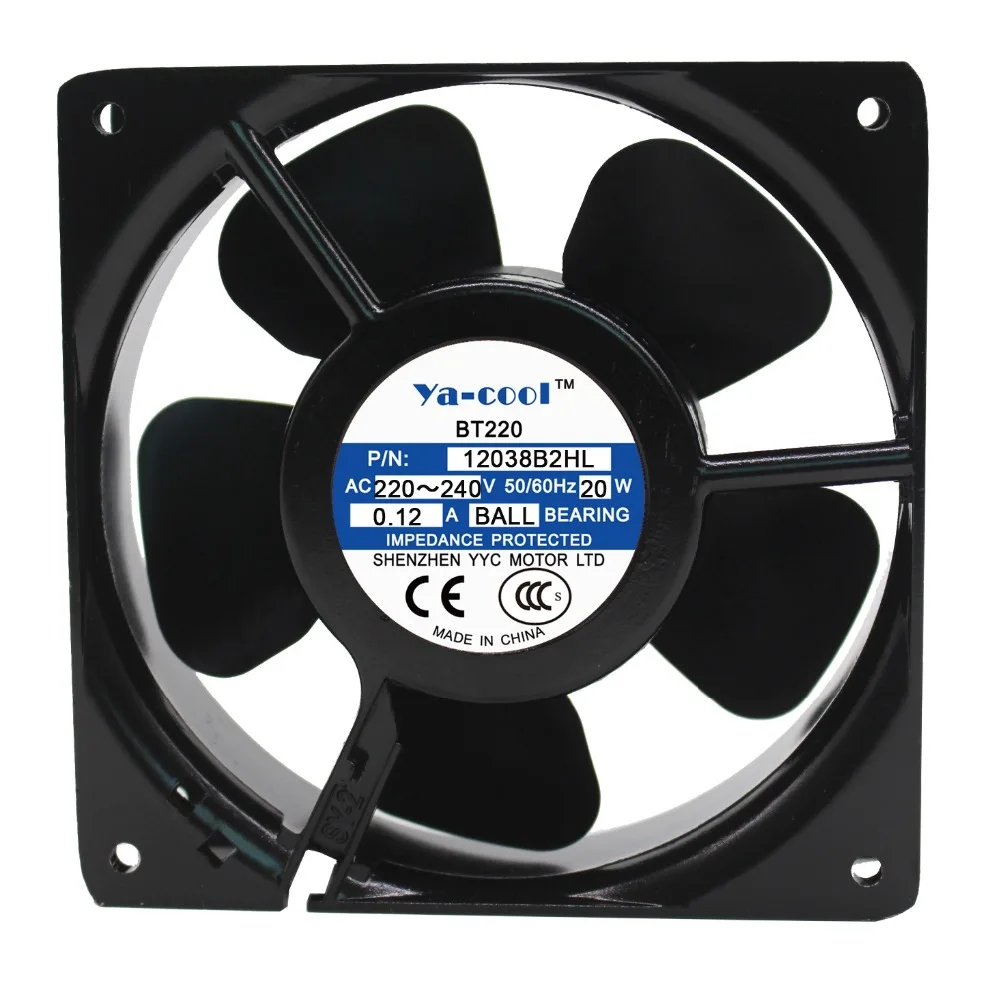

120mm ac axial fan 230v 115v
Model:12038
size:120*120*38mm
Material:
impeller: thermoplastic PBT of UL 94V-0
bobbin: thermoplastic PA66 of UL 94V-0
housing: die-cast aluminum,Painted black,anti-corrosion
Specification:
lead wire or teminal
Impedance protected
operation temperature:-30°C to +75°C(ball bearing), -10°C to +70°C(sleeve bearing)
life expectance:50000hours(ball bearing),20000hours(sleeve bearing)
Shenzhen YYC Motor Ltd. specializes in manufacturing AC axial cooling fans. Our products are applied to solve the heating & ventilating problems of equipment, machines, power supplies, and others. All of our products are reliable and can work in harsh circumstance efficiently. They are featured of high airflow, low noise and endure life.
YYC advantages:
YYC established in 2001,we have a good supply of ac axial fans(regular model:80~220mm)in 13 years.
We have own injection factory to process bobbines & impellers,which are the important spare parts of fans.By doing these we can control the quality and cost very well.
Full certifications of UL/CUL/CE/TUV/ROHS /ISOfor exporting
1 year warranty,good aftersales.even if your customers have complaint you may feedback to us,we will help to resolve
| MODEL | BEARING | RATING | FREQUENCY | RATING | POWER | SPEED | AIR FLOW | STATIC | NOISE | |
| VOLTAGE | CURRENT | CONSUMPTION | PRESSURE | |||||||
| VAC | Hz | A | W | RPM | m3/min | CFM | mm-H2O | dBA | ||
| 12038B1H | Ball | 115 | 50/60 | 0.22/0.18 | 21.0/18.0 | 2650/2950 | 2.58/3.20 | 91/113 | 7.35/8.62 | 40/45 |
| 12038S1H | Sleeve | |||||||||
| 12038B1M | Ball | 115 | 50/60 | 0.17/0.15 | 16.0/14.0 | 2400/2200 | 2.10/2.00 | 75/70 | 5.60/5.00 | 37/35 |
| 12038S1M | Sleeve | |||||||||
| 12038B1L | Ball | 115 | 50/60 | 0.14/0.12 | 12.0/10.5 | 2000/1800 | 1.87/1.70 | 66/60 | 4.80/4.50 | 30/29 |
| 12038S1L | Sleeve | |||||||||
| 12038B2X | Ball | 220/240 | 50/60 | 0.14/0.12 | 22.0/21.0 | 2700/3100 | 2.68/3.25 | 95/115 | 8.38/9.65 | 42/47 |
| 12038S2X | Sleeve | |||||||||
| 12038B2H | Ball | 220/240 | 50/60 | 0.12/0.11 | 20.0/19.0 | 2650/2950 | 2.58/3.20 | 91/113 | 7.35/8.62 | 40/45 |
| 12038S2H | Sleeve | |||||||||
| 12038B2M | Ball | 220/240 | 50/60 | 0.09/0.08 | 16.0/14.0 | 2400/2200 | 2.10/2.00 | 75/70 | 5.60/5.00 | 37/35 |
| 12038S2M | Sleeve | |||||||||
| 12038B2L | Ball | 220/240 | 50/60 | 0.08/0.08 | 12.0/10.5 | 2000/1800 | 1.87/1.70 | 66/60 | 4.80/4.50 | 30/29 |
| 12038S2L | Sleeve | |||||||||
| 12038B3H | Ball | 380 | 50 | 0.07 | 18.0 | 2600 | 2.58 | 91 | 6.35 | 40 |
| 12038S3H | Sleeve | |||||||||
| 12038B3M | Ball | 380 | 50 | 0.06 | 16.0 | 2400 | 2.10 | 75 | 5.60 | 37 |
| 12038S3M | Sleeve | |||||||||
| 12038B3L | Ball | 380 | 50 | 0.05 | 12.0 | 2000 | 1.87 | 66 | 4.80 | 30 |
| 12038S3L | Sleeve | |||||||||
