Машина для формирования шестерни

 The conventional Y5132 gear shaping machine will be NOT manufactured in recent 6 months, only providing Spare Parts at present.

But you can choose its CNC type YK5132B(Ø320mm) Economic 1-axis CNC Gear Shaping Machine.

YXN3132CNC(Ø320mm) 5-axis CNC Gear Hobbing Machine

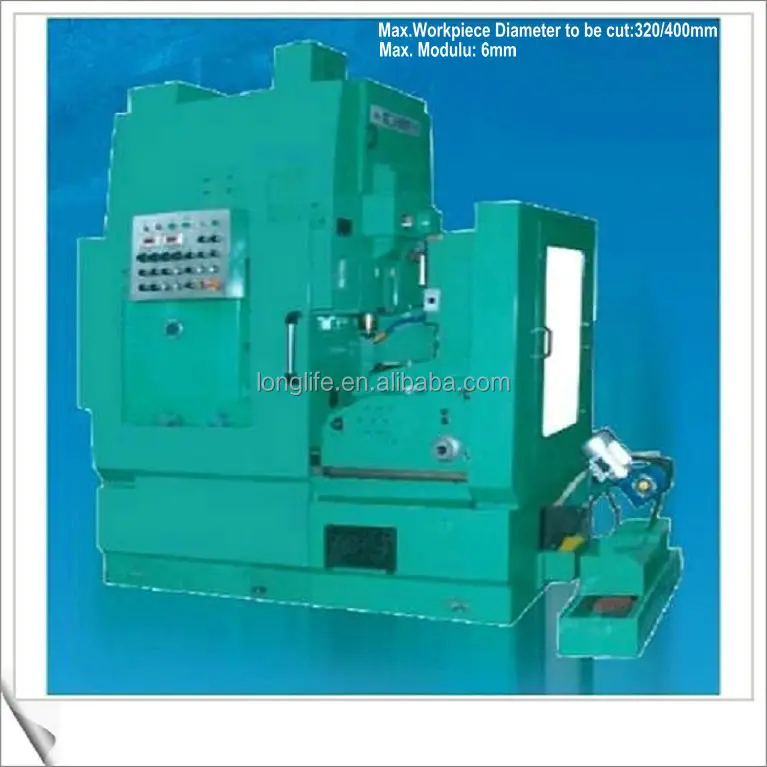

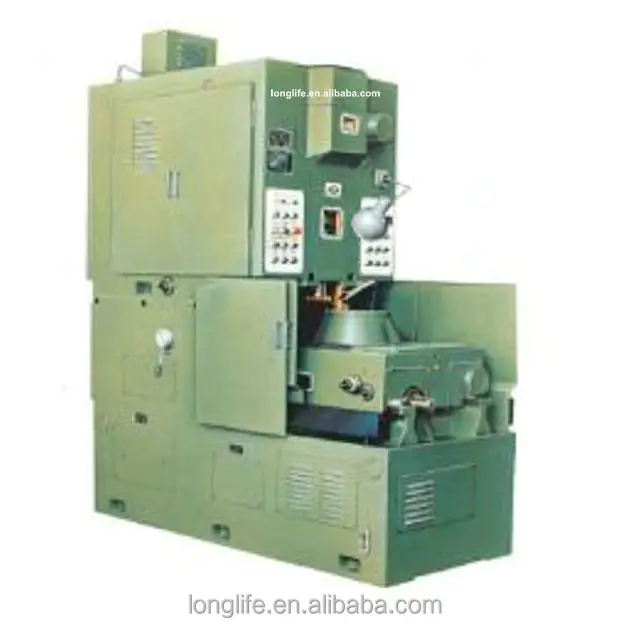

The Model Y5132A is a semi-automatic Gear Shaping Machine featured with longitudinal arrangement. The cutter head can be swung to effect outward or inward tool relieving motion, the worktable can be moved for plunge feed, and the counter column can be shifted laterally for the convenience of oblique tool withdrawal. The machine operation. There are two kinds of work cycles available, i. e. the machine operates in a pre selected work cycle excluding the loading/unloading of worpieces or in an alternative work cycle excluding the hand-opeerated clamping/release of workpieces and power rapid approach/withdrawal of worktable.

The machine is featured in smooth running, low noise, versatile functions, nice adaptability, easy set-up and simple operation, thus being well-suited for mass batch production of rears adopted on automobiles and tractors. The machine can also be used for small batch and job-lot gear production.

The machine is designed for generating spur gears, cluster gears, internal gears and segment gears with a max. dia. Of 320mm, a max. module of 6mmand a max. face width of 70mm. The machine can be equipped, on request, with optional attachments for cutting racks, pinion shafts, helical gears and crowned teeth gears, etc.
