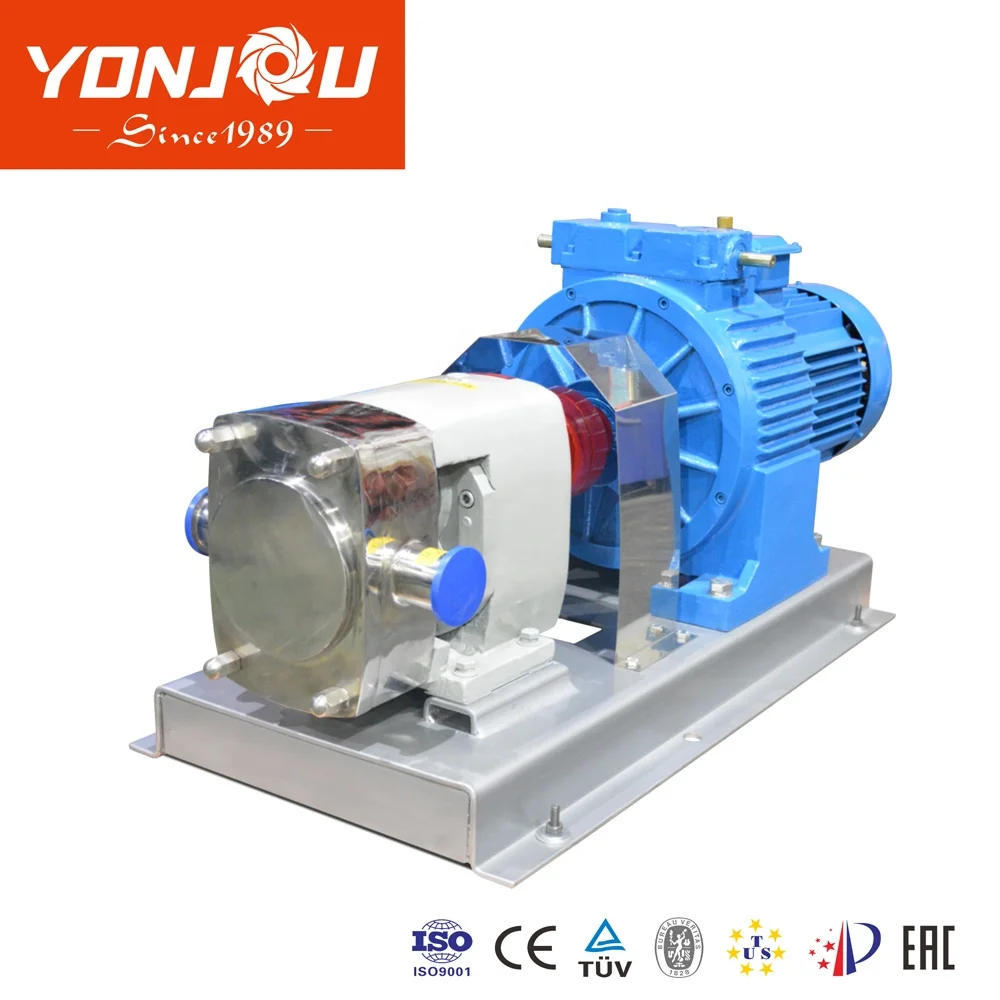

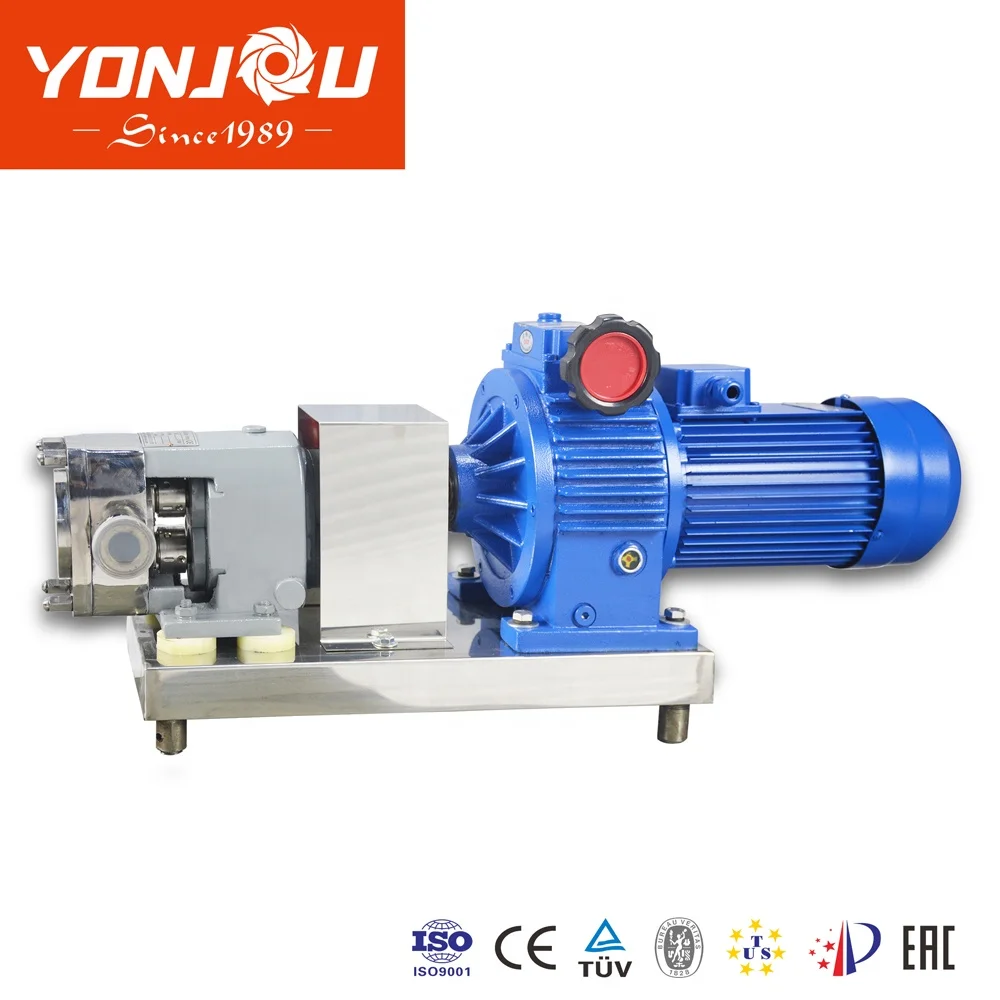

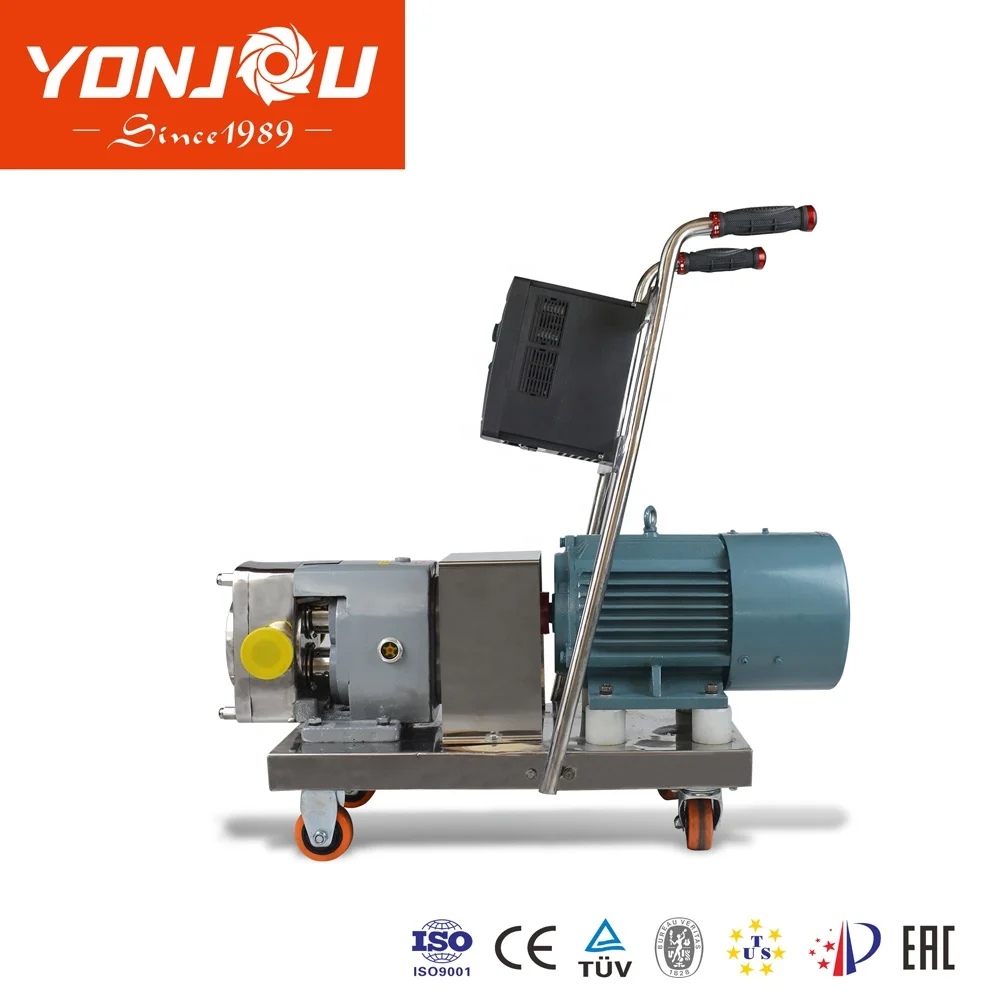

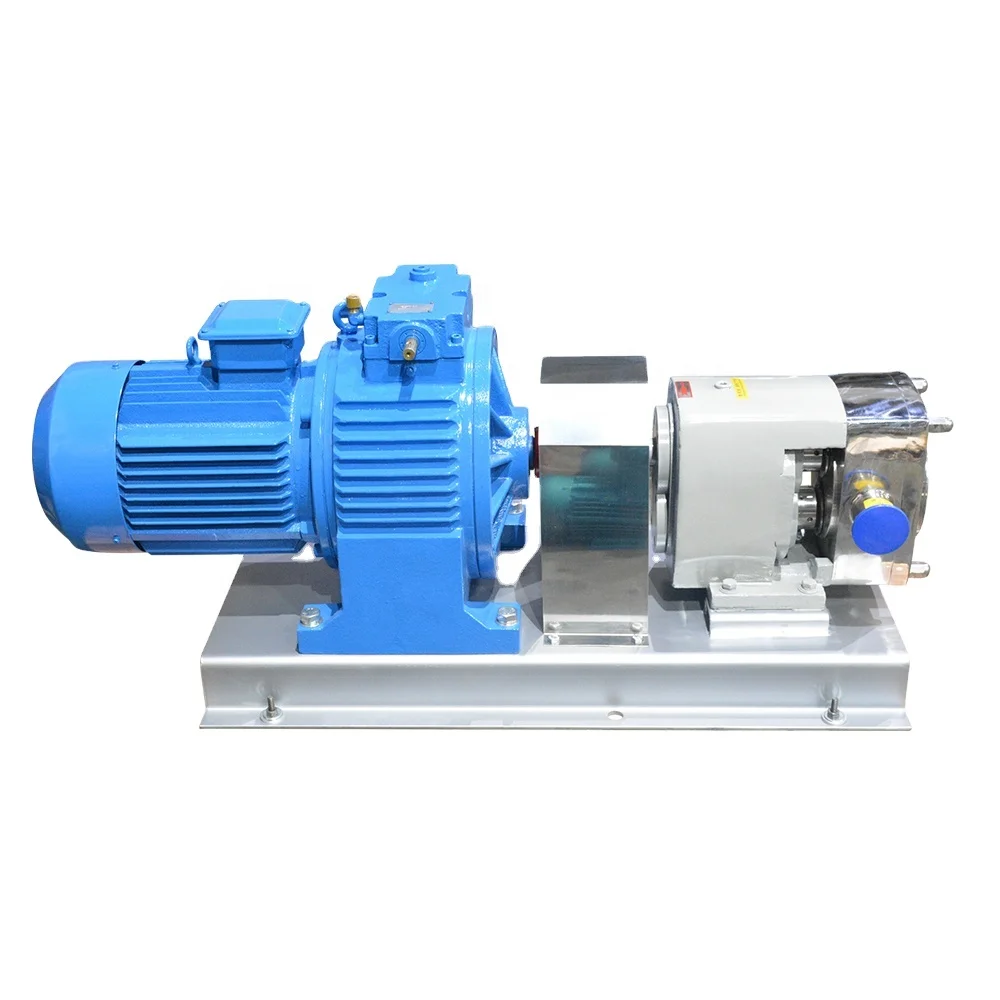

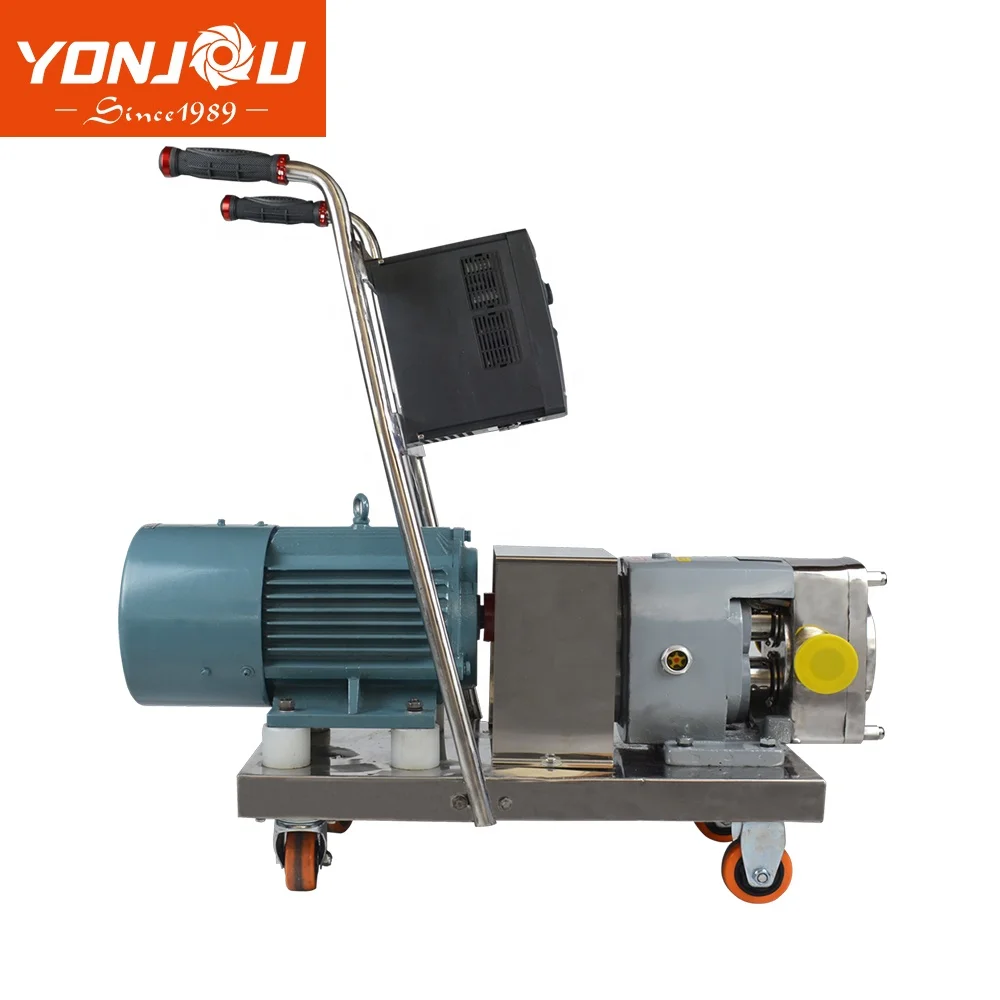

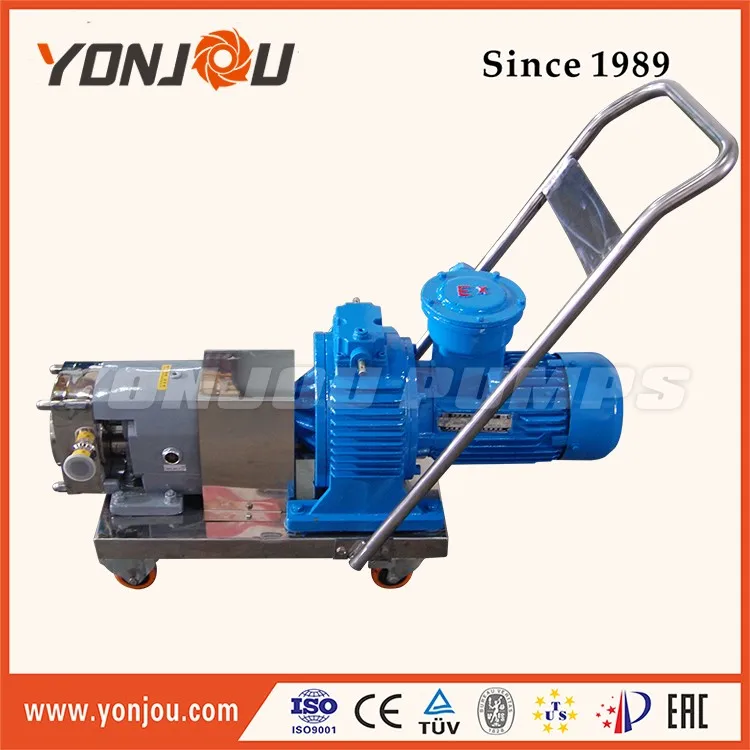

LQ3A вращающийся ротор лопастный насос для еды шоколада Крем Мед

Описание и отзывы

Трекер стоимости

Характеристики

Summarize:

1. LQ3A Chocolate Cream Rotor Lobe Pump   food grade sanitary stainless steel pump   pulp and paper, chemical, food, beverage,pharmaceutical, and biotechnology.


2. They are popular in these diverse industries because they offer superb sanitary qualities, high efficiency, reliability, corrosion resistance, and good clean-in-place and sterilize-in-place (CIP/SIP) characteristics.


3. These pumps offer a variety of lobe options including butterfly lobe, double lobe, triple lobe.


4. Rotary lobe pumps are non-contacting and have large pumping chambers, allowing them to handle solids such as cherries or olives without damage.  They are also used to handle slurries, pastes, and a wide variety of other liquids.





Product details:

Working Principle:	Double rotors
Main Applications:	Food applications, Polymers, Paper coatings, Soaps and surfactants, Paints and dyes Rubber and adhesives, Pharmaceuticals
Driver:	Variable Speed Motor, Geared Motor, Variable Frequency Motor
Power Specs:	220V, 240V, 380V, 400V, 415V, 440V, 460V,  50hz/60hz
Max.permissible fluid temperature:	150°C (302°F) / 250°C (482°F)-water cool type
Type of connection:	Quick couple, Thread, Flange
Installation position:	Horizontal
Casing/Inner parts material:	Stainless Steel
Shaft seal type:	Mechanical seal
Maximum viscosity:	1x106 C.S.T
Maximum drive rating:	22kW(30HP)
Maximum caliber:	125mm(5inch)
Maximum discharge-side pressure:	5bar
Suction pressure:	0.08Mpa(0.8bar)









Performance data:

Type	Size  (mm)	Discharge  Capacity  per 100r (L)	Speed Range  (rpm)	Flow  (L/H)	Motor Power  (kW)
LQ3A-6	25	6	200-500	650-1600	0.75
LQ3A-8	32	8	200-500	850-2160	1.5
LQ3A-12	38	12	200-500	1300-3200	2.2
LQ3A-20	38	20	200-500	2100-5400	3
LQ3A-30	42	30	200-400	3200-6400	4
LQ3A-36	42	36	200-400	3800-7600	5.5
LQ3A-52	50	52	200-400	5600-11000	5.5
LQ3A-66	62	66	200-400	7100-14000	7.5
LQ3A-78	75	78	200-400	9000-18000	7.5
LQ3A-100	75	100	200-400	11000-22000	11
LQ3A-135	100	135	200-400	15000-30000	15
LQ3A-160	100	160	200-400	17000-34000	18.5
LQ3A-200	125	200	200-400	21600-43000	22
