Солнечный водонагреватель без давления питания новый нагреватель
- Категория: Solar Collector >>>
- Поставщик: Zhejiang,Yuanneng,New,Energy,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.57 $* | 0.38 $* |
| Aug-16-2025 | 0.85 $* | 0.88 $* |
| Jul-16-2025 | 0.87 $* | 0.24 $* |
| Jun-16-2025 | 0.15 $* | 0.11 $* |
| May-16-2025 | 0.20 $* | 0.88 $* |
| Apr-16-2025 | 0.9 $* | 0.28 $* |
| Mar-16-2025 | 0.21 $* | 0.63 $* |
| Feb-16-2025 | 0.98 $* | 0.73 $* |
| Jan-16-2025 | 0.30 $* | 0.51 $* |
Характеристики
*Working Principle:
This solar collector applies the dual borosilicate glass vacuum tube as the heat absorber, It has a high heat efficiency, low price. It is suitable for regions with good sunshine conditions and winter temperature above -20 oC.

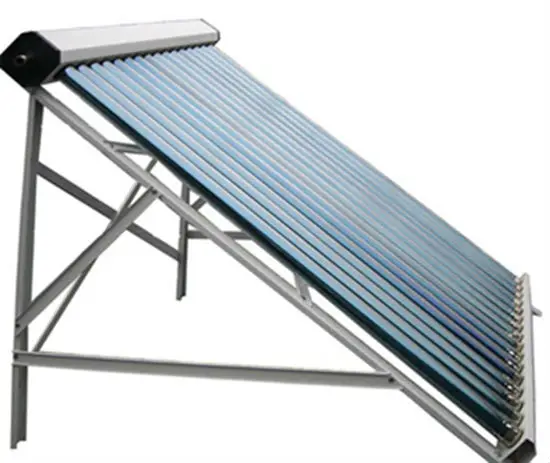

All-glass Vacuum Tube Solar Collector KD-SC-AG
*Material:
A) Vacuum tube: borosilicate glass
B) Manifold: red copper
C) Joint box: aluminum alloy/stainless steel
D) Bracket: aluminum alloy / galvanized steel
* Insulation:
A) Material: rock wool or foam polyurethane
B) Thickness: 55mm (Max. preserving time: 72 hours)
*Working pressure: 0.6 MPa
*Testing pressure: 1.2MPa
*Hail resistance: Ø 25mm
* Certificate: ISO9001: 2000 / CE
* 3 years international quality guarantee
* Packaging: vacuum tube / carton, manifold / carton, joint box / carton, bracket / carton
Technical Data of All-glass Vacuum Tube Solar Collector
Model | Area( M2 ) | All Glass Vacuum tube | Volume(L) | Gross weight(kg) | 20GP/40GP/40HC | ||
Ø(mm) | Length(mm) | Qty(pcs) | |||||
YN-SC-AG 4720 | 2.60 | 47 | 1500 | 20 | 120 | 65 | 81/142/166 |
YN-SC-AG 4730 | 3.75 | 47 | 1500 | 30 | 180 | 88 | 75/120/136 |
YN-SC-AG 5825 | 4.75 | 58 | 1800 | 25 | 250 | 81 | 75/122/142 |
YN-SC-AG 5850 | 9.70 | 58 | 1800 | 50 | 500 | 160 | 65/126/130 |
