          Small size glass tempering furnace



The small size furnace can be used for glass door, household applicants, furniture. It is small and has less power requirement.



Applications



Household applicance                                           Architechures & furnitures







 Techncial data

Model	Max.glass size  (mm)		Min.glass size  (mm)		Glass thickness (mm)	Production (m2/hour)	Average power consumption (kw)
YD-F-1225	1200	2500	100	150	4-19	45	≥180
YD-F-1525	1500	2500	100	300	4-15	47.8	≥270
YD-F-1540	1500	4000	100	300	4-19	72	≥400
YD-F-2036	2000	3660	100	300	4-19	86	≥500
YD-F-2436	2440	3660	100	300	4-19	103	≥550
YD-F-2442	2440	4200	100	300	4-19	115	≥600
YD-F-2450	2440	5000	100	300	5-19	145	≥750
YD-F-2460	2440	6000	100	300	5-19	173	≥900
YD-F-3180	3100	8000	100	350	5-19	297	≥1100

Machine size can be designed as requirement!

The power consumption of the machine will be less if the Min.glass thickness if from 6mm.



  Glass type

• Transparent float glass or flat glass
• Mass color float glass or flat glass

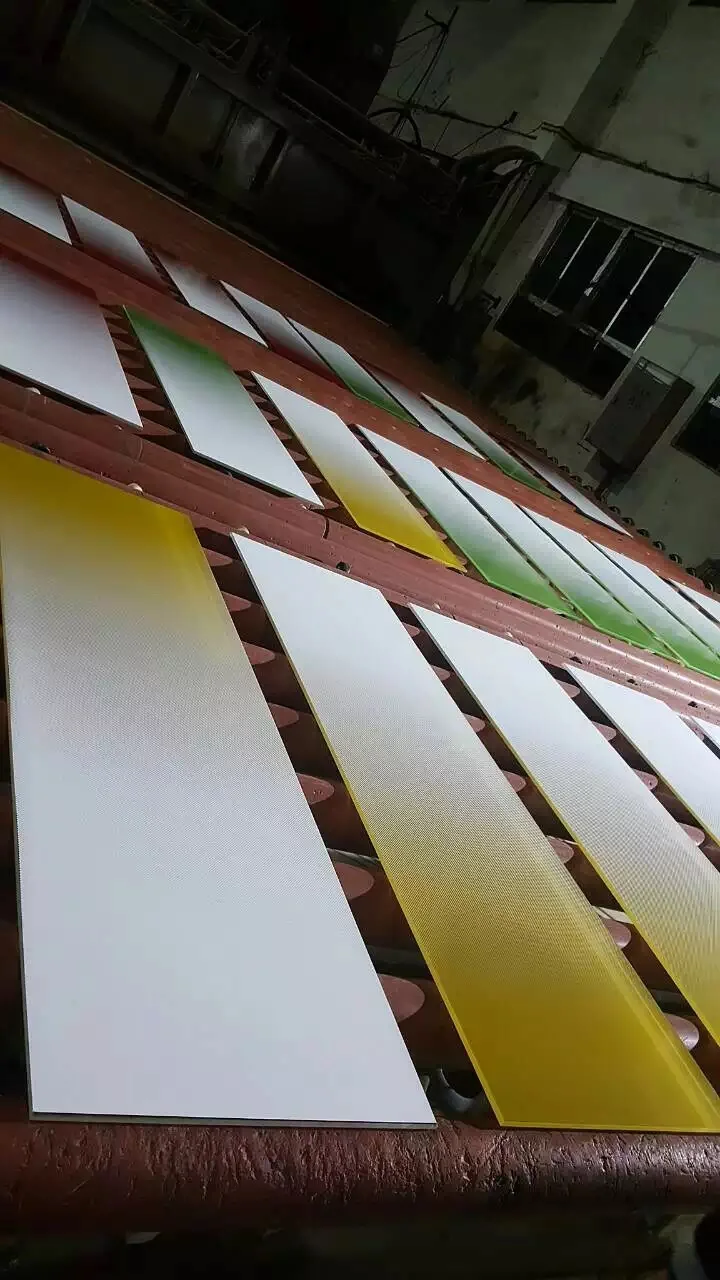

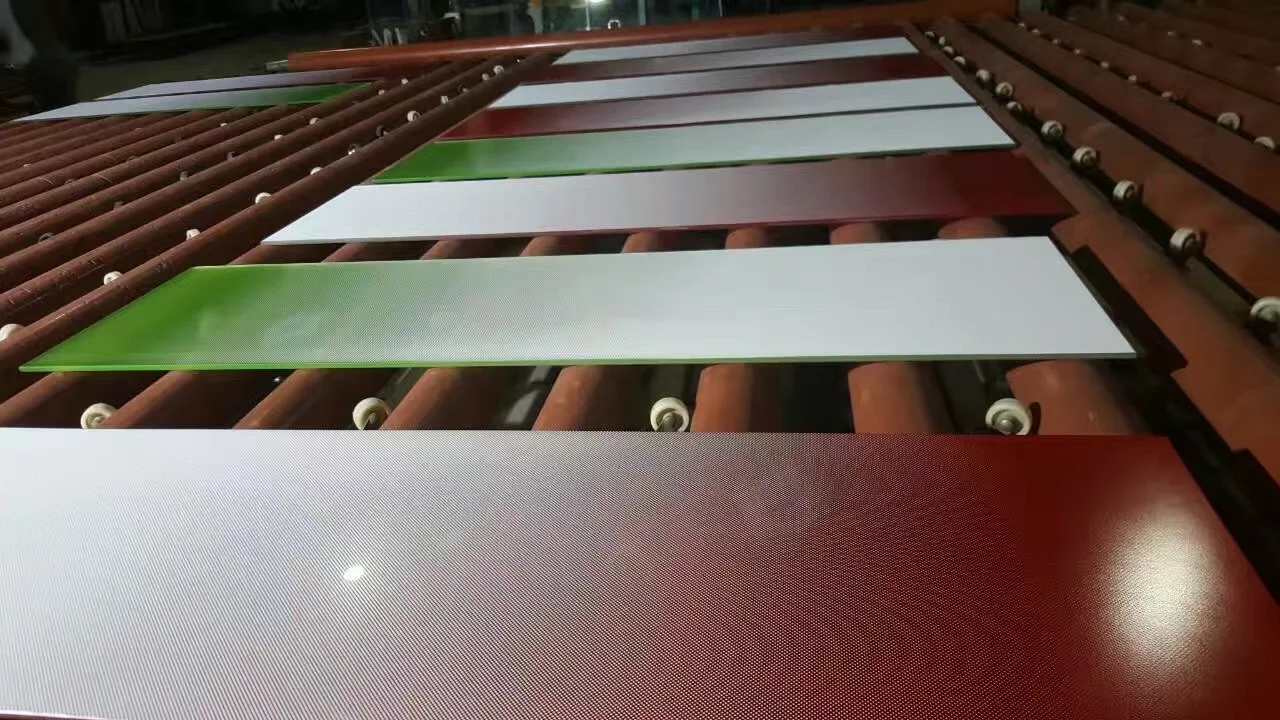

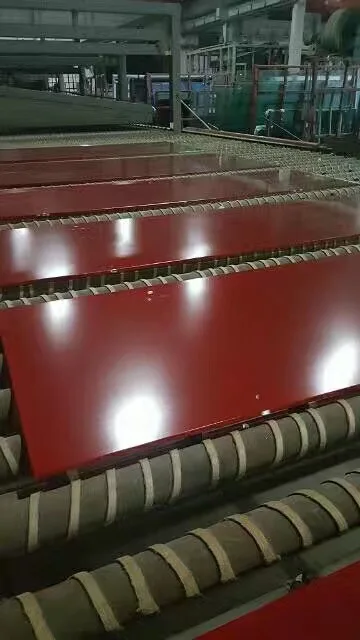

• Single side printed glass
• On line low-e glass
• Off line low-e glass (convection type machine)



  Quality Standard of tempeed glass

• The product meets to Chinese national quality standard<GB 15763.2-2005>

• Glass stress equilibrium, particle even
• Quality of all finished glass are the same
• Heat resistance: confront to international standard



  Machine advantages



1. Easy and human friend control system.



• The machine use Beckhoff control system with very intelligent and easy operation page. All parameter can be set on screen page;


• For each type of glass, the operator can save the relating parameter as a formular, save it into the computer. Can select and use it for next production.





2. Energy saving.

• The machine use advance arrangement of heating wires, reasonable distance from heating wire to glass, DIN heating control system to enable energy saving. Less than 4kw/m2 for 5mm thickness glass.


• It also can design passing section for 4mm or 5mm thickness glass to save energy when the machine process glass over 6mm.


• With converter for blowers.


• Use of high quality heating protect brakes to prevent heating escape.



3. High quality glass

• The tempered glass meet with Chinese high standard of tempered glass GB15763-2005 for tempering glass used for building.


• Breaking particles: in a position of 50*50mm, the breaking pieces shoud over 50pcs for 4-12mm glass and over 40pcs for glass over 15mm. (The actual breaking rate may higher than this)


• Surface stress of glass will not less than 90MPa.


• Can understand 200 degree teperature differences



4  High quality parts used on the whole machine

• The whole machine ues high quality steel, heating wires, ceramic rollers, electric parts, heating provent parts.





5. Full experience in new glass processing factory supply.

• At present, we have supplied glass process lines in many different places, with all or most of machines supplied by Liaoda Glass machinery.

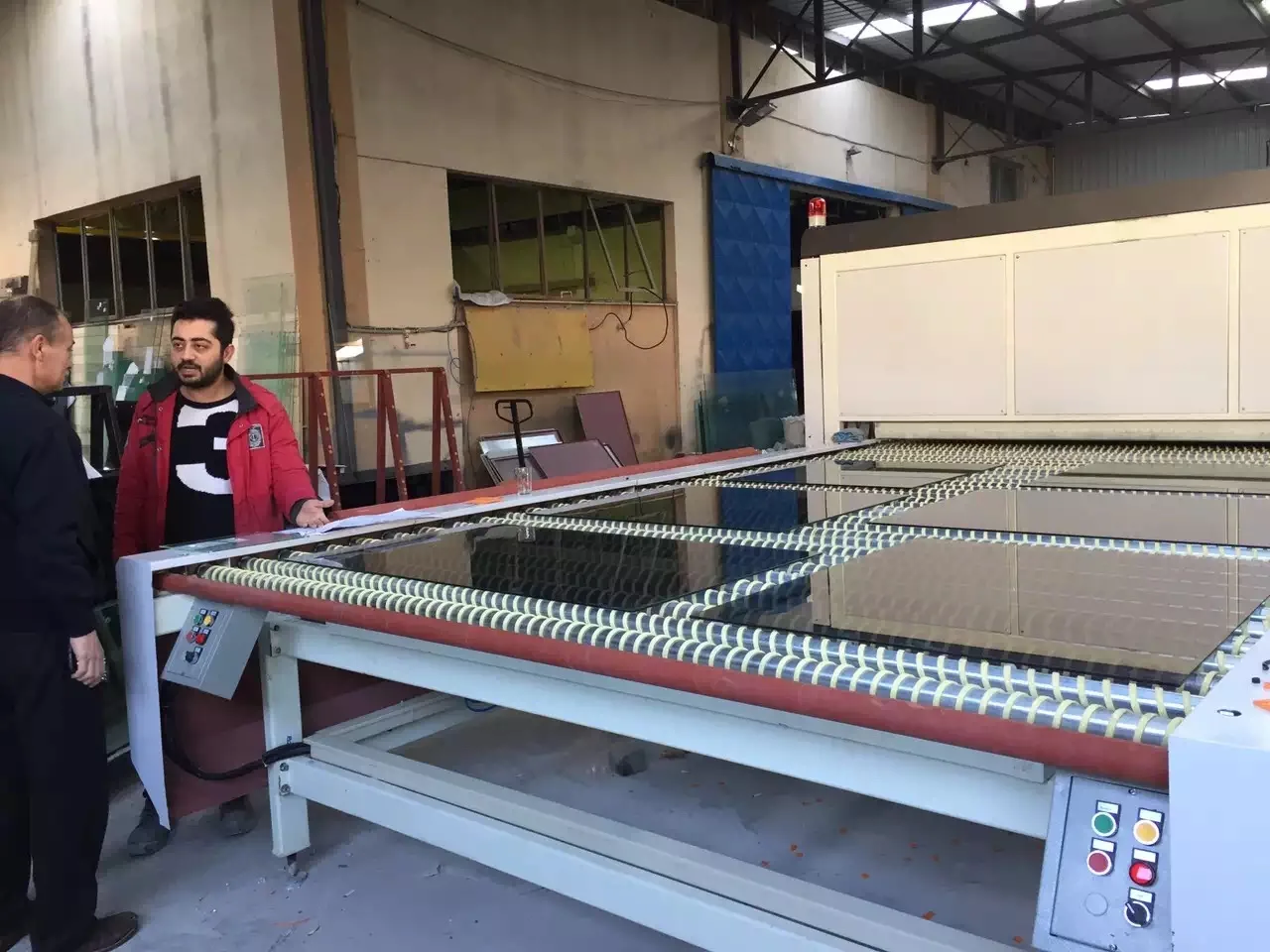

Enginers for machine set up

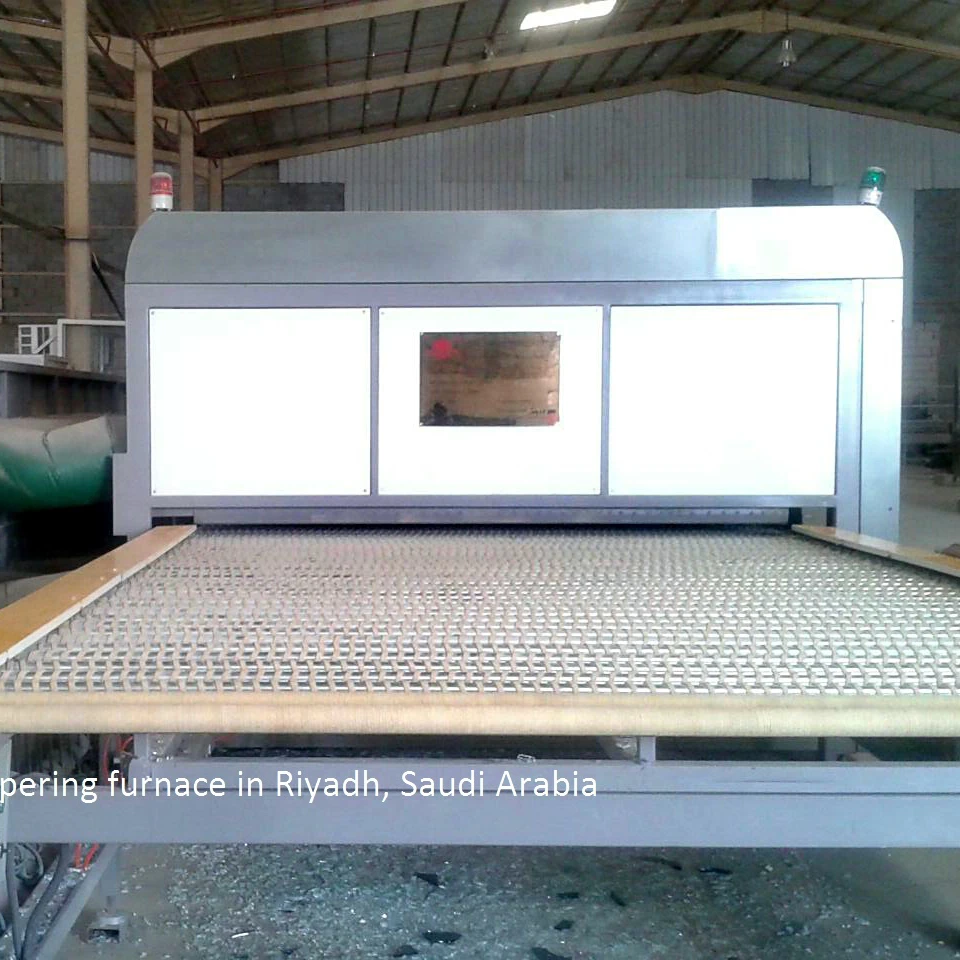

Succesful project recently:

Machine in Egypt 2021



Machine in USA



Machine in Guatamala

Machine in Uzbecstan



  Warranty & Services

The machine will have one year warranty.

Provide on spot service for machine set up, commissioning and training!



How to make an inquiry of glass processing plant?



We will need following information to make an offer and suggestions for your project:



1. Max. and Min. glass size of glass to be processed

2. Glass thickness range, especially the min. glass thickness

3. Glass type

4. Output requirement

5. Glass type
6. Power (Voltage and frequency)

7. Or tell your requirement we will recommand suitable machines to you!
