GHM Series Cross Flow Closed Water Cooling Towers

GHM Series is of capacities ranging from 25 to 300 tons/unit/hour, finished with alloy (Mg-Al-Zn) coated steel enclosure, stainless steel or copper heat exchange coils, and PVC fills. All raw materials are of virgin grade, with superior anti-corrosion features, and the longest service life in heavy duty environment. The enclosure can be also made in stainless steel 304 or 316L on customers’ request.

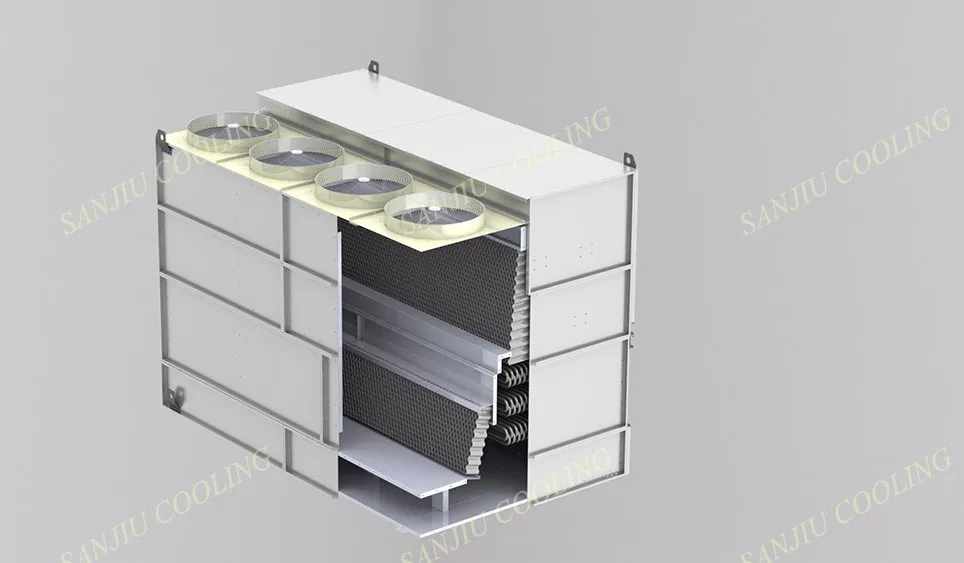

This series is of induced draft type. The cool air is inlet through a large surface of one side of the tower, then directed perpendicularly to the spray water flow through both the heat exchange coils and PVC stuff. Eventually the hot wet air is drawn upwards to the outside through the tower top removing the heat.
This cross-flow design is of high efficiency but lower initial and long term costs. Installation and maintenance is generally easy and economical. The towers dimensions can be customized to suit standard 20’ or 40’ containers to minimise delivery freight.





GHM-35/Industrial Closed Cooling Tower Price

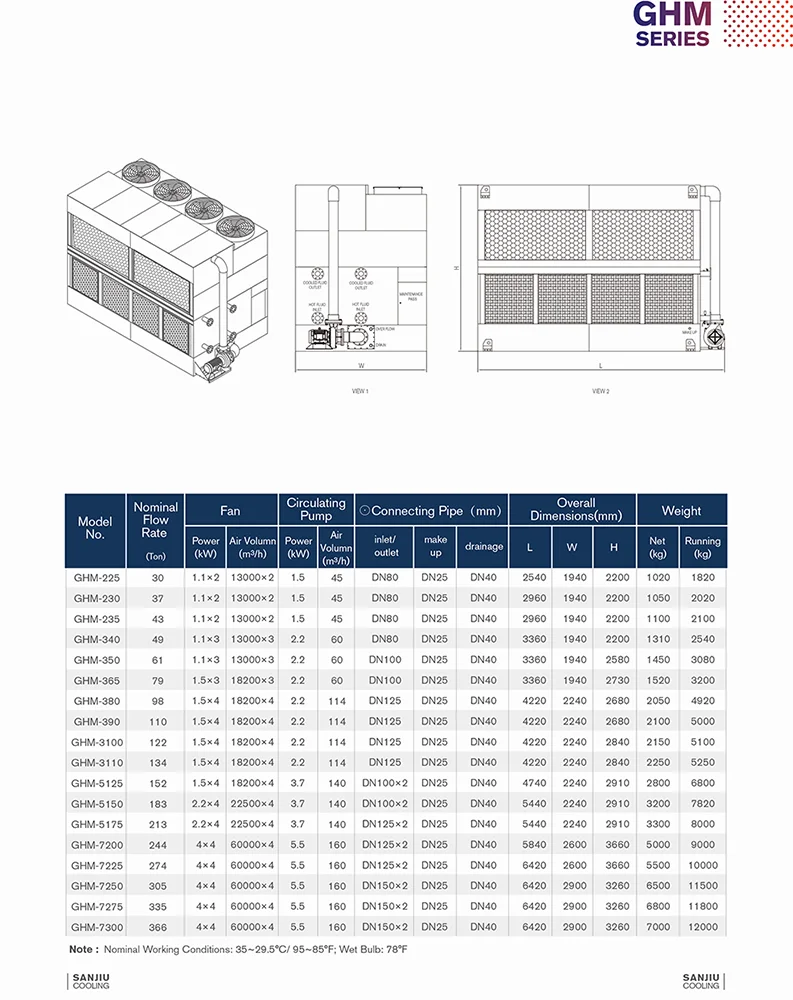

 Specification as below:





Note: All the data is under the condition of 28℃ wet temperature.

If any change of condition,the data will change.



Model no.	GHM-35(closed circuit)
Water flow rate	35m³/h, adjustable
Cooling capacity	From 65~55°C to 45~35°C
Water pressure	0.32Mpa
Pipe diameter	Input diameter(mm)	DN80
	Output diameter(mm)	DN80
Rated Power	Fan (kW)	1.1x2
	Spray pump(kW)	1.5
Material of shell/tower body	Superdyma(imported from Japan)
Material of water tank	Superdyma(imported from Japan)

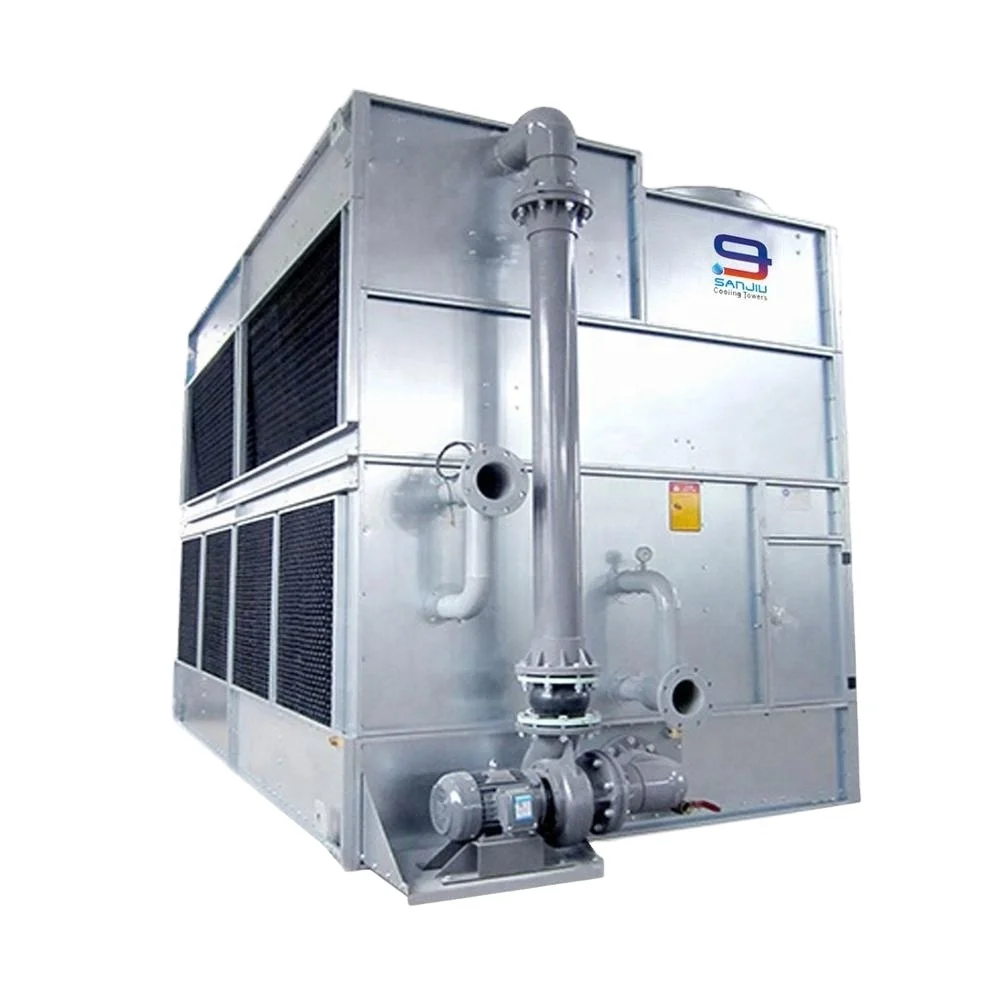

Closed water cooling tower shell is made in Mg-Al-Zn alloy coated steel, of "SuperDyma" series from company Nippon Steel, originally imported Japan. This special alloy coated steel is much better than galvanized steel in corrosion proof performance.



























-Quick response in 12 hours

-Professional and economical cooling solution for every client

-Considerate and complete after sales service







Below information are normally required to know for selection of a most proper tower model and solution:



Application:			(Explanations: Where the cooling towers will be used for? e.g. for HAVC system, Air Compressors, Melting Furnaces, etc.)
* Water Flow Rate:		m³/h	(Explanations: How many Tons of water required per hour?)
* Inlet Water Temp.:		°C	(Explanations: Temperature of hot water to be cooled)	(also descriped as "water temperature drop")
* Outlet Water Temp.:		°C	(Explanations: Temperature of cooled water, usually it shall be at least 3~4 °C higher than the wet-bulb temp.)
* Wet-bulb Temp.:		°C	(Explanations: Highest wet bulb temp. of the location/area or city to install the tower is essential to know to evaluate the size of towers)
* Power Supply:			(Explanations: 380V/3 Phases is standard, which we could have in stock, but for customized towers, the delivery time could be longer)



For easier discussions, 24 hours on line service available: Angela is online: skype: oasanjiu Mob./WhatsApp: 13559666650



Many thanks for your interests, and your inquires are always well attended!
