Профессиональная система усиления мощности CA32 1500

Описание и отзывы

Трекер стоимости

Характеристики

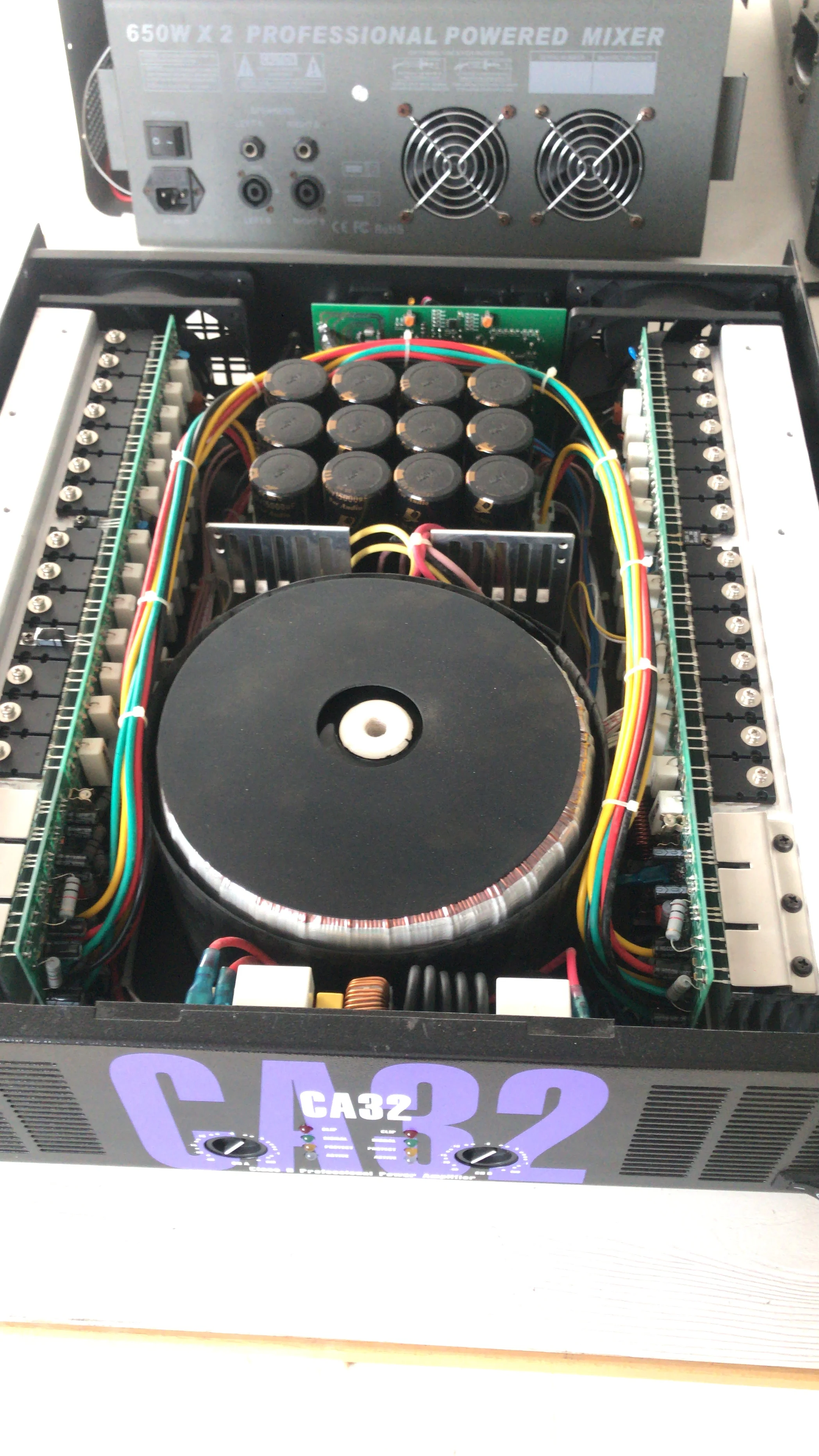

        the transformer of CA-32 power amplifiers







Features

• All series has standard operating mode and the input sensitivity selection


• With a full range of electronic circuit high-speed protection


• Using AI, SMT, wave soldering and ICT automation process


• Recommended in the high-end works of entertainment and media engineering reinforcement application

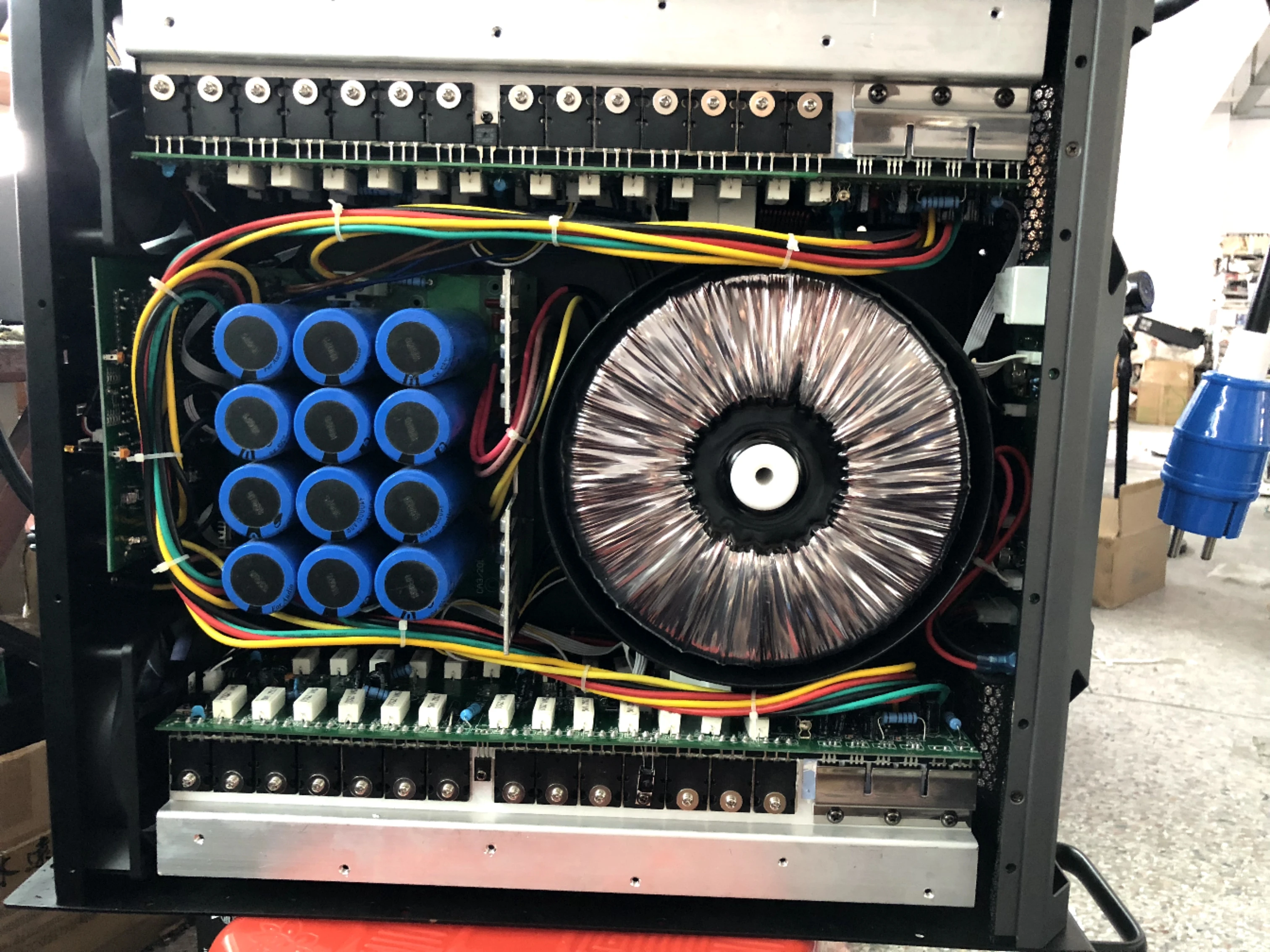

                     the total graph of CA-32



Specifications







MODEL	CA-6	CA-9	CA-12	CA-18	CA-20	CA-32
8 Ω Stereo Power	2 × 400W	2 × 520W	2 × 800W	2 × 1100W	2 × 1300W	2 × 1500W
4 Ω Stereo Power	2 × 600W	2 × 780W	2 × 1200W	2 × 1800W	2 × 1950W
2 Ω Stereo Power	2 × 800W	2 × 1040W	2 × 1600W	2 × 2200W	2 × 2600W
8 BTL	1200W	1560W	2400W	3600W	3900W
Frequency Response	20-20000Hz(±0.3dB)
THD+N	<0.03%@8 Ω 1KHz
S/N Ratio	>95dB	>95dB	>93dB	>93dB	>93dB 44V/ μ S  >300
Slew Ratio	30V/ μ S	30V/ μ S	40V/ μ S	44V/ μ S
Damping Factor	>400	>400	>300	>300
Crosstalk	>70dB@8 Ω 1KHz
Input Impedance	20K Ω (balance)/(10K)(unbalance)
Input Sensitivity	0.775V/1.0V/1.4V
Prodect	Overheat short circuits,DC,limit and --softstart,Output reply-Zero Current Switch,Intellctal Clip limiter.
Height	2U	3U
Gross Weight	26Kg	27.5Kg	38Kg	40.5Kg	42Kg
Packing Dimensions	2U:483 × 89 × 440mm		3U:483 × 132 × 487mm









                                          the side of CA-32
