Характеристики
Fully-automatic Air-conditioner Fin Press Machine
PRODUCTS DESCRIPTION
Fully-automatic Air-conditioner Fin Press Machine

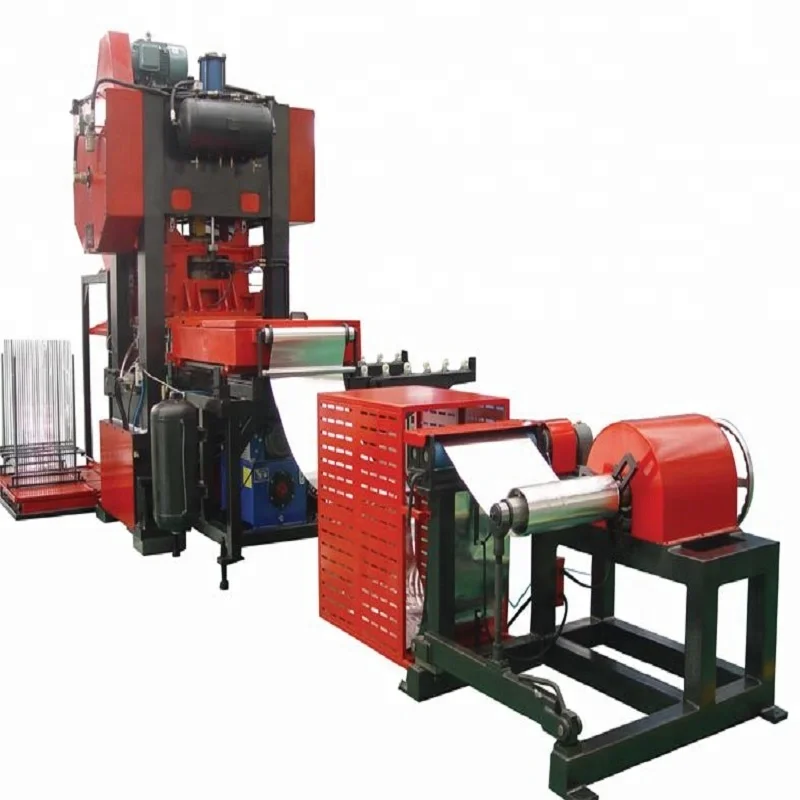

The fin press machine is an automatic fin production line based on the latest Taiwan technology.
The fin press machine consists of aluminum foil decoiling mechanism (photo-electric automatic decoiling), aluminum foil protection device, aluminum foil oiling device,
single and double jump latest lownoise high speed precision press machine, high speed

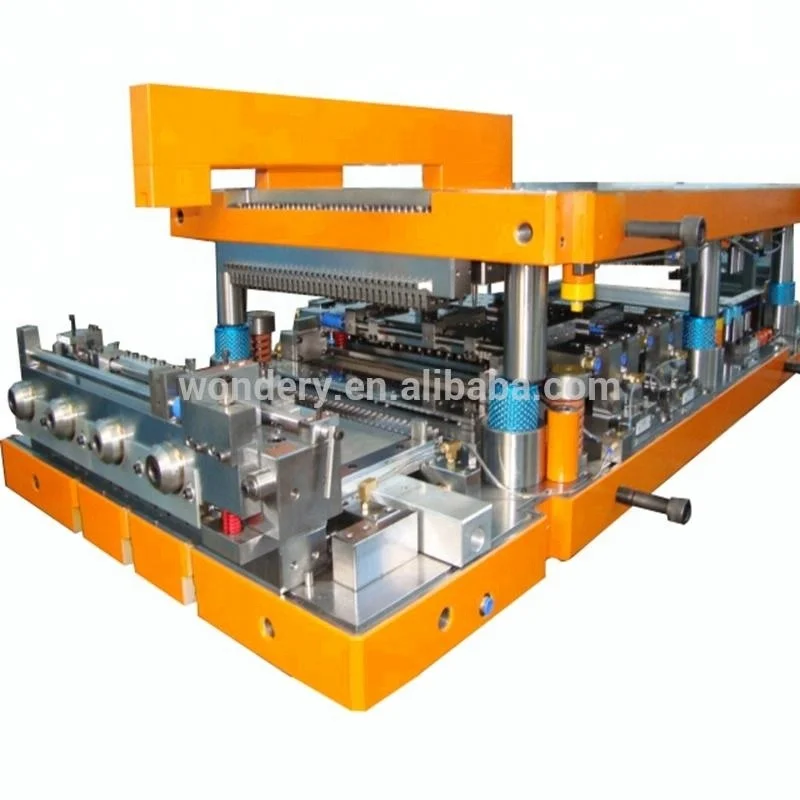

precision fin mold, latest guide bar type fin stacking device, waste material collection device,
and electrical control system with HMI.

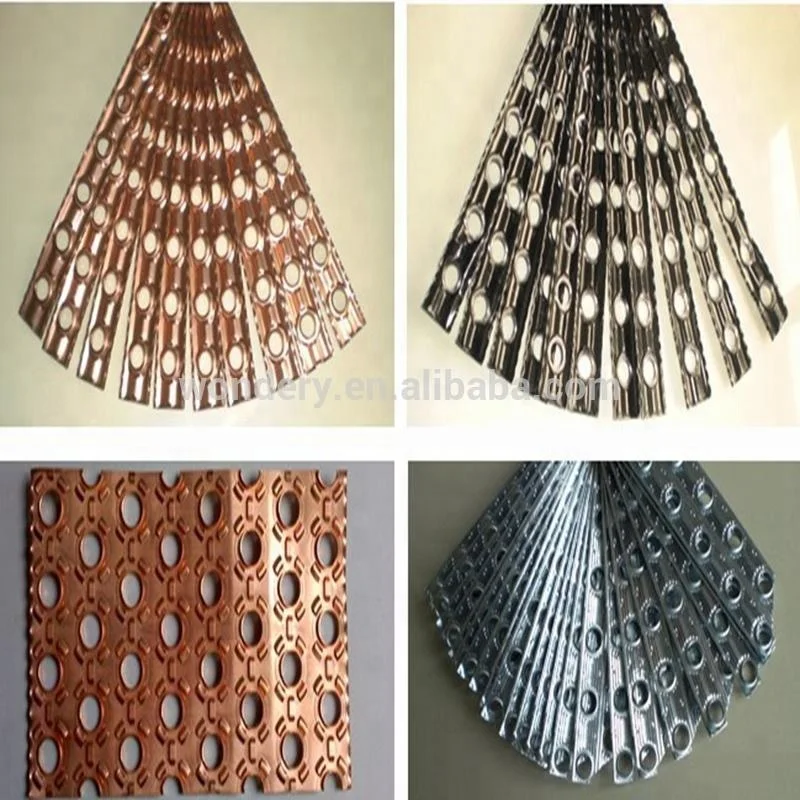

Fin Size Specification produced by fin press machine |
Φ5*19.5*11.2*(6-24)R. Φ7*21.0*12.7 or 20.5*12.7(12-24)R. Φ7.94*22.0*19.05*(12-18)R. Φ9.52*25.4*22.0 or 25.0*21.65*(12-18)R. Φ10.2*20.0*15.5*(12-24)R. Φ12.7*31.75*27.5*(6-12)R. Φ15.88*38.0*32.91 or 38.1*22.2(6-12)R. Φ19.4*50.8*38.1(4-8)R. Φ20*34.0*29.5*(6-12)R.Φ25*(4-6)R. |
Main Features
A) The company uses Pro/E 3-D software to analyze to get an ideal press frame structure. And the frame is made of quality steel plates which are under 2-time heat treatment to remove remaining stress.
B) The main shaft of the aluminum fin press machine adopts NSK brand bearings.
C) The main shaft of aluminum fin press machine adopts the balancing pneumatic cylinder mechanism to ensure the accuracy of the lower dead point.
D) The slide block of aluminum fin press machine is a casting part with high rigidity and light weight. The slide block has 6 sides for direction guidance, and it has the advantages of long guidance distance, high precision and strong anti-deviation ability.
E) The slide block inside is equipped with a hydraulic overloading device. The fin press machine is topped automatically at overloading situations so as to protect the press and mold.
F) The aluminum fin press machine employs the advanced Japanese HMI automatic collective lubrication system. The oil piping system is set with an alarm.
G) The aluminum fin press machine adopts dry type pneumatic clutch brake with advantages of low noise and easy maintenance.
H) The combination of frequency conversion motor and inverter has the advantages of low noise and low energy consumption.
I) The aluminum fin press machine adopts the combination of frequency conversion motor and inverter system which has a low noise and saves energy consumption.
J) The two sides of the working area are protected with the light curtain so as to ensure operator safety.
Detailed Images
RELATED PRODUCTS
COMPANY PROFILE
WUXI WONDERY TRADING CO., LTD. is a professional supplier of industrial machines. Currently the company mainly supplies the equipment for the automobile industry, household air conditioner industry, engineering vehicle industry, power generation plant industry, train industry, ship industry, etc. Our main products are: radiator making machines, aluminum fin machine, aluminum radiator core builder machine, aluminum radiator plastic tank clinching machine, aluminum radiator brazing furnace, aluminum header pipe punching machine, aluminum flat tube straightening and cutting machine, high speed fin press machine, aluminum/copper pipe straightening and cutting machine, tube expander machine, automatic bending machine, progressive fin die, metal punching die, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
CUSTOMER PRAISE
CERTIFICATION
PRODUCT PACKAGING
FAQ
1. What is the power supply of the heat exchanger making machines?
The power supply of heat exchanger making machines is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the melting furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 30-60 days after receipt of down payment.
