China Tencan 2L Zirconia Planetary Ball Mill Jar

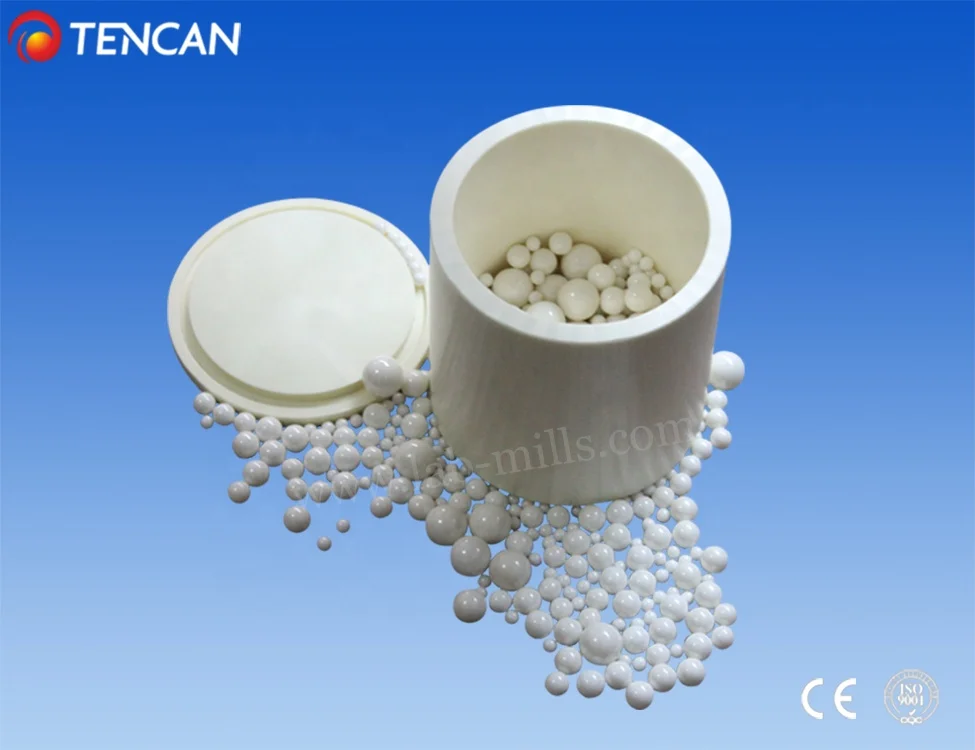

Simple Introduction of Ceramic Mill Pot



Ceramic zirconia pot is widely  used  in  grinding  device  in  petroleum,  medicine,  chemical,  mobile manufacture,  war industry,  metallurgy,  printing and dying, food, mechanical and so on. It has high density and good fracture toughness.



Zirconia Chemical Composition Analysis



Items	Units	Parameters
Composition	Wt%	94.8%ZrO2/5.2%Y2O3
Packed Density	Kg/L	3.5(φ7mm)
Specitic Density	g/cm³	≥6.05
Hardness(HK)	Gpa	>11
Elastic moduils	Gpa	200
Thermal Conductivity	w/m.k	3
Crushing Load	KN	≥20(φ7mm)
Fracture Toughness	Mpam ½	9
Grain size	µm	≤0.5
Thermal expansion Coefficient(20-400°C)	10×10(20to400)	9.6





Ceramic Zirconia Mill Pot Detail Size





(L) (MM)	D1	D2	H	h1	h2	h3	R
0.05	55	38	60	8	8	6	8
0.1	65	50	66	8	8	6	8
0.25	92	74	78	8	9	8	10
0.5	100	84	108	8	9	8	10
1	128	108	138	10	10	8	15
1.5	132	112	165	10	10	8	15
2	158	134	165	12	12	10	15
2.5	158	134	200	12	12	10	15
3	158	134	230	12	12	10	15

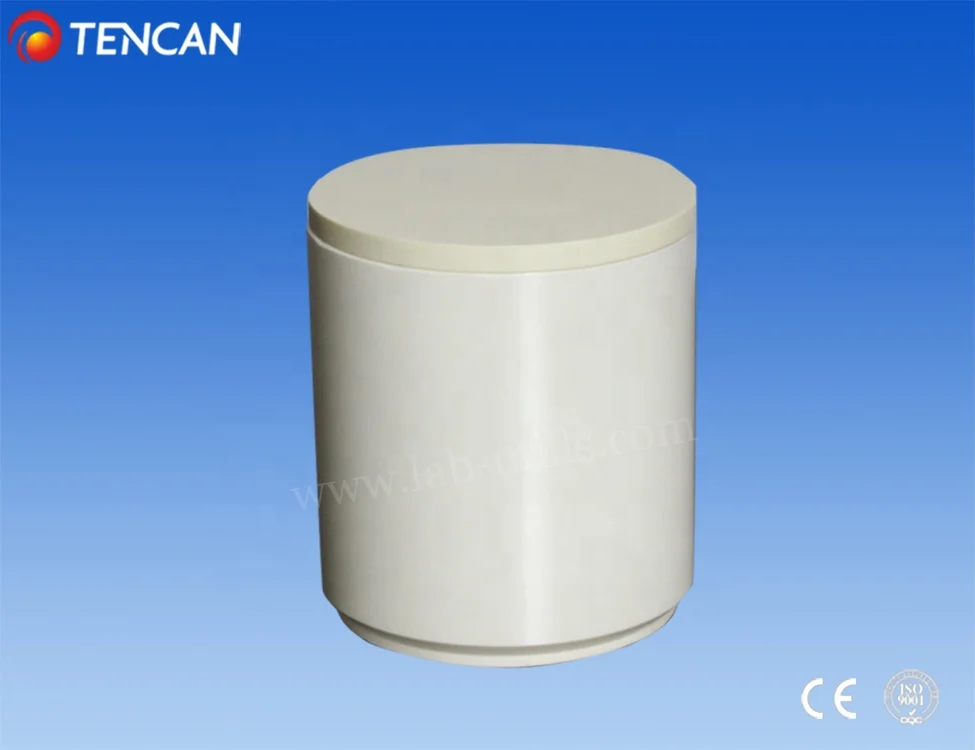

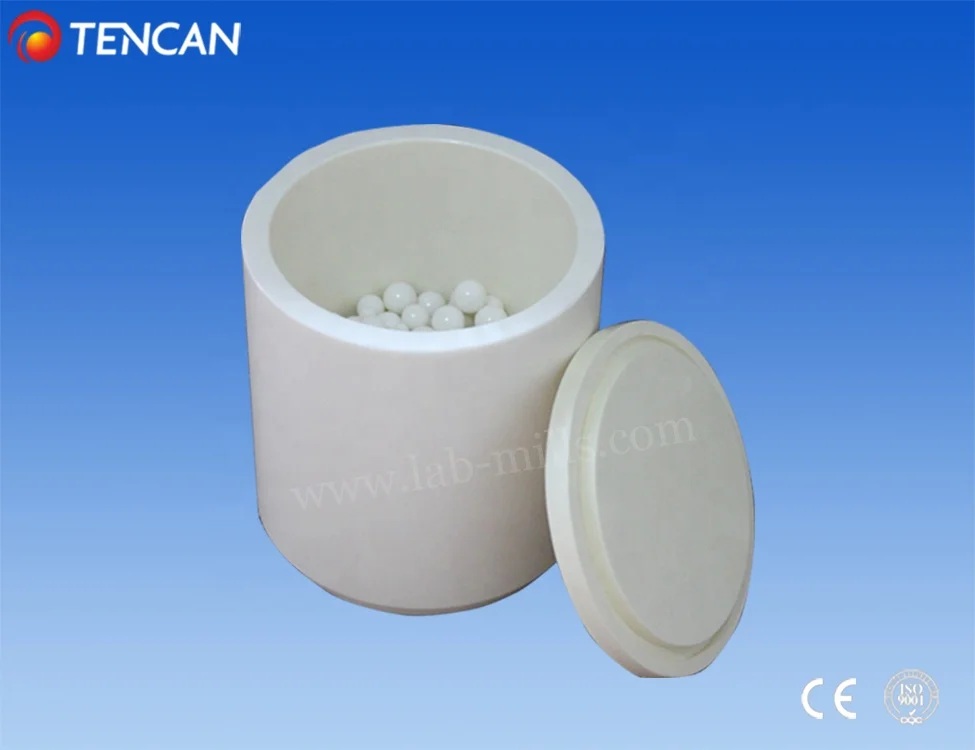

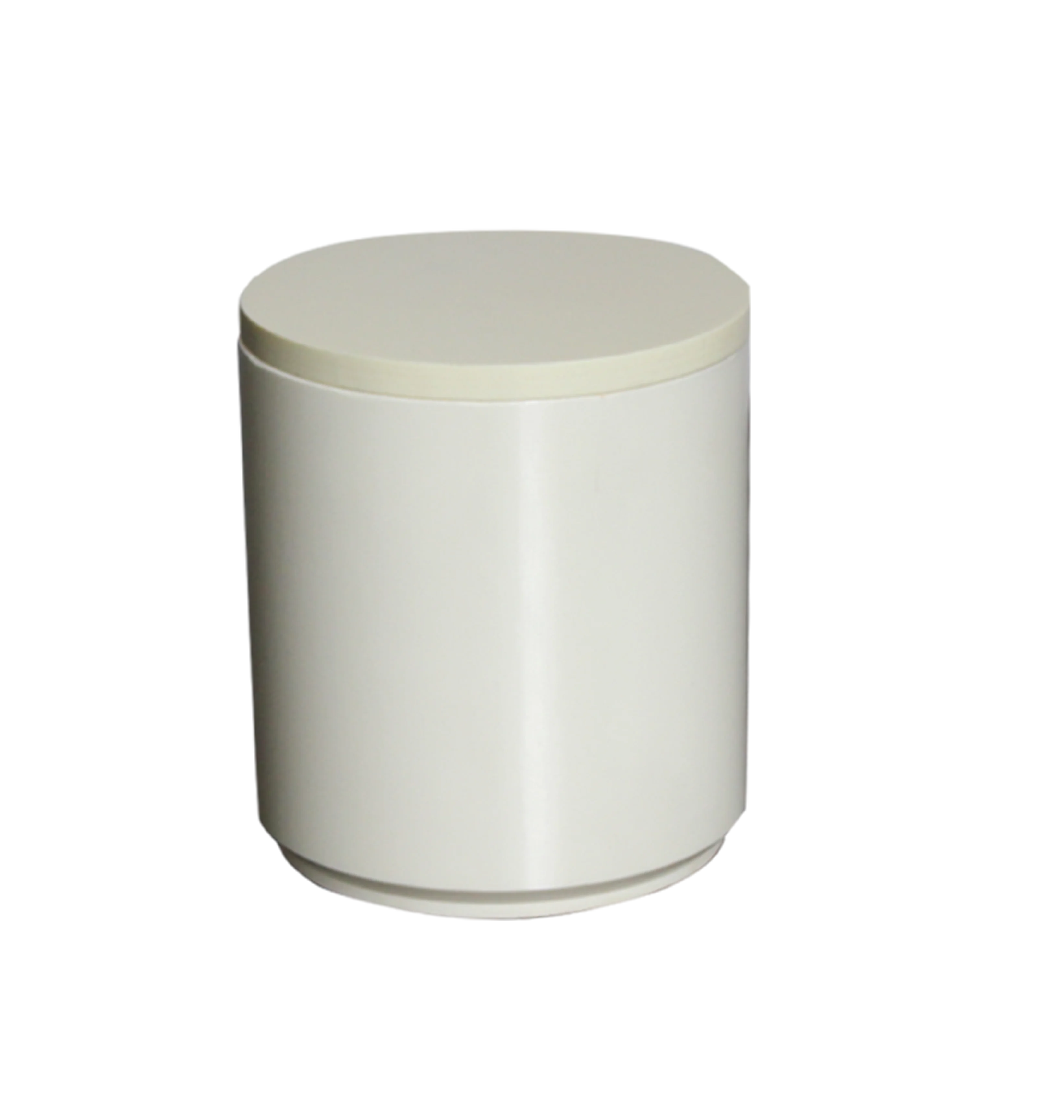

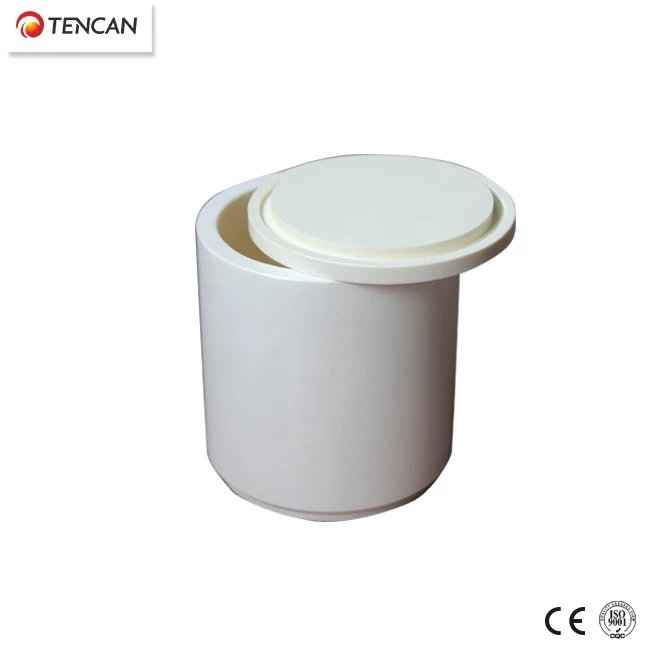

Ceramic Zirconia Mill Pot Reference Pictures



















Besides the ceramic alumina pot, our factory can also provide stainless steel pot, agate pot, nylon pot,alumina pot, PTFE pot.

Here we send more pictures for your reference.



Stainless steel pot



PTFE mill port



Nylon pot
