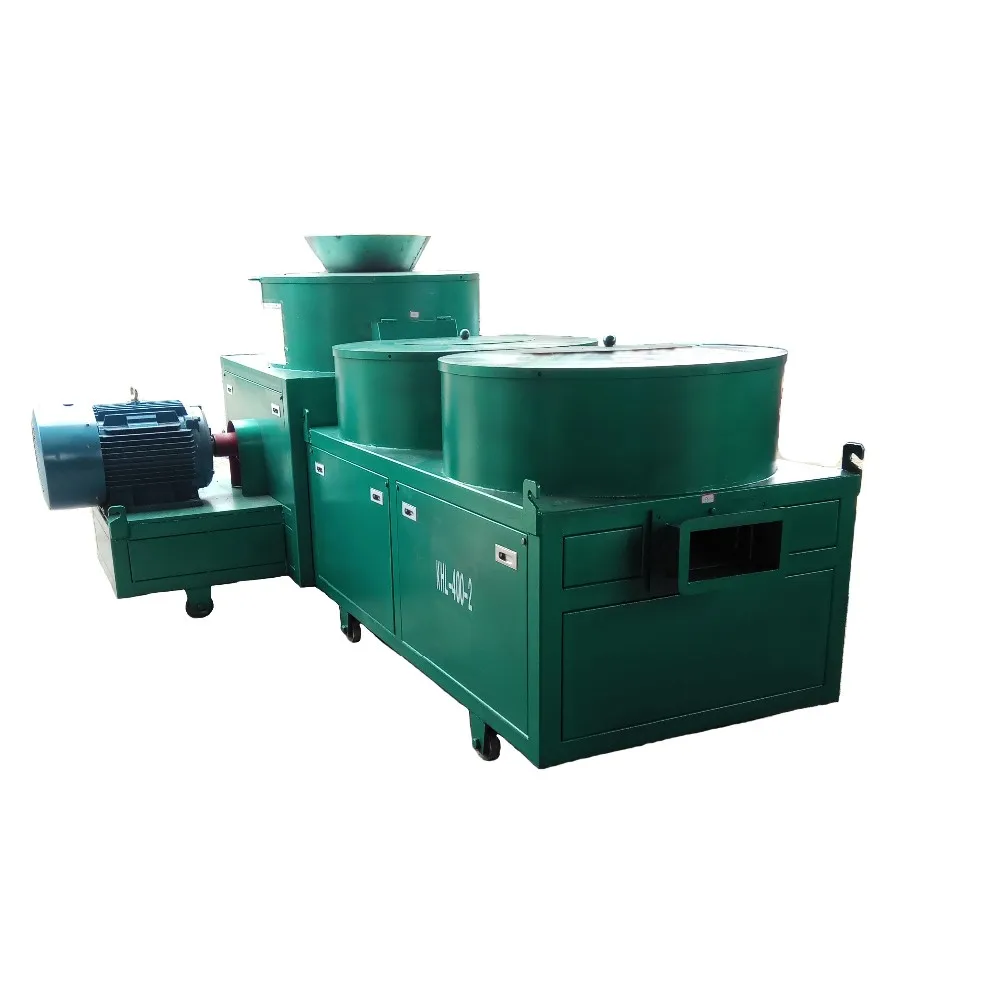

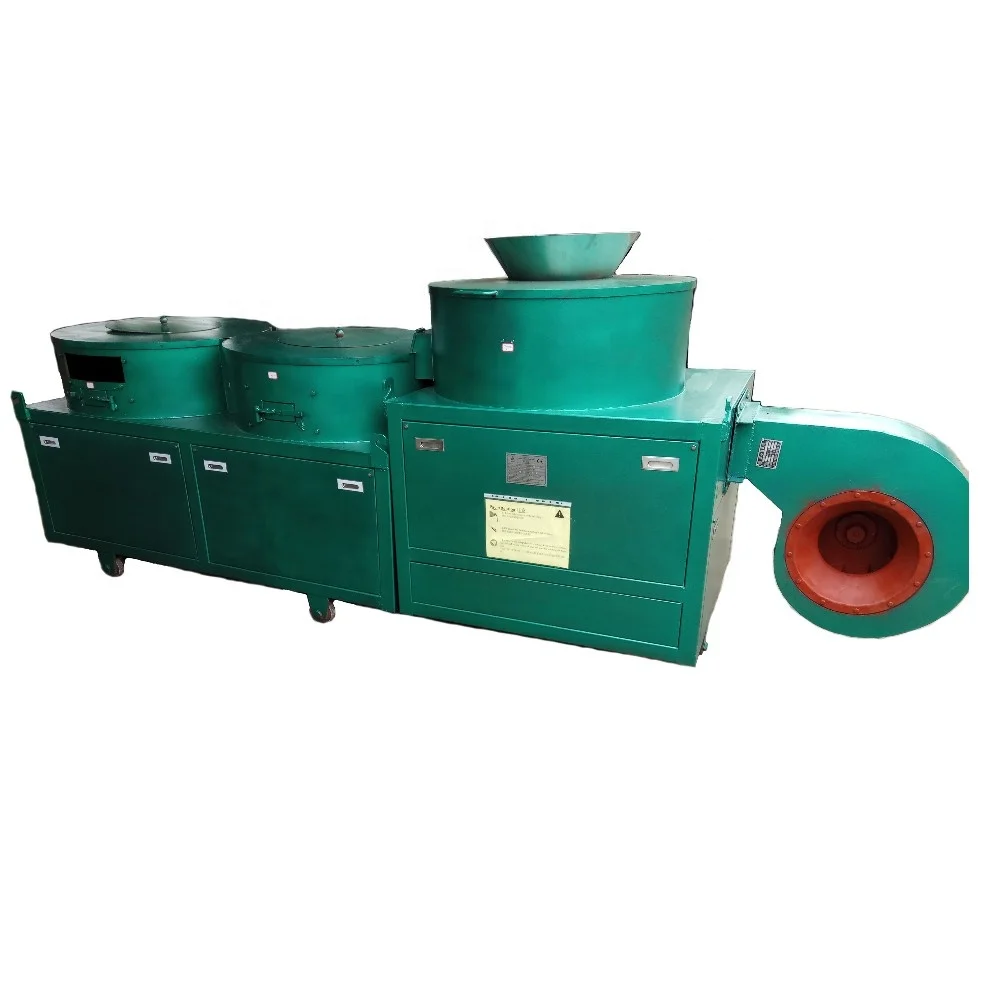

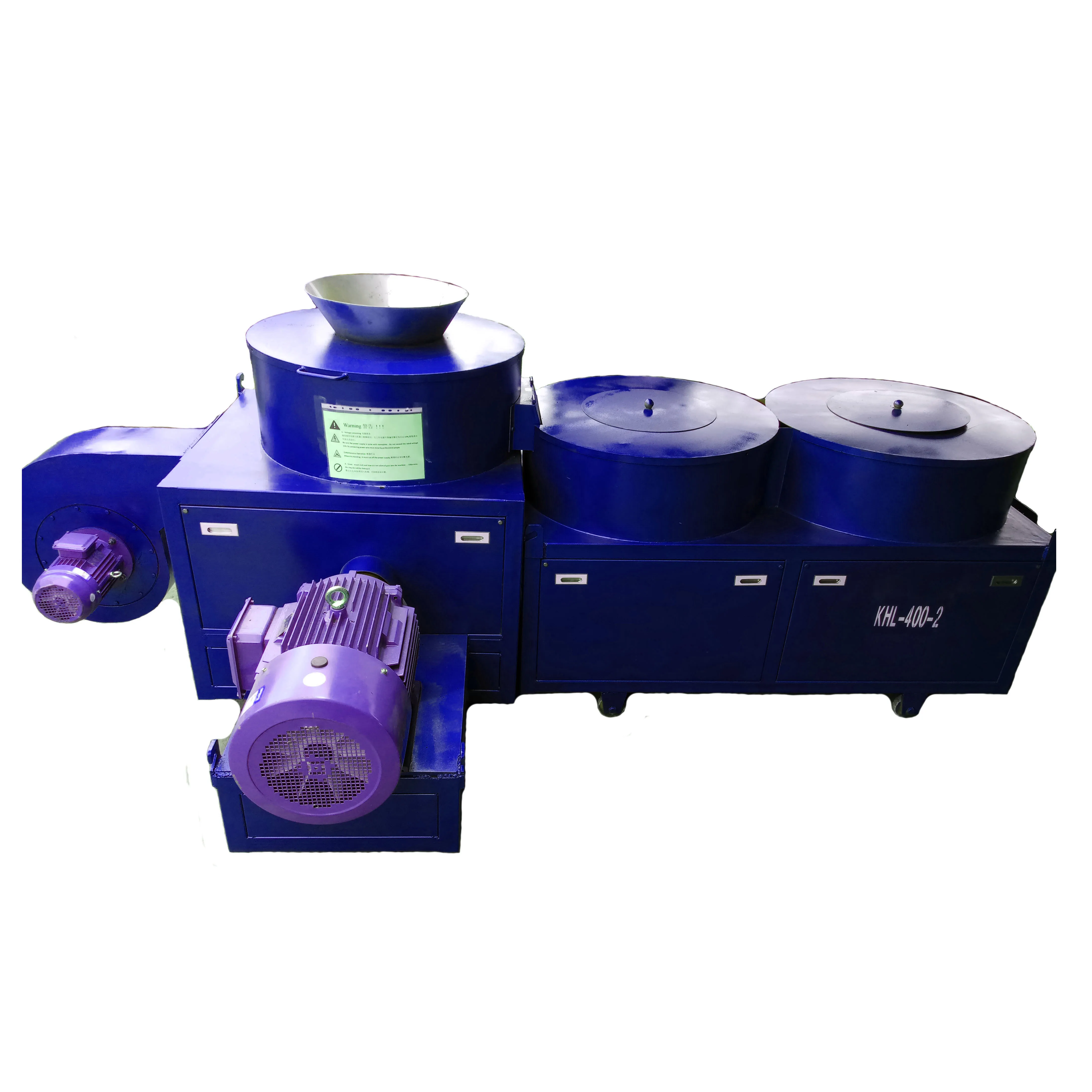

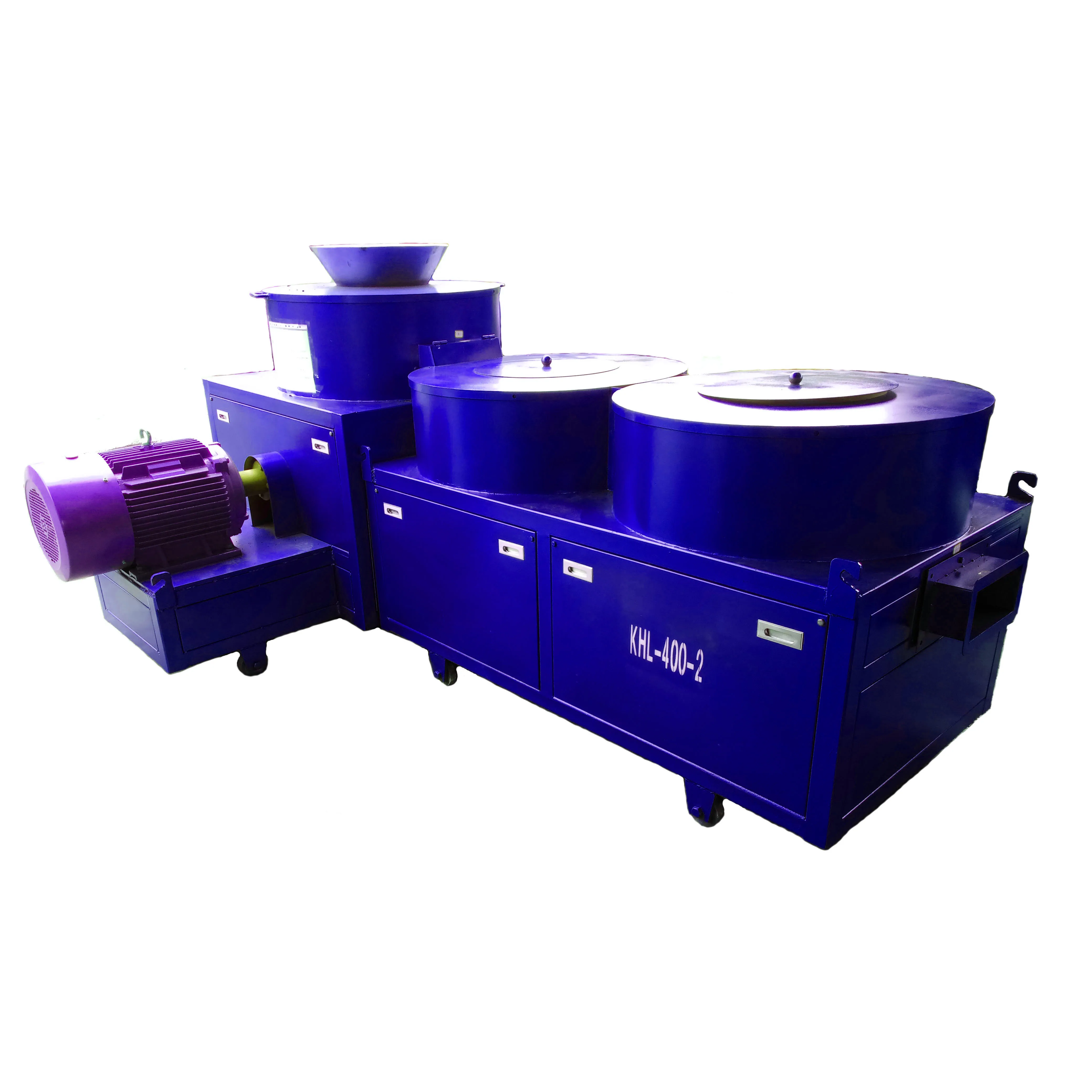

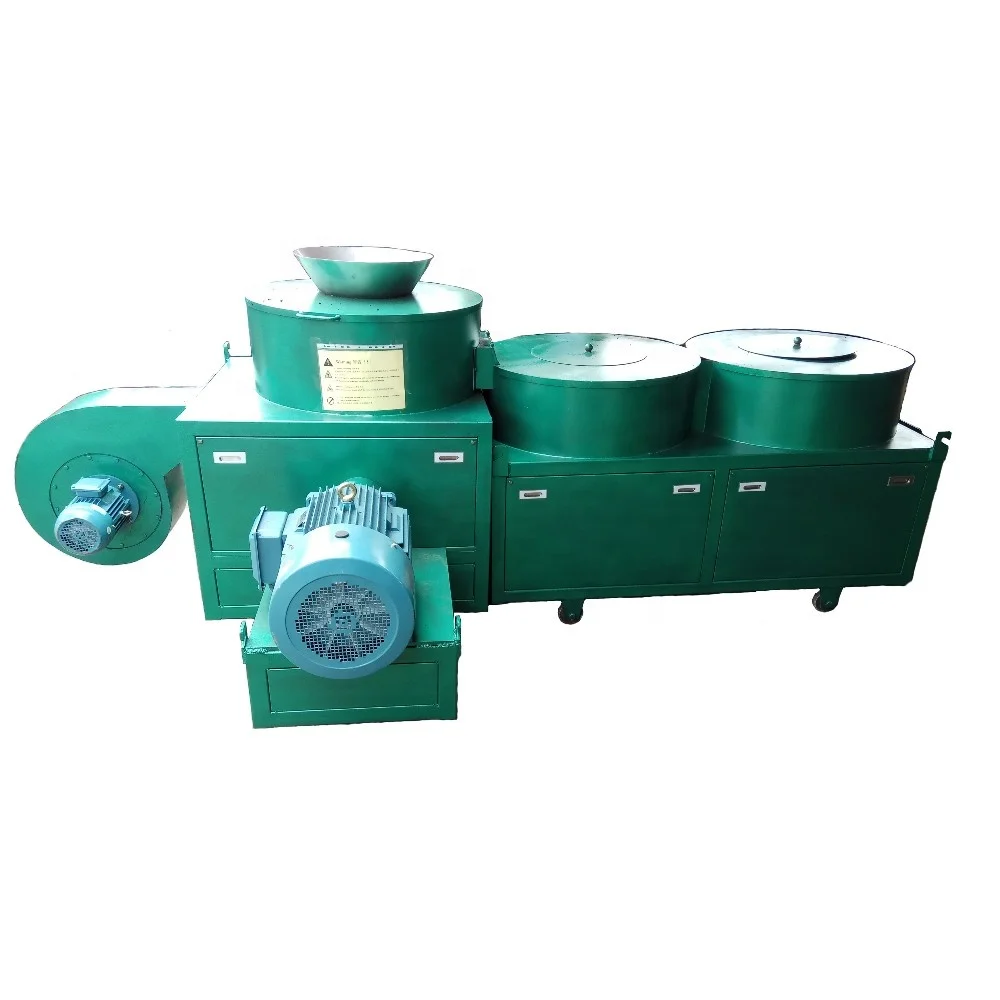

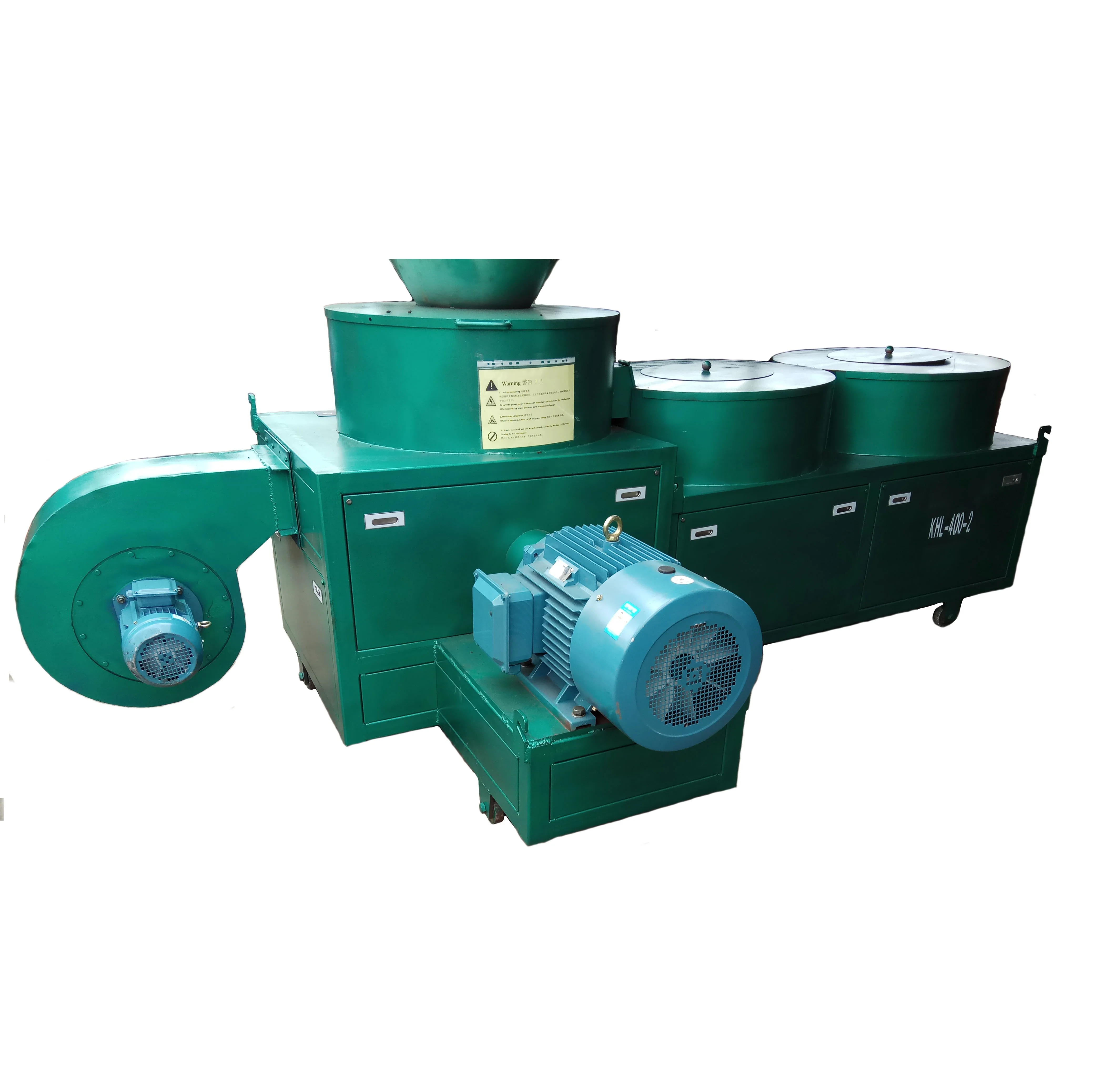

KHL-400-2 органическое гранулированное удобрение делая

 Machine for making uniform organic fertilizer granules

The Ring Die System Granulator has two parts :

1, Pelletizer part

2, Balling parts

(1) ,The Pelletizer part with Ring die and rollers system :

The raw material goes into working chamber and fall on the ‘dump tray’, the raw materials throw into the ring die by centrifugal effect ; The ring die and rollers system turning drive by reduction gears & transmission which energy from motor . The pressure come from ring die and rollers system running ,cylinder form are forced extrusion from ring die hole ,which cutting into small pellets as required by cutting line .

(2),Balling Parts are rotation disks :

The pellets fall onto the disk in the drum ,by high-speed rotating disk throw onto the wall of drum with circumferential movement , the granules in a circular motion at the same time also in radial rotation motion due to centrifugal effect . Mutual friction make the granules with edges and corners into balls gradually due to granules’ moving . At this moment , ball pellets gradually floating on the top , final granules overflow along with quantity of granules increased in the drum .

The series of granule machines can make the following raw materials into granules :

1. Turfs, lignite, sludge, pond sludge,Sucrose slag,starch pulp as materials can be made into granules;

2. Chicken manure ,duck manure , pig manure , sheep dung , deer manure ,cow dung and earthworm cast as materials can be made into granules ;

3. Bean cakes ,Vinasse slag, Biogas residue , Fruit residue ,palm oil residue as the main materials can be made into granules;

4. Residues of urban rubbish or sewage treatment plants as materials can be made into granules.

1,Nice looking in shape, simple in structure, easy in operation and service, safe in solidity, small in volume. and light in weight etc. No special training needed and operation available through manual,

2,Robust in operating, no shut down even at full load, and separate feeding device not needed,

3,Versatile available, feed production may be arranged after manure without being idle for later half year,

4,With low energy consumption and high efficiency, equipment in medium and miniature size are quite ideal for biologic organic fertilizer, feed production plant, farming and meadow, waste water treatment plant, garbage disposal and farmers both in town and village,

organic fertilizer granules machine  Loaded in the Wooden Cases ,and then into the container

 machine for making organic fertilizer granules
